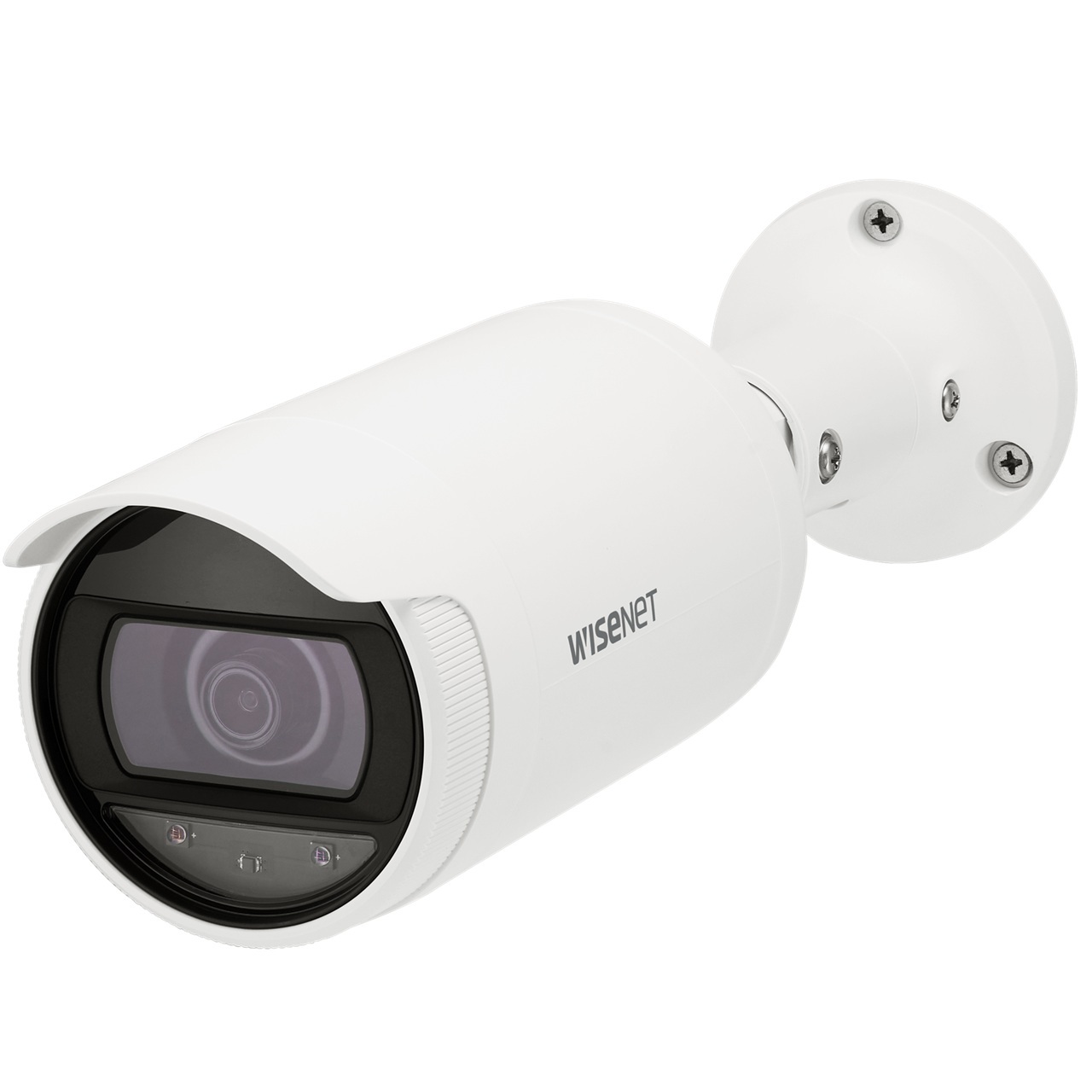

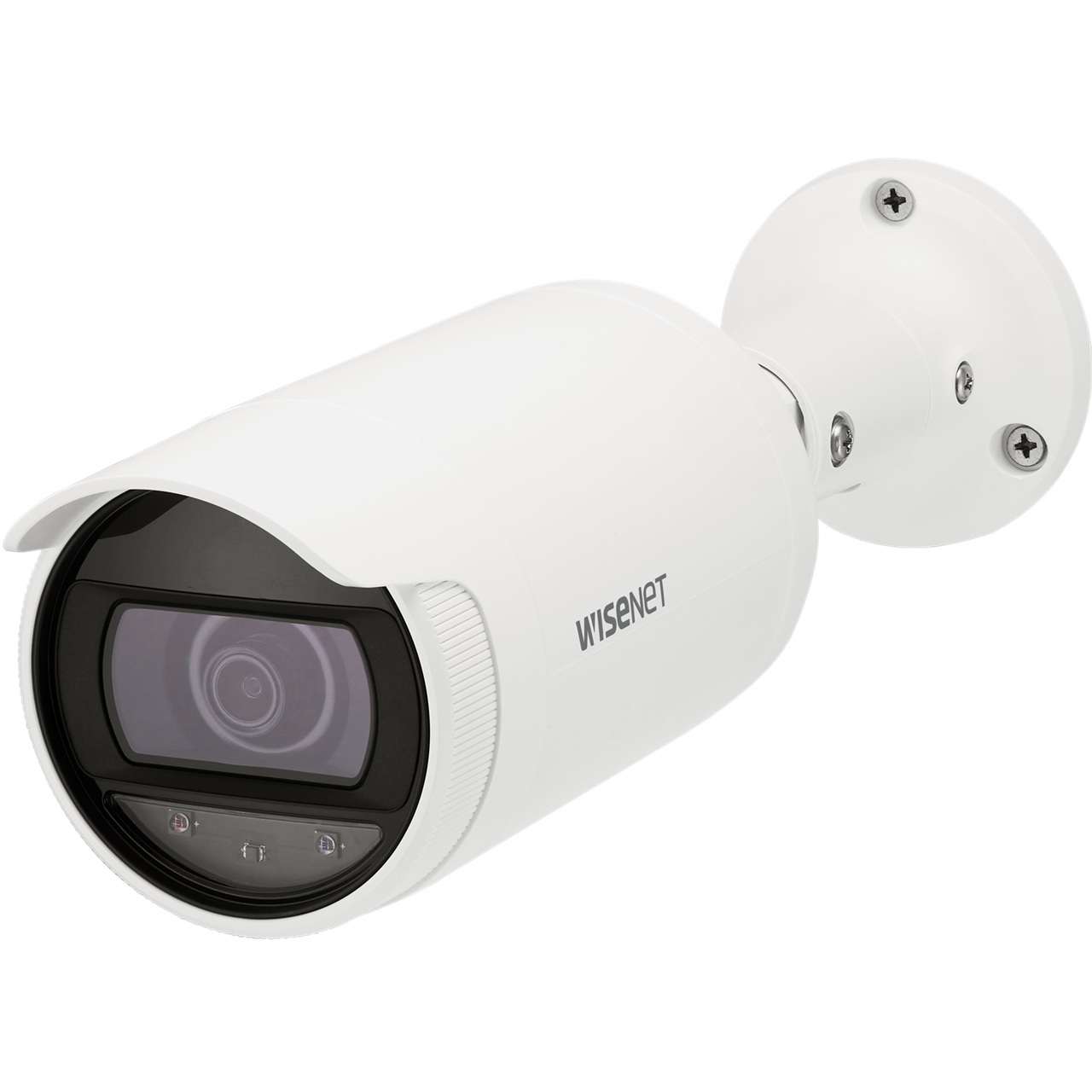

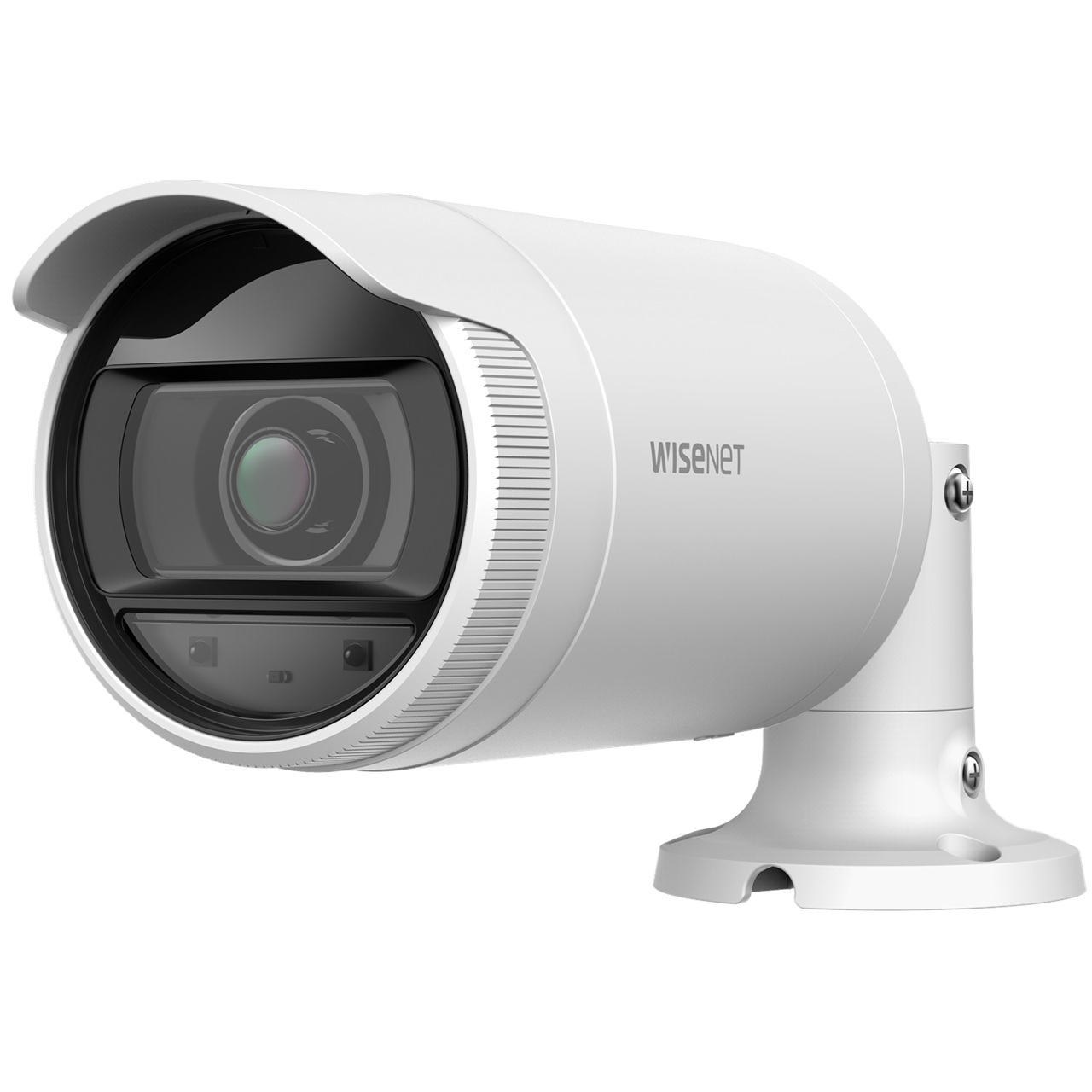

ANO-L7012R Hanwha Vision 3mm 30FPS @ 4MP Outdoor IR Day/Night WDR Bullet IP Security Camera PoE

SKU: ANO-L7012R

4MP IR Bullet Camera

Features:

  • 4MP resolution, Up to 30fps (H.265/H.264)
  • Color : 0.1Lux (F1.6, 1/30sec), B/W : 0Lux (IR LED On)
  • 3mm lens w/ 98.3° HFoV
  • IR viewable length: 20m
  • Day & Night (ICR), WDR (120dB)
  • H.265, H.264, MJPEG, Multiple streaming supported
  • Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering
  • Hallway view (90⁰/270⁰), LDC support, WiseStream II
  • Micro SD/SDHC/SDXC memory slot (Max. 128GB)
  • IP66
NDAA
More details...
MPN: ANO-L7012R
EAN: 8801089212412
MSRP Price: $220.00
Web Price: $220.00
Save to my Wish List

New to DWG? - Sign Up for immediate access to dealer pricing and benefits.

Already a DWG Customer? - Sign In to view pricing.



Product Details

Specifications

Video

  • Imaging Device - 1/3" CMOS
  • Resolution - 2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
  • Max. Framerate - H.265/H.264 : Max. 30fps at 4M all resolutions MJPEG : Max. 15fps
  • Min. Illumination - Color : 0.13Lux (F1.6, 1/30sec) B/W : 0Lux (IR LED On)

Lens

  • Focal Length (Zoom Ratio) - 3mm fixed focal
  • Max Aperture Ratio - F1.6
  • Angular Field of View - H: 98.3° / V: 54.2° / D: 114.6°
  • Min. Object Distance - 1.1m(3.6ft)
  • Focus Control - Fixed

Operational

  • Camera Title - Displayed up to 85 characters
  • Day & Night - Auto(ICR)
  • Backlight Compensation - BLC, WDR, SSDR
  • Wide Dynamic Range - (120dB)
  • Digital Noise Reduction - SSNRâ…¤
  • Motion Detection - 4ea, Polygonal zones
  • Privacy Masking - 6ea, rectangular zones
  • Gain Control - Low / Middle / High
  • White Balance - ATW / AWC / Manual / Indoor / Outdoor
  • LDC - Support
  • Electronic Shutter Speed - Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
  • Video Rotation - Flip, Mirror, Hallway view(90Ëš/270Ëš)
  • Analytics - Defocus detection, Motion detection, Tampering, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing/Direction)
  • Alarm Triggers - Analytics, Network disconnect * Alarm input(with NW I/O Box)
  • Alarm Events - File upload via FTP and e-mail, Notification via e-mail, SD/SDHC/SDXC or NAS recording at event triggers, Handover
  • IR Viewable Length - 20m(65.62ft)

Network

  • Ethernet - RJ-45 (10/100BASE-T)
  • Video Compression - H.265/H.264: Main/High, MJPEG
  • Smart Codec - Manual (5ea area), WiseStreamâ…¡
  • Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
  • Streaming - Unicast (6 users) / Multicast Multiple streaming (Up to 3 profiles)
  • Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
  • Security - HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access Log 802.1X Authentication
  • Application Programming Interface - ONVIF Profile S/G/T, SUNAPI (HTTP API)

General

  • Webpage Language - English
  • Edge Storage - Micro SD/SDHC/SDXC 1slot 128GB
  • Memory - 512MB RAM, 256MB Flash

Environmental & Electrical

  • Operating Temperature / Humidity/ Others - -30°C ~ +55°C (-22°F~+131°F) / Less than 95% RH
  • Storage Temperature / Humidity - -30°C ~ +55°C (-22°F~+131°F) / Less than 95% RH
  • Certification - IP66
  • Input Voltage - PoE(IEEE802.3af, Class3)
  • Power Consumption - Max 7.5W, typical 5.7W

Mechanical

  • Color / Material - White / Plastic
  • RAL Code - RAL9003
  • Product Dimensions - Ø78.0x262.0mm(Ø3.07x10.31”)
  • Weight - 390g(0.86lb)

DORI (EN62676-4 standard)

  • Detect (25PPM/ 8PPF) - 44.3m(145.25ft)
  • Observe (63PPM/ 19PPF) - 17.7m(58.10ft)
  • Recognize (125PPM/ 38PPF) - 8.9m(29.05ft)
  • Identify (250PPM/ 76PPF) - 4.4m(14.53ft)

ANO-L7012R Specifications PDF

Check out some additional items that you may need to purchase with this product:
Check the check boxes next to the additional products that you would like to add to the shopping cart, then click on the "Add to Cart" button above. A check box is not shown if a product requires that you select an option or fill out a field. () indicates a required accessory.

SBO-090GP Hanwha Techwin Wall Adaptor

MSRP Price: $20.00
Web Price: $20.00

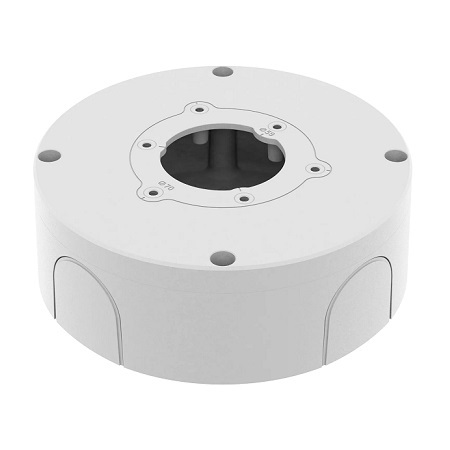

SBO-140BW Hanwha Techwin Backbox for Bullet Camera

MSRP Price: $49.00
Web Price: $49.00

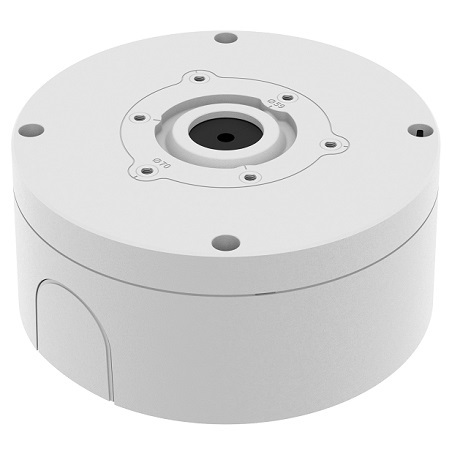

SBO-140WW Hanwha Techwin Back Box for Bullet Cameras

MSRP Price: $76.00
Web Price: $76.00

SBP-060S Hanwha Techwin Stainless Steel Mount Straps

MSRP Price: $30.00
Web Price: $30.00

SBP-300KMW1 Hanwha Techwin Corner Mount Adapter - White

MSRP Price: $79.00
Web Price: $79.00

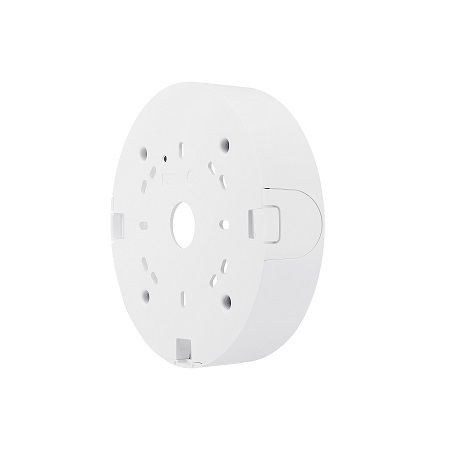

SBV-A14B Hanwha Techwin Back Box
