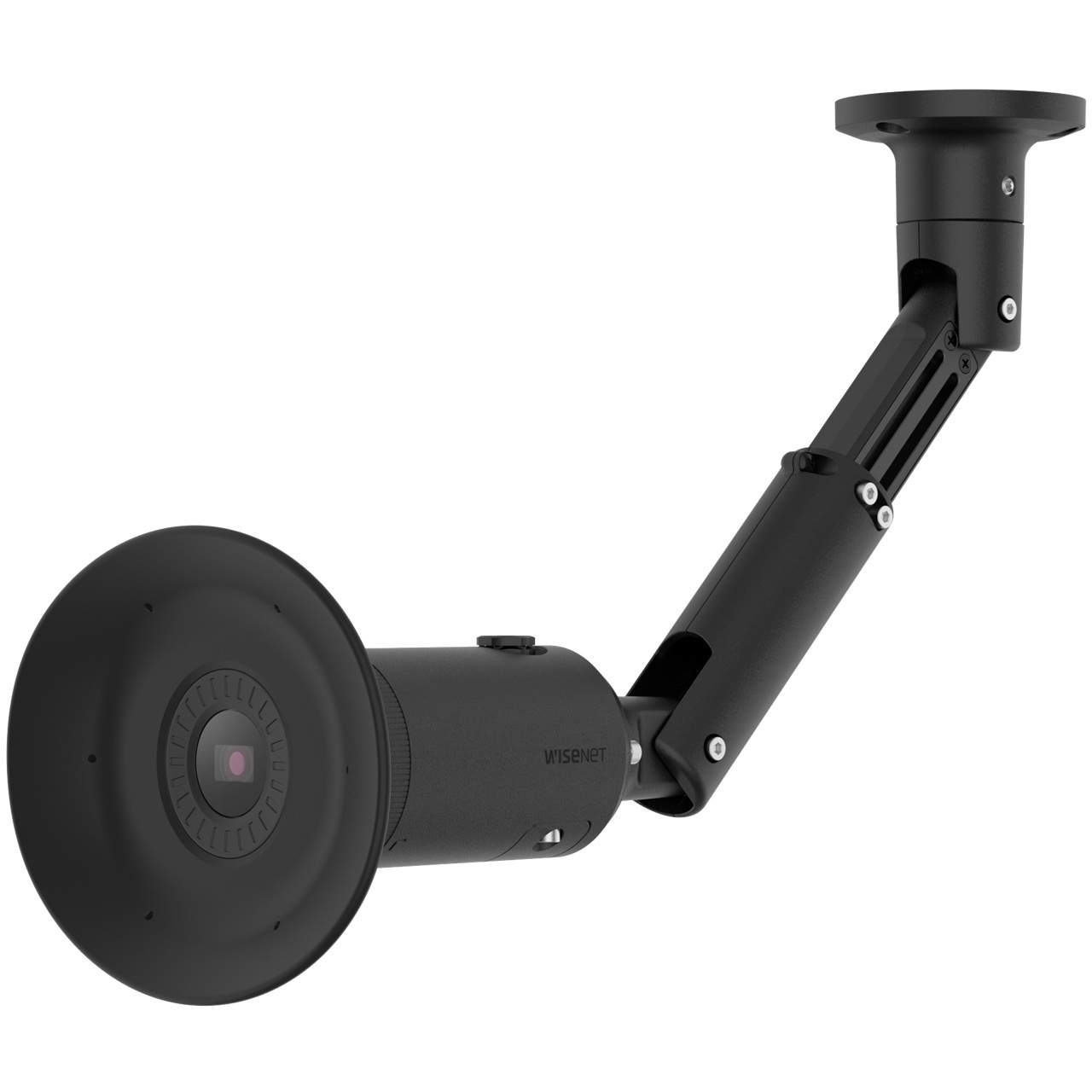

TNO-6010M Hanwha Vision T Series 2.8mm 60FPS @ 2MP Outdoor Day/Night WDR Mobile Bullet IP Security Camera PoE with Windshield Glare Hood

Introduction

Security you can bank on

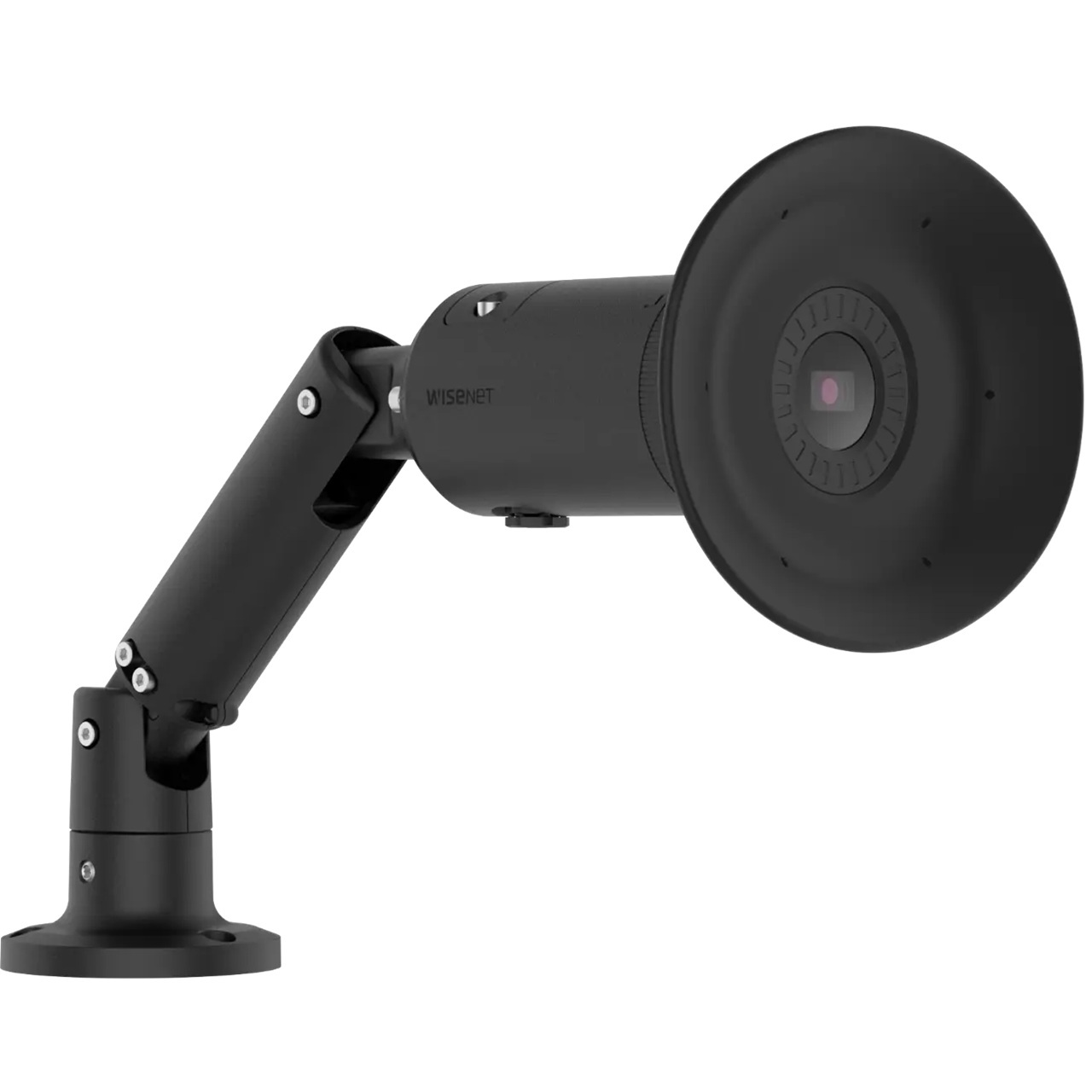

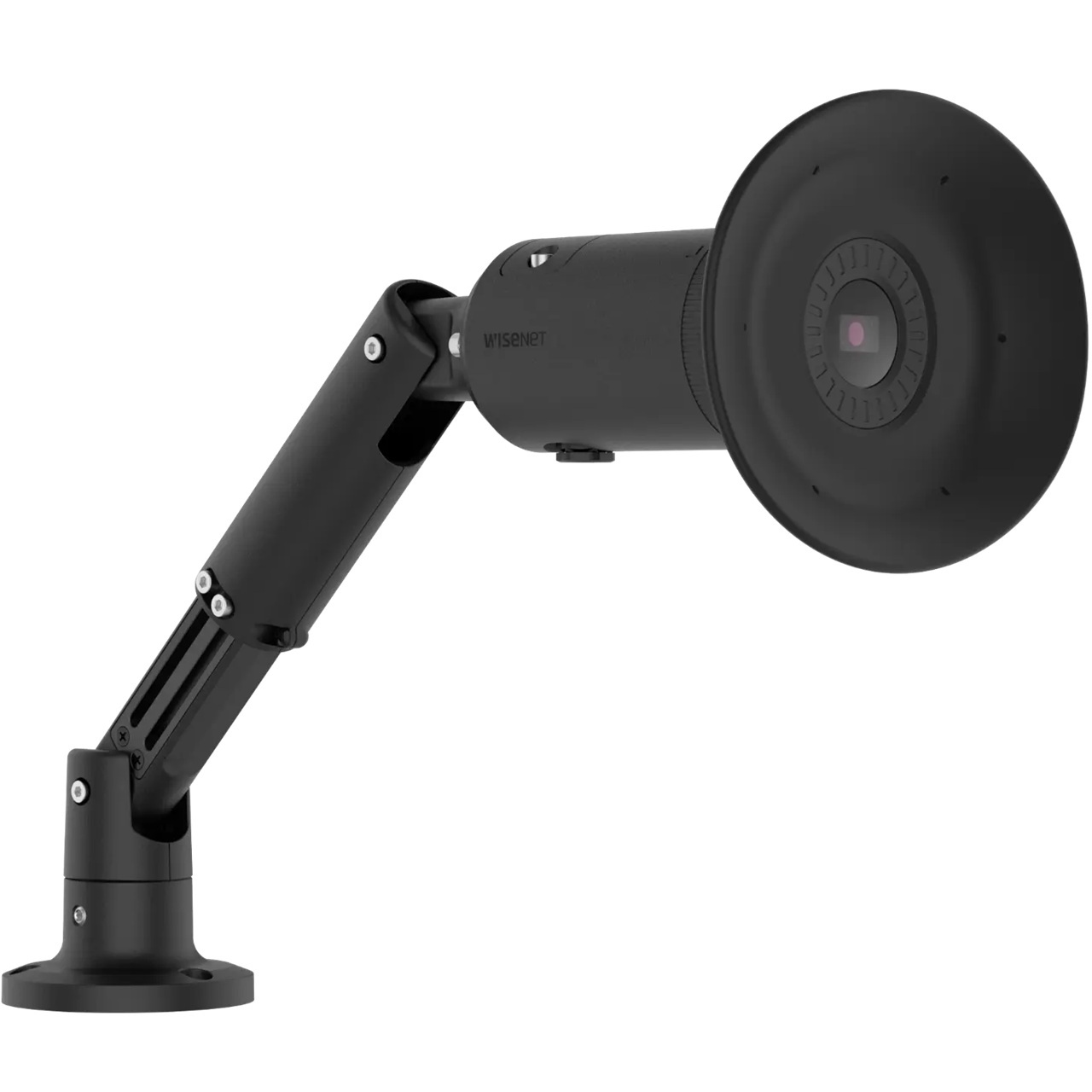

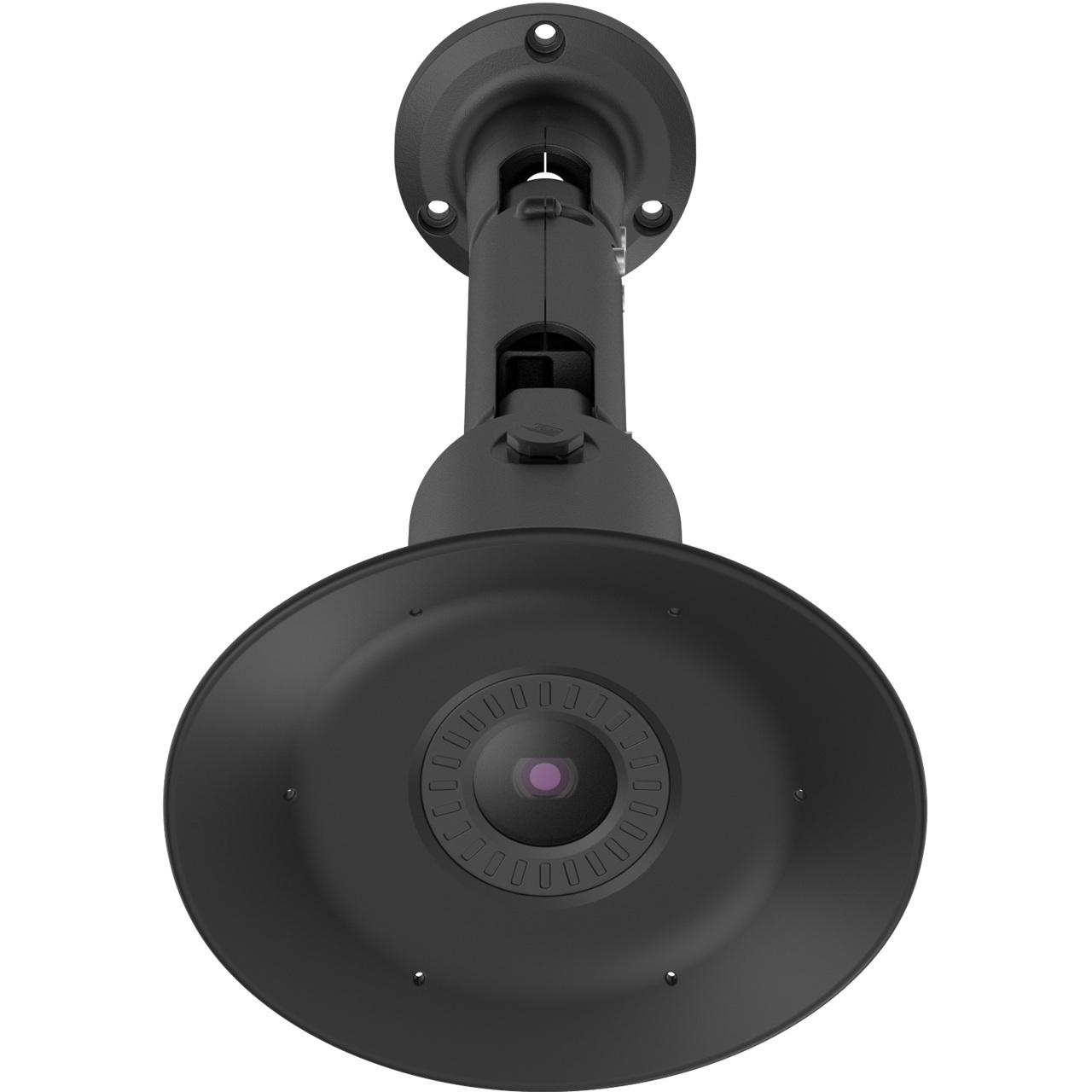

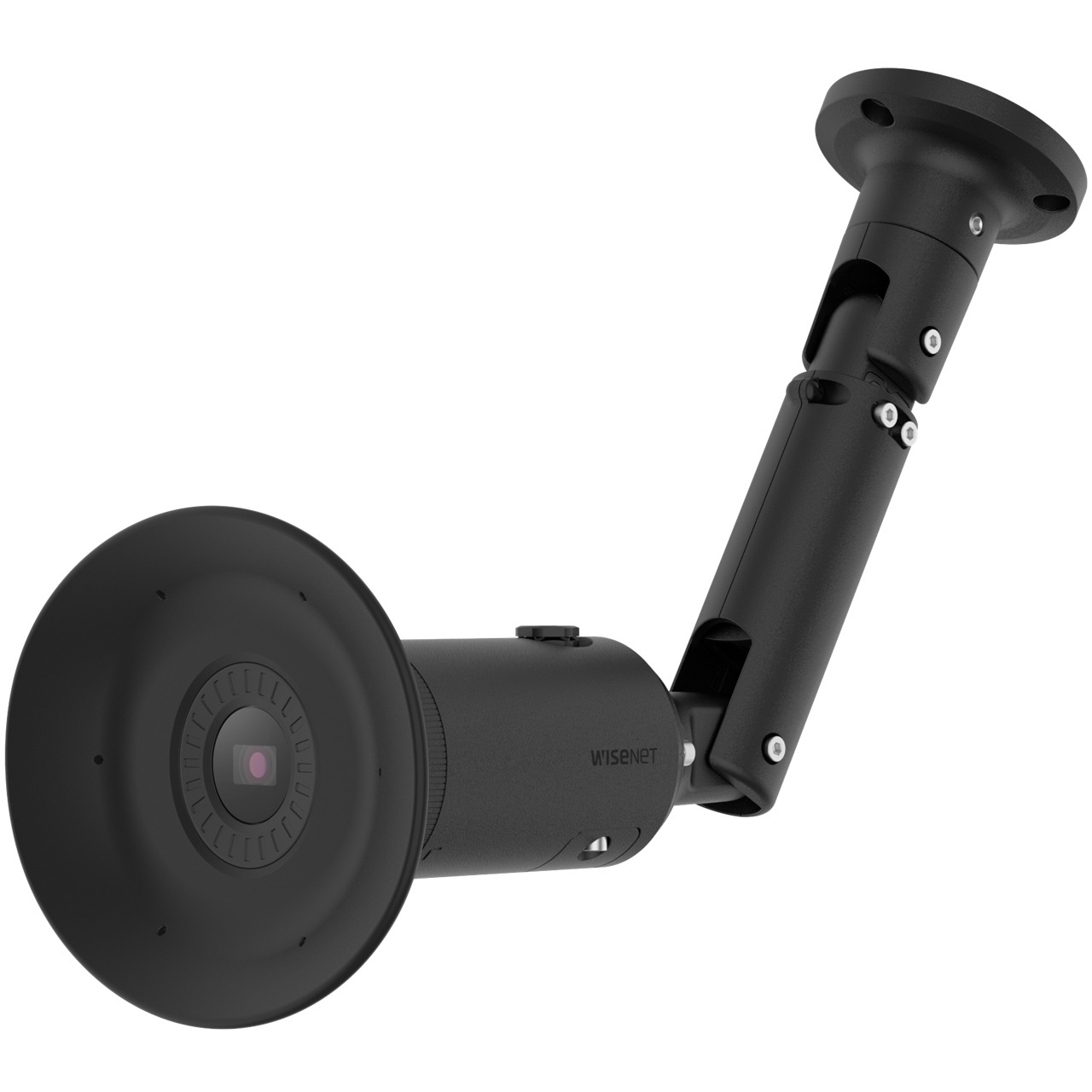

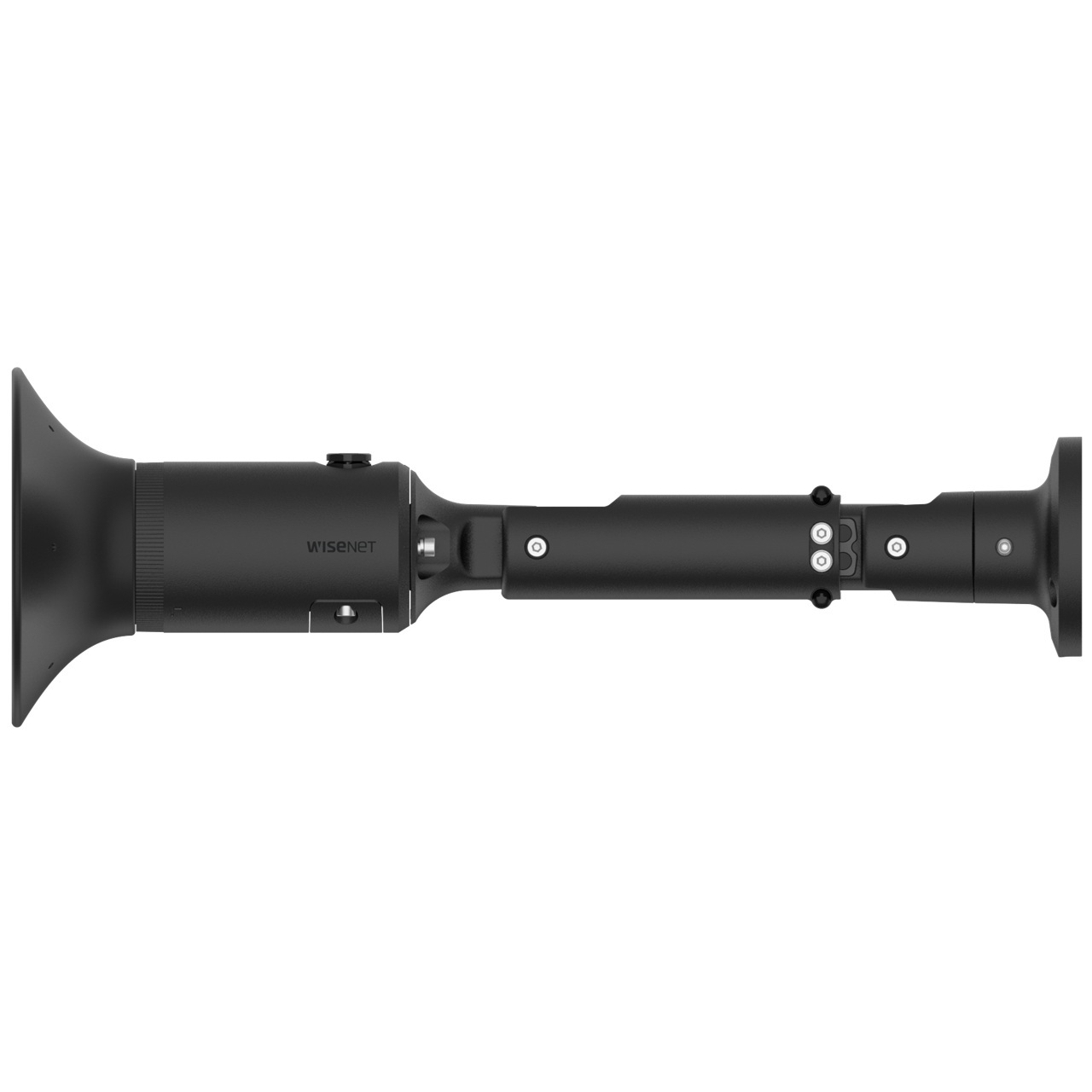

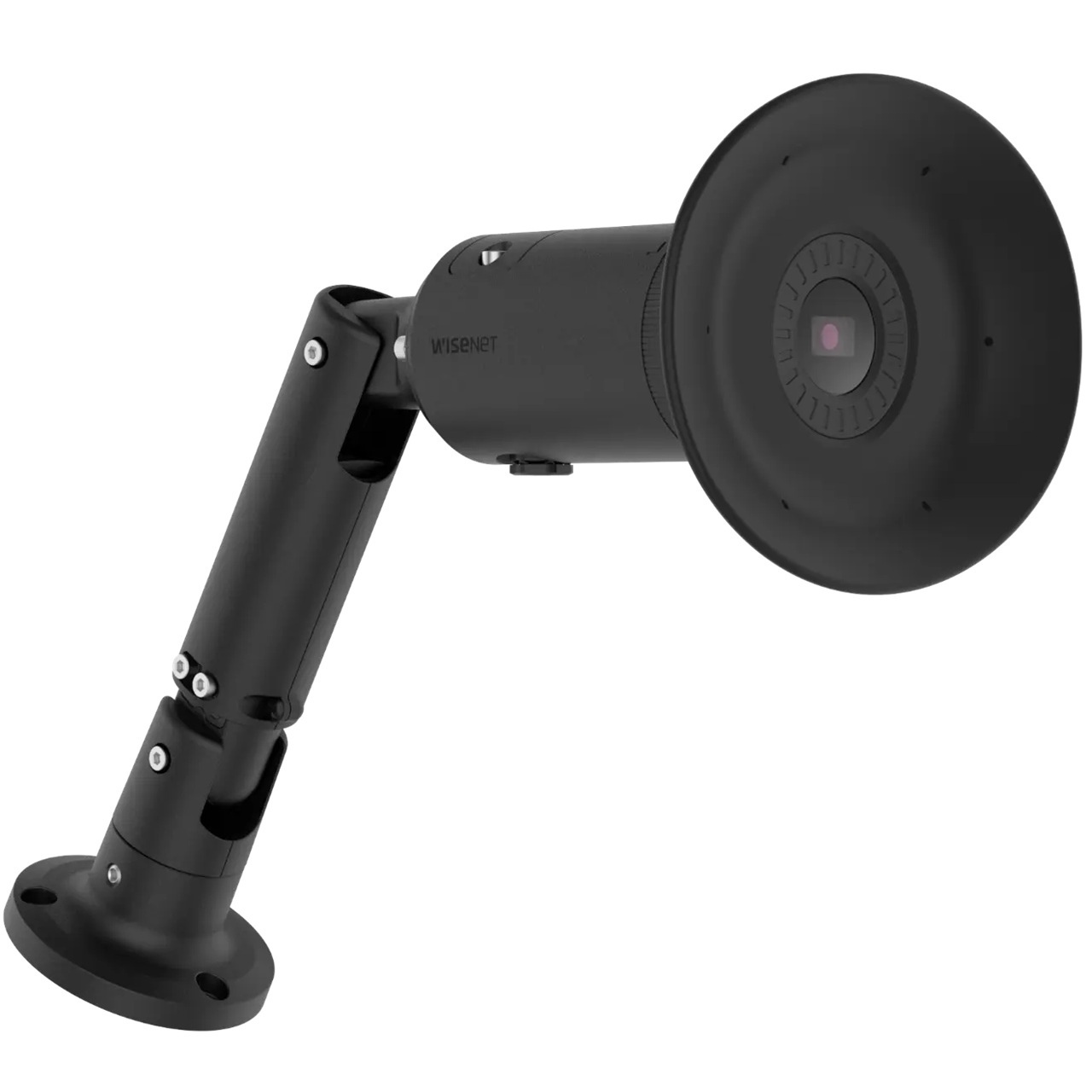

The 2MP glass-facing camera is the ideal solution for your drive-thru banking area. The camera’s perforated lens hood allows it to be pressed against windows, eliminating reflections in captured footage from inside the branch or enclosure while preventing condensation during colder seasons.

Specifications

Video

• Imaging Device - 1/2.8" 2MP CMOS
• Effective Pixels - 1945(H)x1097(V)
• Min. Illumination - COLOR 0.04lux(F2.0, 1/30sec) B/W 0.004lux(F2.0, 1/30sec)
• Video Out - CVBS : 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation USB : micro USB type B, 1280 x 720 for installation

Lens

• Focal Length (Zoom Ratio) - 2.8mm fixed focal
• Max. Aperture Ratio - F2.0
• Angular Field of View - H: 113.7Ëš / V: 61.5Ëš / D: 134.5Ëš
• Min. Object Distance - 0.4m(1.31ft)
• Focus Control - Manual
• Lens Type - Fixed
• Mount Type - Board-in Type

Operational

• Camera Title - Displayed up to 85 Characters
• Day & Night - Auto (ICR)
• Backlight Compensation - BLC, HLC, SSDR
• Wide Dynamic Range - (150dB)
• Digital Noise Reduction - SSNRV
• Digital Image Stabilization - Support(built-in gyro sensor)
• Defog - Support
• Motion Detection - 8ea, 8point polygonal zones
• Privacy Masking - 32ea, polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic
• Gain Control - Low / Middle / High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• LDC - Support
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker(2~1/12,000sec)
• Video Rotation - Flip, Mirror, Hallway view
• Analytics - Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Shock detection
• Business Intelligence - People counting, Queue management, Heatmap
• Alarm Triggers - Analytics, Network disconnect
• Alarm Events - File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers

Network

• Ethernet - M12
• Video Compression - H.265/H.264: Main/Baseline/High MJPEG
• Resolution - 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Max. Framerate - H.265/H.264: Max. 60fps MJPEG: Max. 30fps
• Smart Codec - WiseStreamâ…¡
• Bitrate Control Method - H.265/H.264: CBR or VBR MJPEG: VBR
• Streaming - Multiple streaming(Up to 10 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
• Security - HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access Log 802.1X Authentication(EAP-TLS, EAP-LEAP)
• Edge Storage - Micro SD/SDHC/SDXC 1slot 256GB
• Application Programming Interface - ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
• Web Viewer - Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
• Memory - 1024MB RAM, 256MB Flash

Environmental

• Operating Temperature / Humidity - -30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH
• Storage Temperature / Humidity - -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
• Certification - UL, IP66, NEMA 4X, IK10 EN50581:2012, EN55011:2009+A1:2010(EN50121-3-2:2015), EN61000-4-2:2009, EN61000-4-3:2006+A2:2010, EN61000-4-4:2012, EN61000-4-5:2014, EN61000-4-6:2009, EN50155:2007, EN-45545-2, NFPA 130, BSS 7239

Electrical

• Input Voltage - M12 with PoE(IEEE802.3af, Class3)
• Power Consumption - 8W(Max), 4.3W(Typ)

Mechanical

• Color / Material - Black / Aluminum (Hood : Silicone rubber)
• RAL Code - RAL9005
• Product Dimensions/ weight - Φ62 x 372mm(w/o Hood), 1170g(2.58 lb)
