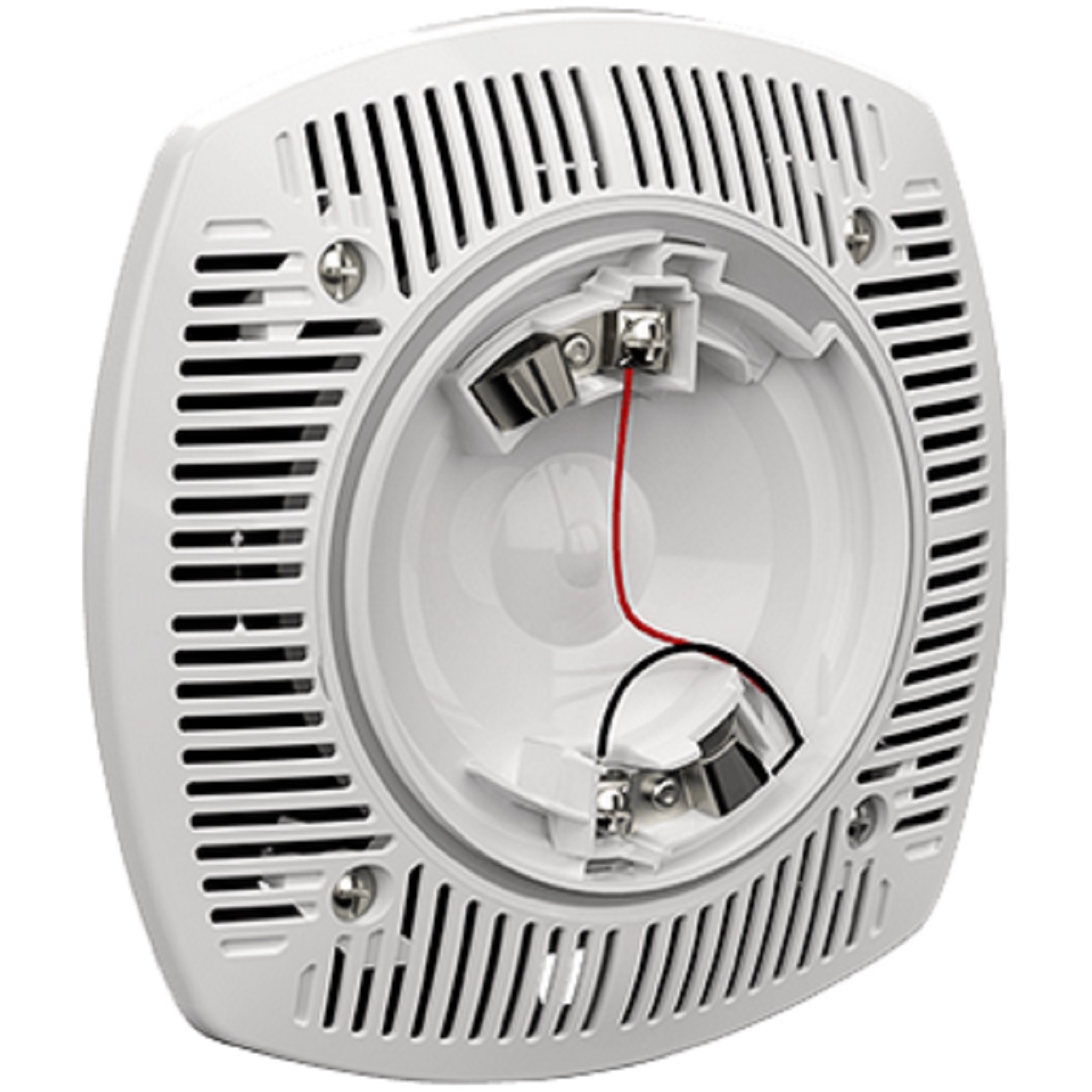

3992761 Potter LFSBBB-W Low Frequency Sound Base Back Box

Features

• Addressable low frequency sounder base, allows for single station, grouped or all call activation
• May be mapped to any device connected to the control panel
• Terminals accept 18 to 12 AWG wire sizes
• Supports Class A, Class X and Class B wiring
• Does not require SLC Loop address, uses PAD sub point addressing feature
• Complies with the Low Frequency Signal Requirements per NFPA 72 and UL 464 for Audible Signaling Devices
• 24 VDC Sounder base power connection supervised internally by each sounder base. No external power supervision relays required

Description

The Addressable Low Frequency Sounder Base (PAD100-LFSB) is a sounder base that may be utilized in a variety of applications. The base has a locking feature for the sensor that may be used or removed in the field. Once the head is removed, the sounder is accessible in the bottom of the unit.

The PAD100-LFSB low frequency sounder base is designed to meet NFPA 72 sleeping space requirements to produce a frequency of 520 Hz +/- 10% with a square wave.

It is shown that a lower frequency, centered around 520 Hz, is the ideal to awaken sleeping occupants, even those with mild to severe hearing loss.

The base has an independent sounder module that may be programmed as a single station, zone or all call sounder. The PAD100-LFSB passes through the sound pattern sent to the sounder, therefore it may reproduce in any pattern the power supply provides.

The PAD100-LFSB does not consume an address on the loop and is fully programmable to operate with any input. Once activated the sounder will also follow the input from the power source and de-activate accordingly.

Technical Specifications

• External PWR Voltage - 16-33 VDC
• External PWR Standby Current - 4.1 mA
• External PWR Active Current - 33 VDC -86.7 mA, 24 VDC - 96.5 mA, 16 VDC - 156.6 mA
• SLC Operating Voltage - 24 VDC
• SLC Standby Current - 200 μA
• Installation temperature range - 32°F to 120°F (0°C to 49°C)
• Operating relative humidity range - 0% to 93% (Non-condensing)
• Sound Pressure Level - 85 DBA minimum
• Start-up time - Max. 1 sec.
• Maximum number of devices per zone - 127
• Color - Eggshell White
• Dimensions (without detector) - Height: 2.75 in (70mm) Diameter: 6 in (153 mm)
• Mounting - Ceiling or wall

3992761 Specifications PDF
