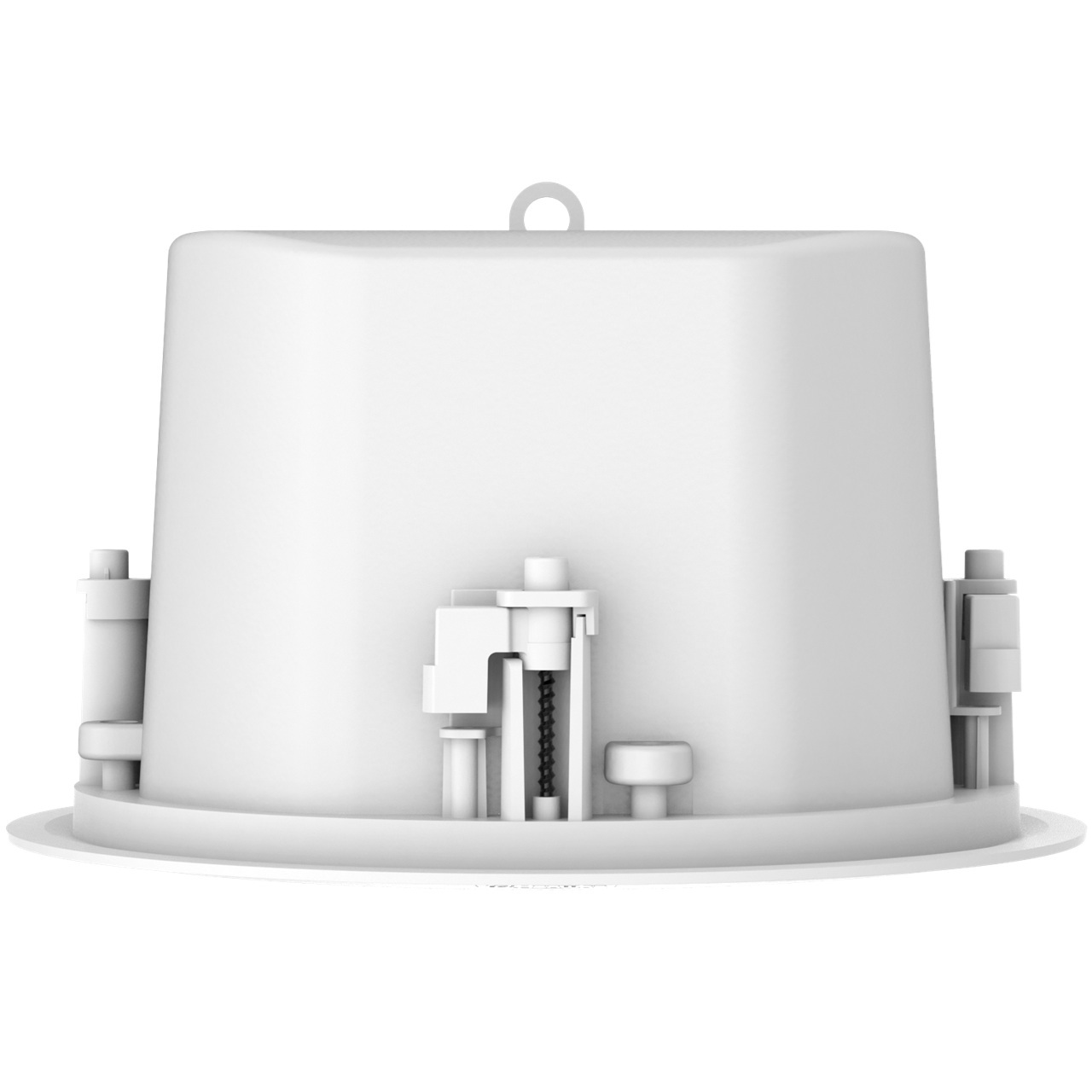

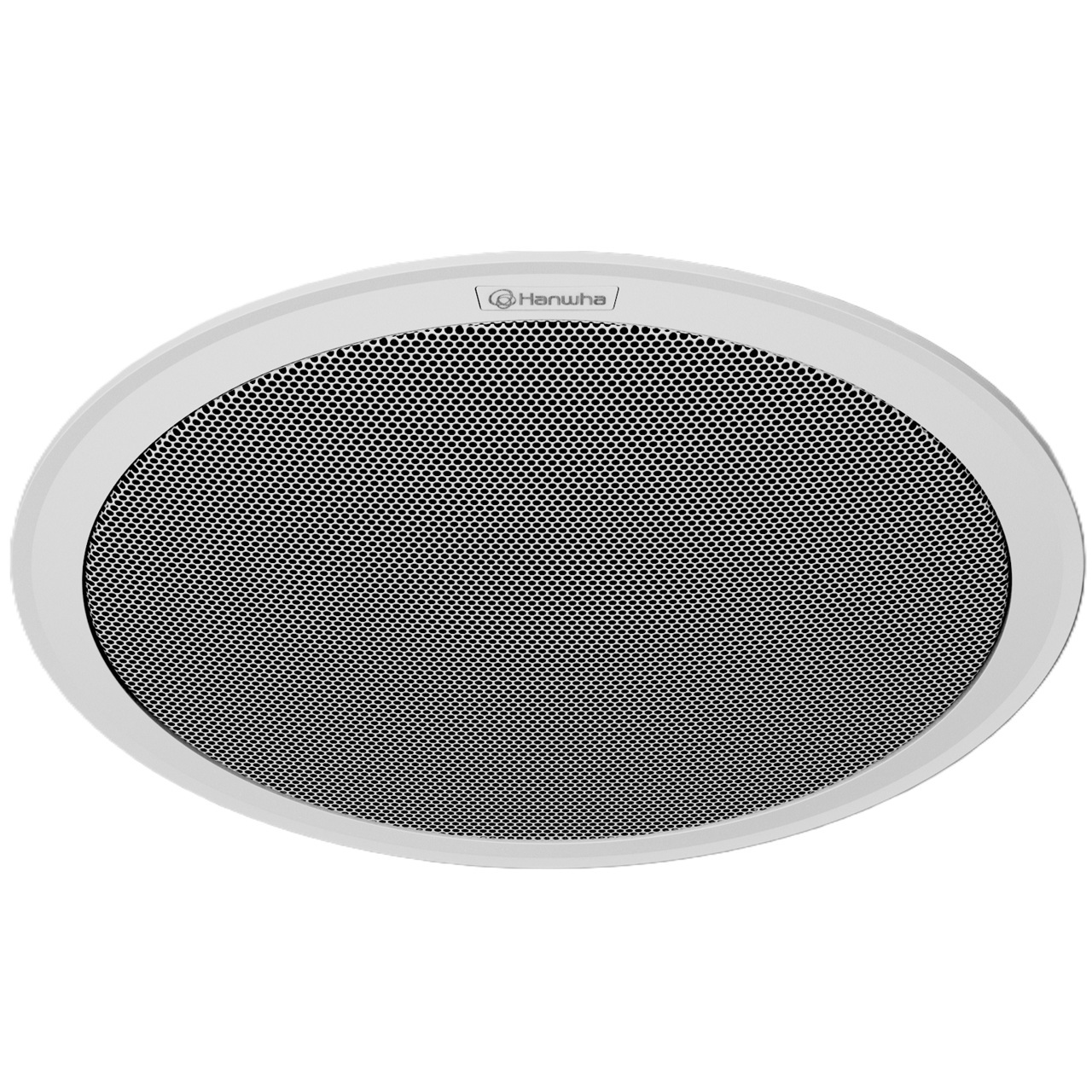

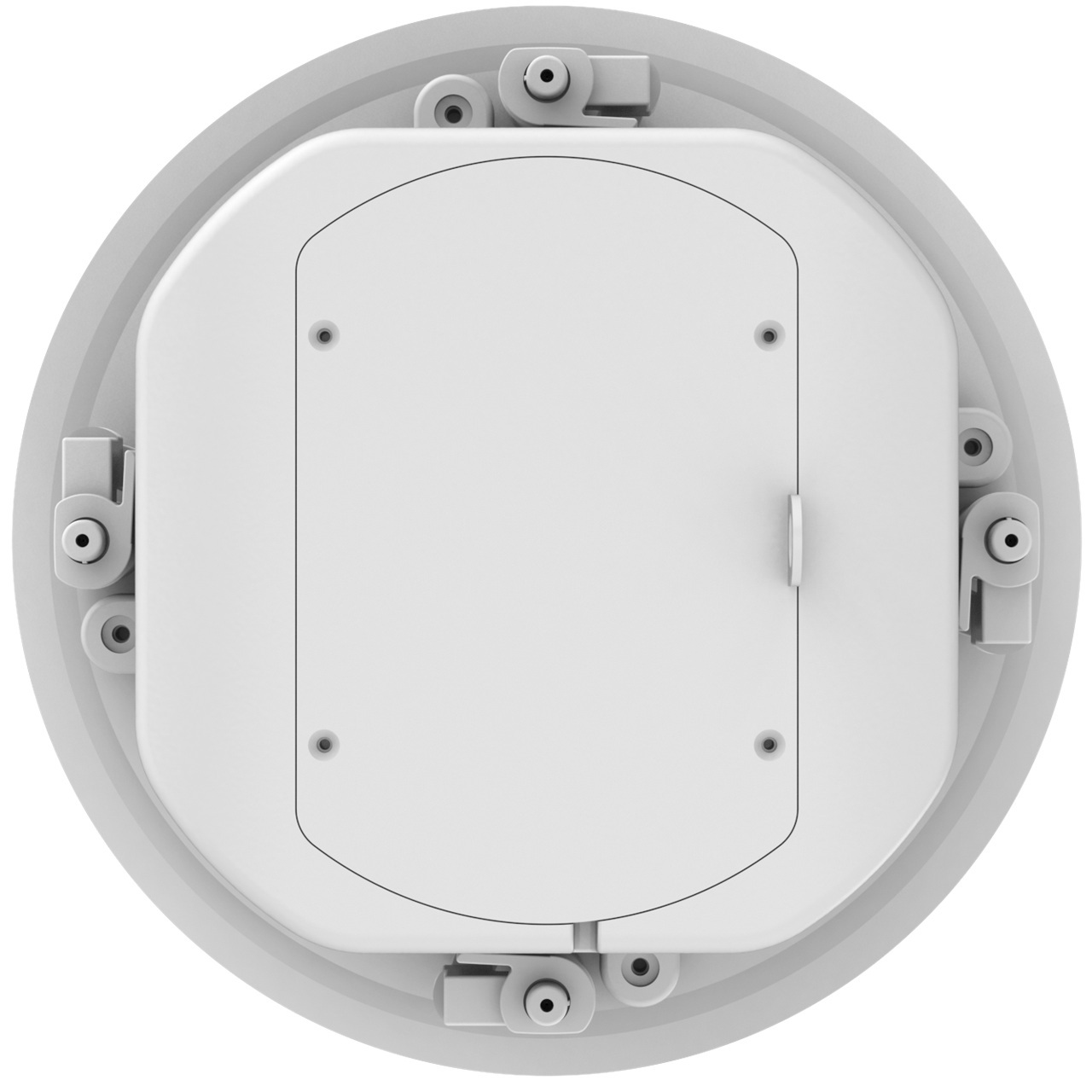

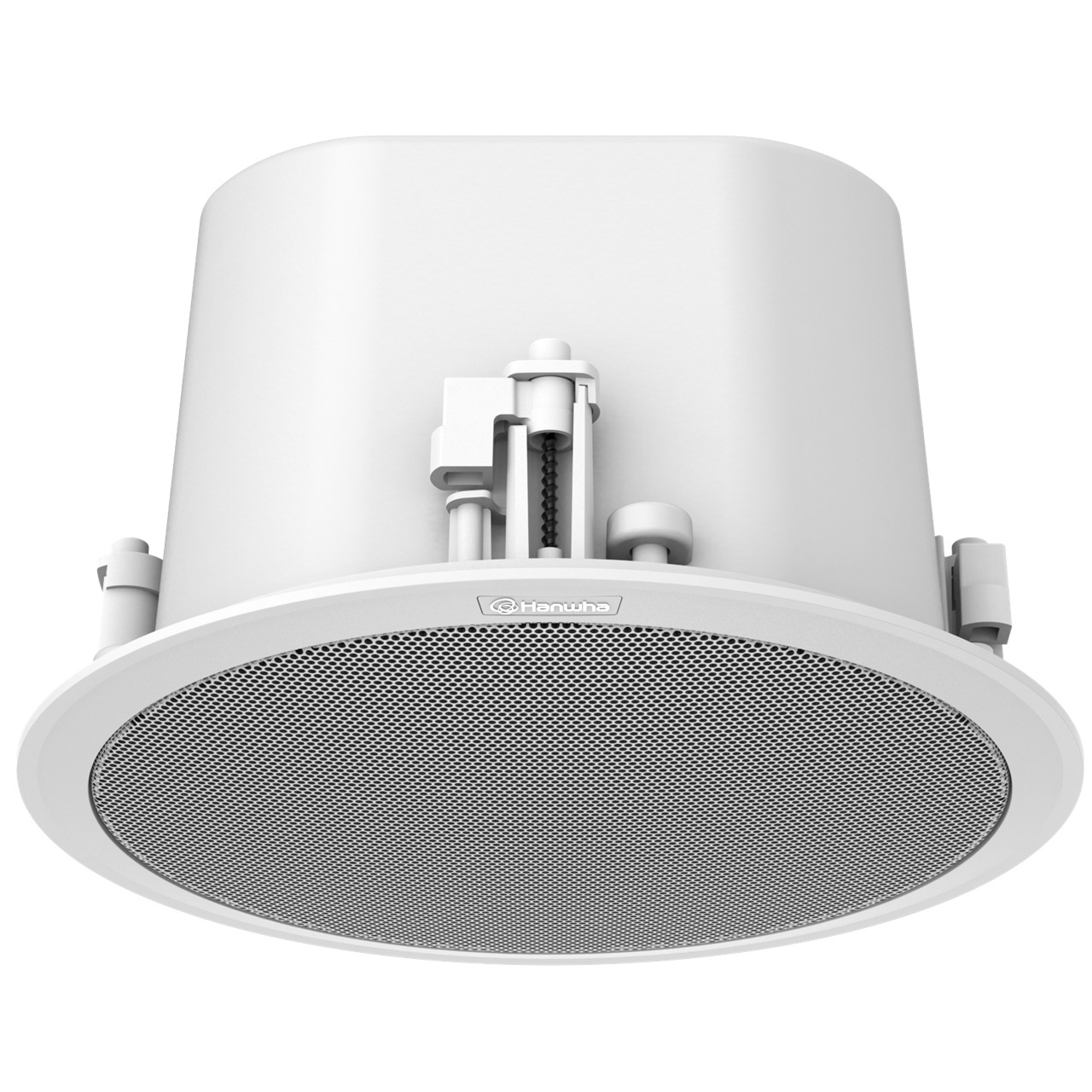

SPA-C110W Hanwha Vision IP Ceiling Speaker - White

Specifications

Product

• Type - IP Ceiling Speaker

Line Output

• Output Level - +6dBV ± 3dB
• Frequency Response - 20Hz ~ 20kHz
• THD + N Ratio (AES17 LPF) - Less than 0.1%
• S/N Ratio (20kHz LPF, A-WTD) - Greater than 91dB

Amplifier

• Description - Built in 10W Class D

Network

• Ethernet - 10/100 Base-T

Memory

• Internal Memory - 1 GBytes
• External Memory (Micro SD) - SDHC upto 32GB (SANDISK)

Contact

• Contact Input. Dry contact - One channel
• Contact Output. Dry contact (NO) - One channel

General

• Operating Temperature - -20 ~ +50℃ (-4°F ~ +122°F)
• Operating Humidity - 10~85% RH (Non-Condensing)
• Weight - 2.7Kg
• Size - Φ269x156.5(H)mm
• Color - Black/White
• Certificate - EMC : FCC Part 15 Subpart B, ICES-003 Safety : UL 2043, UL 62368-1, CAN/CSA 62368-1

Power

• PoE - PoE (IEEE 802.3 af type 1 Class 3)
• PoE+ - PoE+(IEEE 802.3 at type 2 Class 4)

Embedded MIC

• Input Sensitivity - Sound Level Meter
• Frequency Response - Sound Level Meter

Audio

• Supported Audio Format - WAV, MP3 in mono/stereo from 64 kbps to 320 kbps. Sampling rate from 16 kHz up to 48 kHz

Speaker

• Speaker Component - 2Way 8" LF Drive & 2" HF Driver. Passive type
• Max. Sound Pressure Level (PoE) - 96 dB
• Max. Sound Pressure Level (PoE+) - 100dB
• Frequency Range (-10dB) - 120Hz~20kHz
• Sensitivity (1Watt) - 90dB
• Coverage Pattern - (HxV) : 90°(1kHz) / 60°(4kHz)

Network Protocol

• Security - Password protection : admin,setup,user,guest (sha-2, Digest authentication, User access log) Digest authentication, User access log
• Supported Protocols - IPv4, HTTP, SIP, mDNS, DNS, NTP, TCP, UDP, DHCP, ARP, ICMP

System Integration

• API (Application Programming Interface) - SUNAPI
• Multi-source Dynamic PA control - Multi-source up to 48 (Multicast) (Audio 24CH + Mic 24CH) Up to 256 Zone Control (Multicast) Up to 20 Zone Control (Unicast) Up to 255 Groups
• VoIP - Tested with SIP clients such as Grandstream, Yealink, Cisco, MicroSIP softphone and PBX supplier such as Asterisk Tested with SIP client such as Grandstream and PBX supplier such as Grandstream Supported SIP features: DTMF (RFC2833) Supported codecs: PCMU, PCMA, speex/8000, speex/16000
• TTS - English(US, UK), German, French, Spanish, Russian
• Audio Monitoring - Speaker test by graphic level meter (Built in test tool)
• Event & Preset - Virtual Contact, Dry contact
• Functional Monitoring - Connection verification, Built-in system logging

SPA-C110W Specifications PDF
