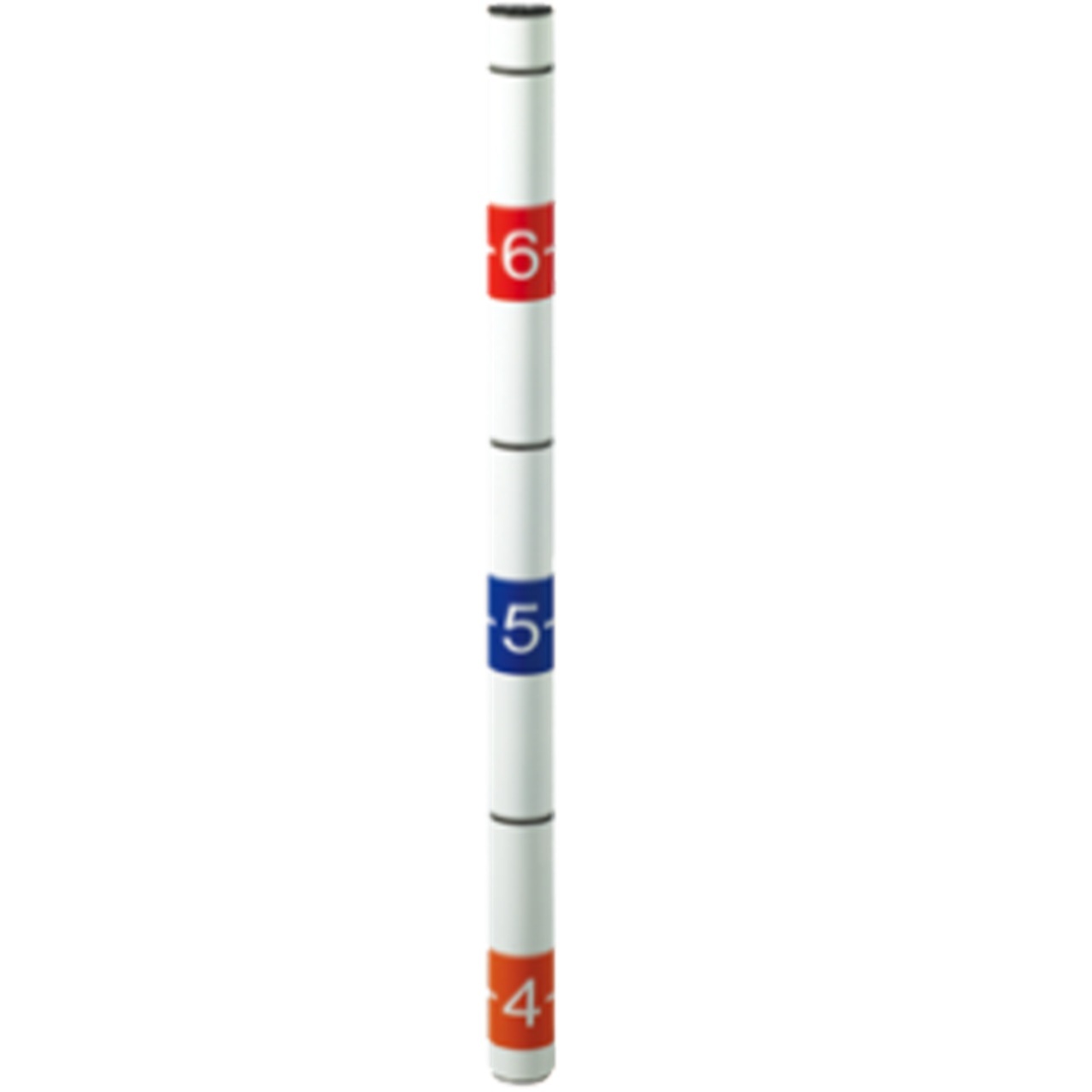

XNB-H6461H Hanwha Vision X series 4.6mm 60FPS @ 2MP Indoor Day/Night WDR Pinhole Height Strip IP Security Camera 12VDC/PoE

Specifications

Video

• Imaging Device - 1/2.8" 2MP CMOS
• Total Pixels - 1,945(H) x 1,109(V) 2.16M
• Effective Pixels - 1,945(H) x 1,097(V) 2.13M
• Scanning System - Progressive Scan
• Min. Illumination - Color : 0.06Lux (F2.5) B/W : 0.06Lux (F2.5)
• Video Out - CVBS : 1.0 Vp-p / 75Ω composite, 720 x 480(N), 720 x 576(P) for installation, USB : Micro USB type B, 1280 x 720 for installation

Lens

• Focal length - 4.6mm Fixed focal
• Max. Aperture ratio - F2.5
• Angular Field of View - H : 73° / V : 39° / D : 85°
• Min. Object Distance - 0.3m (0.98ft)
• Mount Type - RJ-12 connected with main unit

Operational

• Camera Title - Off / On (Displayed up to 85 characters) W/W : English / Numeric / Special characters, · China : English / Numeric / Special / Chinese characters, · Common : Multi-line (Max 5), Color (Gray / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution
• Day & Night - Auto (Electrical) / Color / B/W
• Backlight Compensation - Off / BLC / HLC / WDR
• Wide Dynamic Range - (120dB)
• Contrast Enhancement - SSDR (Off / On)
• Digital Noise Reduction - SSNRV (2D + 3D Noise filter) (Off / On)
• Digital Image Stabilization - Off / On
• Defog - Off / Auto / Manual
• Motion Detection - Off / On (8ea, 8 point polygonal zones), Handover
• Privacy Masking - Off / On (32ea, polygonal zones)- Color : Gray / Green / Red / Blue / Black / White - Mosaic
• Gain Control - Off/Low / Middle / High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor (included Mercury & Sodium)
• Contrast - Level adjustment
• LDC (Lens Distortion Correction) - Off / On (5 Levels with min / max)
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (2~1/12,000sec)
• Digital PTZ - 24x, Digital PTZ (Preset, Group)
• Flip / Mirror - Off / On
• Video & Audio Analytics - Tampering, Loitering, Directional detection, Defocus detection, Fog & Dust detection, Virtual line, Enter/Exit, (Dis)Appear, Audio detection, Face detection, Motion detection, Digital auto tracking, People counting, Heatmap, Queue management
• Alarm I/O - Input 1ea / Output 1ea
• Alarm Triggers - Alarm Triggers Motion detection, Video & Audio analytics, Network disconnect
• Alarm Events - File upload Via FTP, E-Mail, Notification via e-mail, Local storage (SD / SDHC / SDXC) or NAS recording at event triggers, External output, DPTZ preset
• Pixel Counter - Support

Network

• Ethernet - RJ-45 (10/100 BASE-T)
• Video Compression Format - H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG
• Resolution - 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
• Max. Framerate - H.265 / H.264 : Max. 60fps at all resolutions, MJPEG : Max. 30fps
• Smart Codec - Manual mode (Area-based : 5ea)
• WiseStreamII - Support
• Video Quality Adjustment - H.265 / H.264 / MJPEG : Target bitrate level control
• Bitrate Control Method - H.265 / H.264 : CBR or VBR, MJPEG : VBR
• Streaming Capability - Multiple streaming (Up to 10 profiles)
• Audio In - Selectable (Mic in / Line in), Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
• Audio Out - Line out, Max output level : 1 Vrms
• Audio Compression Format - G.711 u-law/G.726 Selectable, G.726 (ADPCM) 8KHz, G.711 8KHz, G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps, AAC-LC : 48Kbps at 16KHz
• Audio Communication - Bi-directional (2-way)
• IP - IPv4, IPv6
• Protocol - TTCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
• Security - HTTPS (SSL) Login authentication, Digest login authentication, IP address filtering, User access log, 802.1X Authentication (EAP-TLS, EAP-LEAP)
• Streaming Method - Unicast / Multicast
• Max. User Access - 20 Users at Unicast Mode
• Edge Storage - SD/SDHC/SDXC (256 GB) - Motion Images recorded in the SD/SDHC/SDXC memory card can be downloaded. NAS (Network Attached Storage), Local PC for instant recording
• Application Programming Interface - ONVIF profile S/G, SUNAPI (HTTP API), Open Platform
• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Web Viewer - Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 ·Non-plugin Webviewer - Supported Browser : Google Chrome 61, MS Edge 40, Mozilla Firefox 56 (Window 64bit only) Apple Safari 10 (Mac OS X only) ·Plug-in Webviewer - Supported Browser : MS Internet Explore 11, Apple Safari 10 (Mac OS X only)
• Central Management Software - Smart Viewer, SSM, Wisenet WAVE VMS

Environmental

• Operating Temperature / Humidity - -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
• Storage Temperature / Humidity - -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH

Electrical

• Input Voltage/ Current - 12V DC, PoE (IEEE802.3af, Class3)
• Power Consumption - Max. 6.5W (12V DC), Max. 6W (PoE)

Mechanical

• Color / Material - Height Strip: White, with colored height strips / Powder Coated Aluminum Cover, Powder Coated Steel Back Frame, Plastic Top Cap Main Unit : Ivory / Plastic
• Product Dimensions - Height strip: 866.1 x 43.7 x 35.1mm (1.72" x 34.10" x 1.38"), Main Unit: 131.1 x 28 x 86mm (5.16" x 1.10" x 3.39")
• weight - Height Strip: 2lbs (0.9kg) / Camera Body: 245g (0.54 lb)
