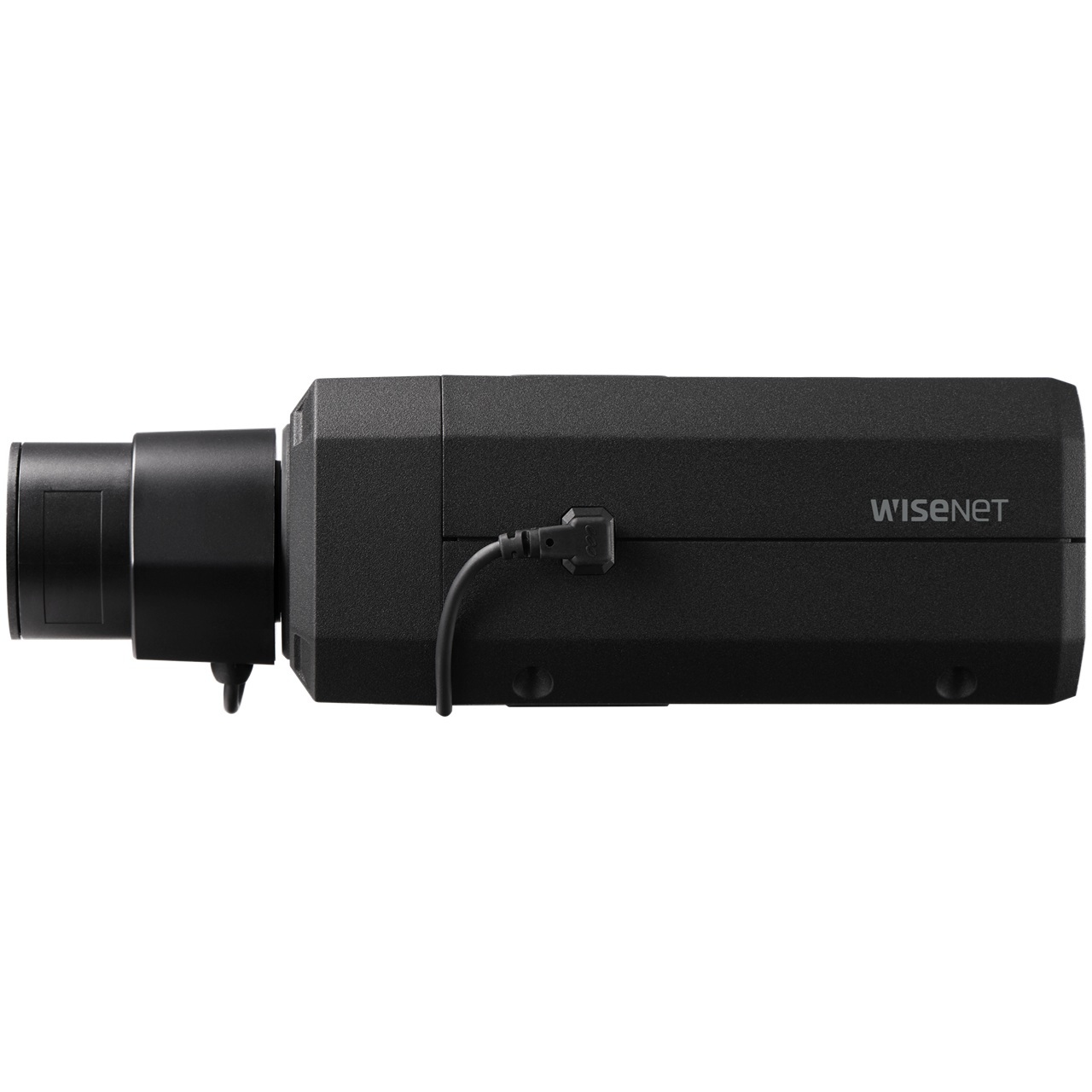

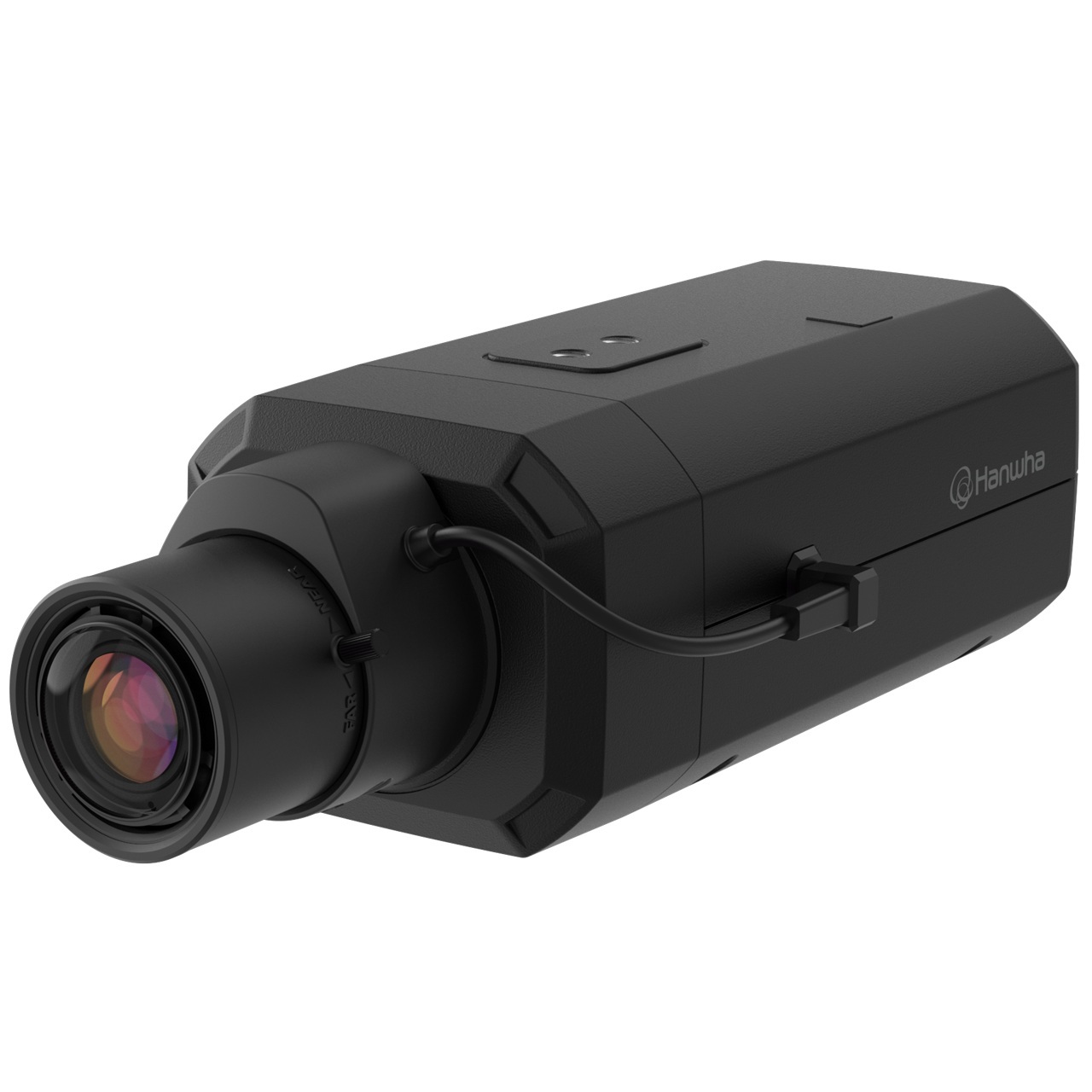

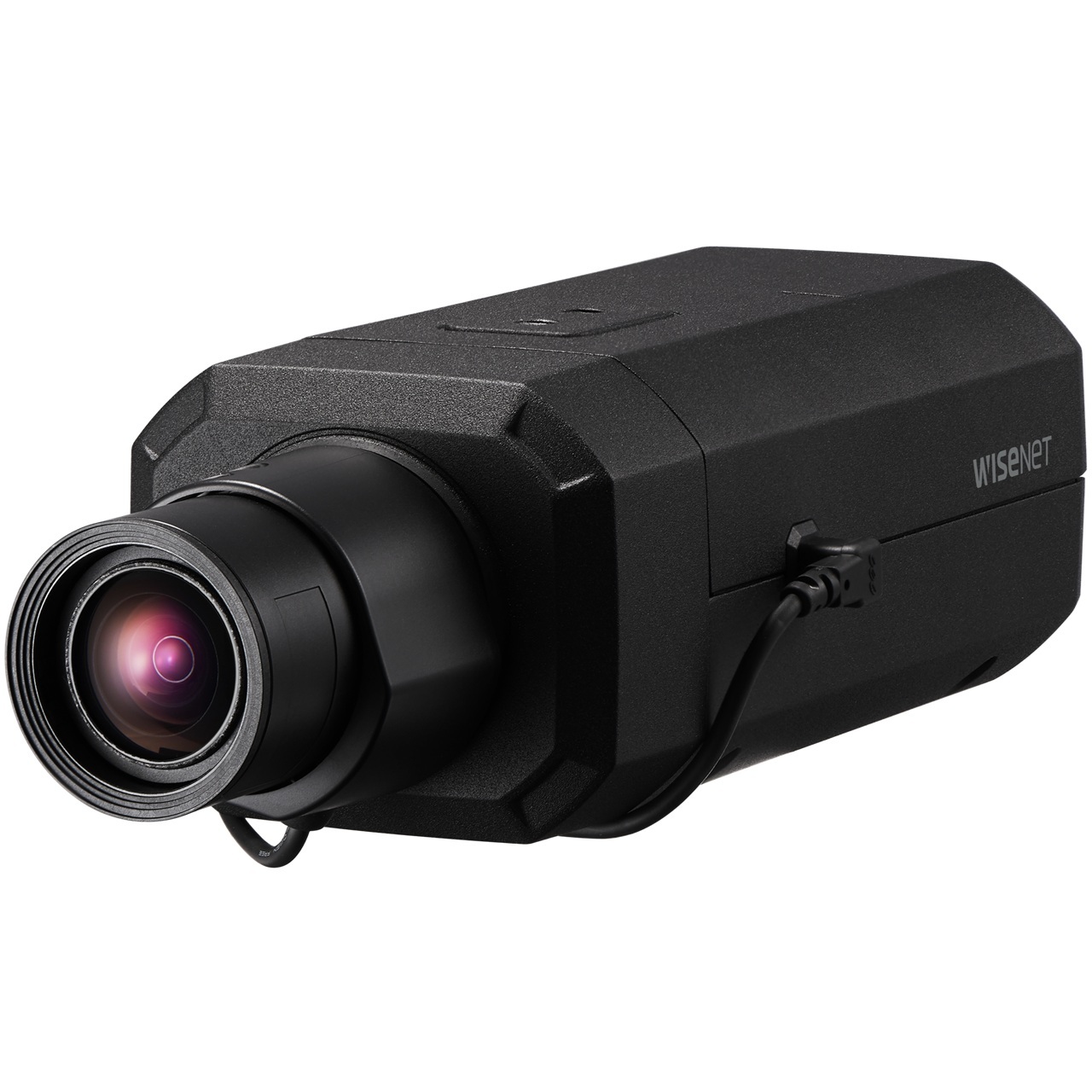

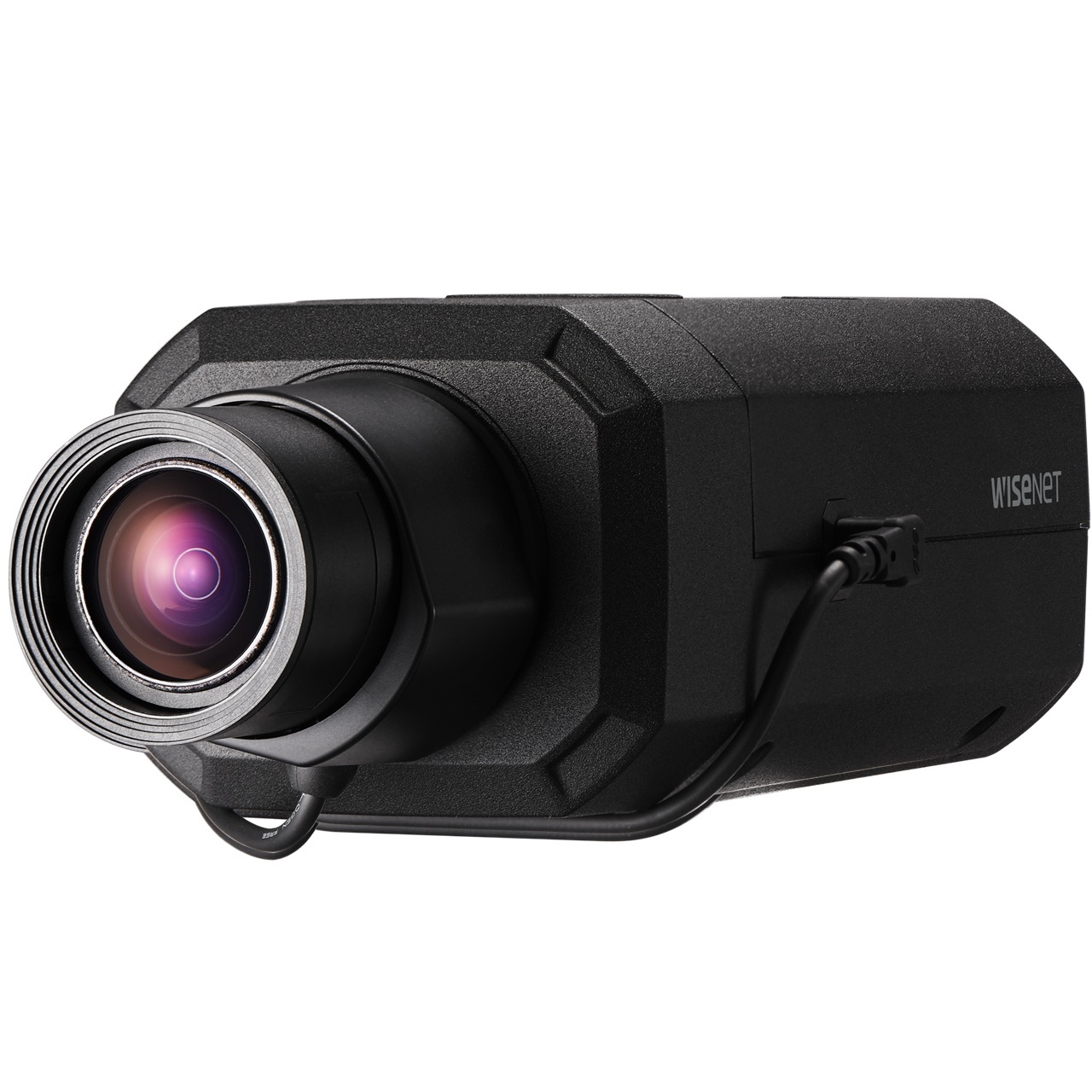

PNB-A9001 Hanwha Vision P Series 30FPS @ 1080p Outdoor IR Day/Night WDR Box IP Security Camera 12VDC/PoE

Introduction

P series AI cameras

Hanwha Vision P series cameras feature edge-based AI analytics for intelligent object detection and attribute extraction. Reduce false alarms and increase operational efficiency during forensic review with this versatile line of cameras.

Specifications

Video

• Imaging Device - 1/1.8" CMOS
• Resolution - 3840x2160, 3072x1728, 2592x1944, 2688x1520, 2560x1440, 2048x1536, 1920x1080, 1600x1200, 1280x1024,1280x960, 1280x720, 1024x768, 800 x 600, 800 x 448, 720 x 576, 720x480, 640x480, 640x360
• Max. Framerate - H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
• Min. Illumination - Color: 0.03Lux(F1.2, 1/30sec) B/W : 0.003Lux(F1.2, 1/30sec)
• Video Out - CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation

Lens

• Focus Control - Simple focus

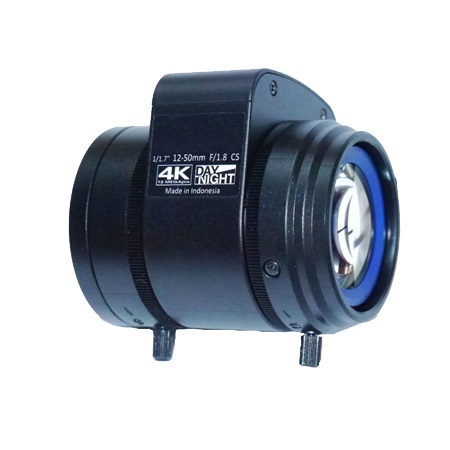

• Lens Type - DC auto iris, P iris, Manual, I-CS
• Mount Type - C mount, CS mount

Operational

• Camera Title - Displayed up to 85 characters
• Day & Night - Auto (ICR)
• Backlight Compensation - BLC, HCL, WDR, SSDR
• Digital Noise Reduction - WiseNRâ…¡(Based on AI engine), SSNRâ…¤
• Digital Image Stabilization - Stabilization Support(built-in gyro sensor)
• Motion Detection - 8ea, 8 Polygonal zones
• Privacy Masking - 6ea, rectangle zones - Color: Gray/Black/White
• Gain Control - Low / Middle / High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• LDC - Support (Fill/stretch mode)
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (1/5~1/12,000sec) Auto prefer shutter control based on AI engine
• Video Rotation - Flip, mirror, Hallway view(90Ëš/270Ëš)
• Analytics - Classified object type: Person/Face/Vehicle/License plate Attributes: Person(Gender, Color and Bag), Face(Age, Gender, Mask and Glasses), Vehicle(Type: car/bus/truck/motorcycle/bicycle and Color) Support BestShot per object Analytics events based on AI engine - Object detection, Virtual line*(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit), Face mask detection, Social distancing detection, Slip&Fall detection Analytics events - Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear) Support WiseDetector for Adding custom objects *Some of the video analytics only works with people and vehicle detection
• Business Intelligence - People/Vehicle/Crowd counting, Queue management, Heatmap based on AI engine
• Serial Interface - RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)

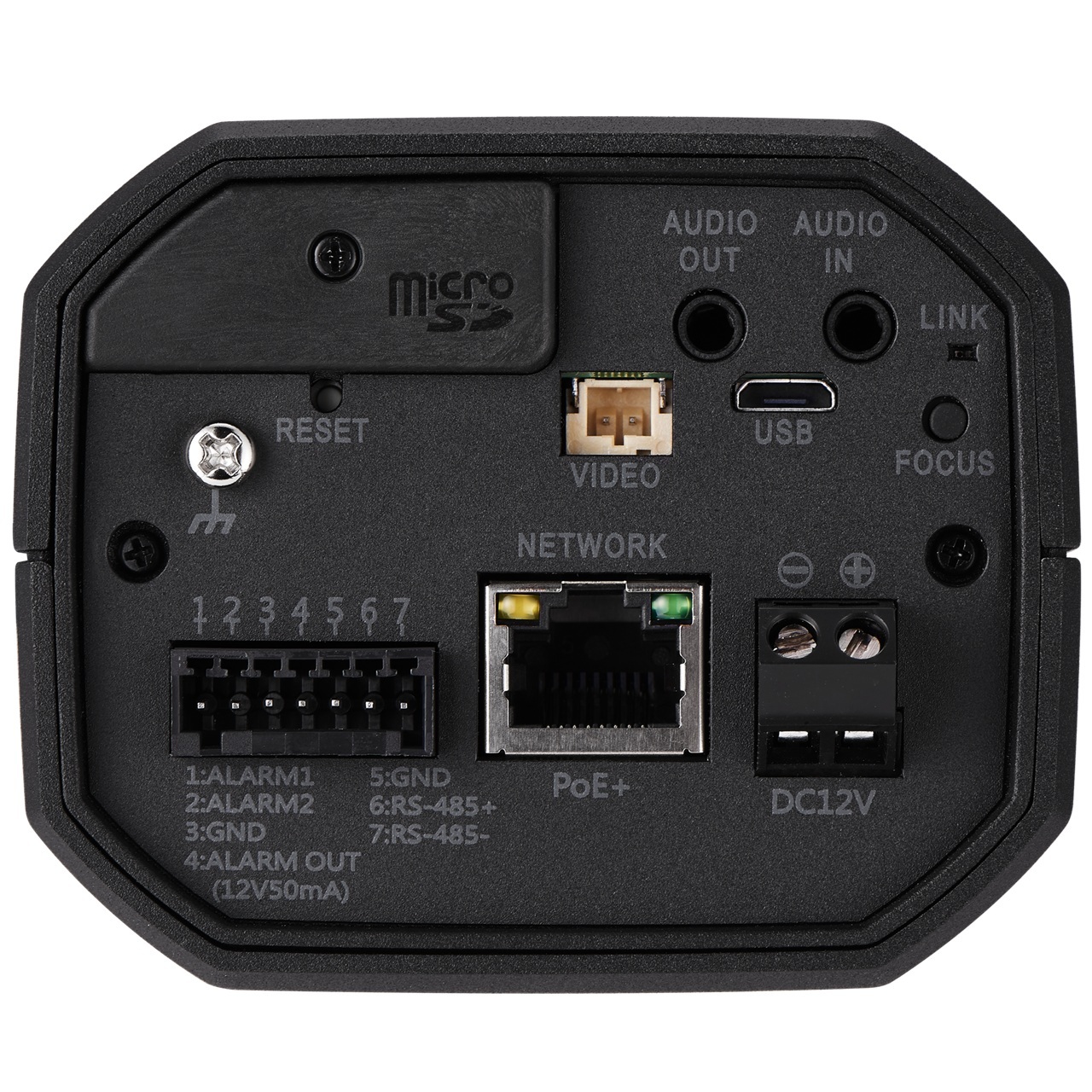

• Alarm I/O - 2 configurable I/O ports, DC 12V output(Max. 50mA)
• Alarm Triggers - Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription
• Alarm Events - When alarm trigger occurred - File upload(image): e-mail/FTP - Notification: e-mail - Recording: SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover: PTZ preset, send message by HTTP/HTTPS/TCP - Audio clip playback - MQTT: publication
• Audio In - Selectable(mic in/line in)Built-in mic
• Audio Out - Line out

Network

• Ethernet - Metal shielded RJ-45(10/100/1000 BASE-T)
• Video Compression - H.265/H.264: Main/High, MJPEG
• Audio Compression - G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
• Smart Codec - Manual(5ea area), WiseStreamâ…¡, WiseStreamâ…¢(using AI engine)
• Video Quality Adjustment - H.264/H.265: Target bitrate level control MJPEG: Target bitrate level control
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(6 users) / Multicast Multiple streaming(Up to 6 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), MQTT
• Application Programming Interface - ONVIF Profile S/G/T/M SUNAPI(HTTP API) Wisenet open platform - WiseAI application included(Analytic based on AI, Business intelligence)

Security

• OS / Firmware Protect - Encrypted Firmware, Secure boot, Signed Firmware
• User authentication - Digest Authenticaton, Prevent brute-force attack
• Network authentication - IEEE 802.1X (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
• Secure Communication - HTTPS, WSS(WebSocket Secure)
• Access Control - IP-based access control
• Data Protect - Encryption Credentials, Encrypt compress for live recording file
• Audit - Access / System / Event Log management
• Device ID - Device certificate(Hanwha Vision Root CA)
• Secure Storage - SDcard partition encrypt

General

• Webpage Language - English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Edge Storage - Micro SD/SDHC/SDXC 2slots 512GB
• Memory - 4096MB RAM, 512MB Flash

Environmental & Electrical

• Operating Temperature / Humidity/ Others - -10°C ~ +55°C(+14°F ~ +131°F) / Less than 90% RH
• Storage Temperature / Humidity - -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
• Input Voltage - PoE+(IEEE802.3at), 12VDC
• Power Consumption - PoE+: Max 16.50W, typical 12.50W 12VDC: Max 13.50W, typical 10.80W

Mechanical

• Color / Material - Black / Aluminum
• Product Dimensions / Weight - 81x67x165mm(3.19x2.64x6.48"), Weight : 0.88kg(1.94lb)

Ver

• Ver - 2

PNB-A9001 Specifications PDF
