3006739 Potter PFC-4410G3 Releasing Control Panel

Related Video - A look at Potter's updated PFC-4410 Gen 3

Features

• Multi-Hazard Capability
• Seven Programmable Class B Initiating Circuits
• Four Class B Output Circuits
• Programmable Cross Zoning including AND/OR capability
• Supervised Microprocessor
• 4 x 20 LCD display with 37 system status LEDs
• Integrated Battery Meter
• On Board Menu Driven Programming Controls
• Releasing Circuits Protected From False Activation
• 4000 Event History Buffer
• Walktest with Automatic Time-out
• Alarm, Trouble, Supervisory, and Waterflow/Discharge confirmation relays
• Up to 35 standard programs in panel memory
• Password protection
• Suitable for agent and/or water-based extinguishing
• Programmable pre-discharge and soak timers
• Ethernet port for programming and network connectivity
• Five Abort modes

Description

The Potter Model PFC-4410G3 is a conventional multi-hazard releasing control panel well suited for a number of applications. The PFC-4410G3 is listed for use with pre-action and deluge sprinkler suppression systems and agent-based fire suppression systems.

The panel utilizes a microprocessor-based system that has up to 35 standard programs in panel memory, which covers a majority of installations. The simple to follow Menu Structure programs the entire system in a matter of seconds. In addition to the Standard Programs, the panel allows custom programming to accommodate any installation. Programming is accomplished either through the menu driven on-board controls or from a laptop via the Ethernet connection.

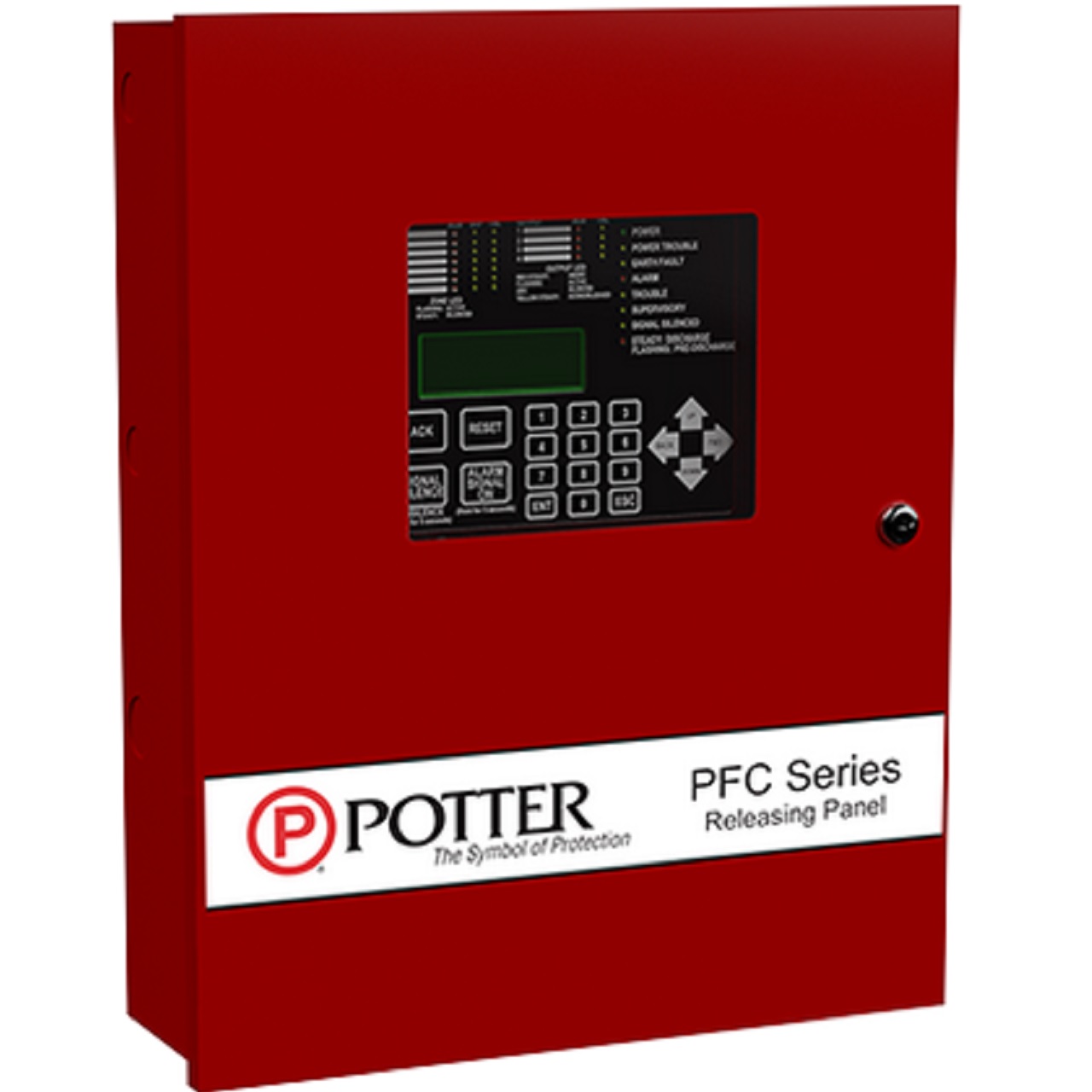

The PFC-4410G3 is housed in a red durable steel cabinet with removable door and key lock. An optional flush mount trim ring is available. The cabinet contains knockouts on the side, back and top of the cabinet to ease installation. In addition, the cabinet will house up to two (2) twelve (12) amp-hour batteries that will provide in excess of 90 hours of standby power.

Technical Specifications

• Battery Capacity - Up to two (2) 12Ah batteries
• Battery
  • 3 Amps power for NACs, AUX, and P-Link
  • 3 Amps per NAC, regulated
  • Battery Charger range 8-55 Ah
  • Battery Charger voltage 27.3 VDC
  • P-Link maximum current of 1 Amp
  • AUX maximum current of 1 Amp
• Dimensions - 18 ¼” x 14 ½” x 4 ¾”
• Enclosure - 18 AWG cold rolled steel, locking removable door, full dead front, multiple 1/2” and 3/4” knockouts
• Environmental - Indoor use only, 32-120 F (0-49C) 95% relative humidity
• Power Requirement - 120-240 VAC 50/60 Hz
• Standards/Service - UL 864-11, ULC S527-19, NFPA 12, 12A, 13, 15, 16, 17, 17A, 72, 750, 2001, FM, CSFM, CE, RoHS III, FDNY
