TVS-672XT-i3-8G-US QNAP 6-Bay NAS 3.1 GHz Intel Core i3-8100T 4-core 8GB RAM

SKU: TVS-672XT-i3-8G-US
Brand: QNAP
  • QNAP Ultra-High Speed 6 Bay Thunderbolt 3 NAS
  • Intel Core i3-8100T 4-core 3.1 GHz
  • 8GB DDR4 RAM
  • 3.5"/2.5" HDD/SSD slot x 6, M.2 PCIe SSD slot x 2, Thunderbolt3 Port x 2, 10G x 1 (10GBase-T), 4x USB 3.1 Gen 2 Type-C & Type-A
More details...
MPN: TVS-672XT-i3-8G-US
UPC: 885022016488
MSRP Price: $1,759.00
Online Price: $1,759.00
Save to my Wish List

New to DWG? - Sign Up for immediate access to dealer pricing and benefits.

Already a DWG Customer? - Sign In to view pricing.




Product Details

Specifications

  • Processor - Intel® CoreTM i3-8100T Quad Core 3.1 GHz Processor Processor Architecture: 64-bit Graphics: Intel® UHD Graphics 610
  • Cryptographic acceleration engine - AES-NI
  • Standard system memory - 8 GB UDIMM DDR4 (2 x 4 GB)
  • Maximum expandable memory - 32 GB (2 x 16GB)
  • Number of memory slots - 2 x SO-DIMM DDR4 (paired DDR4 memory of the same speed, capacity, and die type required for two or four DIMM configurations)
  • Flash memory - 4 GB (Dual boot OS protection)
  • Number of supported hard disks - 6 x 3.5" SATA 6 Gbps hard drive, hot swappable/li>
  • Support for hard disk type - 3.5" hard disk slot. 3.5" SATA hard drive, 2.5" SATA hard drive, 2.5" SATA solid state drive
  • M.2 SSD - 2 M.2 PCIe (Gen3 x2) NVMe SSD ports supporting 2280 interface
  • Thunderbolt - 2 x Thunderbolt 3 transmission
  • 10 Gigabit Ethernet - 1 x 10GBASE-T RJ45, support 10G/5G/2.5G/1G/100M five-speed, Note: Please use CAT6a or CAT 7 network route (additional) to achieve 10GbE transmission speed
  • Gigabit Ethernet - 2 x RJ45
  • PCIe expansion slot - Slot 1: PCIe Gen3 x16 (CPU), Slot 2: PCIe Gen3 x4 (PCH), Note: Slot 1 is pre-installed with a Thunderbolt 3 network expansion card
  • USB port - 1 x USB 3.0, 2 x Type-C USB 3.1 Gen2 10Gbps , 2 x Type-A USB 3.1 Gen2 10Gbps
  • HDMI output - 1 x HDMI 2.0, highest resolution 3840 x 2160 Ultra HD @ 60Hz
  • Source - 2 x 3.5 mm dynamic microphone jack, 1 x 3.5 mm line-out jack, 1 x speaker, Note: Speakers and line-out jack cannot be used at the same time
  • Infrared (IR) receiver - Support QNAP RM-IR004 remote control
    • - LED indicator - Hard Disk 1-6, Status, Network, USB, M.2 SSD 1-2
  • Button - Power, reset, USB one-button backup
  • Model - Desktop
  • Size (height x width x depth) - 9.1 x 11.5 x 12.6 inch
  • Power Supply - 250W, 100-240V
  • Fan - System: 2 x 9.2cm fan (12V DC) Processor: 2 x 6cm
  • Working temperature & relative humidity - 32F ~ 104F, 5~95% non-condensing environment, wet bulb temperature: 80.6F
Check out some additional items that you may need to purchase with this product:
Check the check boxes next to the additional products that you would like to add to the shopping cart, then click on the "Add to Cart" button above. A check box is not shown if a product requires that you select an option or fill out a field. () indicates a required accessory.
LIC-NAS-EXTW-PINK-3Y QNAP Pink Extended Warranty for 3 Additional Years

LIC-NAS-EXTW-PINK-3Y QNAP Pink Extended Warranty for 3 Additional Years

MSRP Price: $399.00
LIC-NAS-EXTW-PINK-3Y-EI QNAP Pink Extended Warranty for 3 Additional Years - Email Delivery

LIC-NAS-EXTW-PINK-3Y-EI QNAP Pink Extended Warranty for 3 Additional Years - Email Delivery

MSRP Price: $399.00
QM2-2P10G1TB QNAP 2 x PCIe Gen3 NVMe SSD & 1 x 10GbE Port Expansion Card to Enhance Performance

QM2-2P10G1TB QNAP 2 x PCIe Gen3 NVMe SSD & 1 x 10GbE Port Expansion Card to Enhance Performance

MSRP Price: $219.00
QNA-T310G1T QNAP Single port Thunderbolt3 Adapter

QNA-T310G1T QNAP Single port Thunderbolt3 Adapter

MSRP Price: $199.00

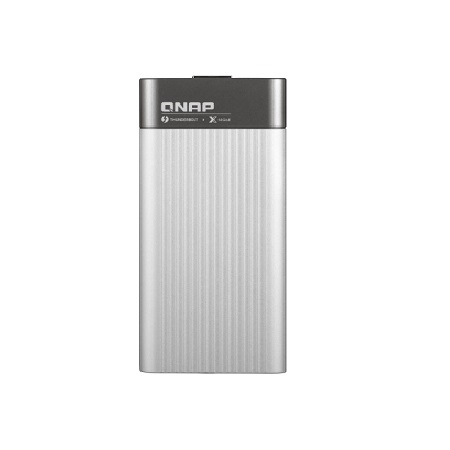

QNA-T310G1S QNAP Single port Thunderbolt3 Adapter

QNA-T310G1S QNAP Single port Thunderbolt3 Adapter

MSRP Price: $179.00

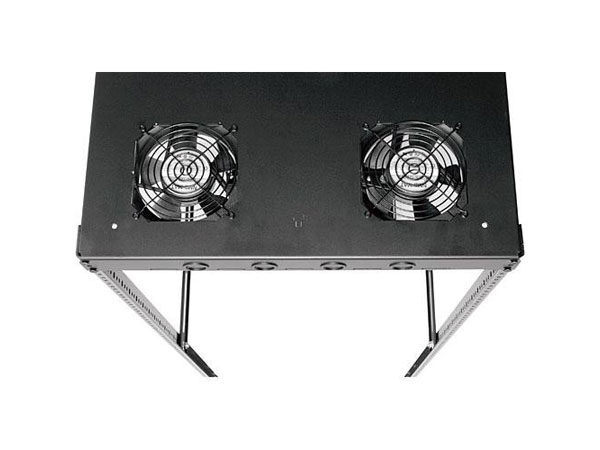

5-FAN-K Middle Atlantic Low-Profile Fans for Slim 5 Series-Slim-5 Fan Kit

5-FAN-K Middle Atlantic Low-Profile Fans for Slim 5 Series-Slim-5 Fan Kit

MSRP Price: $200.70
ARS3-TVS-672XT-US QNAP 3 Years Advanced Replacement Service for TVS-672 Series

ARS3-TVS-672XT-US QNAP 3 Years Advanced Replacement Service for TVS-672 Series

MSRP Price: $436.00
ARS5-TVS-672XT-US QNAP 5 Years Advanced Replacement Service for TVS-672 Series

ARS5-TVS-672XT-US QNAP 5 Years Advanced Replacement Service for TVS-672 Series

MSRP Price: $580.00
TL-D1600S-US QNAP 16-Bay Desktop SATA JBOD Expansion Unit

TL-D1600S-US QNAP 16-Bay Desktop SATA JBOD Expansion Unit

MSRP Price: $999.00
QM2-2P-244A Dual M.2 22110/2280 PCIe SSD expansion card (PCIe Gen2 x4), Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled

QM2-2P-244A Dual M.2 22110/2280 PCIe SSD expansion card (PCIe Gen2 x4), Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled

MSRP Price: $145.00
QM2-2P-344A Qnap Dual M.2 PCIe SSD Expansion Card - Supports Up to 2 x M.2 2280/22110 Formfactor M.2 PCIe (Gen3 x 4) SSDs, PCIe (Gen3 x 4) Host Interface

QM2-2P-344A Qnap Dual M.2 PCIe SSD Expansion Card - Supports Up to 2 x M.2 2280/22110 Formfactor M.2 PCIe (Gen3 x 4) SSDs, PCIe (Gen3 x 4) Host Interface

MSRP Price: $175.00
QM2-2P-384A Qnap Dual M.2 PCIe SSD Expansion Card - Supports Up to 2 x M.2 2280/22110 Formfactor M.2 PCIe (Gen3 x 4) SSDs, PCIe (Gen3 x 8) Host Interface

QM2-2P-384A Qnap Dual M.2 PCIe SSD Expansion Card - Supports Up to 2 x M.2 2280/22110 Formfactor M.2 PCIe (Gen3 x 4) SSDs, PCIe (Gen3 x 8) Host Interface

MSRP Price: $209.00
QM2-2S-220A QNAP Dual M.2 22110/2280 SATA SSD Expansion Card

QM2-2S-220A QNAP Dual M.2 22110/2280 SATA SSD Expansion Card

MSRP Price: $89.00
QDA-A2AR QNAP 3.5" SATA to Dual 2.5" SATA Drive Adapter

QDA-A2AR QNAP 3.5" SATA to Dual 2.5" SATA Drive Adapter

MSRP Price: $79.00
QDA-A2MAR QNAP 2.5" SATA to Dual M.2 2280 SATA Drive Adapter

QDA-A2MAR QNAP 2.5" SATA to Dual M.2 2280 SATA Drive Adapter

MSRP Price: $79.00
QXG-10G2SF-X710 QNAP Dual-Port, 10 GbE Network Expansion Card

QXG-10G2SF-X710 QNAP Dual-Port, 10 GbE Network Expansion Card

MSRP Price: $249.00
QXG-25G2SF-E810 QNAP Upgrade to Enterprise-level Networks with 25GbE

QXG-25G2SF-E810 QNAP Upgrade to Enterprise-level Networks with 25GbE

MSRP Price: $399.00
RAM-32GDR4K0-SO-3200 QNAP 32GB DDR4 RAM 3200 MHz SODIMM K0 Version

RAM-32GDR4K0-SO-3200 QNAP 32GB DDR4 RAM 3200 MHz SODIMM K0 Version

MSRP Price: $399.00
QM2-2P2G2T QNAP QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen3 x 4 , 2 x Intel I225LM 2.5GbE NBASE-T Port

QM2-2P2G2T QNAP QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen3 x 4 , 2 x Intel I225LM 2.5GbE NBASE-T Port

MSRP Price: $175.00
QXG-5G1T-111C QNAP 5GbE Multi-Gig Expansion Card

QXG-5G1T-111C QNAP 5GbE Multi-Gig Expansion Card

MSRP Price: $99.00
QXP-16G2FC QNAP 16Gb/s Fibre Channel Host Bus Adapter - Includes 2 Transceivers

QXP-16G2FC QNAP 16Gb/s Fibre Channel Host Bus Adapter - Includes 2 Transceivers

MSRP Price: $999.00
QXP-32G2FC QNAP 32Gb/s Fibre Channel Host Bus Adapter - Includes 2 Transceivers

QXP-32G2FC QNAP 32Gb/s Fibre Channel Host Bus Adapter - Includes 2 Transceivers

MSRP Price: $1,499.00
QM2-2P410G1T QNAP 2 x M.2 PCIe Gen4 NVMe SSD & 1 x 10GbE Port Expansion Card

QM2-2P410G1T QNAP 2 x M.2 PCIe Gen4 NVMe SSD & 1 x 10GbE Port Expansion Card

MSRP Price: $589.00
TRX-16GFCSFP-SR QNAP 16G Short Wavelength SFP+ Fibre Channel Transceiver

TRX-16GFCSFP-SR QNAP 16G Short Wavelength SFP+ Fibre Channel Transceiver

MSRP Price: $169.00
TRX-32GFCSFP-SR QNAP 32G Short Wavelength SFP+ Fibre Channel Transceiver

TRX-32GFCSFP-SR QNAP 32G Short Wavelength SFP+ Fibre Channel Transceiver

MSRP Price: $299.00
CAB-NIC40G30M-QSFP QNAP QSFP DAC Cable

CAB-NIC40G30M-QSFP QNAP QSFP DAC Cable

MSRP Price: $159.00

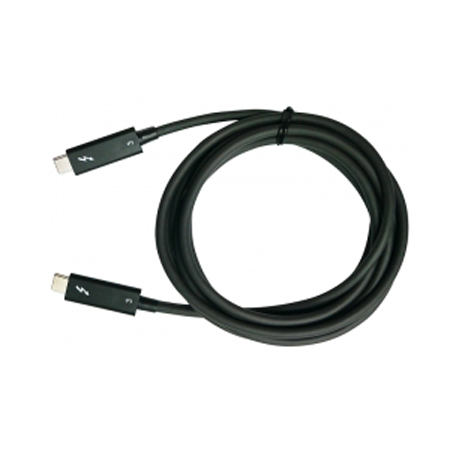

CAB-TBT320M-40G-LINTES QNAP Thunderbolt3 Active 40Gb/s 2M USB Type-C cable

CAB-TBT320M-40G-LINTES QNAP Thunderbolt3 Active 40Gb/s 2M USB Type-C cable

MSRP Price: $149.00
RAM-16GDR4T0-SO-2666 QNAP 16GB DDR4-2666, SO-DIMM, 260 pin, T0 version

RAM-16GDR4T0-SO-2666 QNAP 16GB DDR4-2666, SO-DIMM, 260 pin, T0 version

MSRP Price: $270.00
QM2-4P-384 QNAP Quad M.2 PCIe SSD expansion card supports up to four M.2 2280 formfactor M.2 PCIe (Gen3 x4) SSDs PCIe Gen3 x8 host interface

QM2-4P-384 QNAP Quad M.2 PCIe SSD expansion card supports up to four M.2 2280 formfactor M.2 PCIe (Gen3 x4) SSDs PCIe Gen3 x8 host interface

MSRP Price: $169.00
PWR-PSU-250W-DT02 QNAP 250W Delta Power Supply

PWR-PSU-250W-DT02 QNAP 250W Delta Power Supply

MSRP Price: $139.00
