TS-H973AX-8G-US QNAP 9 Bay Desktop NAS 2.2GHz AMD Ryzen V1500B quad-core 8GB RAM - No HDD

Featuring an AMD Ryzen V1000 series V1500B quad-core processor and 10GbE/2.5GbE connectivity, the 9-bay TS-h973AX packs a high-capacity hybrid storage infrastructure into a compact physical footprint. With five 3.5-inch SATA 6Gbps drive bays, two 2.5-inch U.2 NVMe SSD slots (Slot 1 & 2 support both U.2 NVMe and SATA SSDs ), and two 2.5-inch SATA 6Gbps SSD slots, the TS-h973AX can benefit from SSD caching to boost IOPS-intensive applications.

Specifications

• CPU - AMD Ryzen Embedded V1500B quad-core eight threads 2.2 GHz processor
• CPU Architecture - 64-bit x86
• Floating Point Unit - Yes
• Encryption Engine - Yes (AES-NI)

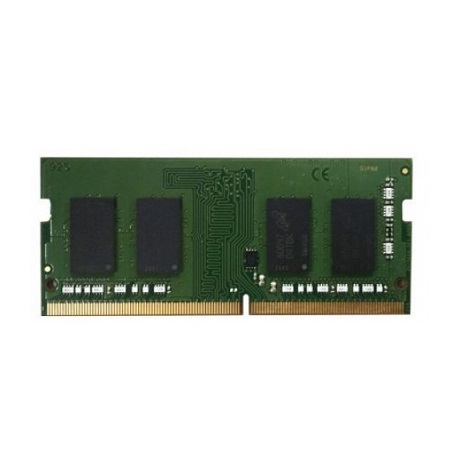

• System Memory - 8 GB SO-DIMM DDR4 (1 x 8 GB)
• Maximum Memory - 32 GB (2 x 16 GB)
• Memory Slot - 2 x SO-DIMM DDR4
• Flash Memory - 5GB (Dual boot OS protection)
• Drive Bay - 5 x 3.5-inch + 4 x 2.5-inch
• Drive Compatibility - 3.5-inch bays: 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives, 2.5-inch bays: 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives, 2.5-inch U.2 NVMe PCIe Gen3 x4 solid state drives (2.5-inch Bay #1 & #2)
• Hot-swappable - Yes
• SSD Cache Acceleration Support - Yes
• 2.5 Gigabit Ethernet Port (2.5G/1G/100M) - 2
• 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) - Optional via the QNA-UC5G1T USB to 5GbE network adapter
• 10 Gigabit Ethernet Port - 1 x 10GBASE-T (10G/5G/2.5G/1G/100M)
• Jumbo Frame - Yes
• USB 3.2 Gen 2 (10Gbps) port - 1 x Type-C USB 3.2 Gen 2, 3 x Type-A USB 3.2 Gen 2
• Form Factor - Tower
• LED Indicators - HDD 1-5, SSD 1-4, Power/Status, LAN, USB
• Buttons - Power, Reset, USB Copy
• Dimensions (HxWxD) - 7.19 x 8.84 x 8.82 inch
• Weight (Net) - 7.76 lbs
• Weight (Gross) - 11.29 lbs
• Operating temperature - 0 - 40°C (32°F - 104°F)
• Relative Humidity - 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)

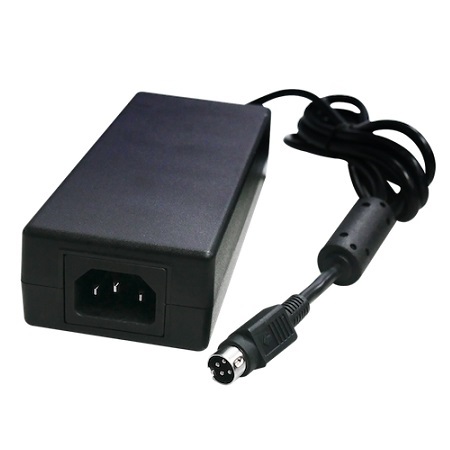

• Power Supply Unit - External, 120 W, AC 100 to 240 V
• Power Consumption: HDD Sleep Mode - 41.2 W
• Power Consumption: Operating Mode, Typical - 55.41 W
• Fan - 1 x 140mm, 12VDC
• Sound Level - 22.9 db(A)
• System Warning - Buzzer
• Kensington Security Slot - Yes

TS-h973AX-8G-US Specifications PDF
