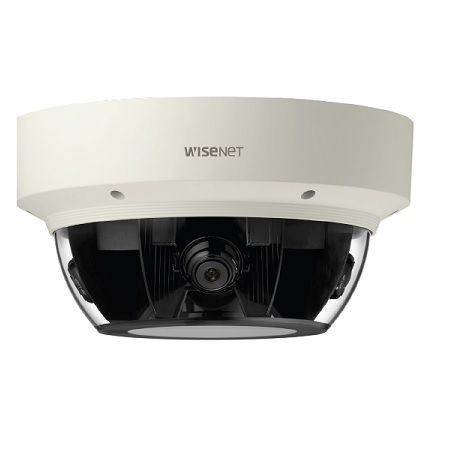

SLA-2M2400Q Hanwha Techwin PNM-9000VQ Lens module

Specifications

Video

• Imaging Device - 1/2.8" 2M CMOS
• Total Pixels - 1,945(H) x 1,109(V) 2.16M
• Effective Pixels - 1,945(H) x 1,097(V) 2.13M
• Scanning System - Progressive Scan
• Min. Illumination
  • Color : 0.055 Lux (F2.0, 1 / 30sec, 30IRE)
  • B/W : 0.055 Lux (F2.0, 1 / 30sec, 30IRE)
• S / N Ratio - 50dB
• Wide Dynamic Range - 150dB
• Day & Night - Electrical

Lens

• Focal Length (Zoom Ratio) - 2.4mm
• Max. Aperture - F2.0
• Angular Field of - H : 135.4˚, V : 71.2˚, D : 161.6˚
• Lens Type - Fixed Focal
• Mount Type - M12 Lens module with main unit

Pan/Tilt/Rotate

• Pan / Tilt / Rotate Range - -90˚~+90˚ / 62˚ / -180˚~+180˚

Mechanical

• Color / Material - Black / Plastic
• Dimension (W x H x D) - Ø 35.5 x 35.9 mm (Ø 1.39" x 1.41")
• Weight - 30g (0.07 lb)

SLA-2M2400Q Specifications PDF
