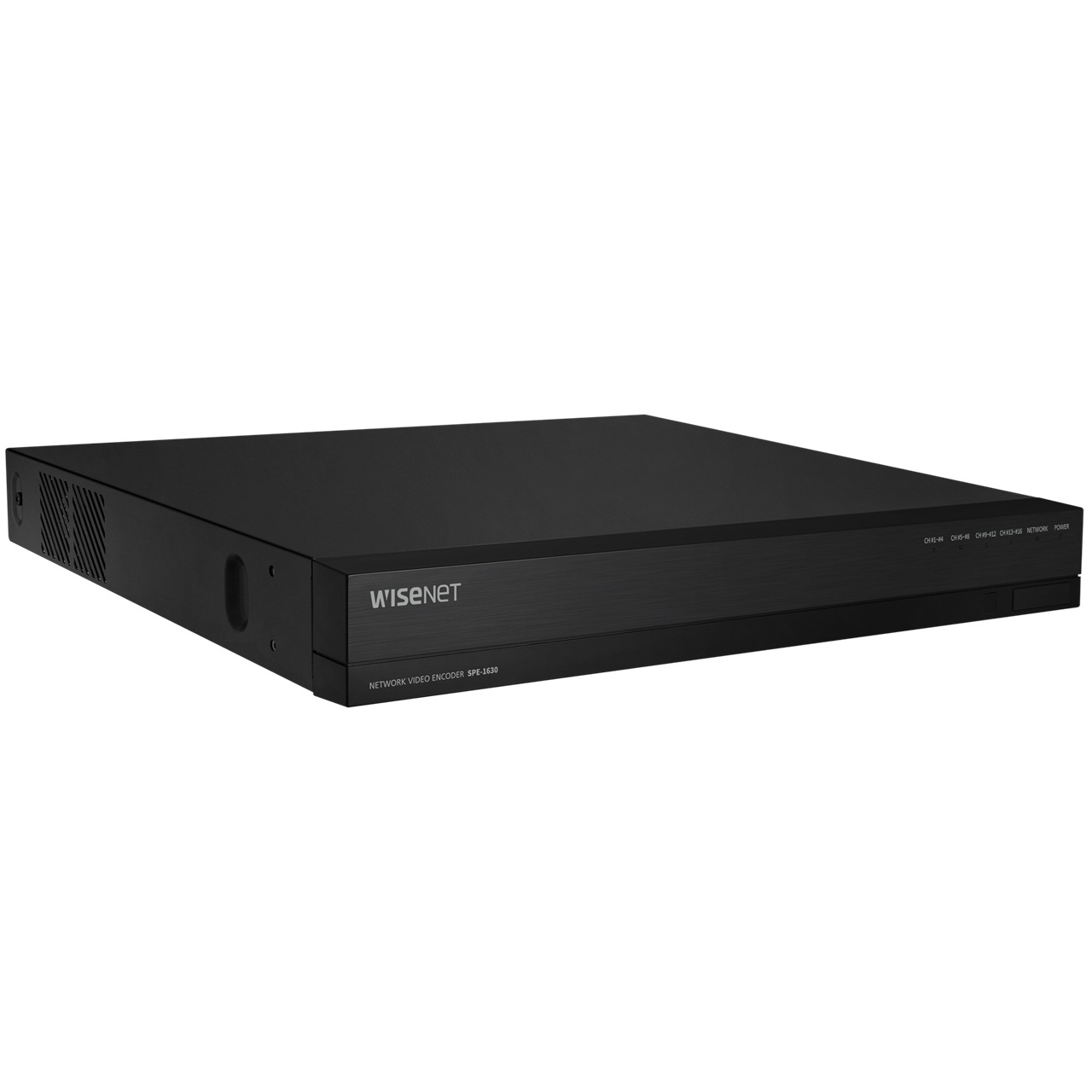

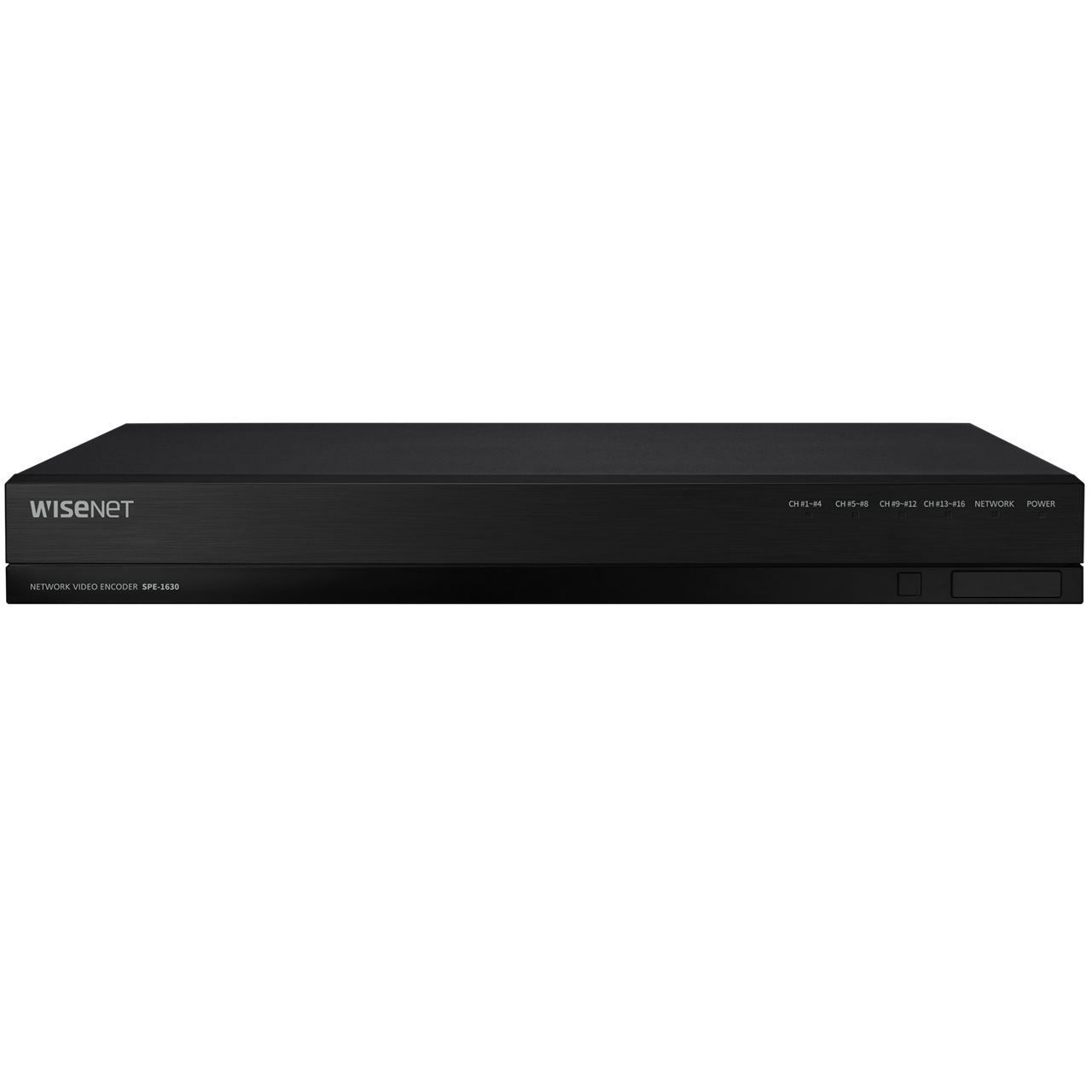

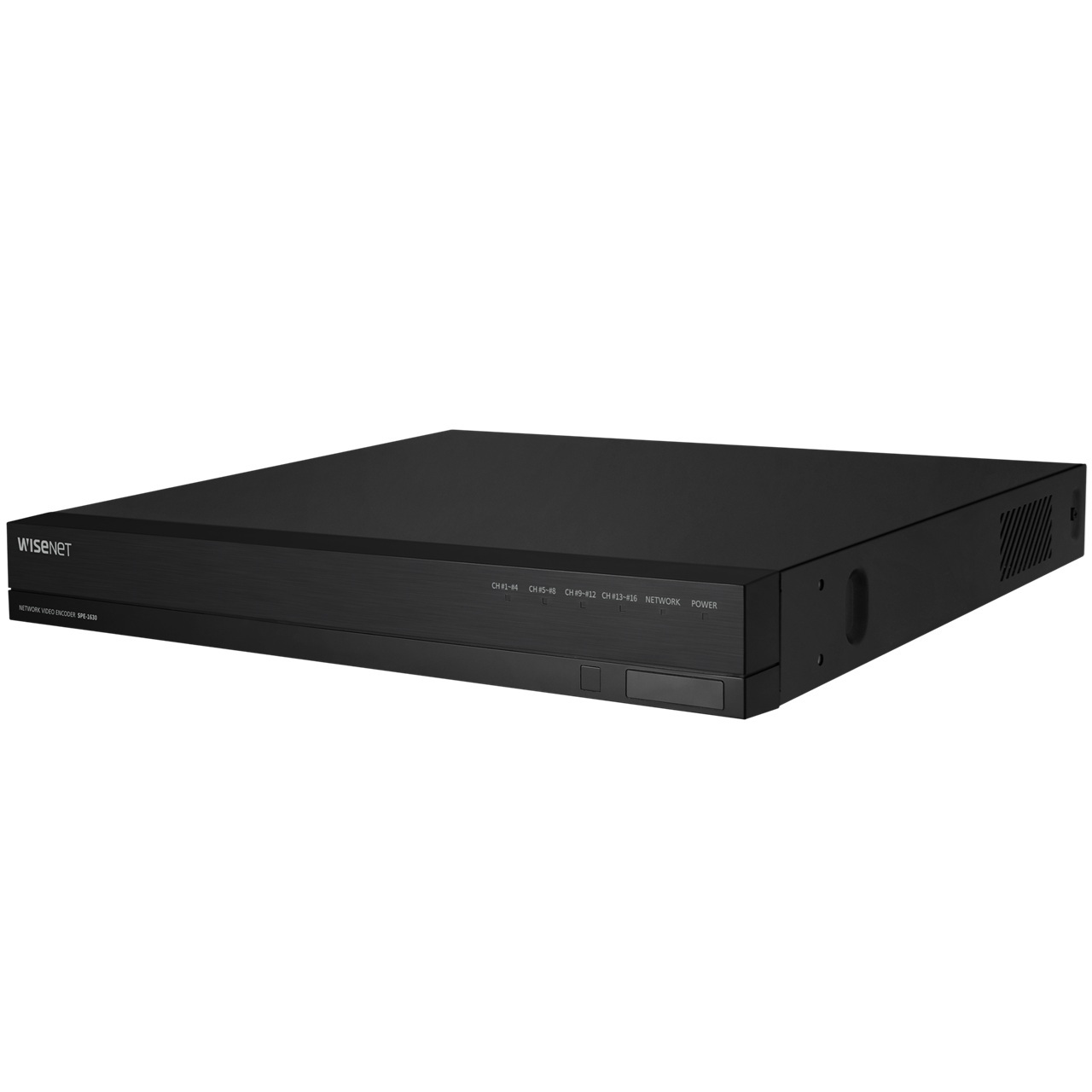

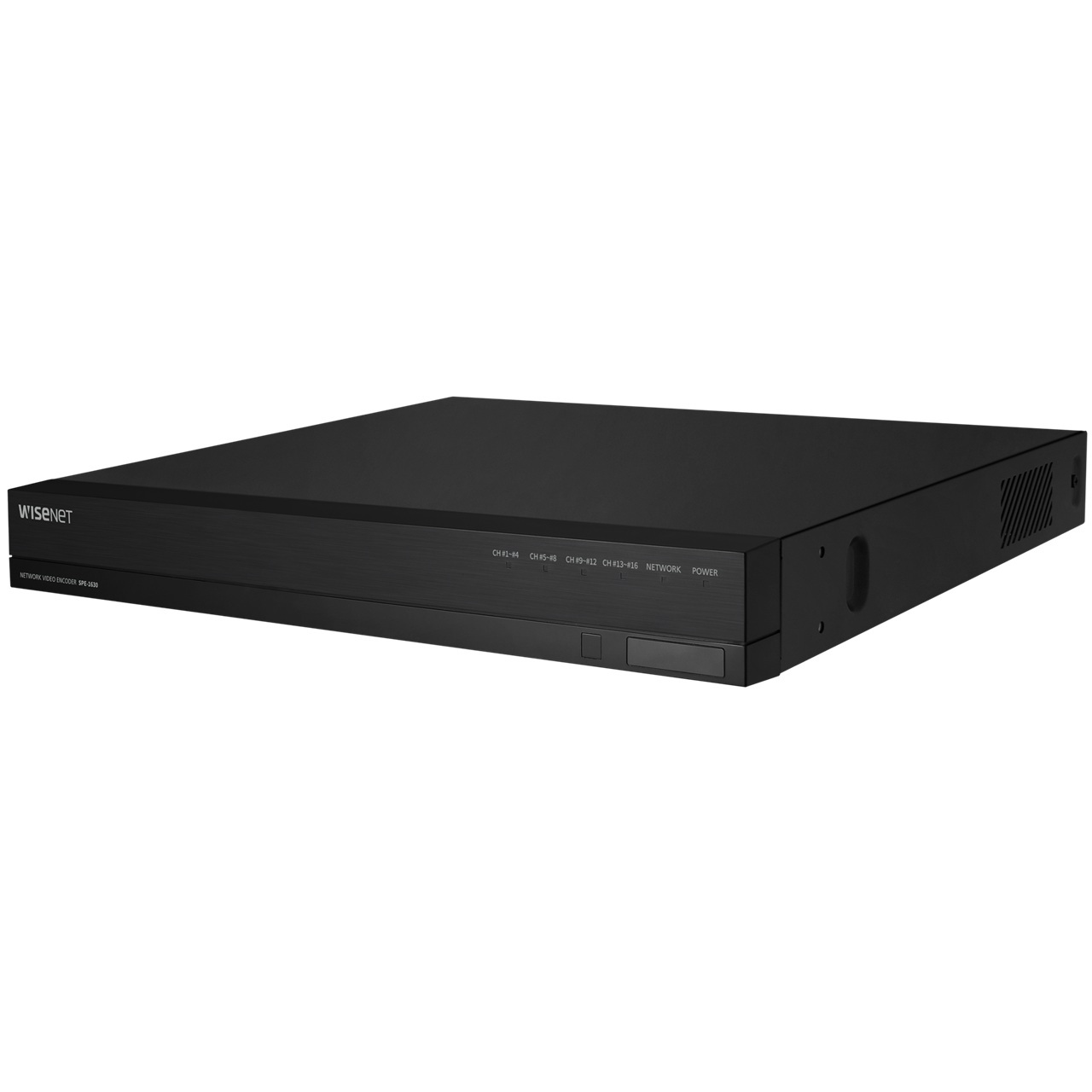

SPE-1630 Hanwha Vision H.265/H.264/MJPEG 16 Channel Encoder

Specifications

Video

• Input Channel - 16CH BNC, 1.0 Vp-p / 75Ω composite NTSC/PAL
• Input Signal & Resolution - CVBS, AHD/CVI/TVI (1, 2, 4, 5MP) Auto Detection
• Video Out - 1 HDMI OUT (16 multi Image, 1920x1080)

Operational

• Motion Detection - Off / On
• Privacy Masking - Off / On (4ea rectangular zones)
• De-Interlacing - support
• Alarm I/O - 16 Input/ 4 Output
• Alarm Trigger - Motion Detection, Alarm Input, Video Loss, Tampering, Network disconnect
• Alarm Events - File Upload Via FTP, E-mail
• Audio I/O - 4 Line Input / 1 Line Output(1 NO/COM/NC, 3 NO/COM)
• OSD - Title
• Remote Control Interface - 1ea RS-485(Half Duplex)
• RS-485 Protocol - SAMSUNG-T, PELCO-P/D
• Coaxial Control - CVBS(Pelco-C) AHD, TVI, CVI

Network

• Ethernet - 1 RJ-45 10/100/1000 Base-T
• Video Compression Format - H.265, H.264 (MPEG-4 Part 10/AVC) : Main / Baseline / High, MJPEG
• Resolution - 2560x1920, 2560x1440, 1920x1080, 1280x720, 928x480(N), 928x240(N), 704x480(N), 704x240(N), 640x368, 352x240(N) 928x576(P), 928*288(P), 704x576(P), 704x288(P), 640x368, 352x288(P)
• Max. Framerate - Main Stream 5MP : 12fps/CH, 4MP : 15fps/CH, 1080p/720p/WD1/4CIF/CIF : 30fps/CH(N), 25fps/CH(P) - Sub Stream WD1/4CIF : 30fps/CH, 2CIF/CIF/QVGA/QCIF : 30fps/CH(N), 25fps/CH(P) - MJPEG : 5fps @ 640x368, 352x240, SD Camera : 5fps @ 480x240, 352x240
• Bitrate Control Method - H.265, H.264 : CBR or VBR
• Streaming Capability - Multiple Streaming (Up to 3 Profiles per channel)
• Audio Compression - G.711 u-law
• IP -IPv4, IPv6
• Protocol - TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, ONVIF, Bonjour
• Security - HTTPS (SSL) Login Authentication, Digest Login Authentication IP Address Filtering, User Access Log, 802.1X Authentication (EAP-TLS, EAP-LEAP)
• Streaming Method - Unicast / Multicast
• Max. User Access - rtp/rtsp max. 48 users(4 Users/CH) at Unicast Mode , http max.32 users
• Webpage Languages - English, French, German, Spanish, Italian, Russian, Turkish, Polish, Dutch, Swedish, Portuguese, Czech, Chinese, Japanese, Korean, Hungarian, Greek
• Web Viewer - Supported OS : Windows 10 or later, Mac OS X 10.13 or later Non-plugin WebViewer Supported Browser : Google Chrome 80 or later,, MS Edge 83 or later, Mozilla Firefox 72 or later, Apple Safari 11.0.1 or later
• Application Programming Interface - ONVIF profile S, SUNAPI (HTTP API)
• Compatabile Software & Recoder - SmartViewer), SSM, NVR(Hanwha Techwin, P/X/Q/L series)

Environmental

• Operating Temperature/ Humidity - -10°C ~ +50°C / 20% ~ 80% RH (-10°C ~ +40°C when installed in RACK)

Electrical

• Input Voltage / Current - DC12V/5A
• Power Consumption - MAX : 20.0W (12V, 1.67A)

Mechanical

• Color/Material - Black/Metal
• Dimension (WxHxD) - (W) 370.0 × (H) 44.0 x (D) 320.0(include Connector 330.9)mm
• Weight - 2.32kg(5.115lb)
