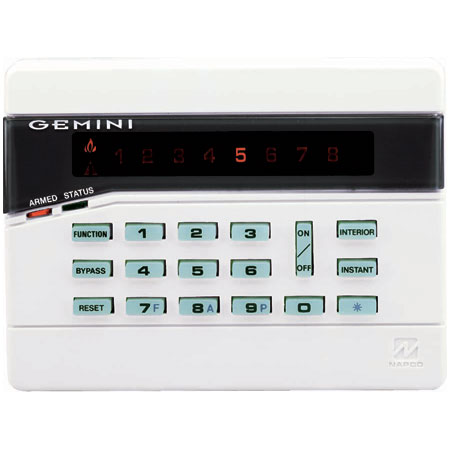

GEM-P801 NAPCO 8 Zone Control Panel w/ GEMRP8 Keypad

Specifications:

• Operating Temperature: 0-49 degrees C (32-120 F)
• Input Power: 16.5 VAC Plug-in 20VA Transformer
• Loop Voltage: 5 Volts
• Loop Current: 1.1 mA
• Loop Resistance: 300Ω per zone (max.)
• Alarm Output: Burg: 12 VDC, 2A (max.), Fire: 12 VDC, 65 mA
• Combined Standby Current: 500 mA Residential Burglary (4 hour standby). 500 mA Residential Fire (4 hour standby). 120 mA Residential Fire (24 hour standby).
• Current Limiting: Burg/Fire: 2.25 A
• Output: 2A, max.-burglar; 125mA, max.-fire
• Maximum Charging Current: 165mA
• Housing: 11 x 12 1/8 x 3in (H x W x D)
• Required Battery: 12V 4 AH or 7 AH Rechargeable

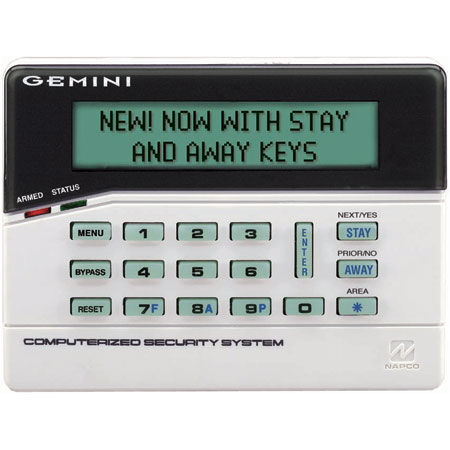

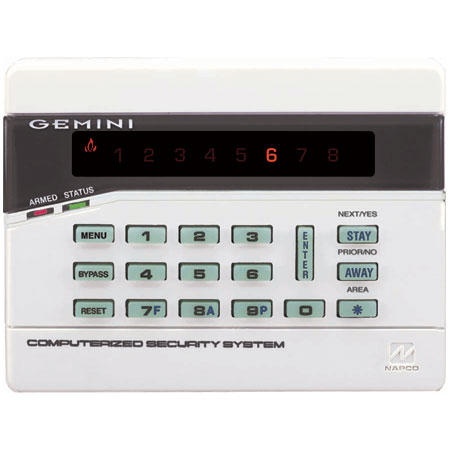

• Max. Number of Keypads: 4 (NOTE: Classic GEM-RP8 keypads cannot be intermixed on systems with other keypads with Stay and Away functions.
• Supports All Gemini Wireless
• Max. Number of Receivers: 2 (GEM-RECV-XP8)
• Max Number of Compatible Smoke Detectors: 10
• Max. Keypad Wire Length: 1000 feet

GEM-P801 Spec Sheet
