GEM-X255 NAPCO 8/255 Zone Control Panel

SKU: GEM-X255

8 to 255 zones, hardwire or wireless zones from GEM EZM8 zone- expansion modules and RP1/K1 4-zone keypads or wireless points using Gemini receivers
Including up to 8 2-wire fire zones
Up to 195 individually coded users, each with a programmable authority level
Exclusive RS232 panel-port supports PC home automation/ networking integration for 9600 baud comprehensive communications
Fuseless maintenance-free operation
8 End-of-line-resistor burglary zones programmable for area, exit/entry delay, interior, follower, day zone, chime, fire option, sensor watch, swinger shutdown, zone anding and a variety of other features
3 on-board relay outputs; expandable to 99
Three keypad panics: fire, police & auxiliary
Up to 8 independent area partitions

MPN: GEM-X255
Ordering Notes: Service Professionals Only

New to DWG? - Sign Up for immediate access to dealer pricing and benefits.

Already a DWG Customer? - Sign In to view pricing.

Product Details

Specifications:

Operating temperature: 0-49C (32-120F)
Input power: 16.5Vac via Class 2 Plug-In 40VA Transformer, supplied
Loop voltage: 10-13VAC
Loop current: 2.5mA with 2.2ohm end-of-line resistor (model EOL2.2K); 5mA for 2-wire smoke-detector zones
Loop resistance: 300W max.; 50W for 2-wire smoke detector zones
Relay outputs (burglary; reset; aux): wet, 12Vdc, 1.2A max.; dry (cut related jumper for dry contacts), SPDT contacts 24Vdc, 2A
Auxiliary power output: 12 Vdc regulated
Remote power output: 12Vdc regulated (for keypads) 750 mA combined Standby Current (Remote Power + Aux. Power + Reset Relay Power)
Standby time: Residential fire/burglary & commercial burglary, 4 hours minimum
EZM Module: GEM-EZM8: input, 50mA (including PGM Output) PGM output: 5mA, 12V special application

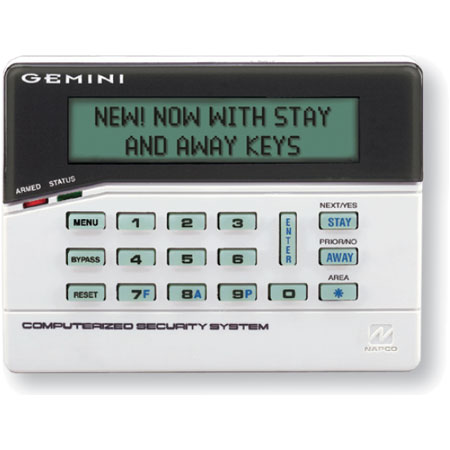

Keypad current: GEM-RP1CAe2, GEM K1CA: 100mA; 35mA if back lighting is disabled (cut W1, W2 & W3) PGM output: 5mA, 12V special application
Maximum number of keypads: 15 maximum wiring length for each run (#22AWG): 1000 feet divided by total number of keypads & EZMs on run
Keypad Dimensions: 4 3/8 x 5 7/8 x 1 1/6 in (HWD); 11.1cm x 14.9cm x 2.7cm (HWD)
