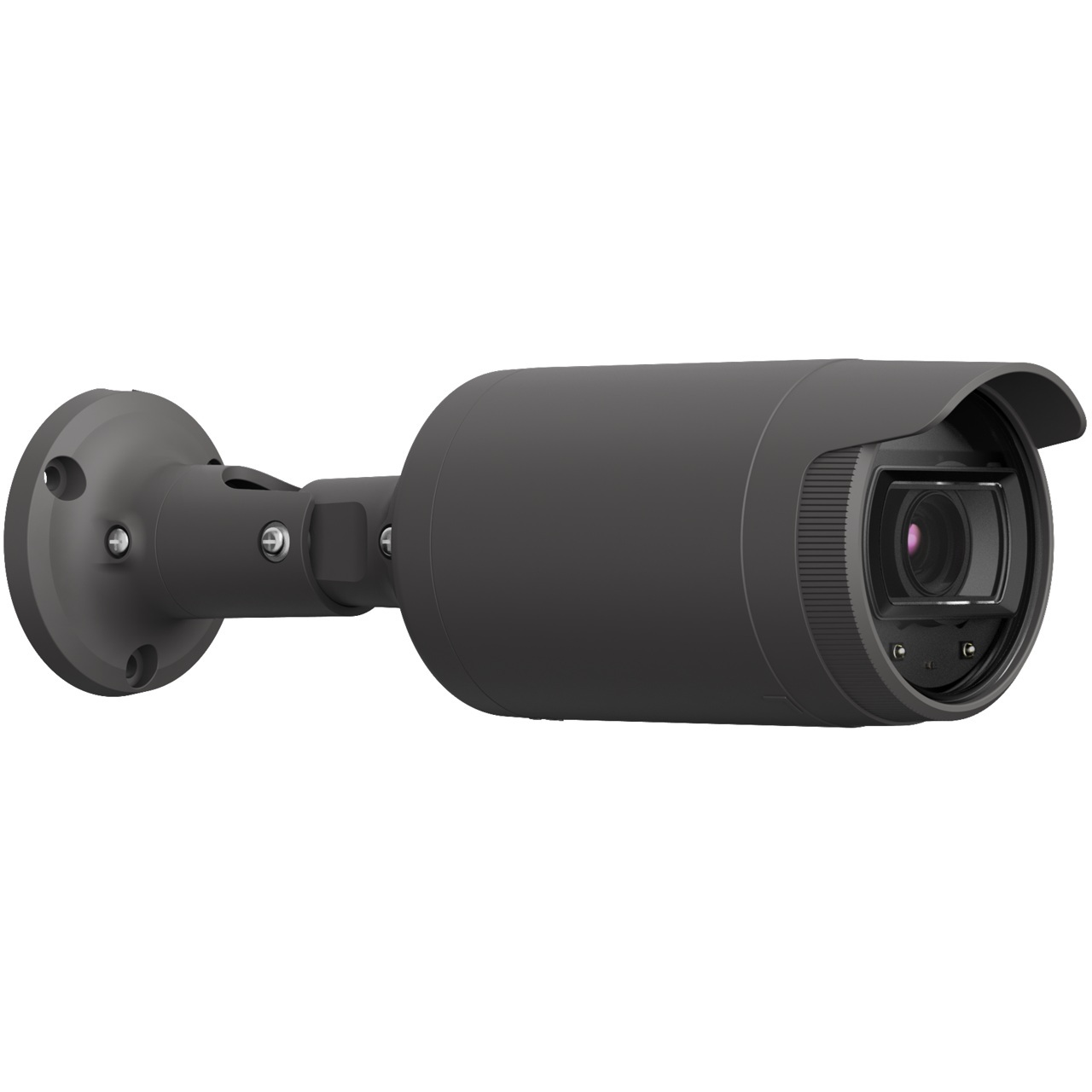

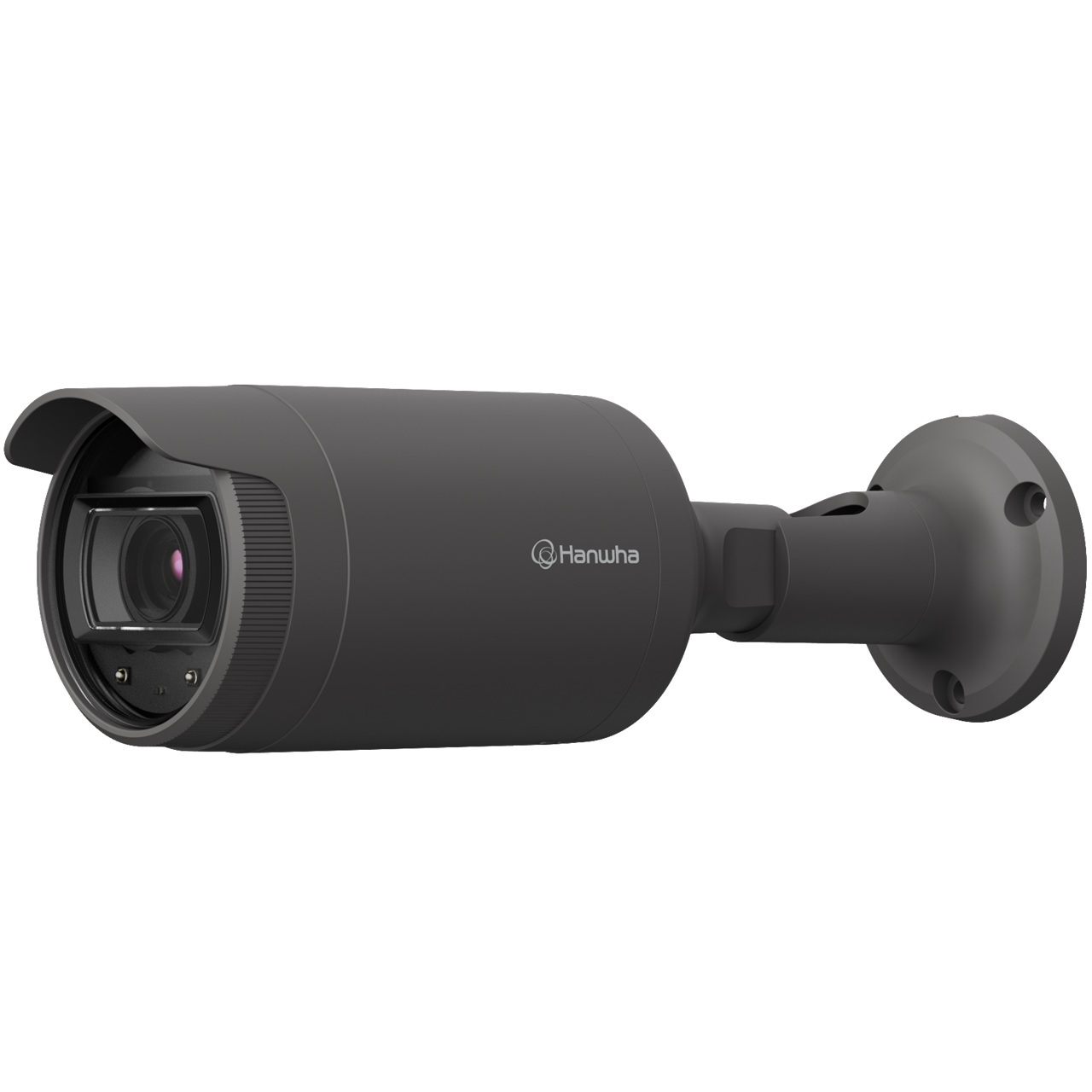

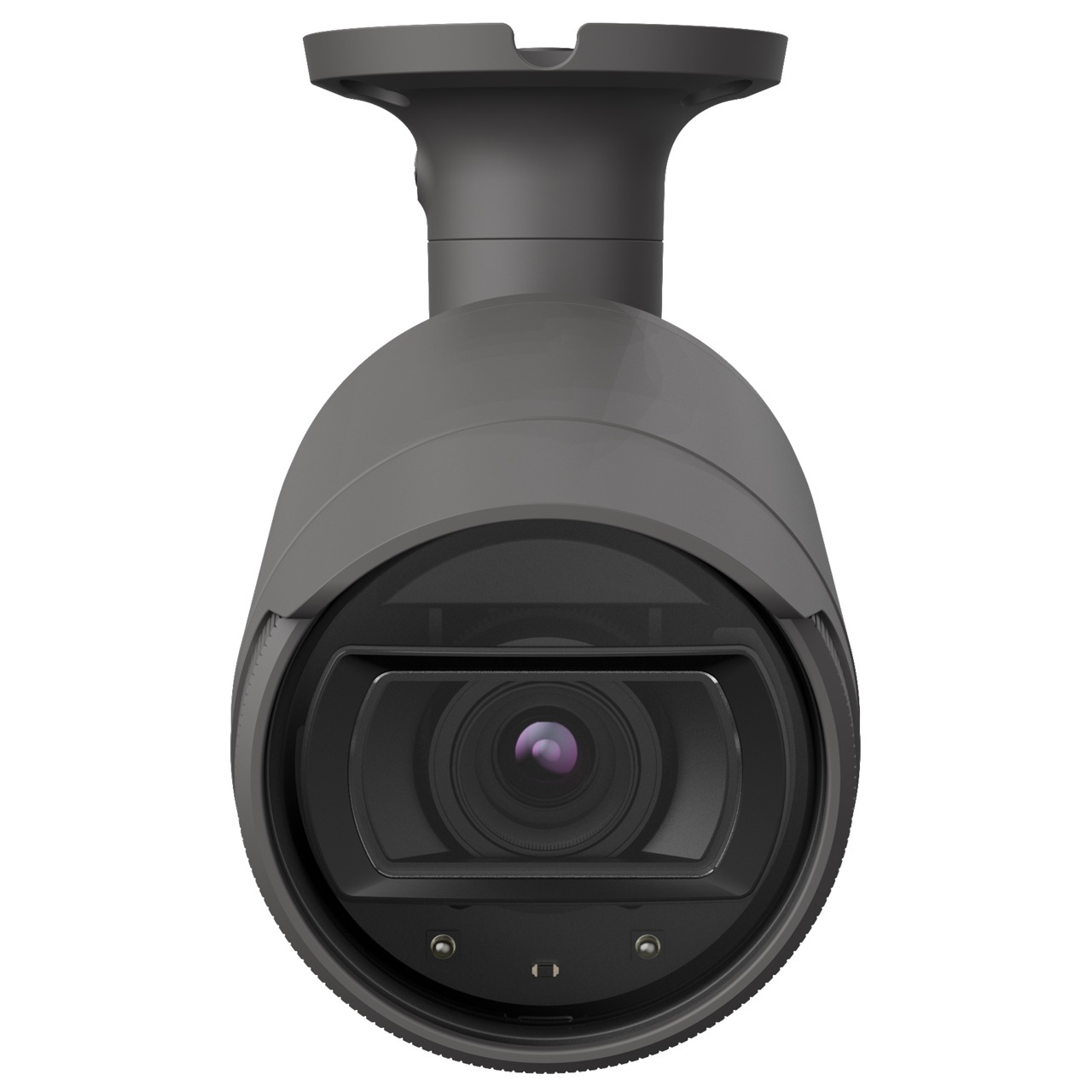

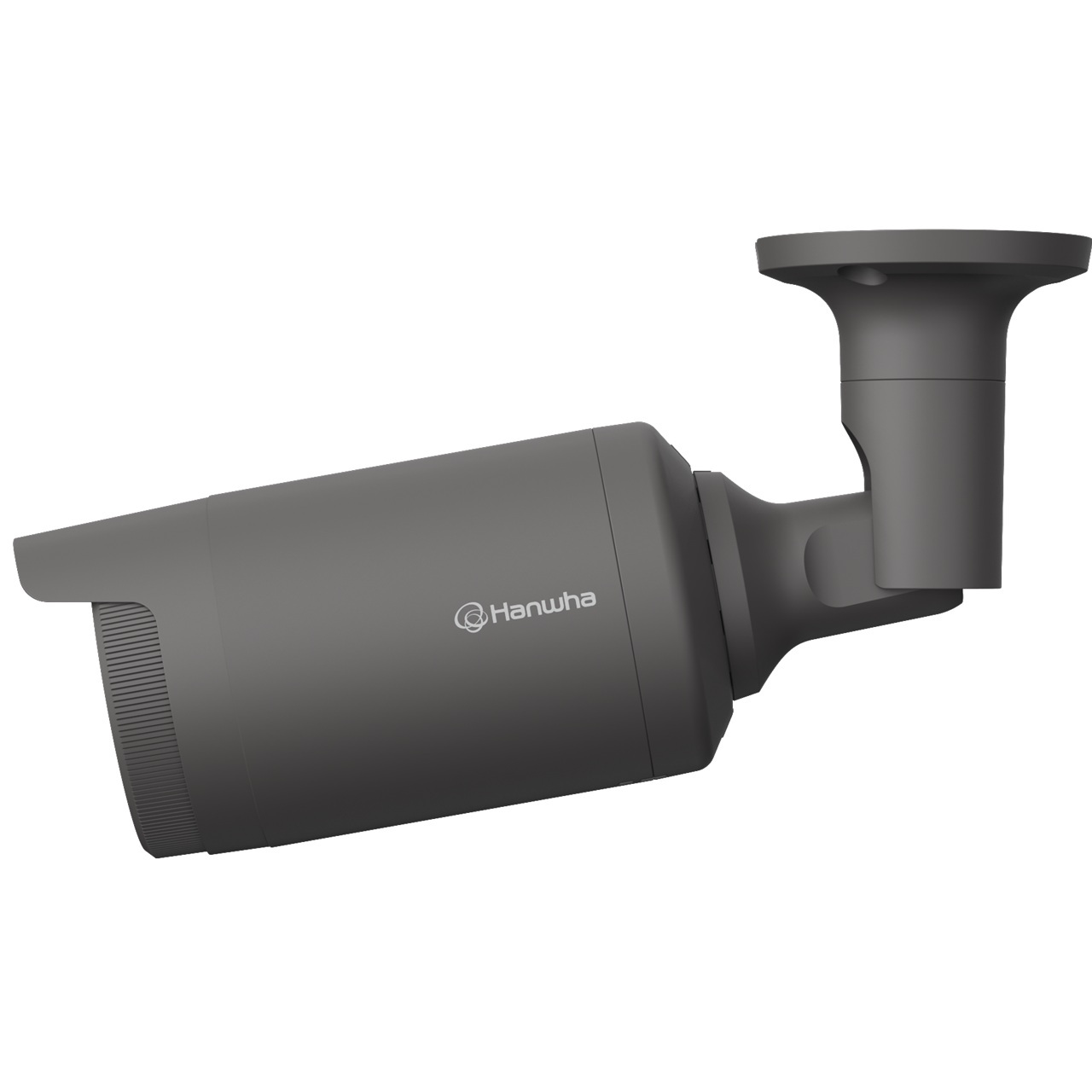

LNO-6072R Hanwha Vision 3.2-10mm Varifocal 30FPS @ 2MP Outdoor IR Day/Night WDR Bullet IP Security Camera PoE

SKU: LNO-6072R

2MP IR Bullet Camera

Features:

  • 2 Megapixel (1920 x 1080) resolution
  • 3.2 ~ 10mm varifocal lens
  • 30fps@ all resolutions (H.264)
  • H.264, MJPEG codec supported, Multiple streaming
  • Day & Night (ICR), WDR (120dB)
  • Tampering, Motion detection
  • Micro SD/SDHC memory slot (Max. 32GB), PoE
  • Hallway view, WiseStream II support
  • IR viewable length 30m
  • IP66 support
  • Genetec Stratocast compatible
NDAA
More details...
MPN: LNO-6072R
EAN: 8801089170064
Save to my Wish List

Already a DWG Dealer? - Sign In to view pricing.



Product Details

Specifications

Video

  • Imaging Device - 1/2.8" CMOS
  • Resolution - 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
  • Max. Framerate - H.264 : Max. 30fps/25fps(60Hz/50Hz) MJPEG : Max. 2fps at 1920x1080, Max.. 3fps at 1280x960, 1280x720, Max. 10fps at other resolution
  • Min. Illumination - Color: 0.03Lux(F1.6, 1/30sec) BW : 0Lux (IR LED on)

Lens

  • Focal Length (Zoom Ratio) - 3.2~10mm(3.1x) manual varifocal
  • Max. Aperture Ratio - F1.6(Wide)~F2.9(Tele)
  • Angular Field of View - H: 109.0°(Wide)~33.2°(Tele)/ V: 57.4°(Wide)~18.7° (Tele)/ D: 132.0°(Wide)~38.0° (Tele)
  • Min. Object Distance - 0.5m (1.64ft)
  • Focus Control - Manual
  • Lens Type - DC auto iris

Operational

  • Camera Title - Displayed up to 15 characters
  • Day & Night - Auto (ICR)
  • Backlight Compensation - BLC, WDR, SSDR
  • Wide Dynamic Range - (120dB)
  • Digital Noise Reduction - SSNR
  • Motion Detection - 4ea, rectangler zones
  • Privacy Masking - 6ea, rectangular zones
  • Gain Control - LOW/ MID/ HIGH
  • White Balance - ATW / AWC / Manual / Indoor / Outdoor
  • LDC - Support
  • Electronic Shutter Speed - Minimum / Maximum / Anti flicker (2~1/12,000sec)
  • Video Rotation - Flip, Mirror, Hallway view(90°/270°)
  • Analytics - Motion detection, Tampering,
  • Alarm Triggers - Analytics
  • Alarm Events - File upload via FTP and e-mail Notification via e-mail SD/SDHC recording at event triggers
  • IR Viewable Length - 30m(98.43ft)

Network

  • Ethernet - RJ-45(10/100BASE-T)
  • Video Compression - H.264: Main/Baseline/High, MJPEG
  • Smart Codec - WiseStreamâ…¡
  • Video Quality Adjustment - H.264: Target bitrate level control MJPEG: Quality level control
  • Bitrate Control - H.264: CBR or VBR MJPEG: VBR
  • Streaming - Unicast(6 users) / Multicast Multiple streaming (Up to 3 profiles)
  • Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour
  • Security - HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP)
  • Application Programming Interface - ONVIF Profile S/G/T SUNAPI(HTTP API)

General

  • Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch
  • Memory - 512MB RAM, 256MB Flash
  • Edge Storage - Micro SD/SDHC 1slot 32GB

Environmental & Electrical

  • Operating Temperature / Humidity - -30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -20°C(-4°F)
  • Storage Temperature / Humidity - -30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH
  • Certification - IP66
  • Input Voltage - PoE(IEEE802.3af, Class2)
  • Power Consumption - Max 6.4W, Typical 5.0W

Mechanical

  • Color / Material - Dark grey / Plastic
  • Product Dimensions / Weight - Ø78.0x262.0mm(Ø3.07x10.31”), 420g(0.93lb)

DORI (EN62676-4 standard)

  • Detect (25PPM/ 8PPF) - Wide: 27.4m(89.85ft) / Tele: 128.8m(422.56ft)
  • Observe (63PPM/ 19PPF) - Wide: 11.0m(35.94ft) / Tele: 51.5m(169.02ft)
  • Recognize (125PPM/ 38PPF) - Wide: 5.5m(17.97ft) / Tele: 25.8m(84.51ft)
  • Identify (250PPM/ 76PPF) - Wide: 2.7m(8.99ft) / Tele: 12.9m(42.26ft)

LNO-6072R Specifications PDF
