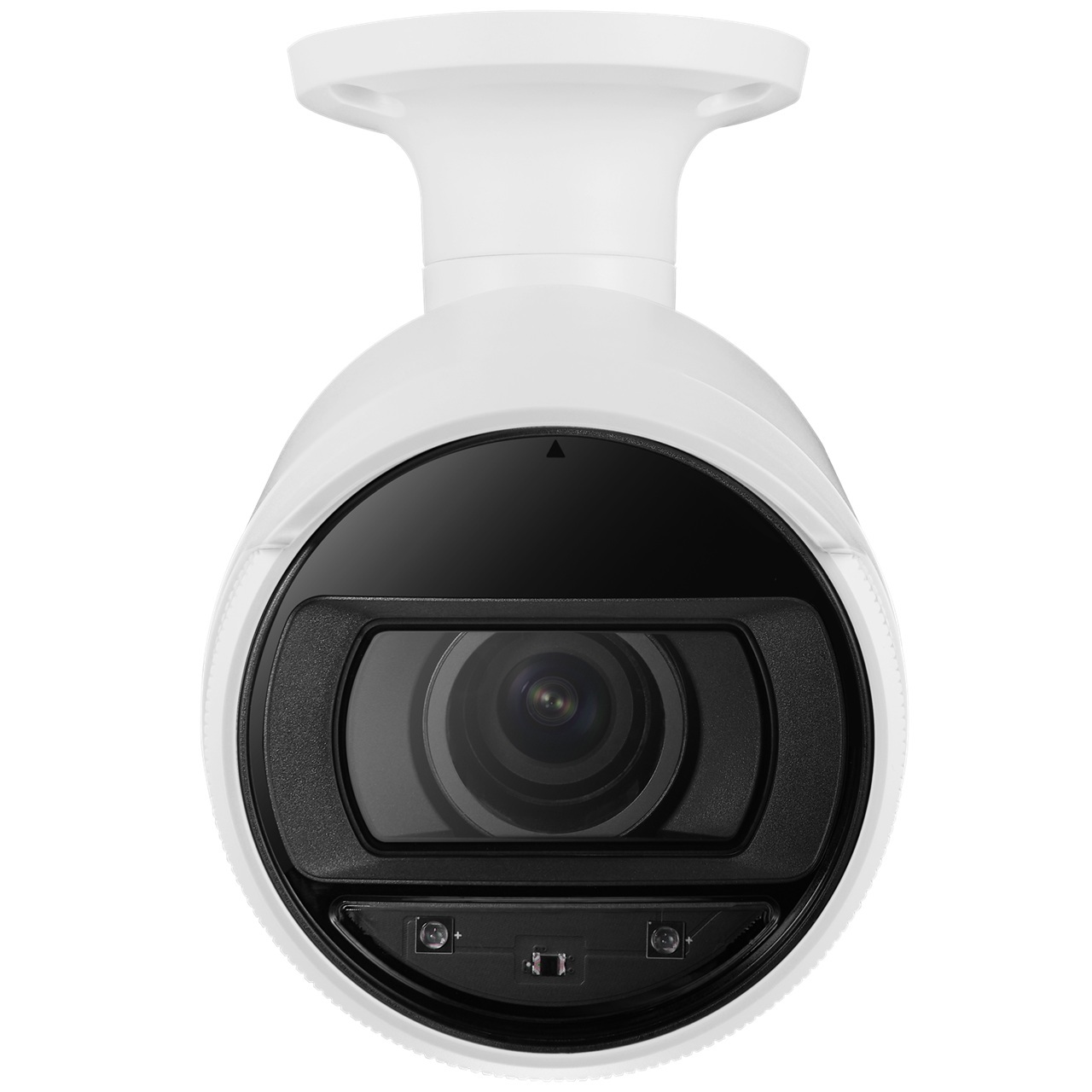

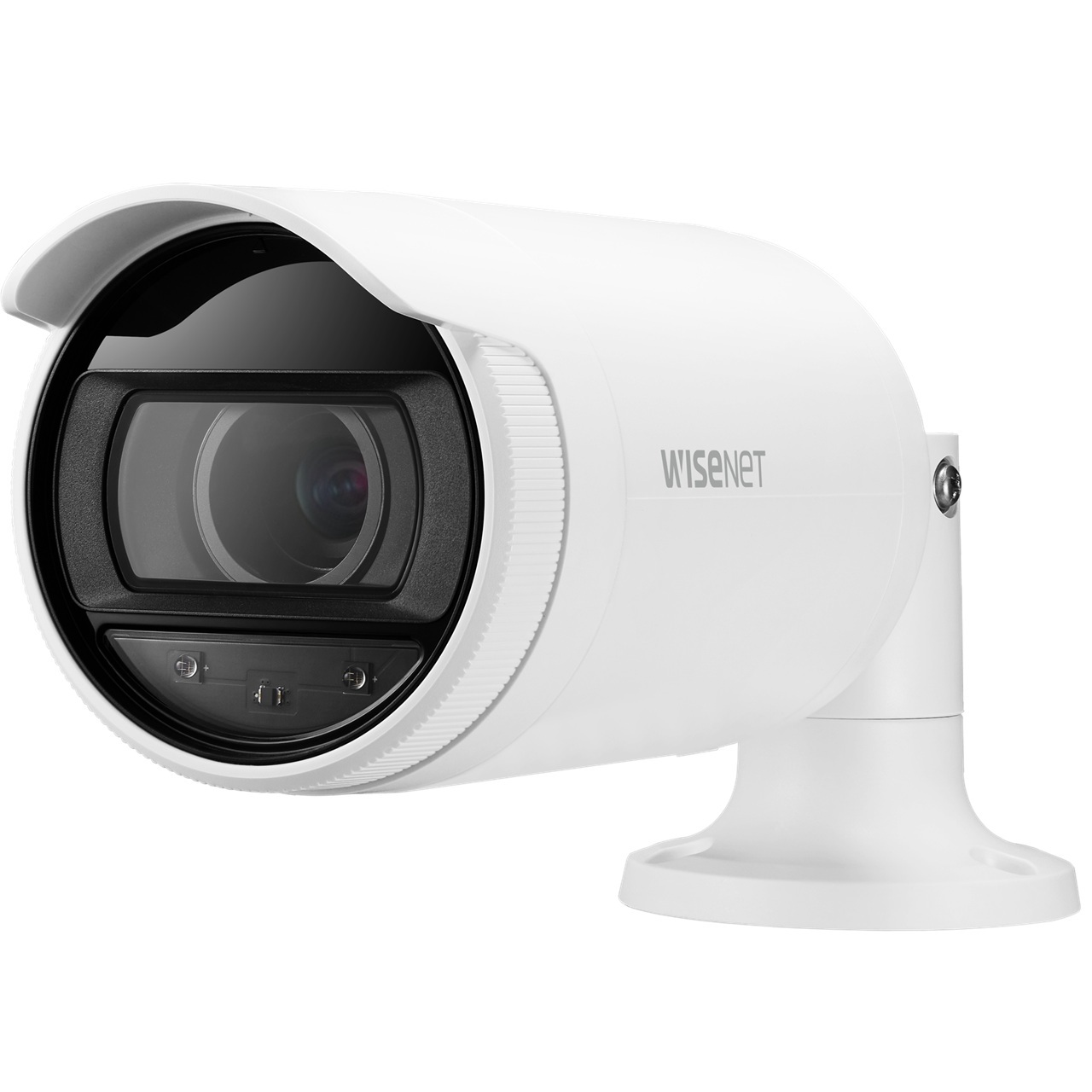

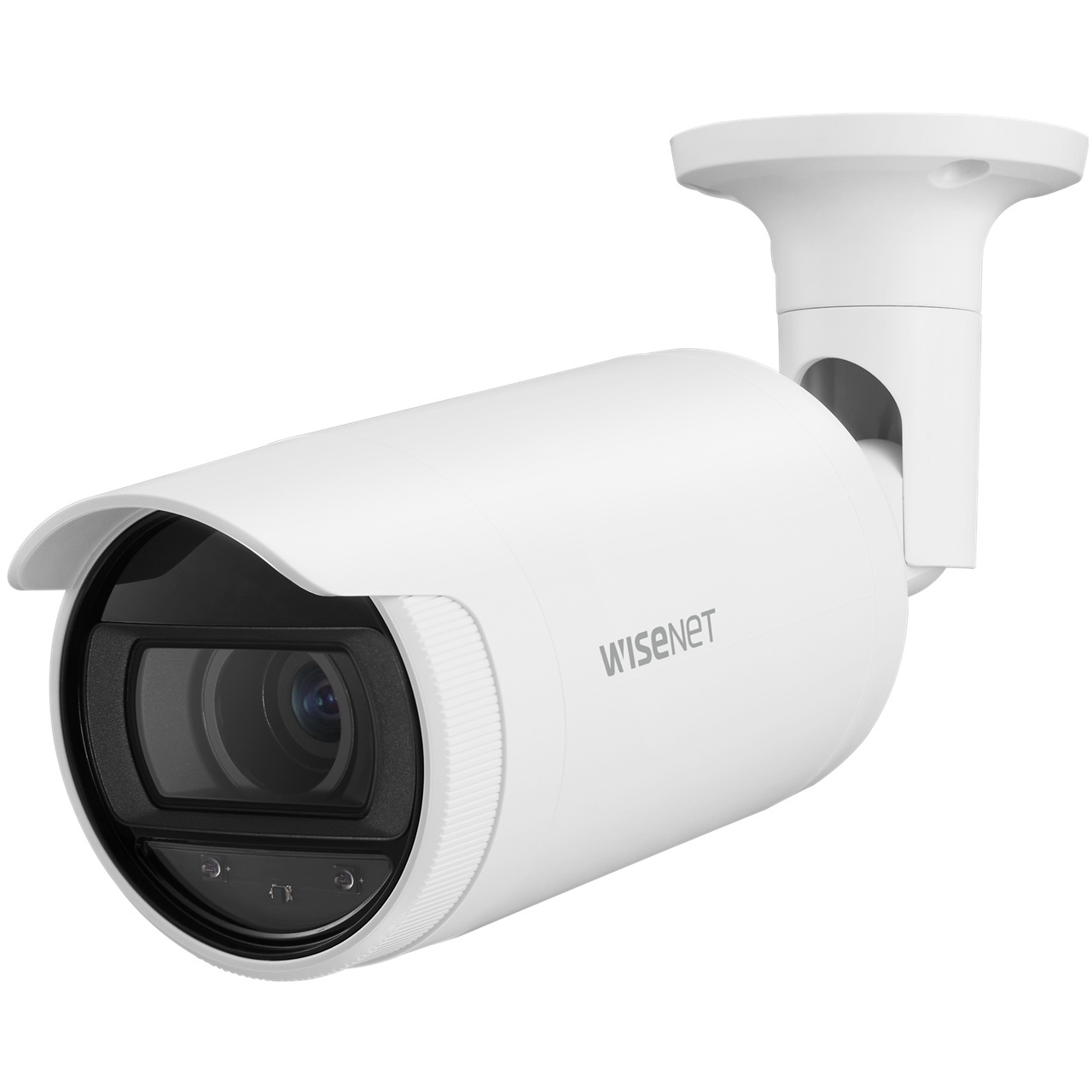

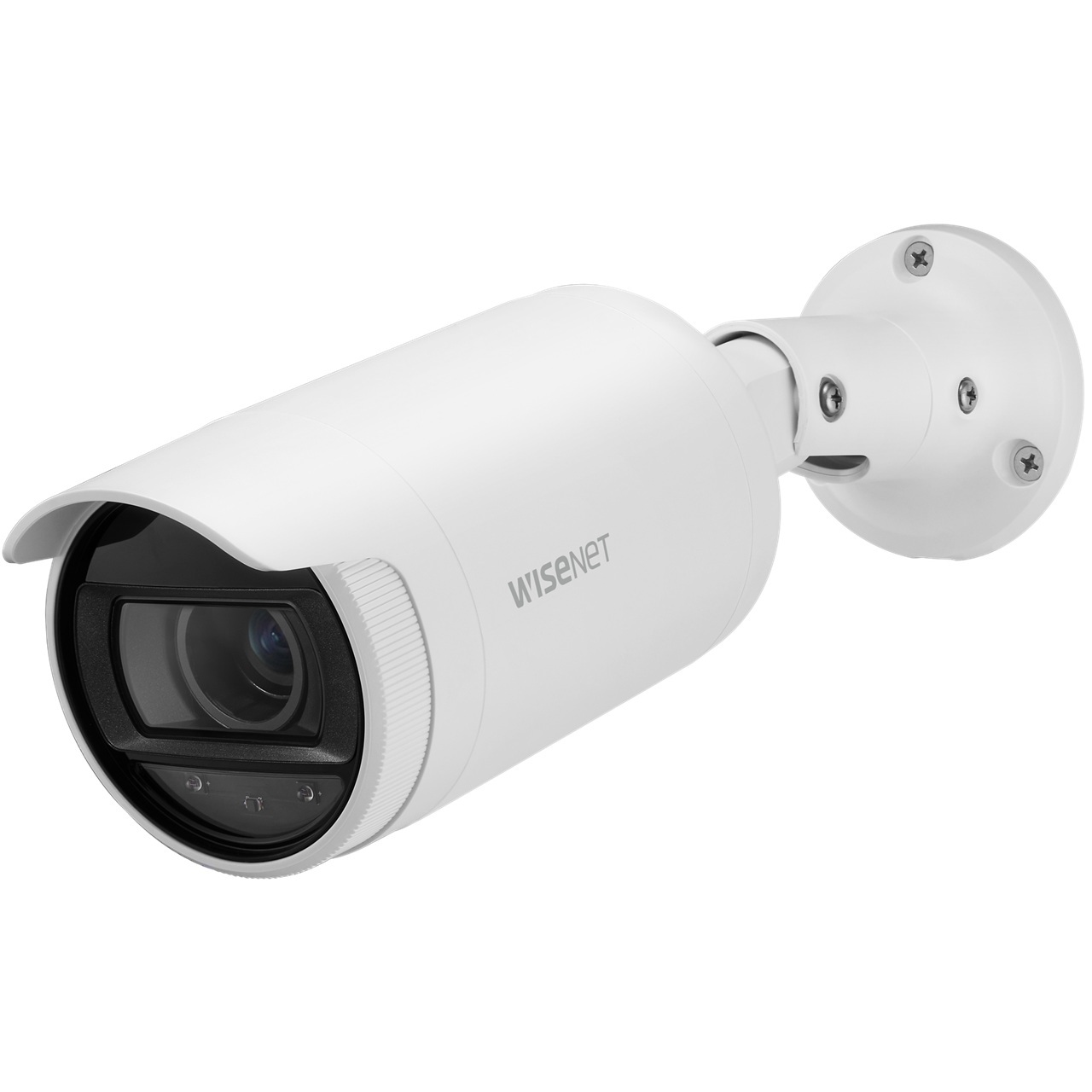

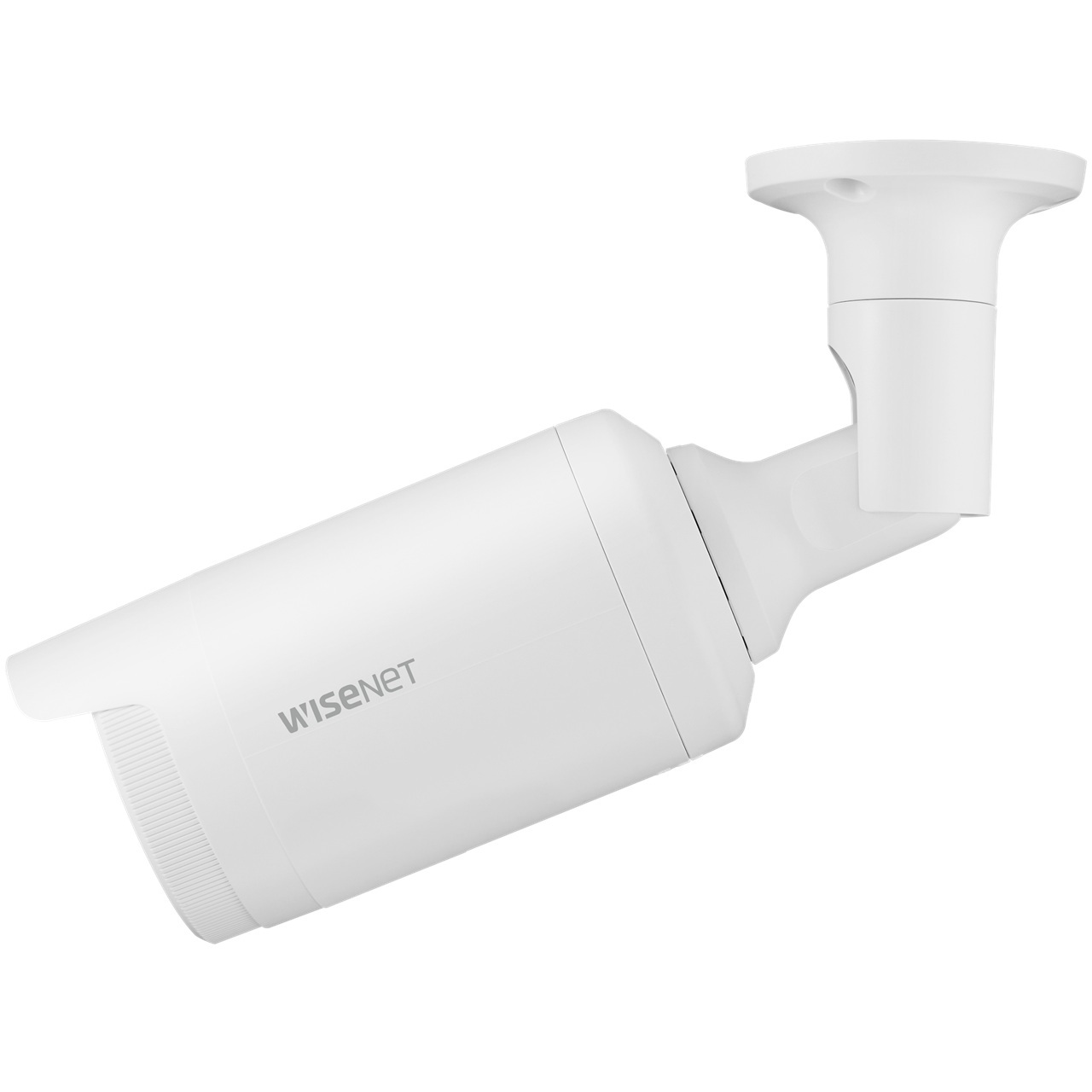

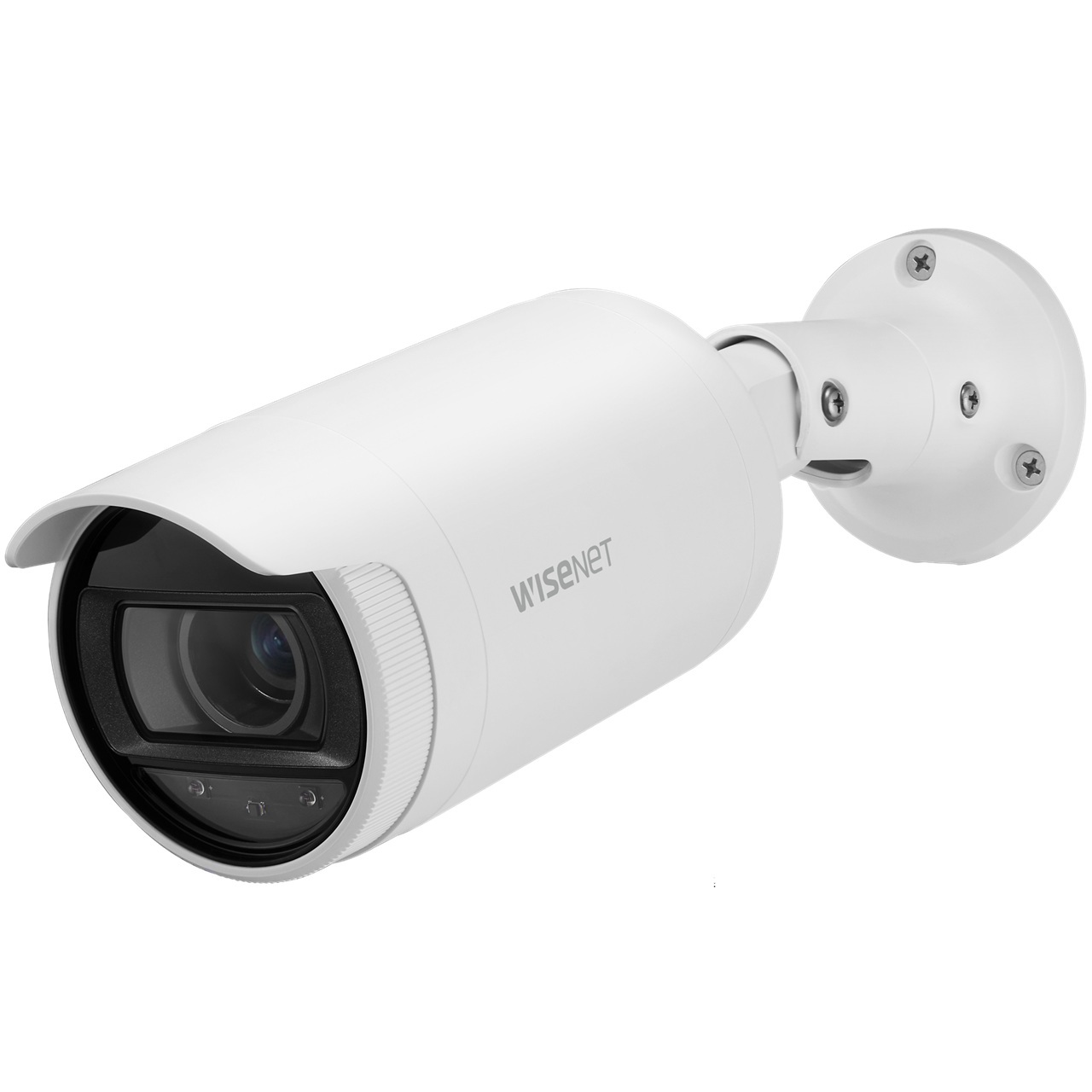

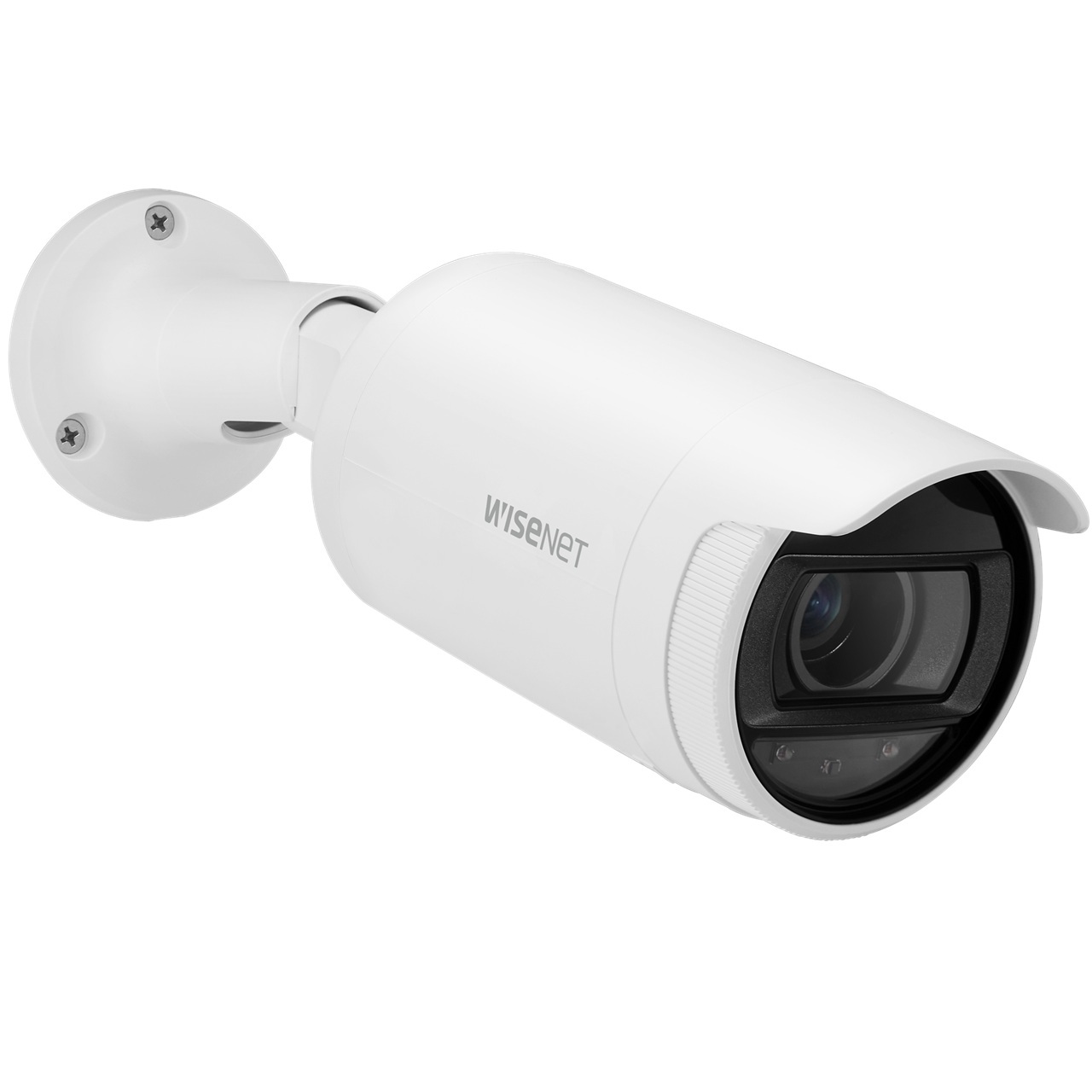

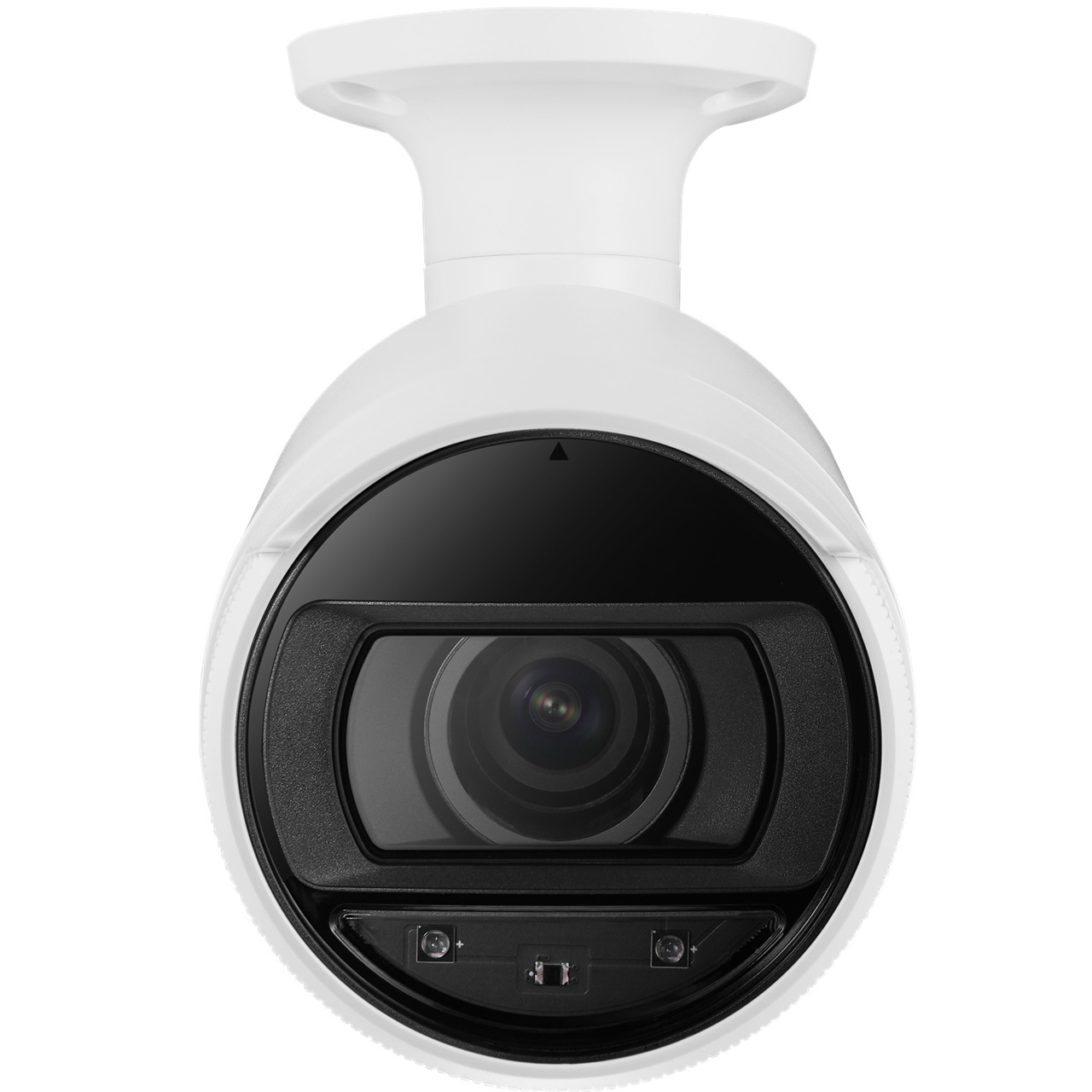

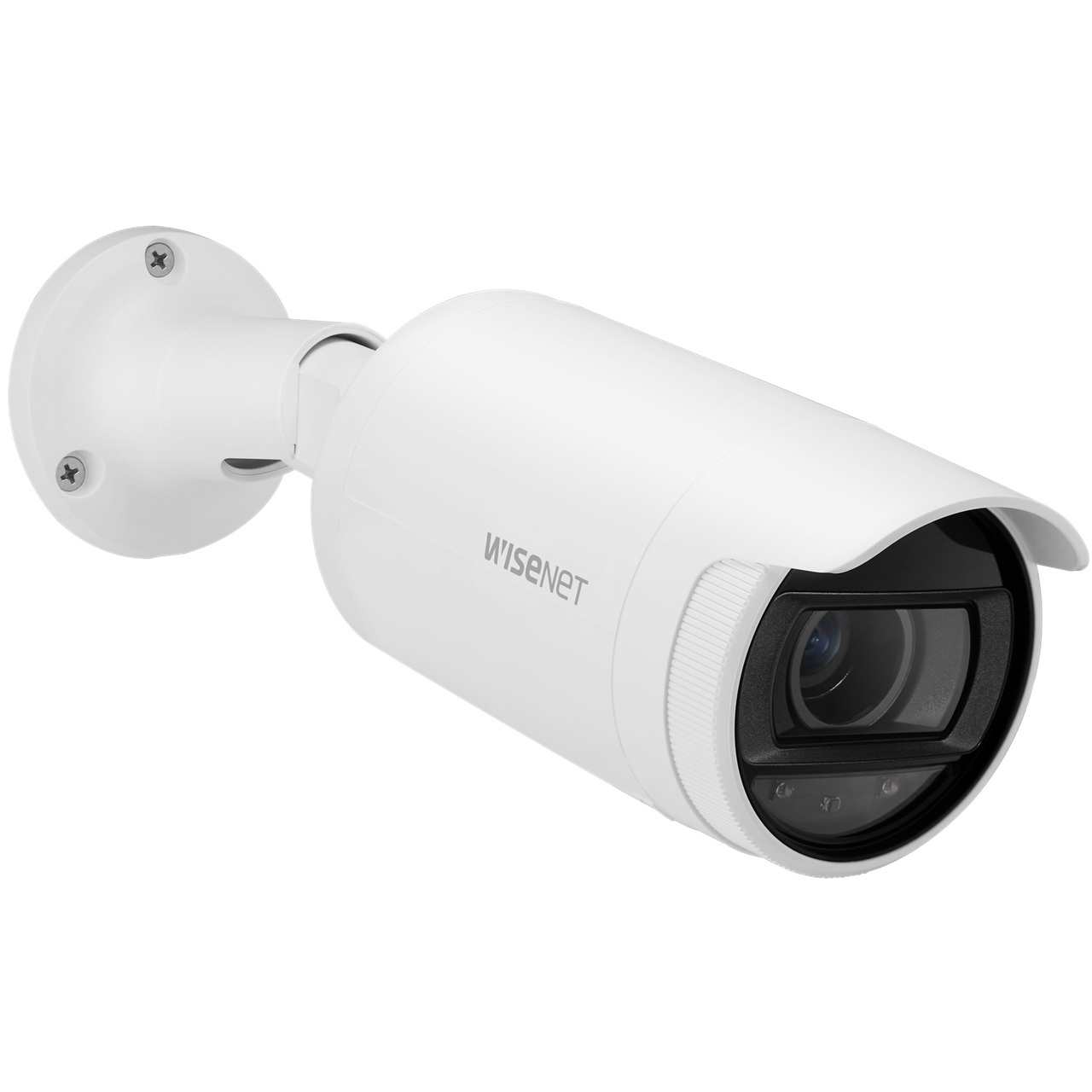

ANO-L7082R Hanwha Vision 3.3-10.3mm Motorized 30FPS @ 4MP Outdoor IR Day/Night WDR Bullet IP Security Camera PoE

Specifications

Video

• Imaging Device - 1/2.8" CMOS
• Resolution - 2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
• Max. Framerate - H.265/H.264 : Max. 30fps at 4M all resolutions MJPEG : Max. 15fps
• Min. Illumination - Color : 0.1Lux (F1.6, 1/30sec) B/W : 0Lux (IR LED On)

Lens

• Focal Length (Zoom Ratio) - 3.3~10.3mm(3.1x) motorized varifocal
• Max Aperture Ratio - F1.6(Wide) ~ F3.3(Tele)
• Angular Field of View - H: 94.8°(Wide) ~ 28.1°(Tele) V: 50.2°(Wide) ~ 15.8°(Tele) D: 112.9°(Wide) ~ 32.2°(Tele)
• Min. Object Distance - 0.5m(1.64ft)
• Focus Control - Simple focus
• Lens Type - DC auto iris

Operational

• Camera Title - Displayed up to 85 characters
• Day & Night - Auto(ICR)
• Backlight Compensation - BLC, WDR, SSDR
• Wide Dynamic Range - (120dB)
• Digital Noise Reduction - SSNRâ…¤
• Motion Detection - 4ea, Polygonal zones
• Privacy Masking - 6ea, rectangular zones
• Gain Control - Low / Middle / High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• LDC - Support
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
• Video Rotation - Flip, Mirror, Hallway view(90Ëš/270Ëš)
• Analytics - Defocus detection, Motion detection, Tampering, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing/Direction)
• Alarm Triggers - Analytics, Network disconnect
• Alarm Events - File upload via FTP and e-mail, Notification via e-mail, SD/SDHC/SDXC or NAS recording at event triggers, Handover
• IR Viewable Length - 30m(98.43ft)

Network

• Ethernet - RJ-45 (10/100BASE-T)
• Video Compression - H.265/H.264: Main/High, MJPEG
• Smart Codec - Manual (5ea area), WiseStreamâ…¡
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast (6 users) / Multicast Multiple streaming (Up to 3 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
• Security - HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access Log 802.1X Authentication (EAP-TLS, EAP-LEAP)
• Application Programming Interface - ONVIF Profile S/G/T, SUNAPI (HTTP API)

General

• Webpage Language - English
• Edge Storage - Micro SD/SDHC/SDXC 1slot 128GB
• Memory - 512MB RAM, 256MB Flash

Environmental & Electrical

• Operating Temperature / Humidity/ Others - -30°C ~ +55°C(-22°F ~ +131°F) / Less than 95% RH * Start up should be done at above -20°C(-4°F)
• Storage Temperature / Humidity - 30°C ~ +55°C (-22°F~+131°F) / Less than 95% RH
• Certification - IP66
• Input Voltage - PoE(IEEE802.3af, Class3)
• Power Consumption - Max 8.0W, typical 6.0W

Mechanical

• Color / Material - White / Plastic
• RAL Code - RAL9003
• Product Dimensions - Ø78.0x262.0mm(Ø3.07x10.31”),
• Weight - 390g(0.86lb)

DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF) - Wide: 47.1m(154.46ft) / Tele: 204.6m(671.23ft)
• Observe (63PPM/ 19PPF) - Wide: 18.8m(61.79ft) / Tele: 81.8m(92.24ft)
• Recognize (125PPM/ 38PPF) - Wide: 9.4m(30.89ft) / Tele: 40.9m(134.25ft)
• Identify (250PPM/ 76PPF) - Wide: 4.7m(15.45ft) / Tele: 20.5m(67.12ft)
