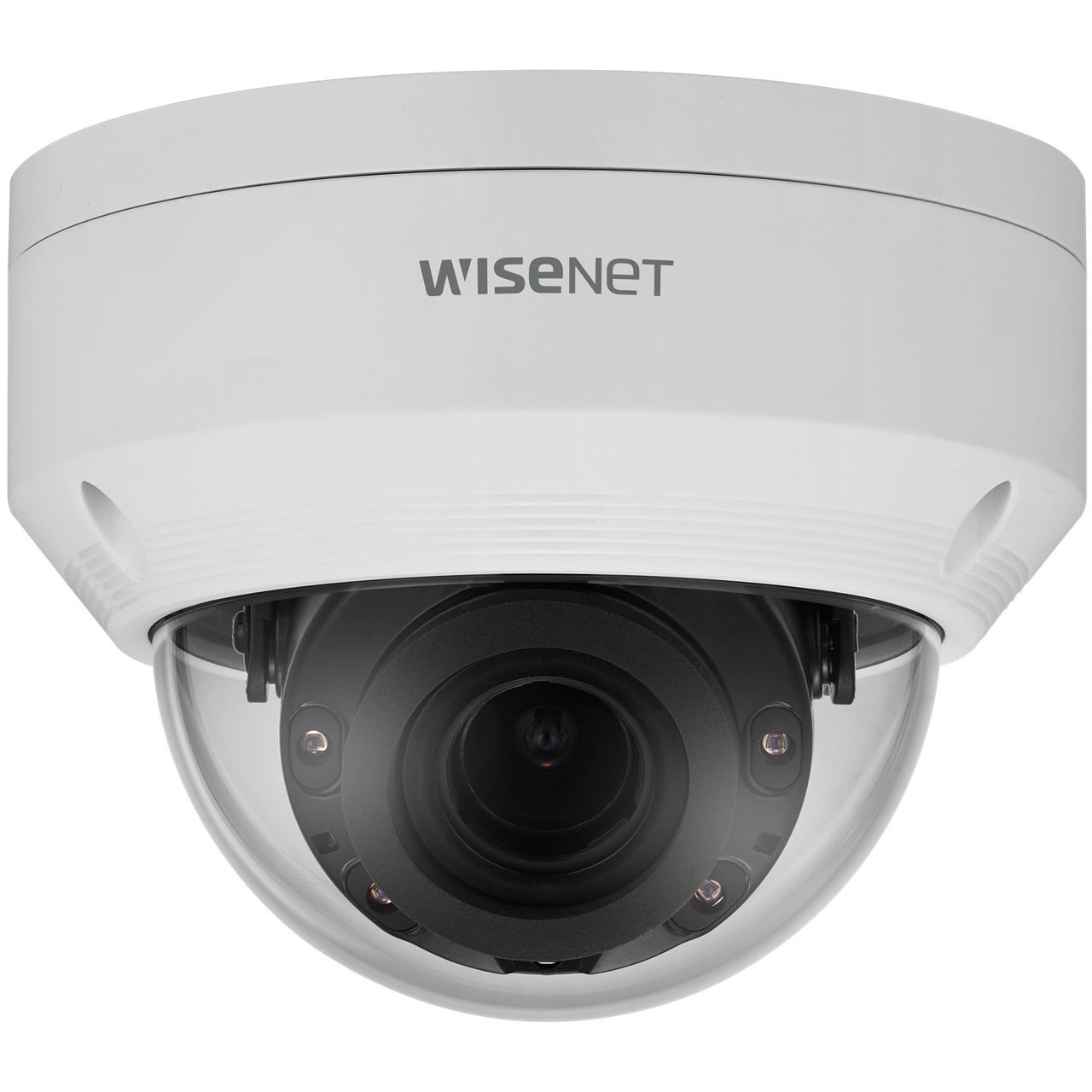

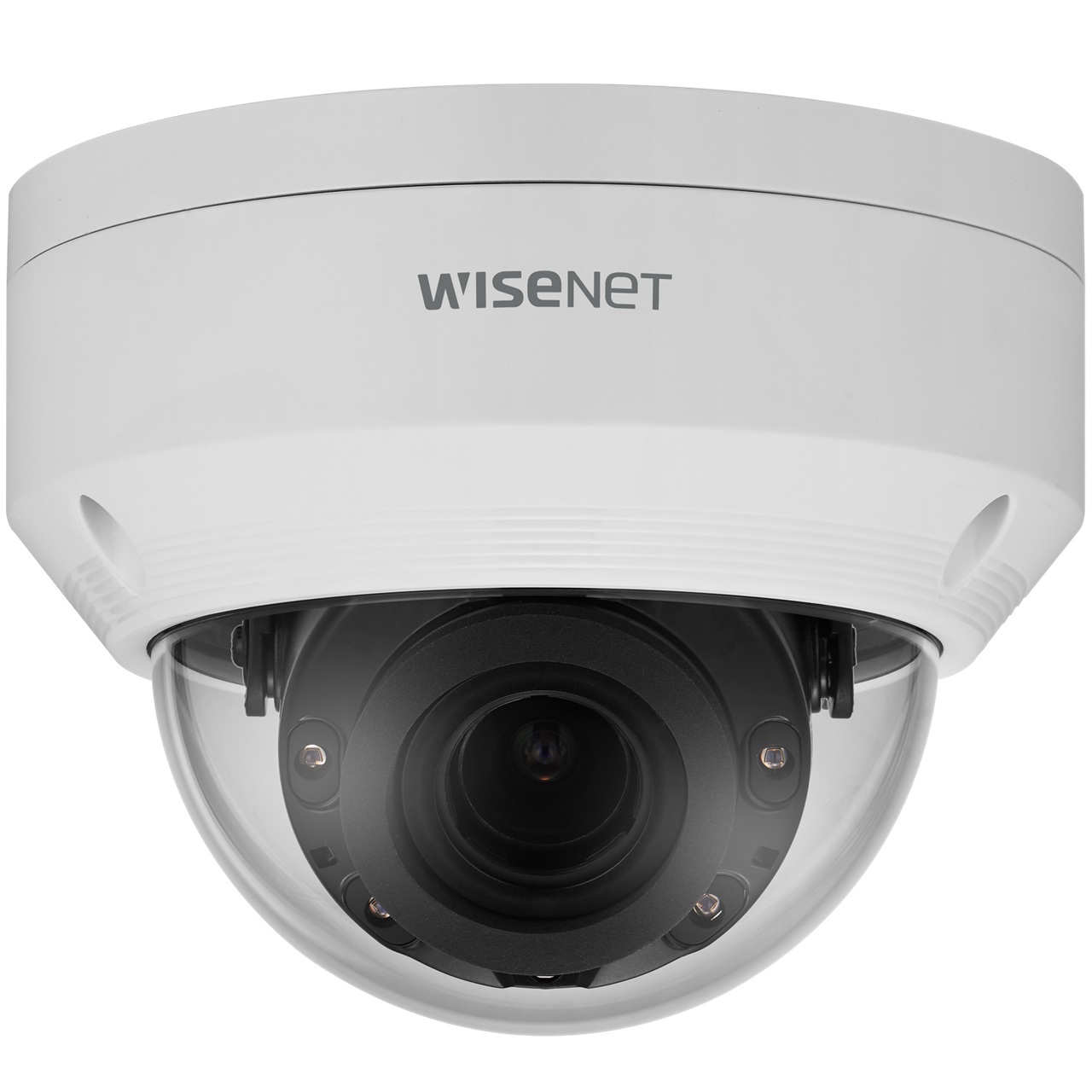

ANV-L6082R Hanwha Vision 3.2-10mm Motorized 30FPS @ 2MP Outdoor IR Day/Night WDR Dome IP Security Camera PoE

Specifications

Video

• Imaging Device - 1/2.8" CMOS
• Resolution - 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
• Max. Framerate - H.265/H.264 : Max. 30fps/25fps(60Hz/50Hz) MJPEG : Max. 10fps
• Min. Illumination - Color: 0.03Lux(F1.6, 1/30sec) BW : 0Lux (IR LED on)

Lens

• Focal Length (Zoom Ratio) - 3.3~10.3mm(3.1x) motorized varifocal
• Max. Aperture Ratio - F1.6(Wide) ~ F3.3(Tele)
• Angular Field of View - H: 105.2°(Wide) ~ 30.6°(Tele) V: 54.8°(Wide) ~ 17.2°(Tele) D: 126.9°(Wide) ~ 35.1°(Tele)
• Min. Object Distance - 0.5m (1.64ft)
• Focus Control - Simple focus
• Lens Type - DC auto iris

Pan / Tilt / Rotate

• Pan / Tilt / Rotate Range - 0°~350° / 0°~67° / 0°~355°

Operational

• Camera Title - Displayed up to 15 characters
• Day & Night - AIuto (ICR)
• Backlight Compensation - BLC, WDR, SSDR
• Wide Dynamic Range - (120dB)
• Digital Noise Reduction - SSNR
• Motion Detection - 4ea, rectangler zones
• Privacy Masking - 6ea, rectangular zones
• Gain Control - LOW/ MID/ HIGH
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• LDC - Support
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (2~1/12,000sec)
• Video Rotation - Flip, Mirror, Hallway view(90°/270°)
• Analytics - Motion detection, Tampering, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing/Direction)
• Alarm Triggers - Analytics
• Alarm Events - File upload via FTP and e-mail Notification via e-mail SD/SDHC recording at event triggers
• IR Viewable Length - 30m(98.43ft)

Network

• Ethernet - RJ-45(10/100BASE-T)
• Video Compression - H.265/H.264 : Main/High, MJPEG
• Smart Codec - WiseStreamâ…¡
• Bitrate Control - H.265/H.264: CBR or VBR MJPEG: VBR
• Streaming - Unicast(6 users) / Multicast Multiple streaming (Up to 3 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour
• Security - HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP)
• Application Programming Interface - ONVIF Profile S/G/T SUNAPI(HTTP API)

General

• Webpage Language - English
• Memory - 512MB RAM, 256MB Flash
• Edge Storage - Micro SD/SDHC 1slot 32GB

Environmental & Electrical

• Operating Temperature / Humidity - -30°C ~ +55°C(-22°F ~ +131°F) / Less than 95% RH * Start up should be done at above -20°C(-4°F)
• Storage Temperature / Humidity - -30°C ~ +55°C(-22°F ~ +131°F) / Less than 95% RH
• Certification - IP66, IK10
• Input Voltage - PoE(IEEE802.3af, Class3)
• Power Consumption - Max 7.0W, Typical 5.0W

Mechanical

• Color / Material - White / Plastic, Aluminum
• RAL Code - RAL9003
• Product Dimensions / Weight - Ø137.8x107.1mm(Ø5.43x4.22"), 550g
• Compatible Conduit hole / Gangbox - None / Single, Double, 4" Octagon

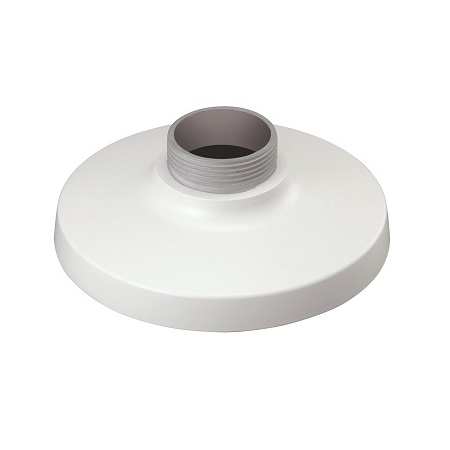

• Hanging Mount (Dome) - SBP-301HMW2
• Backbox - SBV-A14B

DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF) - Wide: 26.5m(87.07ft) / Tele: 70.3m(230.59ft)
• Observe (63PPM/ 19PPF) - Wide: 10.6m(34.83ft) / Tele: 28.1m(92.24ft)
• Recognize (125PPM/ 38PPF) - Wide: 5.3m(17.41ft) / Tele: 14.1m(46.12ft)
• Identify (250PPM/ 76PPF) - Wide: 2.7m(8.71ft) / Tele: 7.0m(23.06ft)
