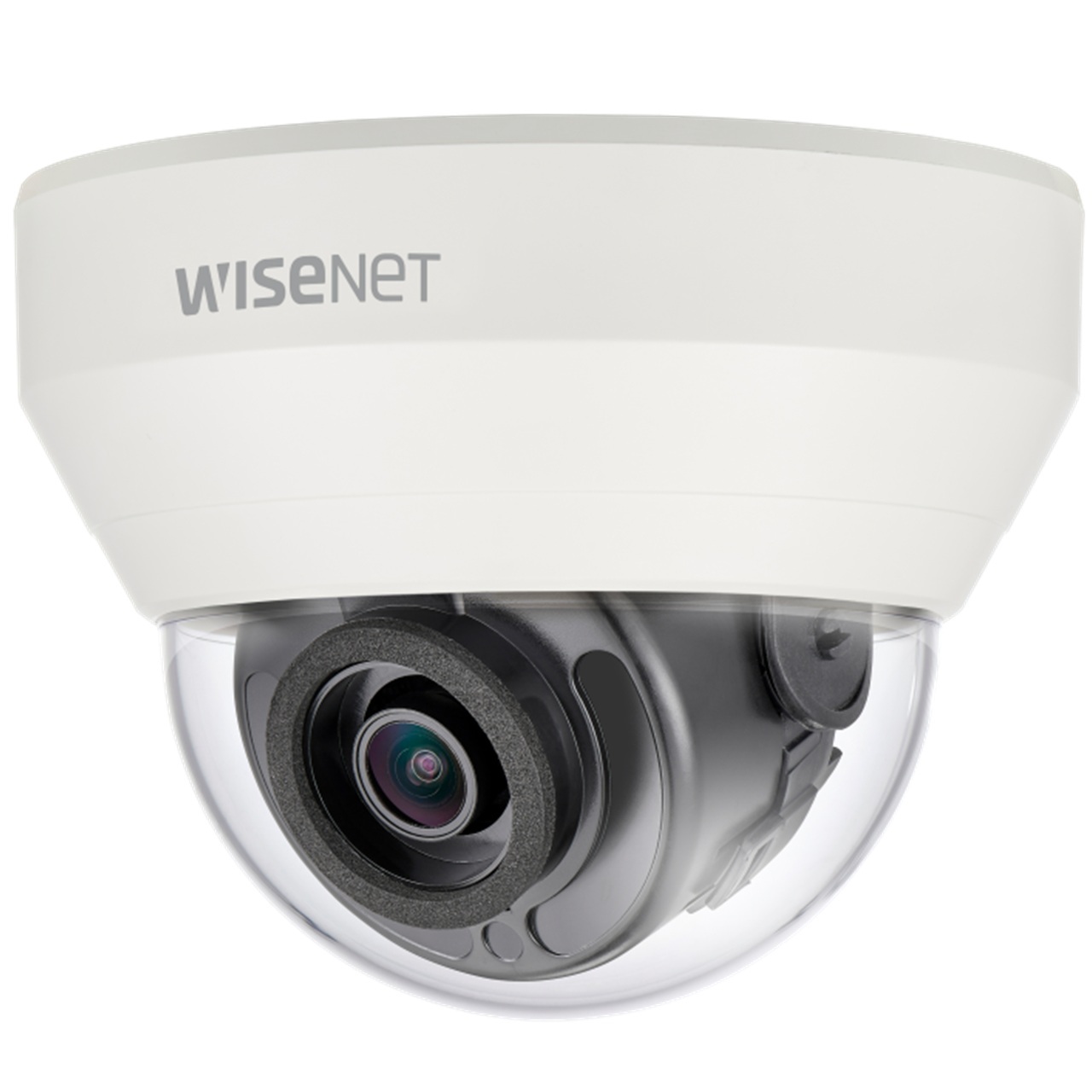

HCD-6010 Hanwha Techwin 2.8mm 30FPS @ 1080p Indoor Day/Night WDR Dome HD-TVI/HD-CVI/AHD/Analog/Analog Security Camera 12VDC

Wisenet HD+ 2MP, full HD (1080p), 30fps indoor dome camera, AHD/TVI/CVI/CVBS, 2.8mm Lens, 120dB true WDR, true D/N, 12VDC.

Specifications

Video

• Imaging Device - 1/2.8" 2M CMOS
• Total Pixels - 1,945(H) x 1,109(V) 2.16M pixels
• Effective Pixels - 1,945(H) x 1,097(V) 2.13M pixels
• Scanning System - Progressive Scan
• Min. Illumination - Color : 0.27Lux (F2.0, 1/30sec), B/W : 0.017Lux
• S / N Ratio - 52dB (AGC off, Weight on)
• Video Output - BNC(AHD / TVI / CVI / CVBS Selectable)
• Resolution - 1920 x 1080
• Max, Framerate - 30fps @1080p(N), 25fps @ 1080p(P)

Pan / Tilt / Rotate

• Pan / Tilt / Rotate Range - 0° ~ 350° / 0° ~ 67° / 0° ~ 355°

Lens Type

• Focal Length (Zoom Ratio) - 2.8mm fixed
• Max. Aperture Ratio - F1.6
• Angular Field of View - H:113.7, V:61.5, D:134.5
• Min. Object Distance - 1.64ft (0.5m)
• Focus Control - Manual
• Lens Type - Fixed
• Mount Type - Board-in type

Operational

• On Screen Display - Multi-language Support(16) English, Japanese, Spanish, French, Portuguese, Korean, German, Italian, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish
• Camera Title - Off / On (Displayed 15 characters)
• Day & Night - Auto (ICR) / Color / B/W
• Backlight Compensation - Off / User BLC / HLC / WDR
• Wide Dynamic Range - 120dB
• Digital Noise Reduction - SSNR4 ( Off / On )
• Defog - AUTO / MANUAL / OFF
• Motion Detection - Off / On(4 zones)
• Privacy Masking - Off / On (8 zones rectangle)
• Gain Control - Off / Low / Middle / High / Very High
• White Balance - ATW / Outdoor / Indoor(4,500K° ~ 8,500K°) / Manual / AWC (1,800K° ~ 10,500K°)
• Electronic Shutter Speed - 1 sec ~ 1/12,000 sec
• Reverse - Off / H-Rev / V-Rev / HV-Rev
• Profile - Basic, Day & Night, Backlight, ITS, Indoor, User
• Remote control interface - Coaxial
• Protocol - AHD : ACP (AHD Coax Protocol), CVBS : Pelco-C (Coaxitron), CCP (CVI Coax Protocol), TCP (TVI Coax Protocol)
• Video Transmission Distance - 500m(5C2V)

Environmental

• Operating Temperature /Humidity - +14°F ~ +131°F (-10°C ~ +55°C) / Less than 90% RH

Electrical

• Input Voltage - 12VDC±10%
• Power Consumption - 3.6W

Mechanical

• Color / Material - Ivory / Plastic
• Dimension (HxØ) - Ø110 x 86mm
• Weight - 221g
