Backup Versatility Redefined: Line Interactive Technology with True-sinewave output

The EXR Series offers users a robust and advanced line interactive UPS. New features include a higher power factor for improved UPS efficiency, auto-recognition of external battery packs for a smarter extended run-time solution, tool-less battery connection and replacement, and so much more!

The EXR Series offers complete protection from all electrical problems, including spikes, surges, sags, brownouts, and blackouts, in a versatile rack/tower convertible format. True sine wave electrical output ensures the best power for sensitive electronic equipment.

EXR Key Features

Key Features Include:

• 0.9 power factor - increased capacity without migrating to larger models
• NEW Alphanumeric LCD Dot Matrix display - easy access to key UPS statuses
• UPS configuration options via front panel - make key adjustments utilizing the front panel LCD
• Load shedding - two power banks allow equipment prioritizing for increased runtime
• Independent Battery Bypass - provides voltage regulation with surge and spike protection even when batteries are weak or dead
• Auto-recognition of external battery packs - automatically recalculate runtimes
• Unlimited runtime capability with external battery packs - extended runtime solution to meet any backup power demand
• Flexible installation - rack or tower configurable; wall mount kits available
• Simultaneous USB, RS232, and SNMP communications
• Minuteman SentryHD - UPS monitoring and control software included
• Industry-leading product warranty - featuring a 3-year non-prorated warranty (including batteries)
• Dedicated remote Emergency Power Off (EPO) port
• 120V & 208V - 208V models available (1500 & 3000VA models)
• cULus certification - NOM certification (Mexico)
• RoHS 2 compliant
• Energy Star 2.0 certification

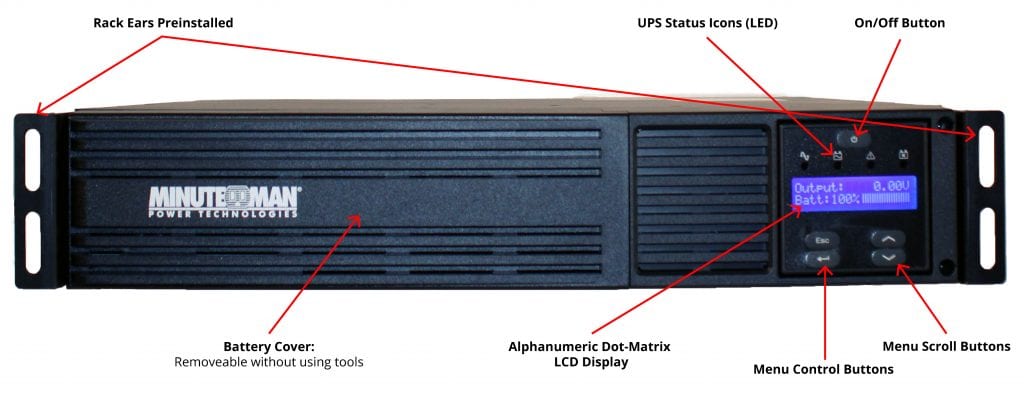

Front LCD Panel

The NEW Alphanumeric LCD Dot-Matrix EXR Series Display Provides more detailed information about the UPS status than the previous LCD display, including:

1. Input and Output Voltage
2. Estimated runtime
3. UPS Operating Mode
4. UPS Self-test results
5. Battery Condition
6. Display model and serial number
7. View load bank status and capacities
8. Display battery module part number
9. Replace Error Codes with descriptions
The LCD panel is designed so that it can be oriented vertically or horizontally depending on the installation orientation of the UPS

Applications

• Network Servers
• Remote IDF Closet
• Remote MDF Closet
• Telecom/VoIP Systems
• Medium-sized Security Systems
• Distributed Antenna Systems (DAS)

Specifications

UPS Model Number - EXR2000RT2U

General Features

• Topology - Line-interactive, True sine wave
• Maximum Power Capacity (VA / Watts) - 2,000/1,800
• Installation Format(s) - Rack/Tower or Wall (with optional installation kit)

Input

• Input Voltage Range - 80 to 164VAC (150 – 271VAC)
• Frequency Range - 50/60Hz, ±6Hz auto-sensing
• Input Plug Type (Cord Length) - NEMA 5-20P (10-feet)
• Input Surge Protection - Resettable Circuit Breaker
• Maximum Input Current - 16 Amps
• Surge Joule Rating - 1,000 Joules (800 Joules)
• Surge Protection Port(s) - 1Gbit RJ45 Ethernet (in/out)

Output

• Output Voltage Range (AC Mode) - 120VAC: 101 – 136VAC (208VAC: 186 – 236VAC)
• Output Voltage Range (Battery Mode) - Nominal ±5% - until Low Battery Warning
• Output Waveform (Battery Mode) - True sine wave
• Output Receptacles (120V) - (8) NEMA 5-20R (1) NEMA L5-20R

Batteries

• Replacement Module - BM0088
• Tool-less Battery Replacement - Yes
• Runtime (Full/Half Load) - 4.5 / 13 minutes
• Ind. Battery Bypass - Yes
• DC Startup - Yes
• Hot-swappable Batteries - Yes

Display & Communications

• Front Panel Display - LCD Dot-Matrix display with four LED icons
• Battery Function Alarms - On Battery, Low Battery, Depleted Battery, Weak/Bad/Disconnected Battery, Replace Battery
• Alarm Silencer - Yes
• Shutdown Software - SentryHD (downloadable)
• Communication Port(s) - USB, RS232, EPO, Option card slot
• Comm. Cables Included - Yes

Environmental

• Operating Temp. Range (max) - 0 to 40°C (+32 to +104°F)
• Operating Humidity Range - 0 - 95% Non Condensing
• Operating Elevation - 0 to 3000m (0 to +10,000 ft)

Physical

• Unit Dimensions (L x W x H) - 23.62” x 18.96” x 3.48” (600 x 481.6 x 88.5 mm)
• Unit Weight - 71.9 lbs. (32.6 Kgs)

Warranty & Certifications

• Standard Warranty - 3 years / electronics and batteries
• Connected Equipment Guarantee - $100,000
• Safety and Approvals - cULus (UL1778 5th Edition & CSA 22.2 no. 107.3-14 / R: 2014), FCC Class B, CE & NOM certified,EnergyStar 2.0, RoHS2 (EU Directive 2011/65/EU & 2015/863/EU)

EXR2000RT2U Specifications PDF
