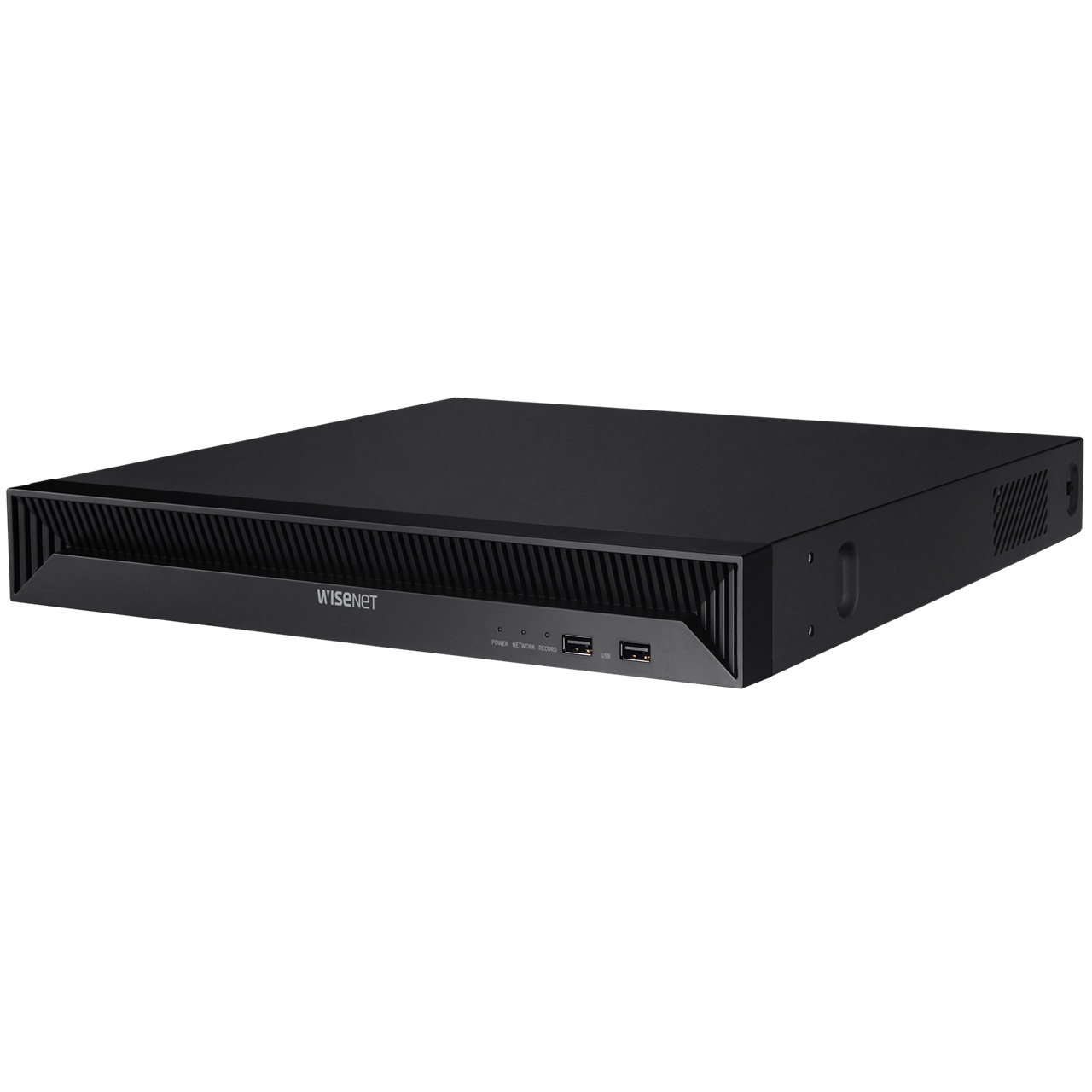

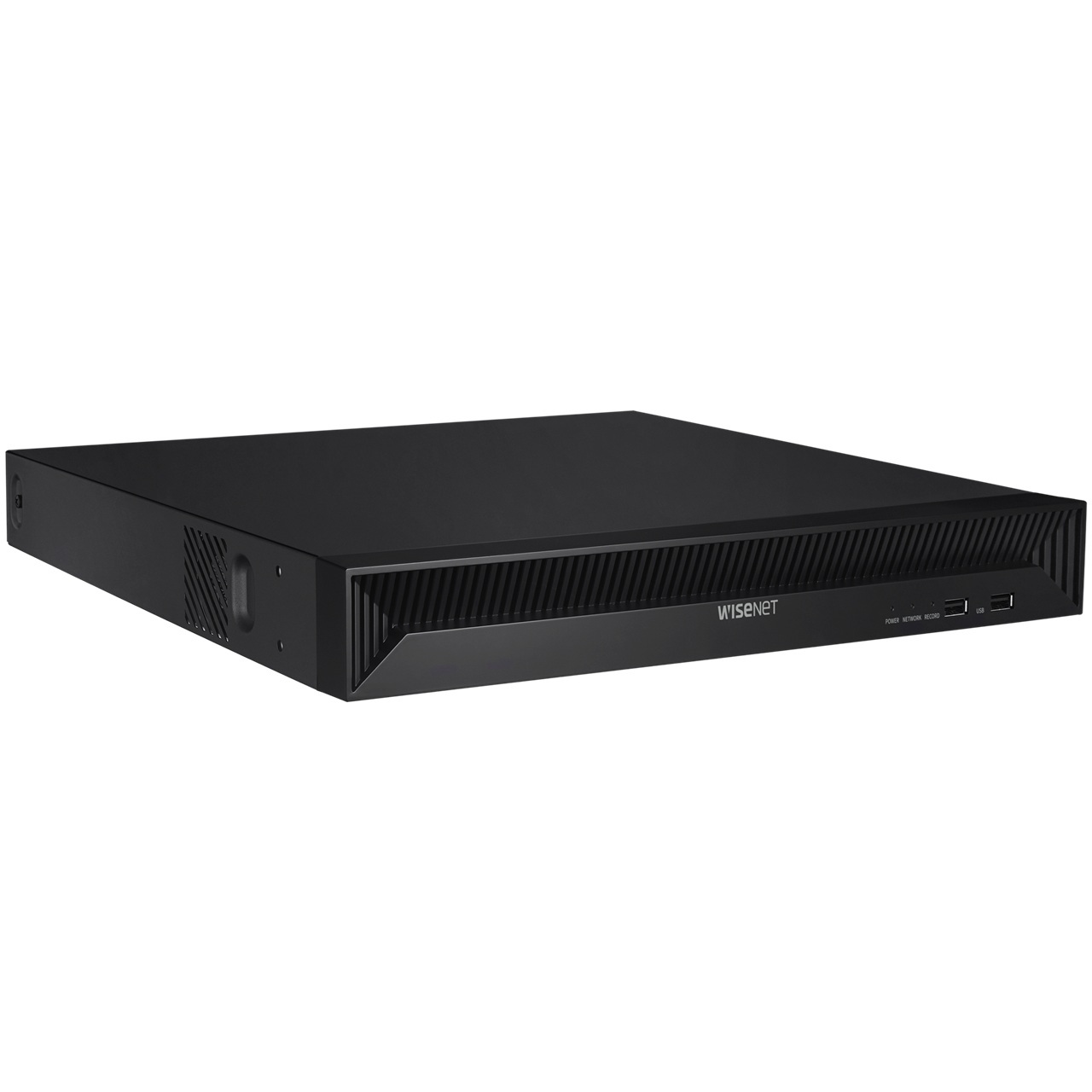

QRN-1630S-16TB Hanwha Vision 16 Channel at 4K (2160p) NVR 128Mbps Max Throughput - 16TB with Built-in 16 Port PoE

Specifications

Display

Network camera

• Inputs - Max. 16CH
• Resolution - 8MP ~ CIF
• Protocols - SUNAPI, ONVIF

Decoding

• Local Display - HDMI1: 3840x2160(30Hz), HDMI2: 1920x1080(60Hz)
• Multi Screen Display - Clone Mode : Dynamic layout Expand Mode : HDMI1 Dynamic layout, HDMI2 up to 16 Div. [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9
• Resolution - [Local Monitor] 8M(60fps), 1080p(240fps), 720P(480fps), D1(960fps)

Performance

Operating System

• Embedded - Linux

Record

• Compression - H.265, H.264, MJPEG
• Recording Bandwidth - Max. 128Mbps
• Resolution - 8MP ~ CIF
• Mode - Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark
• Event Trigger - Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event
• Event Action - e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown

Search & Play

• Playback Bandwidth - Max. 32Mbps
• User - Max. 4 Users (Local 1, Remote 3)
• Simultaneous playback - Max. 40CH(Local 16CH, Remote 8CH per user)
• Fisheye Dewarping - CMS
• Mode - Date & Time(Calendar), Event list, Text Search, Smart Search
• Resolution - CIF ~ 8MP
• Playback Control - Fast/Slow Forward / Backward, Move one step Up / Down

Storage

• Supported HDD - Up to 10TB
• HDD Slot - SATA 2ea(Max. 20TB)

Backup

• File backup - BU/Exe/AVI(GUI), JPG/AVI(Network)
• Function - Multi channel(Up to 8CH) Play, Date-Time/Title display

Network

• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
• DDNS - Hanwha DDNS
• Transmission Bandwidth - Max. 128Mbps

Audio

• Input/Output - 16 CH(network)
• Compression - G.711, G.726, AAC(16/48KHz)
• Audio Communication - 2-Way
• Max Remote Users - Search(3), Live Unicast(10), Multicast(20)
• Security - IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware
• Web viewer Supported OS - Windows 10, macOS 11
• Web viewer Supported browser - Google Chrome, Microsoft Edge, Mac Safari
• Viewer Software - WAVE, SSM, Webviewer, Smart Viewer, Wisenet Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3'rd party VMS

Function

Camera Setup

• Register - Auto, Manual
• Item - IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage

PTZ

• Control - Via GUI, Webviewer
• Preset - 300 Presets

Smart Phone

• Support Model - iOS, Android
• Protocol Support - RTP, RTSP, HTTP, CGI(SUNAPI)
• Control - Live: Multi-Profile Support, Multi Channel Playback
• Max. Remote Users - Search(3), Live Unicast(10)

Redundancy

• Failover - N+1
• ARB - Support
• Easy configuration - P2P(QR code)

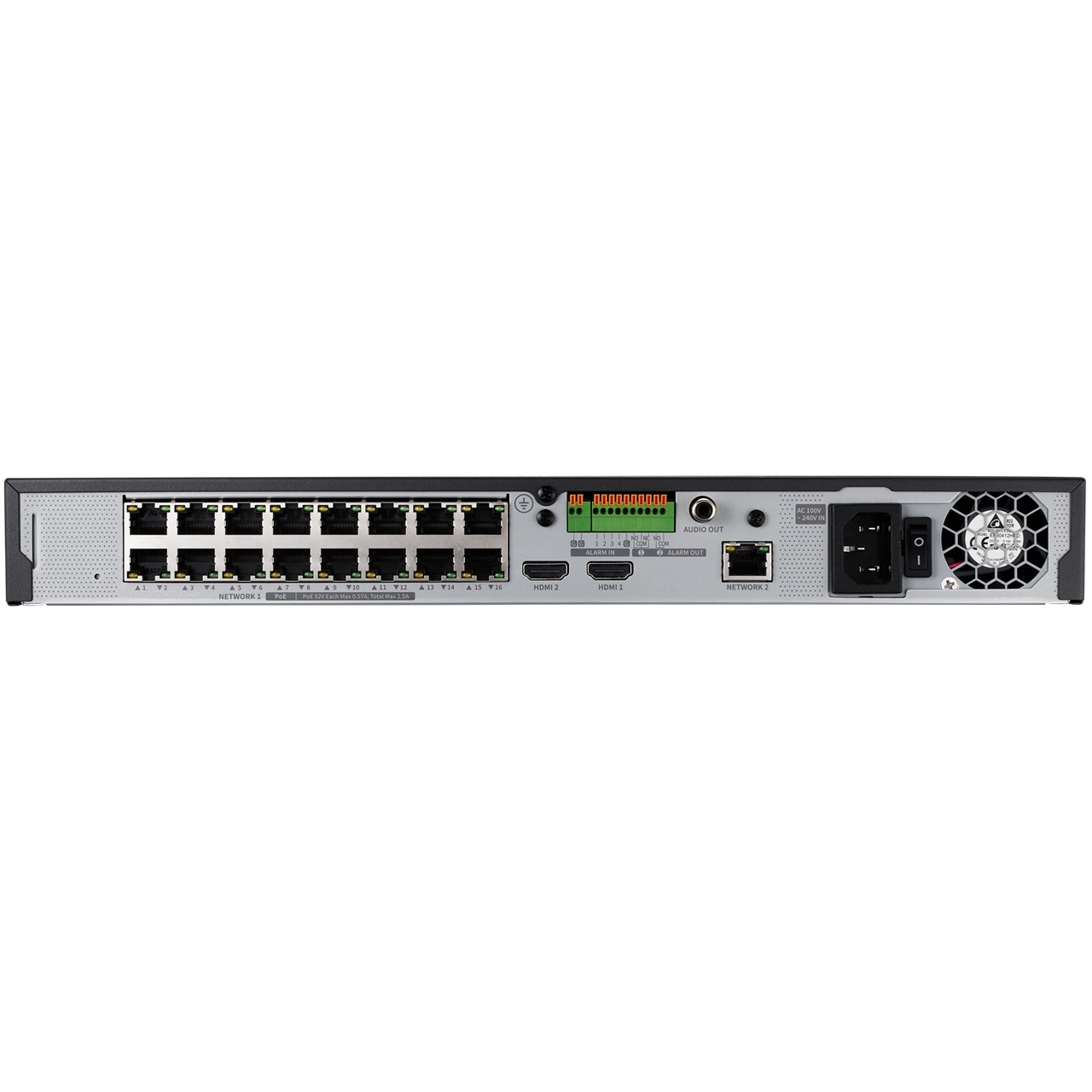

Interface

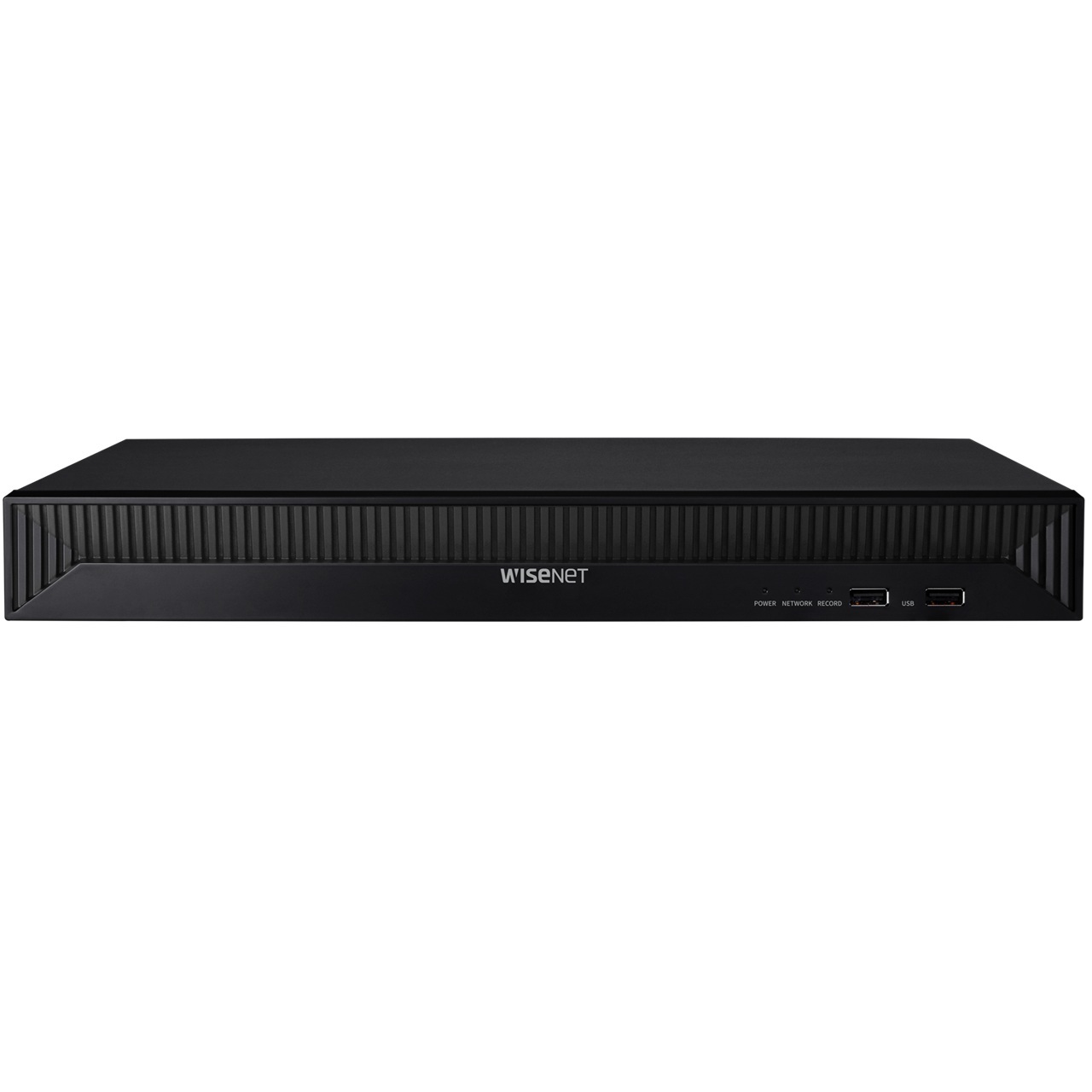

• Front Indicator - Power, Record, Network
• Storage - Ok
• HDMI - 2EA
• Audio - Out 1EA (RCA output)
• Ethernet - PoE RJ-45 16EA (LAN, 10/100), RJ-45 1ea (LAN/WAN 1Gbps)
• Alarm - In 4EA, Out 2EA
• USB - 2EA(Front 2 x USB 2.0)
• Power inlet - AC 1EA

System

• Log - Log List - Max. 100,000 (System Log, Event Log each)
• System Control - Mouse, Keyboard, Web
• Language - English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese

Environmental

• Operating Temperature - 0°C to +40°C(32? to 104?)
• Operating Humidity - 20% ~ 85% RH

Electrical

• Power Input - 100 ~ 240 VAC ±10%; 50/60 Hz
• Power Consumption - Max. 200W(682 BTU with 2HDD, PoE ON)
• PoE Budget - 130W

Mechanical

• Color/Material - Black/Metal
• Dimension - 370.0 x 50.7 x 320 mm (14.6 x 2.0 x 12.6 inch)
• Weight - 2.87Kg (6.33 lb)
