TNS-H1083X-E2236-16G QNAP 2-Bay Rackmount GM-1000 NAS Node 4.8GHz Intel Xeon E-2236 6-core 16GB RAM - NO HDD

SKU: TNS-h1083X-E2236-16G
Brand: QNAP
  • A NAS node for the GM-1000 system. Enables easier hardware upgrade and maintenance
  • Dual 10GbE and dual 2.5GbE ports boost virtualization, cloud storage gateway, and data center applications
  • M.2 and U.2 SSD slots enable cache acceleration to maximize network bandwidth potential
  • Two PCIe slots support 10GbE/25GbE/40GbE adapters, QM2 cards, or Fibre Channel cards to increase application performance
  • Supports virtualization storage for VMware, Citrix, Microsoft Hyper-V, Windows Server 2019, and hosts virtual machines and containers
  • QuTS hero combines ZFS advantages with the QTS App Center ecosystem to empower your business
More details...
MPN: TNS-h1083X-E2236-16G
UPC: 885022020126
MSRP Price: $2,649.00
Online Price: $2,649.00
Save to my Wish List

New to DWG? - Sign Up for immediate access to dealer pricing and benefits.

Already a DWG Customer? - Sign In to view pricing.




Product Details

Designed as a NAS node for the GM-1000 storage system, the TNS-h1083X features a powerful Intel Xeon E processor, and provides multiple 10GbE / 2.5GbE ports and expandable I/O. Coupled with the built-in M.2 and U.2 SSD slots that allow for cache acceleration, the TNS-h1083X is ideal for business backup and virtualization applications.


Specifications

  • CPU - Intel Xeon E-2236 6-core 3.4 GHz processor (burst up to 4.8 GHz)
  • CPU Architecture - 64-bit x86
  • Floating Point Unit - Yes
  • Encryption Engine - Yes (AES-NI)
  • Hardware-accelerated Transcoding - Yes
  • System Memory - 16 GB UDIMM DDR4 (2 x 4 GB)
  • Maximum Memory - 128 GB (4 x 32 GB)
  • Memory Slot - 4 x Long-DIMM DDR4
  • Flash Memory - 5GB (Dual boot OS protection)
  • Drive Bay - 2 x 2.5-inch
  • Drive Compatibility - 2.5-inch bays: 2.5-inch SATA solid state drives, 2.5-inch U.2 Gen3 x4 solid state drives
  • Hot-swappable - Yes
  • M.2 SSD Slot - 2 x M.2 2280 NVMe Gen3 x2
  • 2.5 Gigabit Ethernet Port (2.5G/1G/100M) - 2
  • 10 Gigabit Ethernet Port - 2 x 10GbE SFP+ SmartNIC (Mellanox ConnectX-4 Lx EN)
  • Jumbo Frame - Yes
  • PCIe Slot - 2: Slot 1: PCIe Gen3 x4 (PCH), Slot 2: PCIe Gen3 x8 (CPU)
  • USB 3.2 Gen 2 (10Gbps) Port - 4 x Type-A
  • Fan - 3 x 60mm, 12VDC

TNS-h1083X-E2236-16G Specifications PDF

Check out some additional items that you may need to purchase with this product:
Check the check boxes next to the additional products that you would like to add to the shopping cart, then click on the "Add to Cart" button above. A check box is not shown if a product requires that you select an option or fill out a field. () indicates a required accessory.
QM2-2P-244A Dual M.2 22110/2280 PCIe SSD expansion card (PCIe Gen2 x4), Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled

QM2-2P-244A Dual M.2 22110/2280 PCIe SSD expansion card (PCIe Gen2 x4), Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled

MSRP Price: $145.00
QM2-2P10G1TB QNAP 2 x PCIe Gen3 NVMe SSD & 1 x 10GbE Port Expansion Card to Enhance Performance

QM2-2P10G1TB QNAP 2 x PCIe Gen3 NVMe SSD & 1 x 10GbE Port Expansion Card to Enhance Performance

MSRP Price: $219.00

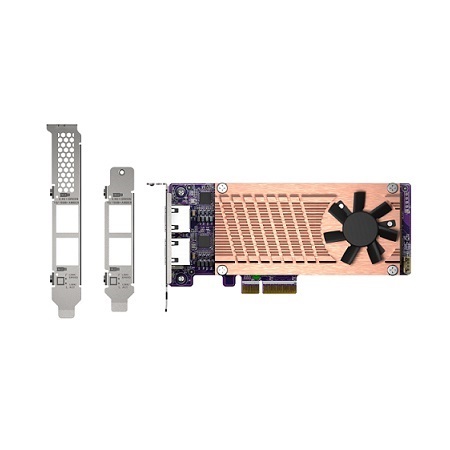

QM2-2P2G2T QNAP QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen3 x 4 , 2 x Intel I225LM 2.5GbE NBASE-T Port

QM2-2P2G2T QNAP QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen3 x 4 , 2 x Intel I225LM 2.5GbE NBASE-T Port

MSRP Price: $175.00
QM2-2S-220A QNAP Dual M.2 22110/2280 SATA SSD Expansion Card

QM2-2S-220A QNAP Dual M.2 22110/2280 SATA SSD Expansion Card

MSRP Price: $89.00
[DISCONTINUED] QXG-10G2TB QNAP Dual-Port 10GbE (BASE-T) Network Adaptor, Low-Profile Form Factor, PCIe Gen3 x4 Aquantia AQC113C, PCIe 3x4

[DISCONTINUED] QXG-10G2TB QNAP Dual-Port 10GbE (BASE-T) Network Adaptor, Low-Profile Form Factor, PCIe Gen3 x4 Aquantia AQC113C, PCIe 3x4

MSRP Price: $269.00

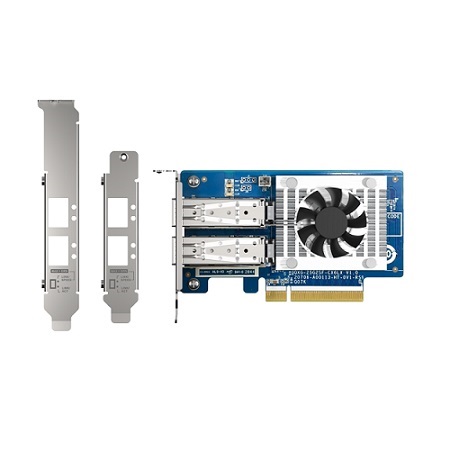

QXG-25G2SF-CX6 QNAP Dual-Port SFP28 25GbE Network Expansion Card

QXG-25G2SF-CX6 QNAP Dual-Port SFP28 25GbE Network Expansion Card

MSRP Price: $449.00

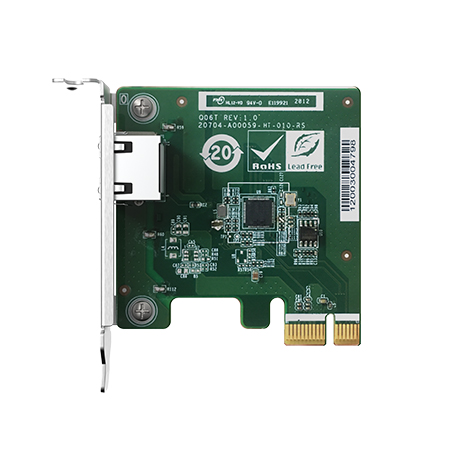

QXG-2G1T-I225 QNAP Single Port 2.5GbE 4-Speed Network Card

QXG-2G1T-I225 QNAP Single Port 2.5GbE 4-Speed Network Card

MSRP Price: $69.00

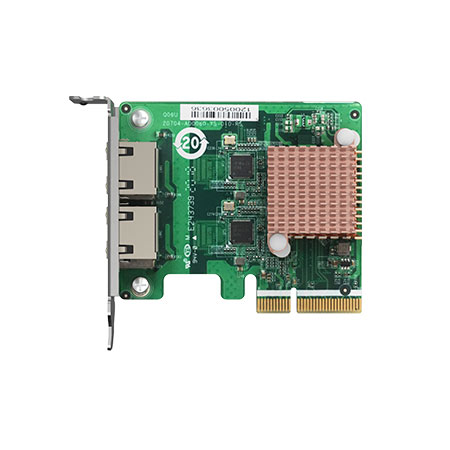

QXG-2G2T-I225 QNAP Dual Port 2.5GbE 4-Speed Network Card

QXG-2G2T-I225 QNAP Dual Port 2.5GbE 4-Speed Network Card

MSRP Price: $79.00
QXG-2G4T-I225 QNAP Quad Port 2.5GbE 4-Speed Network Card

QXG-2G4T-I225 QNAP Quad Port 2.5GbE 4-Speed Network Card

MSRP Price: $135.00

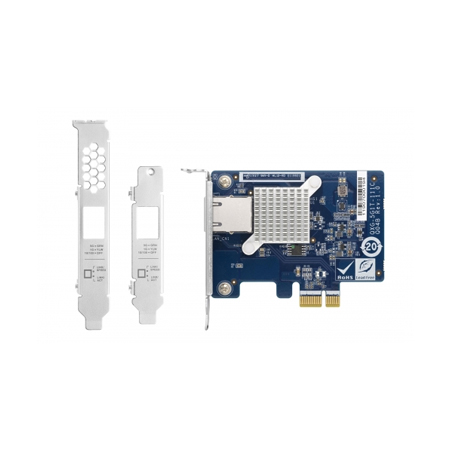

QXG-5G1T-111C QNAP 5GbE Multi-Gig Expansion Card

QXG-5G1T-111C QNAP 5GbE Multi-Gig Expansion Card

MSRP Price: $99.00

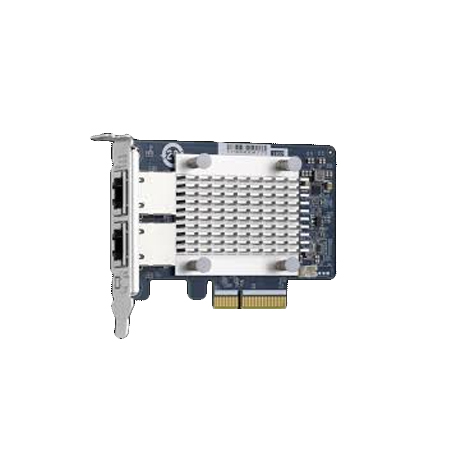

QXG-5G2T-111C QNAP Dual Port 5GbE Multi-Gig Expansion Card

QXG-5G2T-111C QNAP Dual Port 5GbE Multi-Gig Expansion Card

MSRP Price: $155.00

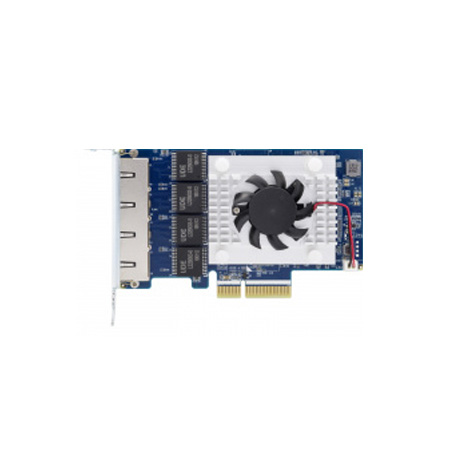

QXG-5G4T-111C QNAP Quad-port 5GbE Multi-Gig Expansion Card

QXG-5G4T-111C QNAP Quad-port 5GbE Multi-Gig Expansion Card

MSRP Price: $239.00

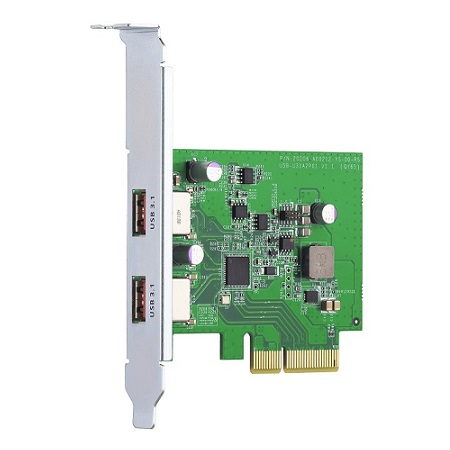

QXP-10G2U3A QNAP USB 3.2 Gen 2 Dual-port PCIe Expansion Card

QXP-10G2U3A QNAP USB 3.2 Gen 2 Dual-port PCIe Expansion Card

MSRP Price: $75.00

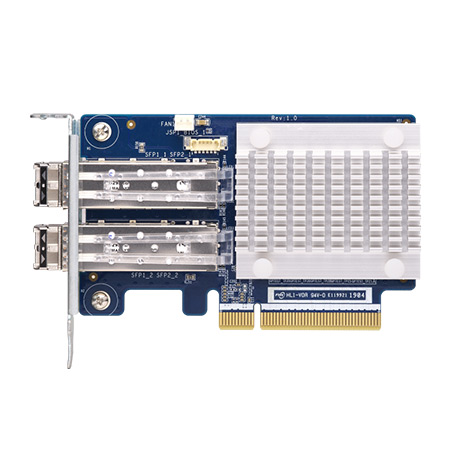

QXP-16G2FC QNAP 16Gb/s Fibre Channel Host Bus Adapter - Includes 2 Transceivers

QXP-16G2FC QNAP 16Gb/s Fibre Channel Host Bus Adapter - Includes 2 Transceivers

MSRP Price: $999.00
QXP-32G2FC QNAP 32Gb/s Fibre Channel Host Bus Adapter - Includes 2 Transceivers

QXP-32G2FC QNAP 32Gb/s Fibre Channel Host Bus Adapter - Includes 2 Transceivers

MSRP Price: $1,499.00

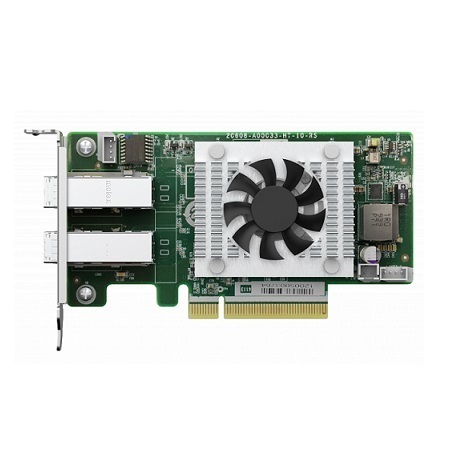

QXP-820S-B3408 QNAP 2-Port MiniSAS HD Host Bus Adapter

QXP-820S-B3408 QNAP 2-Port MiniSAS HD Host Bus Adapter

MSRP Price: $399.00

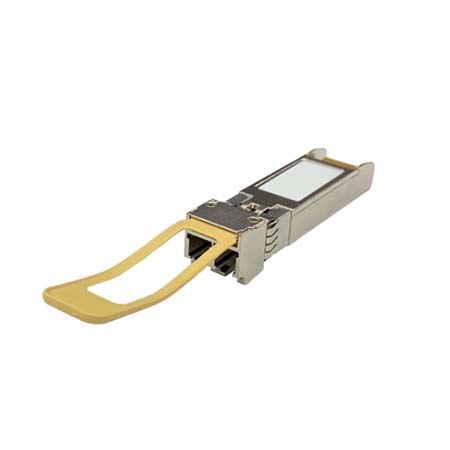

TRX-25GSFP28-SR QNAP Optical Transceiver 25GbE SFP28 LC-LC 850nm SR up to 100m

TRX-25GSFP28-SR QNAP Optical Transceiver 25GbE SFP28 LC-LC 850nm SR up to 100m

MSRP Price: $149.00

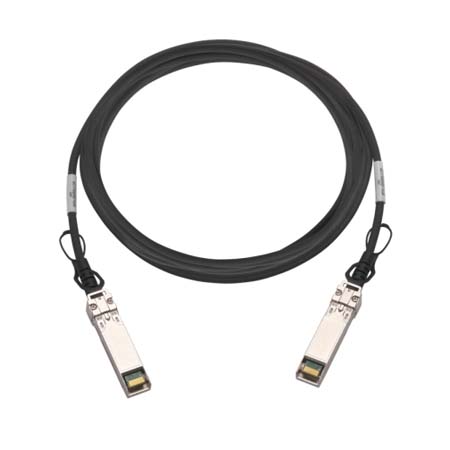

CAB-DAC15M-SFP28 QNAP SFP28 25GbE Twinaxial Direct Attach Cable, 1.5M

CAB-DAC15M-SFP28 QNAP SFP28 25GbE Twinaxial Direct Attach Cable, 1.5M

MSRP Price: $119.00

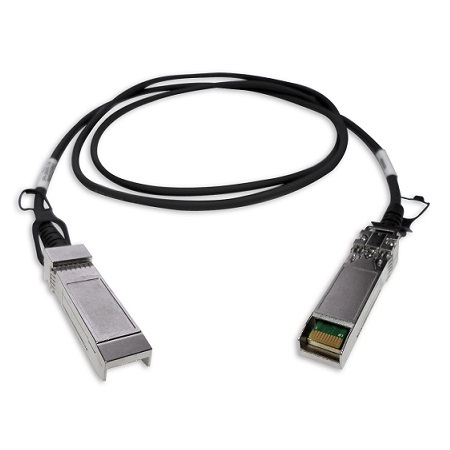

CAB-DAC15M-SFPP QNAP SFP+ 10GbE Twinaxial Direct Attach Cable, 1.5M, S/N and FW Update

CAB-DAC15M-SFPP QNAP SFP+ 10GbE Twinaxial Direct Attach Cable, 1.5M, S/N and FW Update

MSRP Price: $50.00

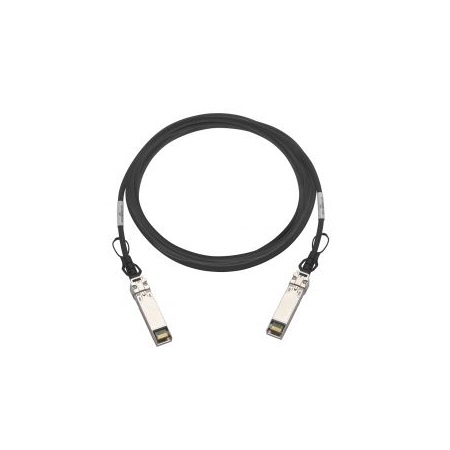

CAB-DAC30M-SFP28 QNAP SFP28 25GbE Twinaxial Direct Attach Cable, 3.0M

CAB-DAC30M-SFP28 QNAP SFP28 25GbE Twinaxial Direct Attach Cable, 3.0M

MSRP Price: $139.00
CAB-DAC30M-SFPP QNAP SFP+ 10GbE Twinaxial Direct Attach Cable, 3.0M, S/N and FW Update

CAB-DAC30M-SFPP QNAP SFP+ 10GbE Twinaxial Direct Attach Cable, 3.0M, S/N and FW Update

MSRP Price: $70.00
CAB-DAC50M-SFPP QNAP SFP+ 10GbE Twinaxial Direct Attach Cable, 5.0M, S/N and FW Update

CAB-DAC50M-SFPP QNAP SFP+ 10GbE Twinaxial Direct Attach Cable, 5.0M, S/N and FW Update

MSRP Price: $100.00
RAM-16GDR4ECT0-UD-2666 QNAP 16GB ECC DDR4 RAM

RAM-16GDR4ECT0-UD-2666 QNAP 16GB ECC DDR4 RAM

MSRP Price: $325.00

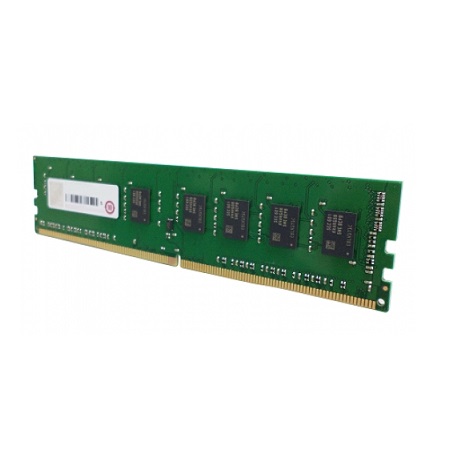

RAM-4GDR4ECP0-UD-2666 QNAP 4GB ECC DDR4 RAM, 2666 MHz, UDIMM

RAM-4GDR4ECP0-UD-2666 QNAP 4GB ECC DDR4 RAM, 2666 MHz, UDIMM

MSRP Price: $119.00

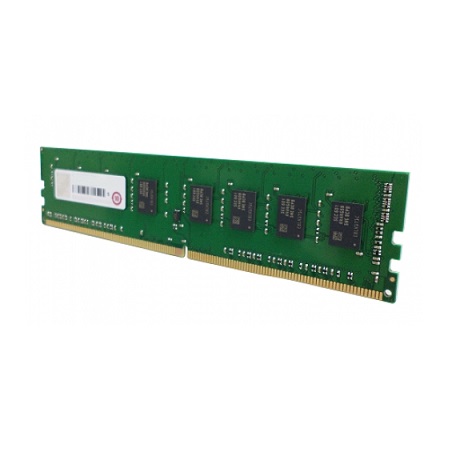

RAM-8GDR4ECT0-UD-2666 QNAP 8GB ECC DDR4 RAM, 2666 MHz, UDIMM

RAM-8GDR4ECT0-UD-2666 QNAP 8GB ECC DDR4 RAM, 2666 MHz, UDIMM

MSRP Price: $199.00
