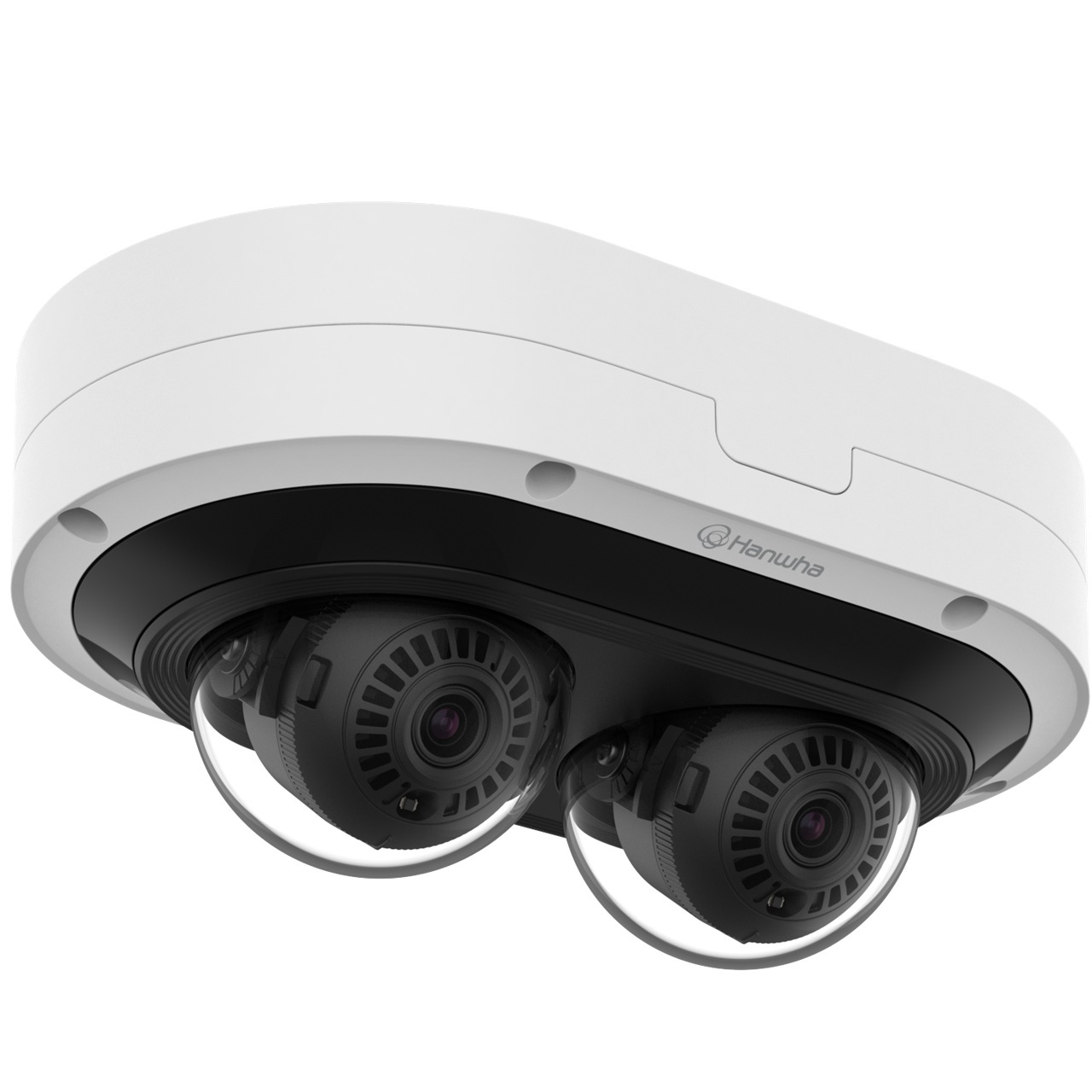

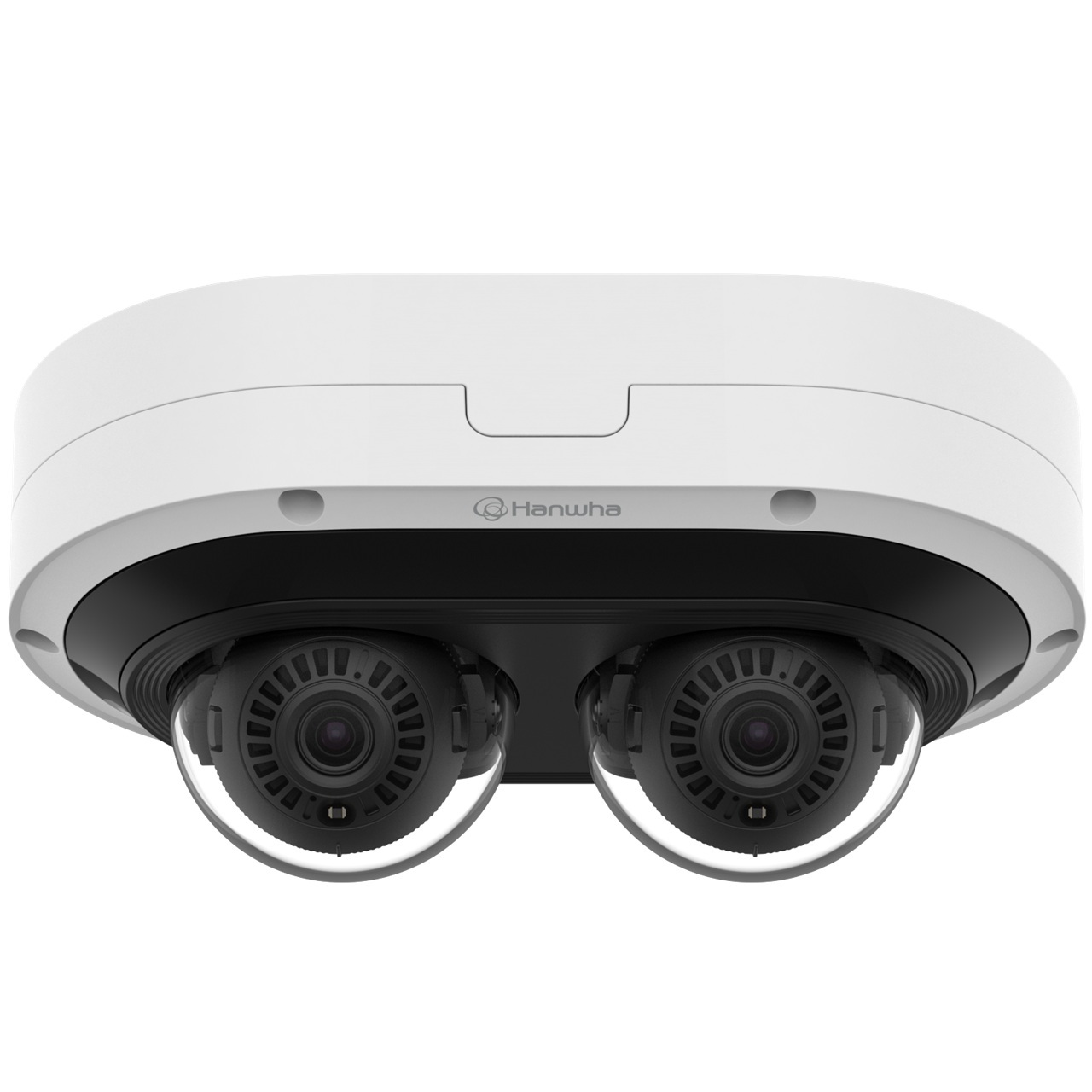

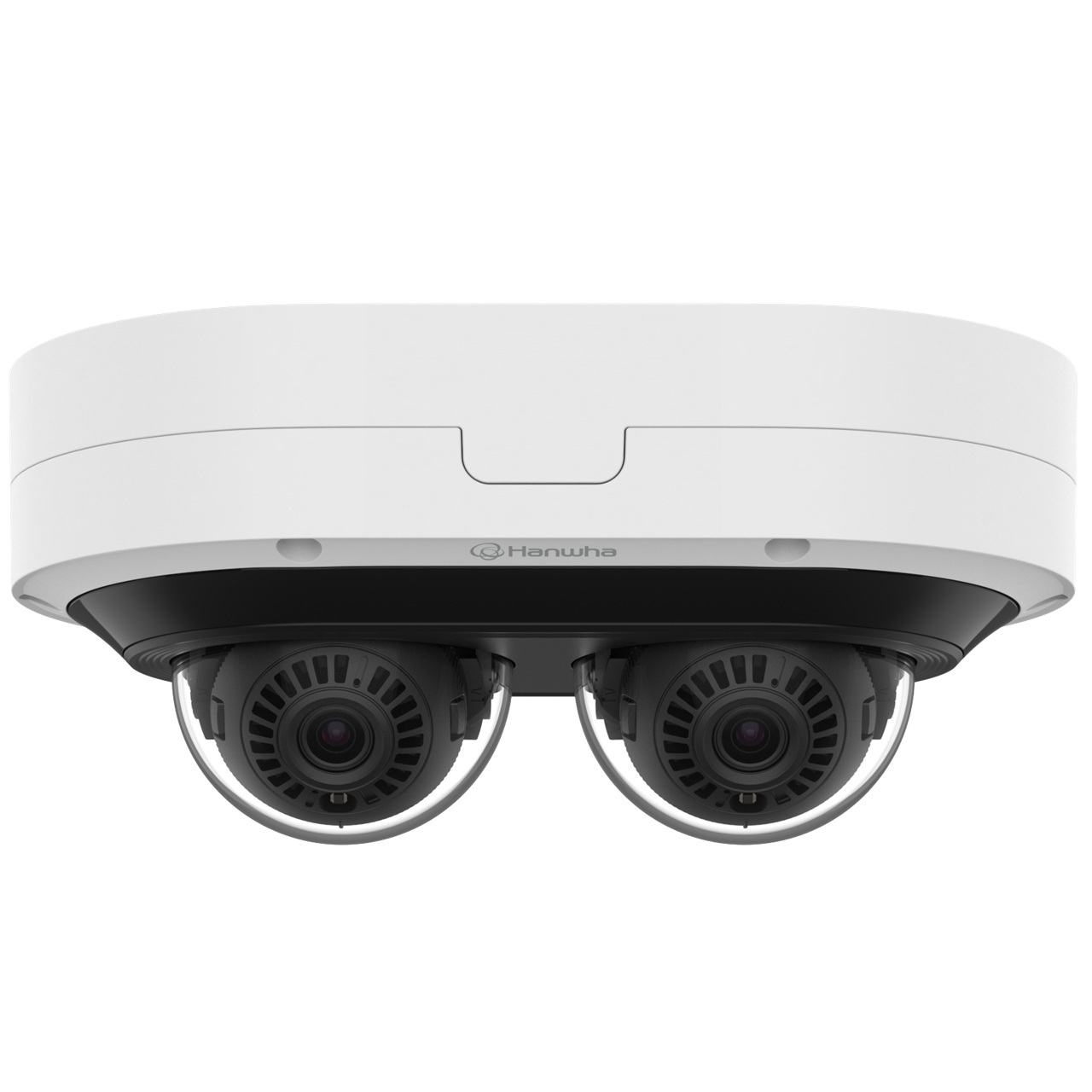

PNM-C7083RVD Hanwha Vision P Series 3-6mm Motorized 30FPS @ 2MP Outdoor IR Day/Night WDR Dome IP Security Camera PoE

Specifications

Video

• Imaging Device - 1/2.8" CMOS x 2CH
• Resolution - 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Max. Framerate - H.265/H.264: 2MP Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
• Min. Illumination - Color: 0.035lux(F2.2, 1/30sec, 30IRE) BW: 0.0035lux(F2.2, 1/30sec, 30IRE), 0lux(IR LED on)
• Video Out - USB: micro USB Type B, 1280x720 for installation

Lens

• Focal Length (Zoom Ratio) - 3~6mm(2x) motorized varifocal per CH
• Max Aperture Ratio - F2.2(Wide)~F3.1(Tele)
• Angular Field of View - H: 107Ëš(Wide)~56.3Ëš(Tele) V: 57Ëš(Wide)~31.5Ëš(Tele) D: 126Ëš(Wide)~64.3Ëš(Tele)
• Min. Object Distance - 0.5m(1.64ft)
• Focus Control - Simple focus
• Lens Type - Fixed IRIS

Pan / Tilt / Rotate

• Pan / Tilt / Rotate Range - 0~355°/0~78°/0~180°

Operational

• Camera Title - Displayed up to 85 characters
• Day & Night - Auto(ICR)
• Backlight Compensation - BLC, WDR, SSDR
• Wide Dynamic Range - extremeWDR(120dB)
• Digital Noise Reduction - WiseNRâ…¡(Based on AI engine), SSNRâ…¤
• Motion Detection - 8ea, 8point Polygonal zones
• Privacy Masking - 6ea, Quadrangle zones - Color : Gray, Black, White
• Gain Control - Support
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• LDC - Support
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (2~1/12,000sec) Auto prefer shutter control(Based on AI engine)
• Video Rotation - Flip, Mirror, Hallway view(90Ëš/270Ëš)
• Analytics - Classified object type : Person/Face/Vehicle/License plate Attributes : Vehicle(Type:car/bus/truck/motorcycle/bicycle) Support Bestshot Analytics events based on AI engine - Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit) Analytics events* - Defocus detection, Motion detection, Tampering, Virtual area(Appear/Disappear) * Support Audio detection, Sound classification via optional SPM-4210 I/O box
• Alarm I/O - * Support Alarm via optional SPM-4210 I/O box
• Alarm Triggers - Analytics, Network disconnect, Alarm input via optional SPM-4210 I/O box
• Alarm Events - When alarm trigger occurred - File upload(image) : e-mail/FTP - Notification : e-mail - Recording : SD/SDHC/SDXC or NAS recording at event triggers - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) - * Alarm output via optional SPM-4210 I/O box
• Audio In - * Audio in via optional SPM-4210 I/O box
• Audio Out - * Audio out via optional SPM-4210 I/O box
• IR Viewable Length - 25m(82ft)

Network

• Ethernet - Metal shielded RJ-45 (10/100/1000BASE-T)
• Video Compression - H.265/H.264: Main/Baseline/High, MJPEG
• Smart Codec - Manual(5ea area), WiseStreamâ…¡, WiseStreamâ…¢(Based on AI engine)
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• - Unicast(10 users) / Multicast 5 profiles per channel
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
• Security - TPM 2.0 (FIPS 140-2 level 2) HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) Device Certificate(Hanwha Techwin Root CA, pre-installed) Secure by default certificate Secure OS/Boot/Storage, Verify firmware forgery
• Application Programming Interface - ONVIF Profile S/T SUNAPI(HTTP API) Open platform

General

• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian
• Edge Storage - Micro SD/SDHC/SDXC 1slot Max. 512GB
• Memory - 2GB RAM, 512MB Flash

Environmental & Electrical

• Operating Temperature / Humidity/ Others - -40°C~+55°C(-40°F ~ +131°F) / Less than 95% RH(Non-condensing)
• Storage Temperature / Humidity - -50°C~+60°C (-58°F~+140°F) / Less than 95% RH(Non-condensing)
• Certification - IP66, IK10, NEMA4X
• Input Voltage - PoE+(IEEE802.3at, Class4)
• Power Consumption - PoE+: Max 20W, typical 15.5W

Mechanical

• Color / Material - White / Aluminum Hard-coated dome bubble
• RAL Code - RAL9003
• Product Dimensions - 215(W)x135(D)x93.2(H)mm(8.46"x5.31"x3.67")
• Weight - 1330g
• Compatible Conduit hole / Gangbox - 3/4" (M25) single, double, 4" octagon, 4" square

DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF) - Wide: 28.4m(93.22ft) / Tele: 71.8m(235.45ft)
• Observe (63PPM/ 19PPF) - Wide: 11.4m(37.29ft) / Tele: 28.7m(94.18ft)
• Recognize (125PPM/ 38PPF) - Wide: 5.7m(18.64ft) / Tele: 14.4m(47.09ft)
• Identify (250PPM/ 76PPF) - Wide: 2.8m(9.32ft) / Tele: 7.2m(23.55ft)
