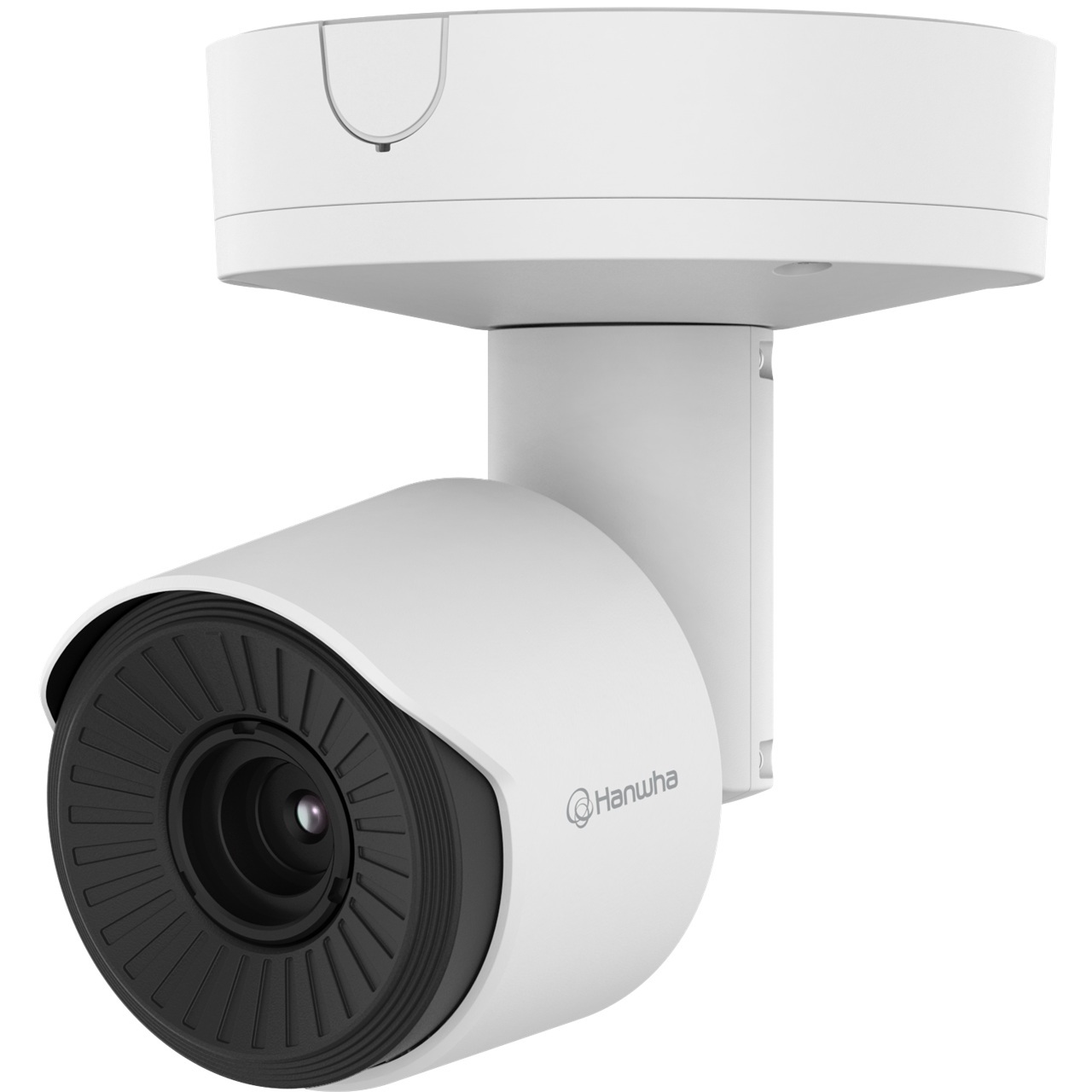

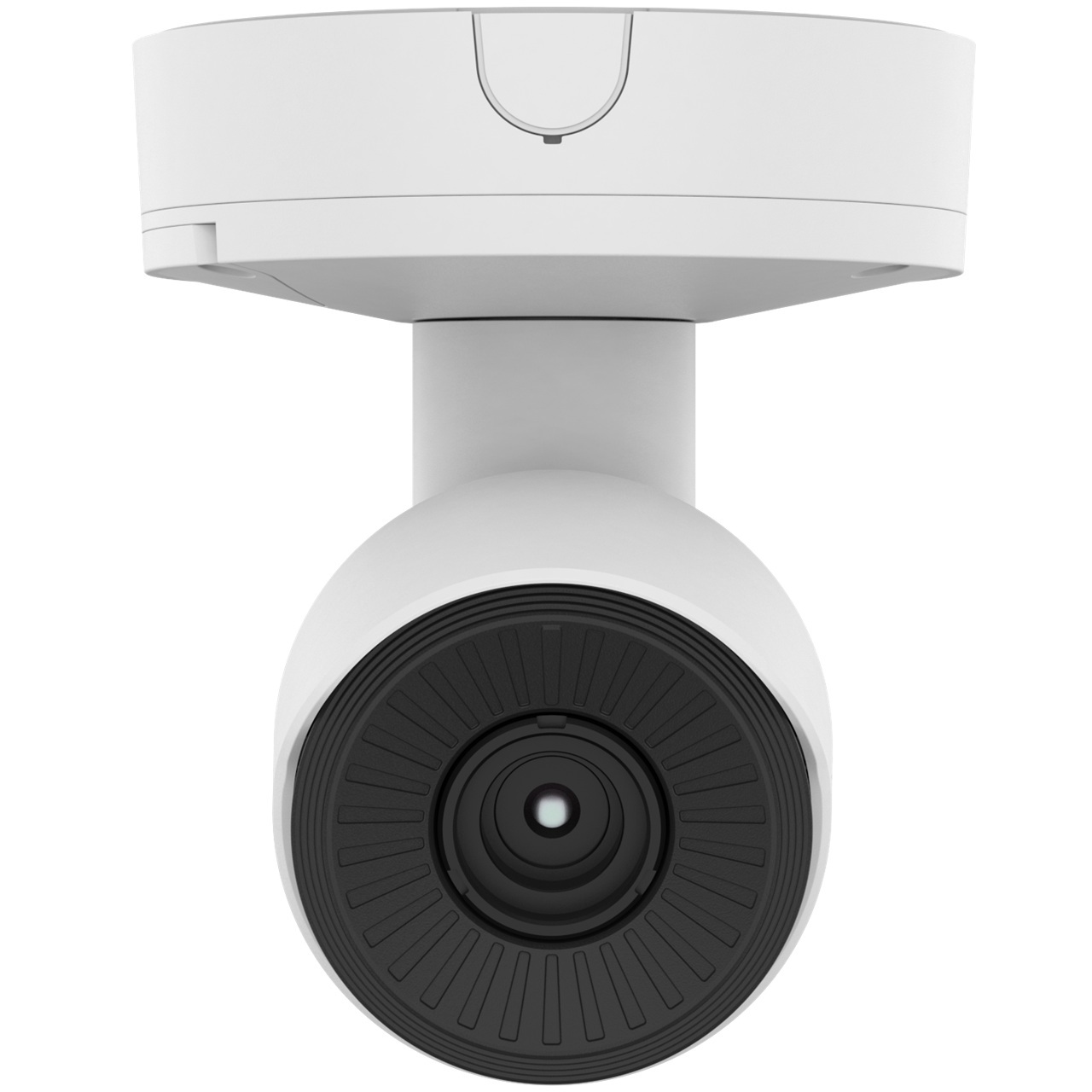

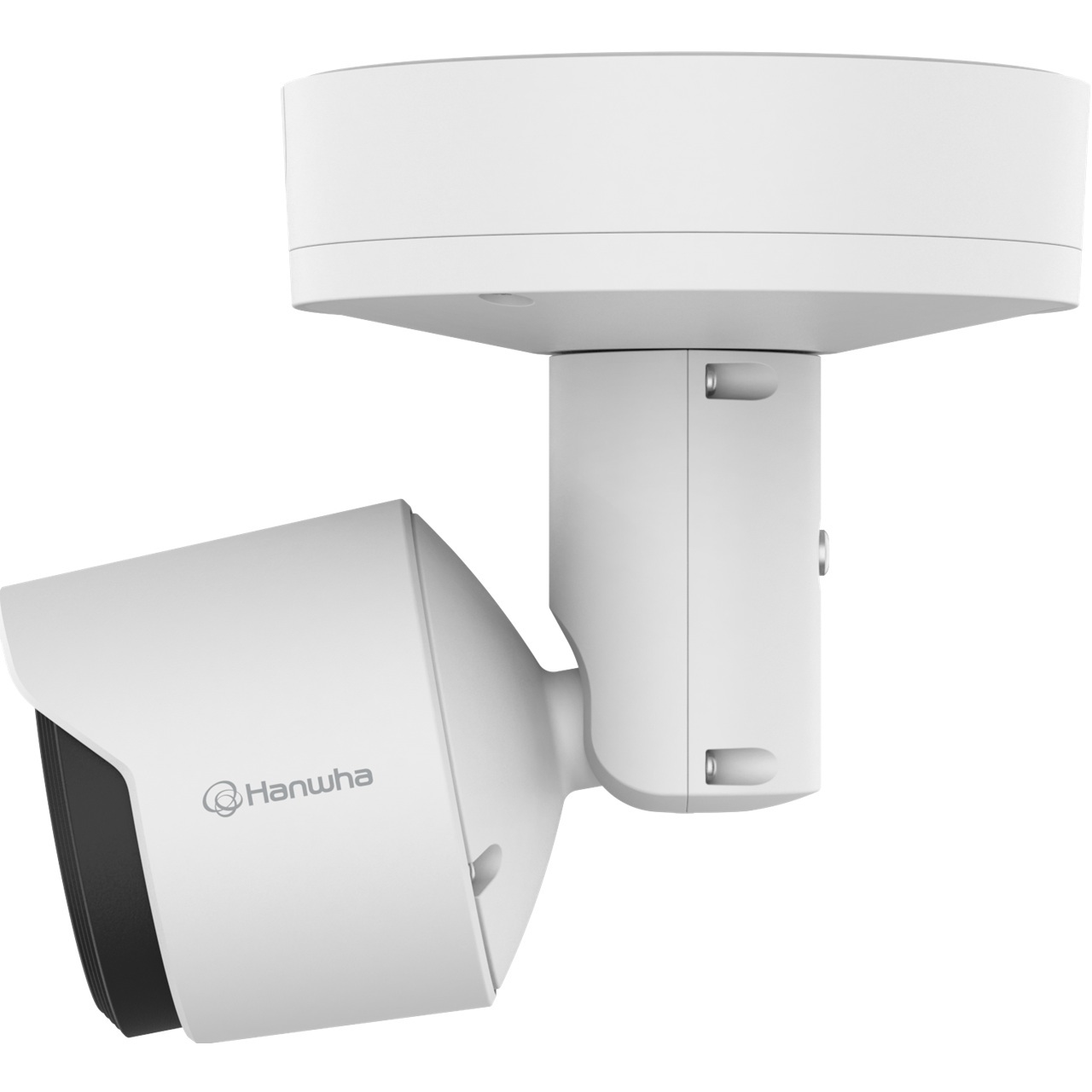

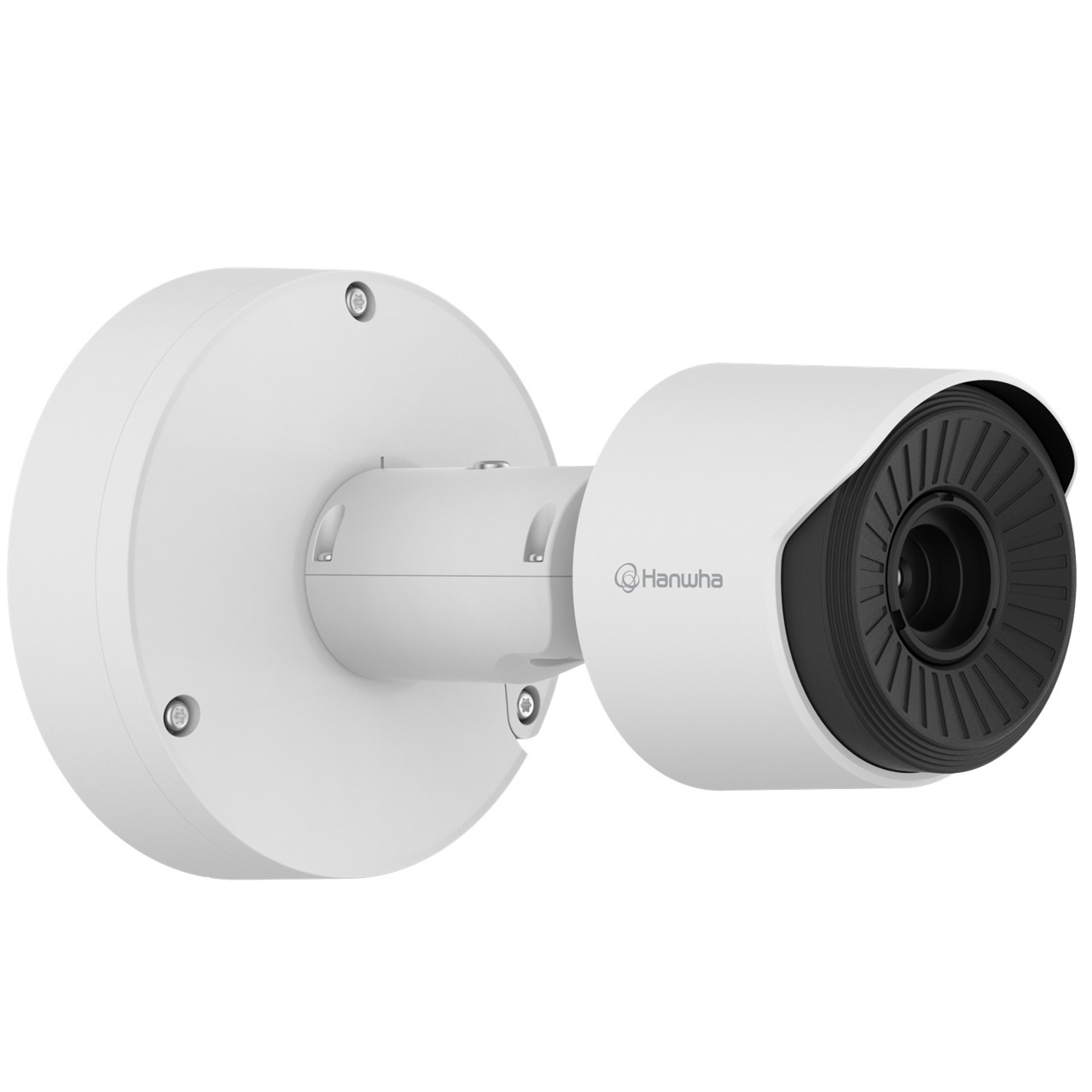

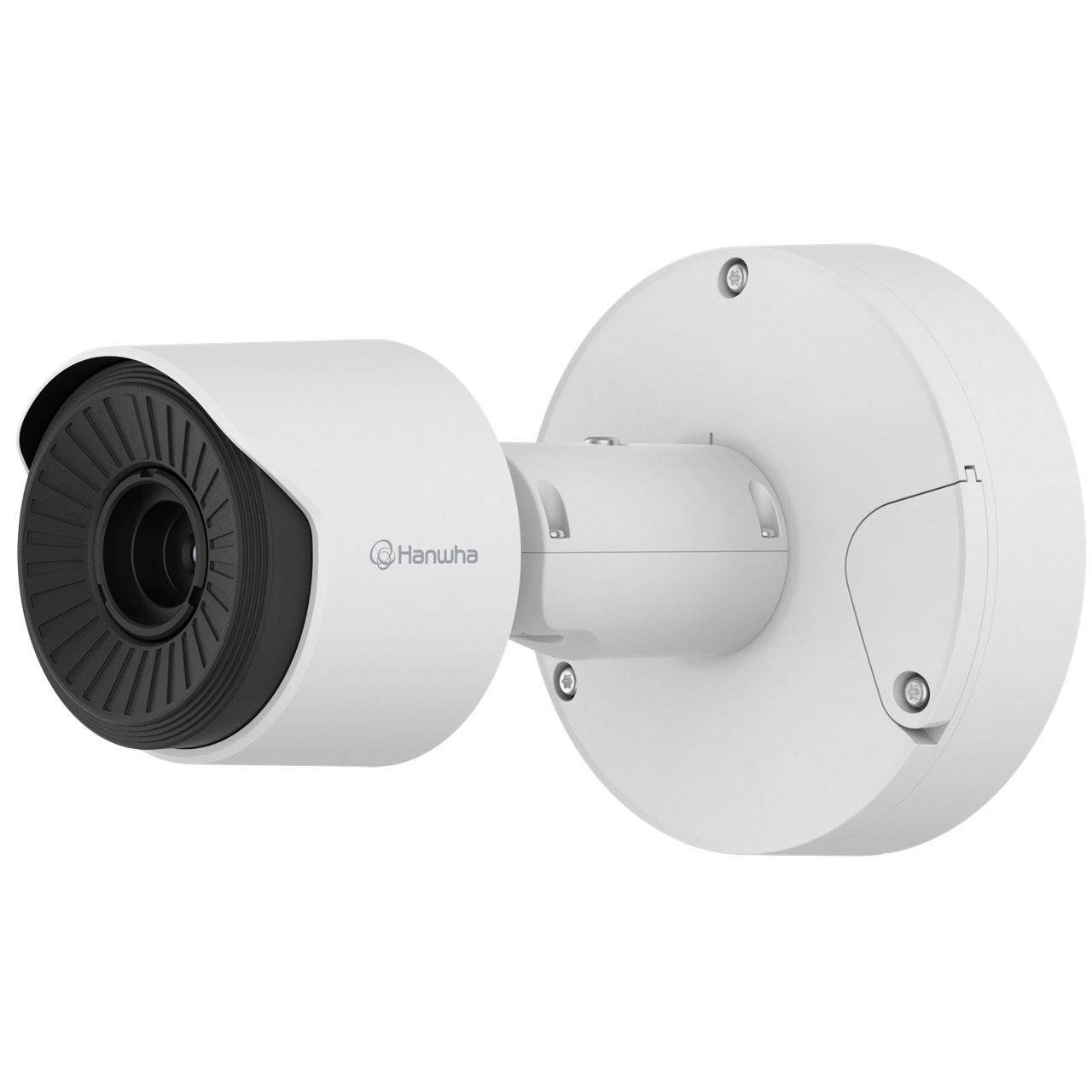

TNO-C3022TRA Hanwha Vision T Series 6.6mm 8FPS @ 384 x 288 Outdoor Bullet Uncooled Thermal IP Radiometric Security Camera 12VDC/POE

Introduction

Detect abnormalities. Prevent accidents.

Radiometric thermal cameras can instantly detect abnormal temperatures in industrial and manufacturing settings through temperature detection analytics and visualization.

Specifications

Video

• Imaging Device - Uncooled micro bolometer (Spectral range: 8~14㎛)
• Resolution - 768x576, 384x288(original)
• Max. Framerate - H.265/H.264/MJPEG: Max. 8fps
• NETD - ＜30mK
• Pixel Size - 17㎛
• Video Out - USB: Micro USB Type B, 768x576 for installation

Lens

• Focal Length (Zoom Ratio) - 6.6mm fixed focal
• Max. Aperture Ratio - F1.0
• Angular Field of View - H: 60° / V: 43.8° / D: 77.8° (iFoV: 2.6 mRad )
• Min. Object Distance - 1.4m
• Focus Control - Fixed

Pan / Tilt / Rotate

• Pan / Tilt / Rotate Range - 0°~350° / 0°~90° / 0°~350°

Operational

• Camera Title - Displayed up to 85 characters
• Motion Detection - 8ea, 8point polygonal zones
• Privacy Masking - 6ea, Rectangle zones - color : Grey, Black, White
• Video Rotation - Flip, Mirror, Hallway view(90°/270°)
• Analytics - Classified object type: Person/Vehicle Support BestShot Analytics events based on AI engine - WiseMD, Object detection, Virtual line*(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit) Analytics events - Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear)
• Business Intelligence - Support (Temperature data)
• Serial Interface - RS-485
• Alarm I/O - 2 configurable I/O ports
• Alarm Triggers - Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription
• Alarm Events - When alarm trigger occurred - File upload(image): e-mail/FTP - Notification: e-mail - Recording: SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover: PTZ preset - MQTT: publication
• Audio In - Selectable(mic in/line in)
• Audio Out - Line out
• Color Pallettes - Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom, Hybrid palettes

Radiometry

• Temperature Detect Range - -40°C~550°C(-40°F~1022°F)
• Temperature Accuracy - below 150°C: up to ±2°C Above 150°C: up to ±15% * based on measurements in a room temperature environment. Auto Temperature mode
• Temperature Detection - 10 Polygonal ROI zones, whole FoV area
• Additional - Hybrid palettes, Spot temperature reading (ROI condition monitoring: Above/ Below/ Increase/ Decrease)

Network

• Ethernet - Metal shielded RJ-45(10/100/1000BASE-T)
• Video Compression - H.265/H.264: Main/Baseline/High, MJPEG
• Audio Compression - G.711 u-law / G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
• Smart Codec - Manual(5ea area), WiseStreamâ…¡, WiseStreamâ…¢(Based on AI engine)
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP (TCP, UDP Unicast), MQTT
• Application Programming Interface - ONVIF Profile S/G/T/M SUNAPI(HTTP API) Wisenet open platform

Security

• OS / Firmware Protect - Secure boot, Signed firmware, Firmware encryption
• User authentication - Digest Authentication, Prevent brute-force attack
• Network authentication - 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
• Secure Communication - HTTPS, SRTP, WSS(Websocket secure)
• Access Control - Access control based on IP address
• Data Protect - Authentication information encryption, ZIP compression encryption
• Audit - User Access/System/Event log management
• Device ID - Device Certificate(Hanwha Private Root CA)
• Secure Storage - TPM(Trusted platform module), SDcard partition encrypt
• Security Certificate - TPM with FIPS 140-2 level 2

General

• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Edge Storage - Micro SD/SDHC/SDXC 1slot Max. 1TB
• Memory - 2GB RAM, 512MB Flash

Environmental & Electrical

• Operating Temperature / Humidity - -40°C~+60°C(-40°F~+140°F) / 0~95% RH(non-condensing)
• Storage Temperature / Humidity - -50°C~+60°C(-58°F~+140°F) / Less than 95% RH
• Certification - IP66, IK10, NEMA4X
• Input Voltage - PoE(IEEE802.3af, Class3), 12VDC
• Power Consumption - PoE: Max 10.8W, typical 9W 12VDC: Max 9.4W, typical 7.7W

Mechanical

• Color / Material - White / Aluminum+PC
• RAL Code - RAL9003
• Product Dimensions / Weight - ø93.8x233.5mm(ø3.69x/9.19"), 1700g(3.75 lb))
• Compatible Conduit Hole - Conduit hole : SBP-060BA(Sold seperately) Gangbox : single, double, 4" octagon, 4" square
• Backbox - Included
• Pole Mount - SBD-180PMW, SBP-300PMW2
• Corner Mount - SBP-300KMW1
• Cabinet - SBP-300NBW
• Conduit Adaptor - SBP-060BA

Certifications & Standards

• EMC - EN 55032:2015/A11:2020 EN 50130-4:2011/A1:2014 EN 61000-3-2:2014 EN 61000-3-3:2013 FCC - 47 CFR Part 15, Subpart B Class A FCC - IC Regulation ICES 003 Issue 7 RCM - EN IEC 63000:2018 Class A VCCI - EN IEC 63000:2018 Class A KS - KS C 9832:2023 Class A KS - KS C 9835:2019 Class A
• Safety - UL/CSA 62368-1
• Environment - ROHS - EN IEC 63000:2018 IK10 - KS C IEC 62262: 2005 IP66 - IEC 60529:1989 +A1:1999+A2:2013 NEMA4X - NEMA 250-2014

Ver

• Ver - 1.0
