NS9521 Vivotek 32 Channel H.265 VAST 2 Desktop Station 400Mbps Max Throughput - No HDD

Specifications

Device

• Model - NS9521
• OS - Embedded Windows 10
• Watchdog - Hardware + Software
• Power Restoration - System restart automatically after Power Recovery

Local Display

• LiveView Display - 32 Channels (up to 64CH by license purchasing)Equal: 1x1, 2x2, 3x3, 4x4, 5x5, 6x6, 7x7, 8x8Panorama: 1P+6, 2P, 2P+3, 3PFocus: 1+12, 1+16, 1+3, 1+5, 1+7, 1+9, 2+8Vertical: 1V+6, 2V+2, 2V+3, 3V, 3V+4, 4V, 4V+4, 5V Single layout display, full screen display Custom layout, layout rotation
• Video Output - HDMI x1, Display Port x1, DVI x1
• Display Resolution - HDMI: 4096x2160, DVI: 1920x1200, DP: 4096x2304
• Dual Monitors - Supported
• Camera Position - Change the viewcell position on the Live View screens
• Stream Application - Stream selection & auto stream size
• Monitor Enhancement - E-Map Embedded Drag & Drop Remote I/O Control, PiP (Digital Zoom), Instant Play back Video Display Mode (Aspect Ratio & Camera Information) Metadata Display (VCA, POS and Data Magnet)
• Fisheye Dewarp - 1O, 1P, 1R, 1O3R, 4R, 2P, 4R Pro, 1O8R and Fisheye Auto-Pan
• PTZ/ePTZ Operation - Direction Control, Home, Zoom, Focus, Isis, Preset, Patrol (Group), Tracking, Pan, Stop,Speed, Wiper Blade Control

Video

• Video Format - MJPEG, MPEG4, H.264 AVC, H.264 SVC, H.265
• Graphic Decoder - Software decoding
• Decoding Resolution - Up to 8192x8192
• Decoding Capability - H.264: 1920x1080 @ 540 fps, H.265: 1920x1080 @ 270 fps

Audio

• Audio Format - G.711, G.726, AMR, AAC
• 2-way Audio - Supported

Record

• Recording Time (sec.) - Pre-Record:3 - 15, Post-Record: 10-60
• Recording Stream - Single
• Recording Throughput - 400 Mbps
• Recording Mode - Continuous, Event, Customized Schedule, Activity Adaptive Streaming
• Recording Setting - Recycling time depends on the remaining storage space or the set number of days
• Seamless Recording - Supported

Storage & Backup

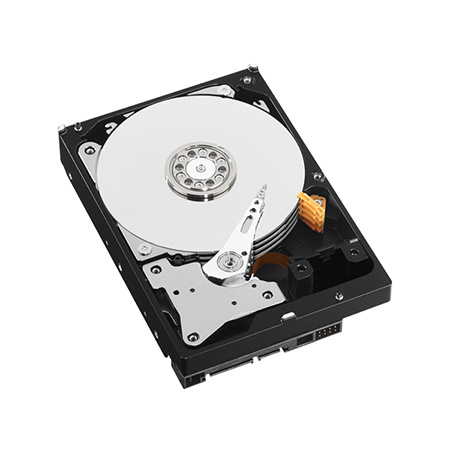

• HDD Devices - Internal x 2 (3.5") *HDD is purchased by separately.
• HDD Max. Capacity - 28TB
• Disk Management - Create, Format and Remove Disk
• Manual Backup - USB Dongle (FAT Format)NAS (SMB & CIFS)
• Schedule Backup - NAS (SMB & CIFS)

Playback (Local Display)

• Playback Display - 32 Channels (up to 64CH by license purchasing)(the max. number of monitors supported depends on the decoding capability of yoursystem), Equal: 1x1, 2x2, 3x3, 4x4, 5x5, 6x6, 7x7, 8x8Panorama: 1P+6, 2P, 2P+3, 3PFocus: 1+12, 1+16, 1+3, 1+5, 1+7, 1+9, 2+8Vertical: 1V+6, 2V+2, 2V+3, 3V, 3V+4, 4V, 4V+4, 5VSingle layout display, full screen displayCustom layout, layout rotation
• Playback Control - Play, Rewind, Pause, Stop, Next/PreviousFrame, 1/64X ~ 64X Speed Control, Bookmark
• Video Search - Calendar, Event, Alarm, Bookmark, Thumbnail, Smart Search II, Transaction (POS), DataMagnet, Log
• Snapshot - BMP & JPEG
• Video Clip Export - 3GP & EXE

Network

• Ethernet - 10/100/1000Mbps Ethernet (RJ-45) x2
• Video Throughput for Remote Client - 400 Mbps
• Protocols - IPv4, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS,DDNS, IP Filter

Alarm Management

• Alarm Period (sec.) - Max. 30
• Alarm Filter - Time, Trigger Type (Camera/Substation/System), Status, Name, Trigger Source
• Alarm Setting - Realtime System Notification Alarm Result Display by List or Thumbnail
• Schedule Type - Continuous, schedule, manual
• Camera Event - General:Motion detection, Camera DI, Camera DO, IR (Infrared), PIR (Passive infrared),Tampering Detection, Temperature, Camera Disconnected, Recording Error, StopRecording, Video Loss (Video server only), SD Card Life Expectancy Detection, AudioDetection, Shock DetectionVideo Content Analysis:Intrusion Detection, Loitering Detection, Line Crossing Detection, Unattended ObjectDetection, Missing Object Detection, Face Detection, Crowd Detection, Zone DetectionTrend Micro IoT Security:Brute force attack, cyberattack, quarantine event
• Substation - ND Series NVR:Fan Status, Network Disconnected, Storage Failure, Storage Full, Number ofremaining people, Brute force attack, Cyberattack, Quarantine eventNR Series NVR:Network Disconnected, Storage Failure, Storage FullNV Series NVR:Abnormal G-sensor Motion, Speeding, GPS Disconnected
• External Devices Event - DI/O (with I/O Box), TCP Message
• Action - Start to record videos, Set DO status, Go to camera presets, Send HTTP requests, Sendlive streaming, Send email with snapshot of assigned camera(s), Go to E-Map, Sound the alarm and Add bookmark
• Alarm State for Management - New, In Progress, False Alarm and Close
• Alarm Result Export - csv file

eMap

• Source - Import Picture & Folder
• Device - Camera, external DI/O
• Marked - Add, Remove, Direction Control, PTZ Control, FOV Control, LiveView & Playback
• Event Notification - One or More Live Streaming

External Interface

• USB Interface - Front: USB 2.0 x2, Back: USB 3.1 (type A) x2, USB 3.1 (type C) x2
• Audio In/ Out - Front:Microphone audio jack Input x13.5 Line output audio jack x1, Back:Microphone audio jack Input x13.5 Line output audio jack x1

System

• POS Integration - Supported
• UPS Integration - Supported
• Camera Integration - ONVIF Profile S
• I/O Box Integration - Advantech ADAM-6000 SeriesCHIYU CYT-133SCMOXA ioLogik E1210, E1211 and E1212
• User Management - Authentication: Basic Account / Windows AD AccountUser Account: 1024, User Level: Administrator / Customized User
• Log - Operation, system and event log
• Date & Time - Sync server

Advanced Features

• VCA Counting Solution - Supported
• VCA Event Search - Smart VCA, Smart 360 VCA
• Smart Search - Smart Search I & Smart Search II
• Cybersecurity Management - Supported
• Failover - Supported

Remote Client

• Software AP - Shepherd, VAST 2
• Mobile/Tablet App - iViewer (iOS/Android)
• Web Browser - Internet Explorer 9 (32 bit) or above

General

• Power Input - 100~220V AC
• Power Consumption - Max. 250 W
• Dimensions - 342.3 (H) x 96 (W) x 409.1 (D) mm
• Weight - 5.15 kg
• Operating Temperature - 5°C ~ 35°C (41°F ~ 95°F)
• Humidity - 0 ~ 95%
• Safety Certifications - CE, FCC, VCCI, C-Tick, UL, CB
• Warranty - 36 months
