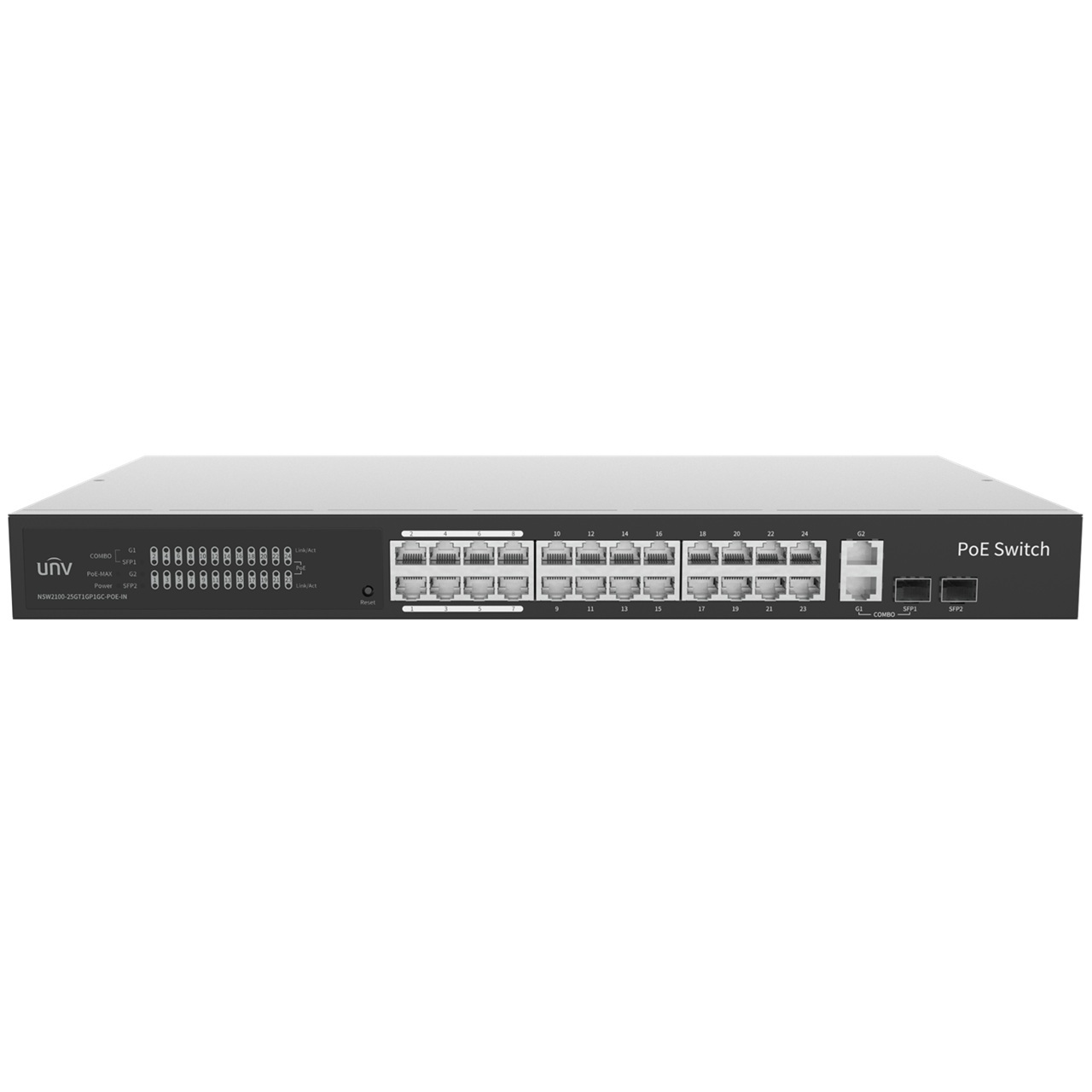

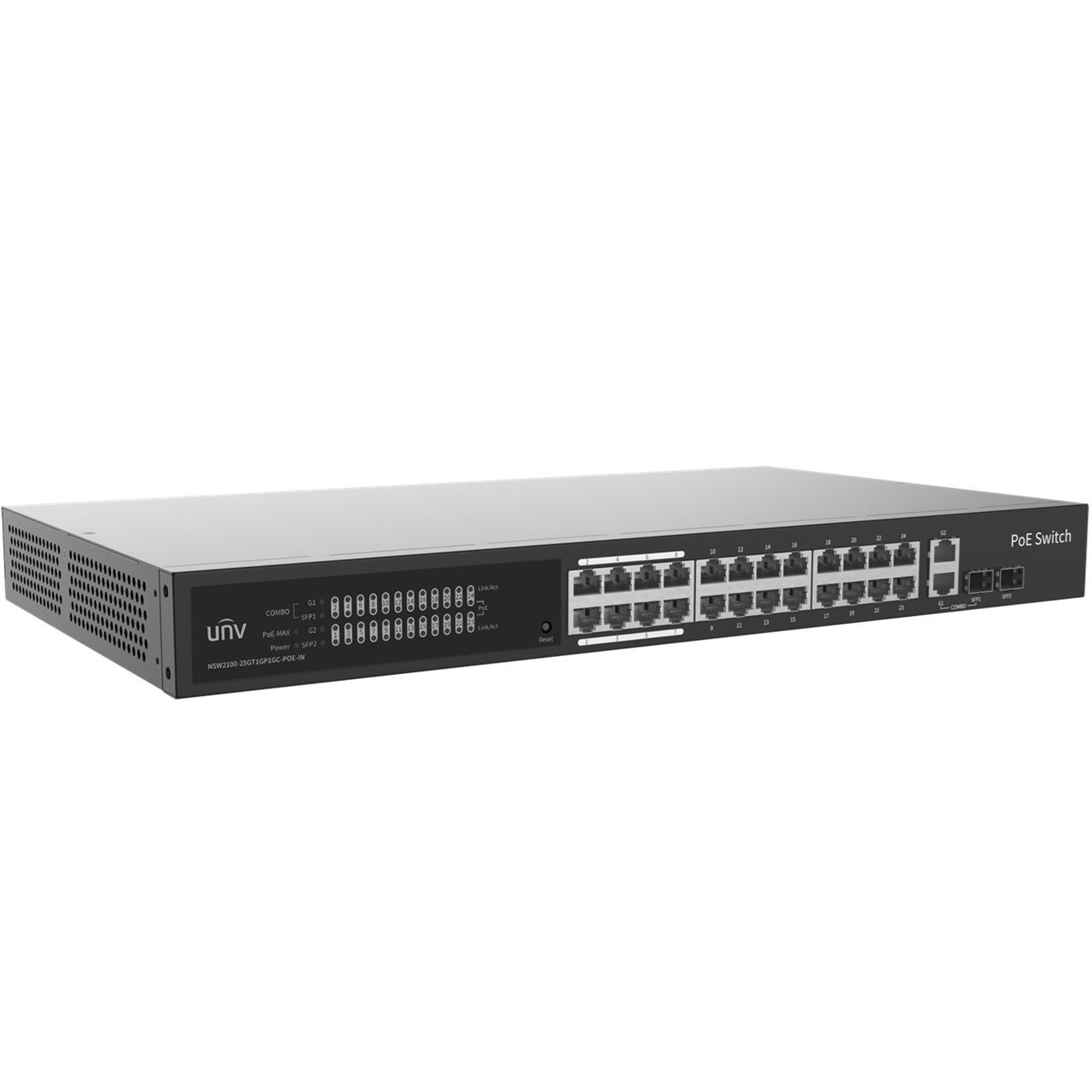

NSW2100-25GT1GP1GC-POE-IN Uniview Lite Cloud Managed Gigabit Ethernet PoE Switch

The NSW2100 series Gigabit Ethernet PoE switch is a cloud managed switch with high performance, easy to use and maintain. The product adopts the leading high performance hardware architecture and industrial design concepts to enhance the environmental adaptability of the network. It provides a lightweight 2 layers of network basic configuration, including port mirroring, port anti-loop, VLAN, link aggregation, flow control, etc. It supports viewing the device status and managing devices on the Web, APP or IMS Portal platform. The switch meets the user's requirements to access the network with high reliability and low cost, widely used in scenarios such as stores, supermarkets, enterprises, campuses, etc.

Specifications

Hardware

• Ports Type - 24 x 10/100/1000Mbps PoE port (RJ45), 1 x 10/100/1000Mbps port (RJ45), 1 x Gigabit SFP, 1 x Gigabit Combo
• Switching capacity - 54 Gbps
• Forwarding performance - 40.176 Mpps
• Packet Buffer - 4 M bit
• MAC - 8K
• Prior Ports - 1 to 8
• Dimensions (W×D×H) - 440x244.8x44mm
• Power Supply - AC: 100V to 240V, 50/60Hz
• PoE Standard - IEEE 802.3af, IEEE 802.3 at
• PoE Mode - ModeA (1236), ModeB (4578)
• Max.PoE Power - Max capacity: 370W, Maximum PoE power for single port: 30W
• Max.Power - 390W
• Cooling Fans - 1
• Weight - 2.95kg
• Operating Temperature - 0°C to 45°C (32°F to 113°F)
• Operating Humidity - 10% to 90% (noncondensing)
• Indicator
  • Power: - Off: Abnormal power input. Green: Normal power input
  • PoE: - Off: No PoE power supply, Steady on: PoE power supply is normal
  • PoE-MAX： - off ：The POE power supply power of the whole machine is less than 80% of the specification. Steady on : The POE power supply power of the whole machine is greater than 85% of the specification
  • Link/Act: - Off: Disconnected to the port, On: Connected to the port, Blinking: Transmitting data.

Software Specification

• Ethernet
  • Supports full duplex, half duplex, and auto-negotiation working modes
  • Supports enabling/disabling ports
  • Supports port auto-negotiation rate
  • Supports port flow statistics
• VLAN - allows up to 32 VLANs with IDs from 1 to 4094
• MAC - Support static MAC, up to 32
• POE - Allows to view PoE status and enable/disable PoE power supply in the APP
• Loop Detection - Loop Detection
• Security - Supports port isolation
• Maintenance - Supports N:1 port mirroring, Supports device upgrade, factory settings restoration, configuration import, configuration, export, and device restart on the software
• System - Allows to view the device name, current version, IP address, MAC address, DNS, etc. Allows to edit and manage the IP address and device name

Compliance

• NDAA Compliant - Support
