Features
- 4 Class B or 2 Class A Field Selectable Speaker Circuits
- 25/70 Vrms Field Selectable
- Configurable with EVX-SL8 for Zone Selection
- Smart Power detection, provides short circuit protection
- Up to 64 circuits on a system
- Up to 50W on any circuit at 70V
Description

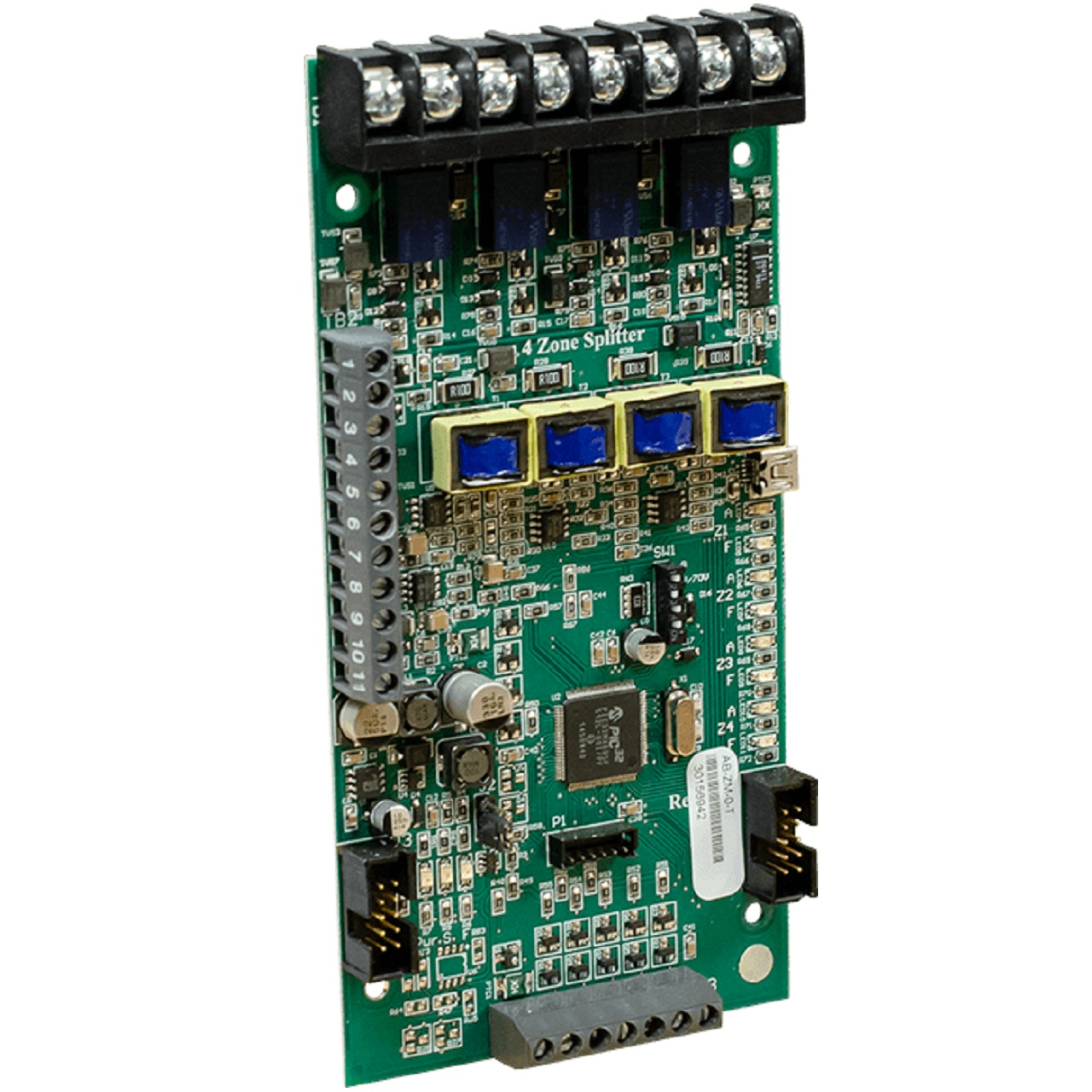

The Evax EVX-ZM is a supervised Zone Module. It is used in conjunction with the EVAX 25/50/100/150/200 to enable separately supervised and protected circuits from a single speaker output. The EVX-ZM is standardly configured for 4 Class B circuits, but may be converted to 2 Class A with the flip of a switch. The EVX-ZM may be ganged together to provide a maximum of 64 Class B circuits.
The EVX-ZM in standard operating mode is strictly All Call. On any Page, Alarm or Message function all circuits are active. If separate Zoning is required, an EVX-SL8 may be employed to provide both Zone and Message selection. Additionally, the EVX-ZM has inputs which may be activated by a N.O. Dry contact for Zone selection.
Each speaker circuit employs a smart power metering to insure short circuit conditions are isolated from the other circuits. Each circuit is rated 50W @ 70V and 40W @25V. If separate inputs are needed for Message selection, an EVX-IL8 can easily be configured for external contacts.
If there is a need for separate monitoring or triggers, an EVX-OL8 can provide N.O. Contacts or Voltage drives for external systems. The EVX-OL8 will provide output control that may be assigned to a switch, input or function like Alarm, Message or PTT.
The EVX-ZM, EVX-SL8, EVX-IL8 and the EVX-OL8 all tie together with a simple ribbon cable. Zone, Switch, Input and Output cards may be used in any combination with a maximum quantity of 16
EVX-SL8 LED Switch Card
Current draw (On primary module battery back-up): 3mA (Standby), 5.16mA (All Call)
- 8 Momentary switches
- 8 Tri-color LED’s (Green/Red/Amber)
The EVAX EVX-SL8 LED Switch Module provides switch selection for message activation, paging, and control functions. When used in conjunction with the EVX-ZM zone module, the SL8 can be programmed for page zone control. LEDs for switches assigned to page zones will indicate Red for page and flashing Red for alarm. The LED will indicate Amber if the associated speaker circuit is in a fault condition. Switches can be programmed to control corresponding points on the EVX-OL8. Switch LEDs will indicate steady Red on activation.
Technical Specifications
- Standby Current - 0.051A
- Active Current - 0.80A
- All Call Current - 0.130A
EVX-ZM-ASSM Specifications PDF
