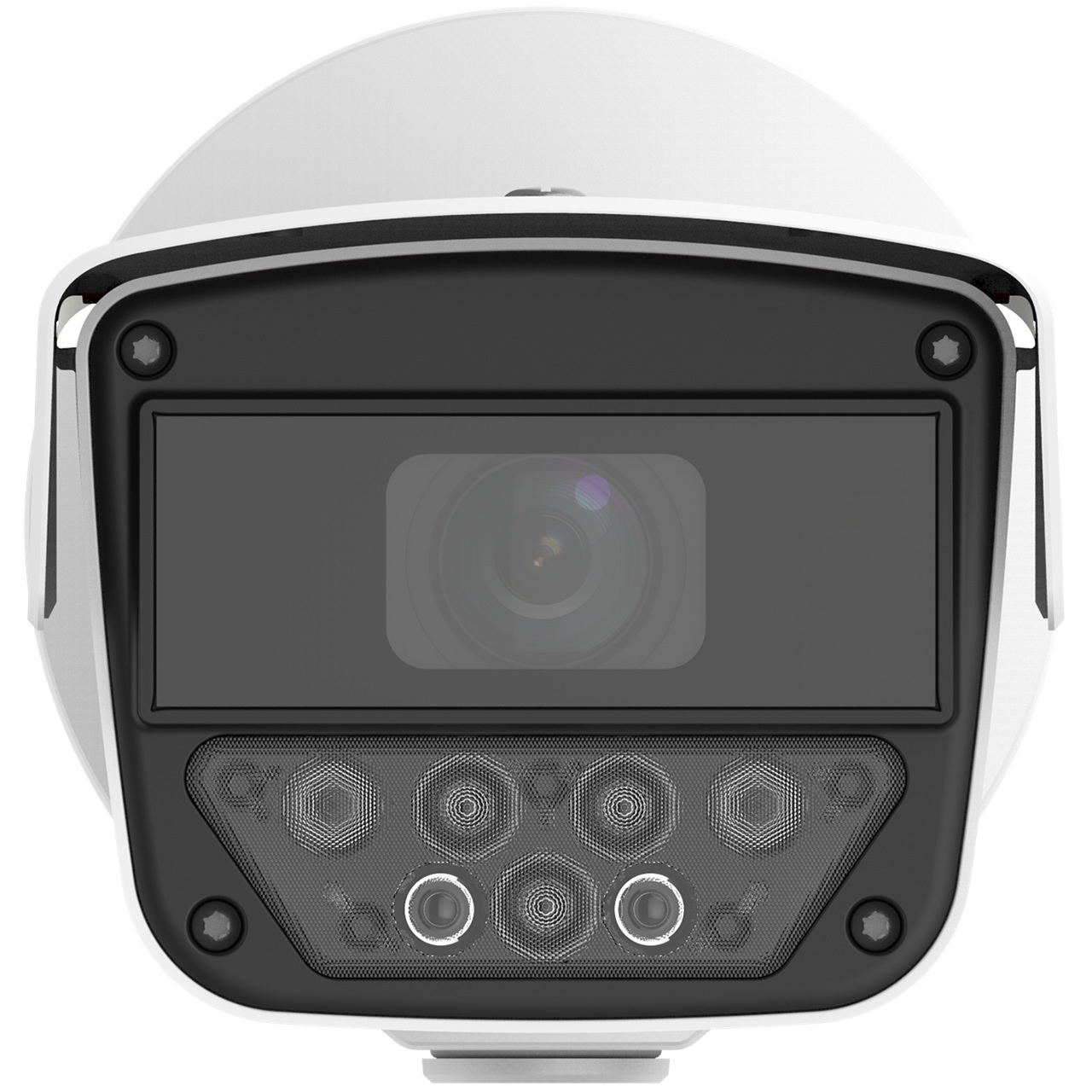

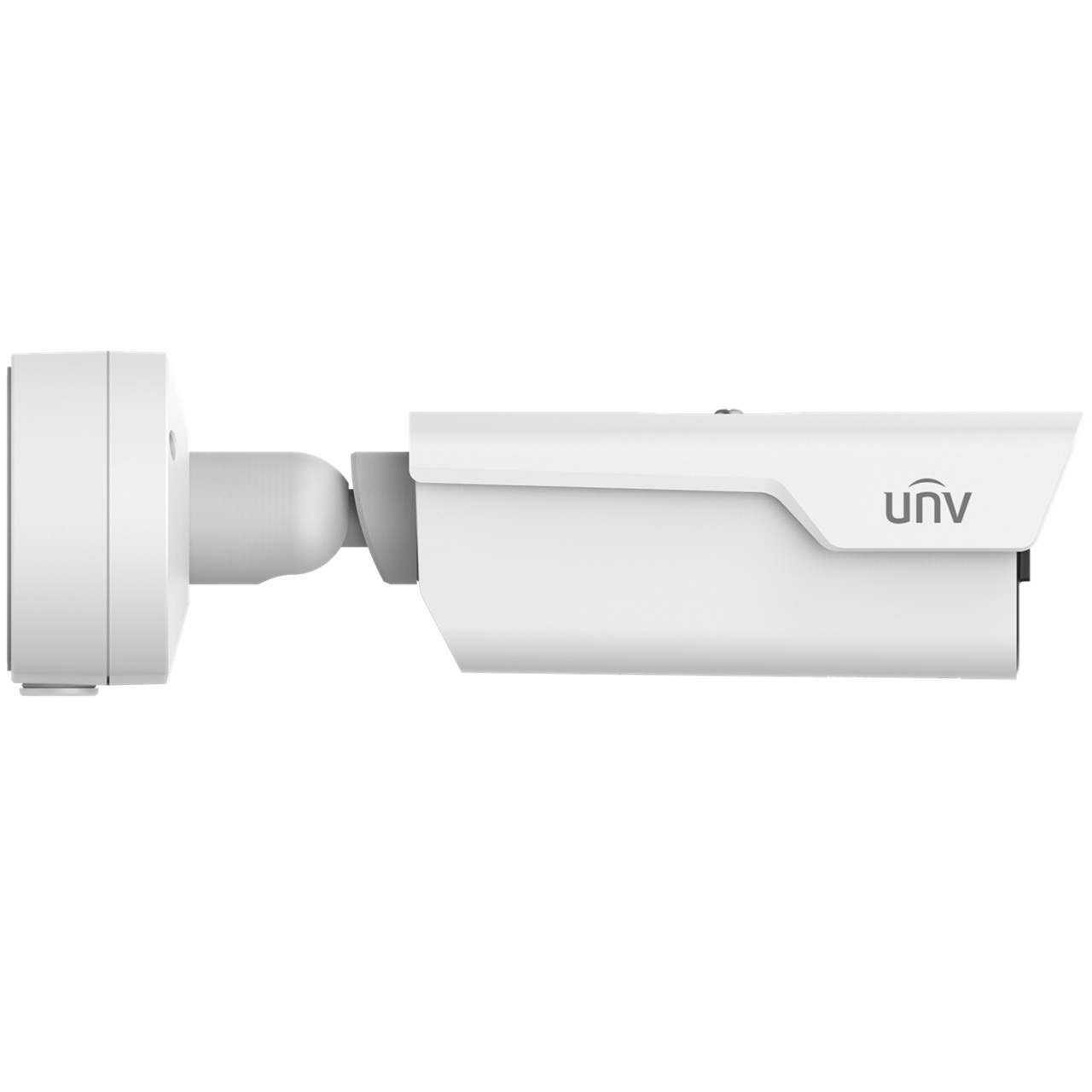

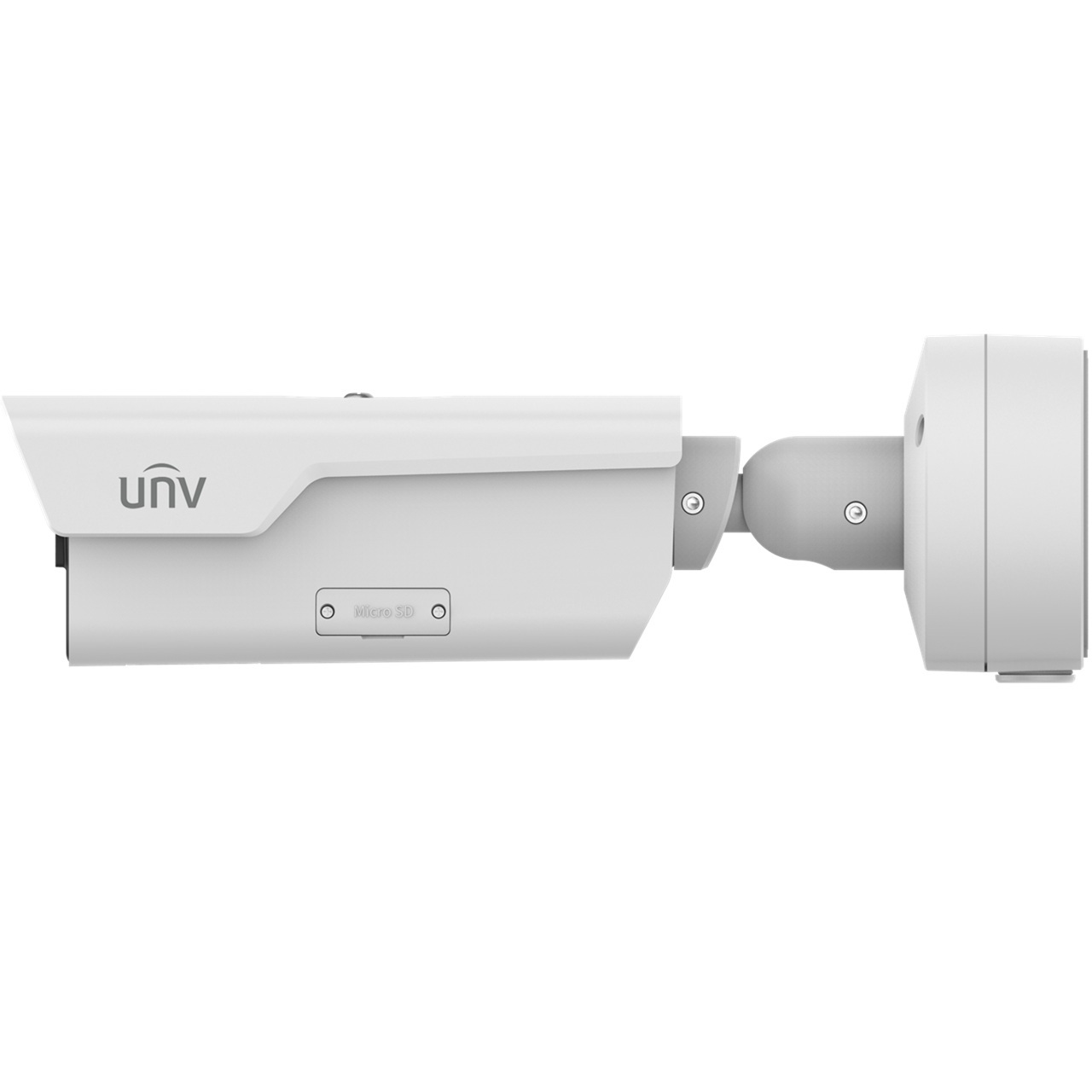

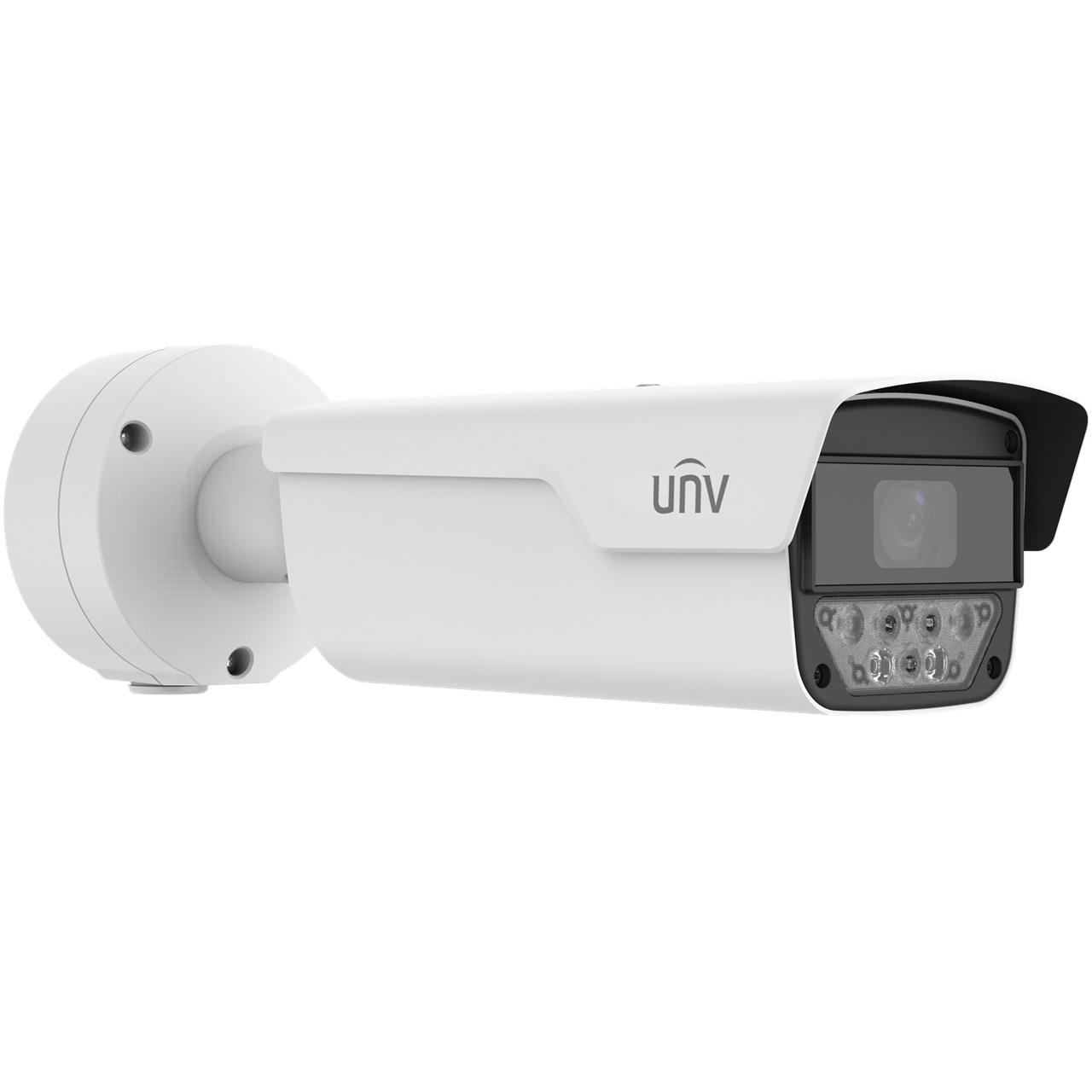

PKC2640@Z28-P Uniview 2.8 to 12mm Motorized 30FPS @ 4MP Overseas Recognition Of Vehicle License Plate WDR Bullet IP Security Camera 12VDC/PoE

Specifications

Camera

• Sensor - 1/1.8-inch 4MP CMOS
• Focal length - 2.8 to 12mm
• Shutter - Auto/Manual, range: 1/30 to 1/100000s
• Minimum illumination - 0.001lux (F1.4), 0.001lux (F1.4)
• FOV - Horizontal FOV: 105.1° to 50.4°, Vertical FOV: 54.5° to 28.8°, Diagonal FOV: 123° to 55.9°
• WDR - 120 dB


• Image collection format - 2688x1520@30 (default), 2688x1520@25
• Resolution - Main stream: 2688*1520, 1080P (default), 720P, D1; Sub stream: 720P (default), D1, 2CIF, CIF; Third stream: D1 (default), 2CIF, CIF
• Frame rate - 30 (default), 25, 22, 20, 18, 16, 15, 12.5, 10, 8, 6, 5, 4, 3, 2, 1
• Video compression - H.264 (default), H.265
• ROI - Supports up to 8 regions
• Video OSD - Supports 8 overlay areas and allows contents including date, time, date&time, zoom ratio, custom contents
• Image OSD - Supports 8 overlay areas and allows contents including time, license plate number, device ID, camera ID, allowlist, image authentication ID, custom contents (3 items), location

Smart

• Application scenario - ≤ 30km/h for entrances and exits, ≤ 80km/h for regular roads; Supports simultaneous application to road and entry/exit scenes without switching
• Vehicle detection mode - Supports video detection
• License plate number recognition - Supports recognition of license plates with numbers and letters by default
• List configuration - Supports allowlist and blocklist configuration, each list allows 20,000 items Supports import, export, add, and delete operations
• Barrier opening policy
  • Open barrier only for the recognized vehicles
  • Open barrier for all vehicles
  • Open barrier only for vehicles on the allowlist
  • Open barrier for vehicles not on the blocklist
  • Configurable Boolean output ID

Storage

• Edge storage - Supports ANR with a Micro SD card, up to 256GB

Structure

• Illumination - Built-in integrated illumination module, including 4 warm light LEDs, 50m illumination distance, automatic on/off control, Built-in integrated illumination module, including 4 warm light LEDs, 50m illumination distance, automatic on/off control
• Bracket - 3-axis mounting bracket
• Junction box - The camera comes with a junction box for storing tail cable

Network

• Protocols - IGMP,IPv6,ICMP,ARP,TCP,UDP,DHCP,PPPoE,RTSP,DNS,DDNS,NTP,UPnP,HTTP,HTTPS,802.1x,SNMP,QoS,SSL/TLS,SSH,IPv4
• Compatible Integration - ONVIF (Profile S, Profile G, Profile T),SDK, API

Interface

• Network interface - 1×10M/100M RJ45
• Serial port - 1 × RS485
• Boolean output - 1 relay output, withstand voltage: AC 125V/0.3A, DC 30V/1A
• Boolean input - 2 x input, supports level (up to DC 5V) and switch signal
• Audio interface - 1 × audio input, 1 × audio output
• Storage interface - 1 × Micro SD card slot
• BNC - PAL,NTSC
• Reset button - Support

General

• Power supply - DC12V + 25% - 10%, Max. power consumption: 20W, Supports PoE (802.3at, class 4)
• Dimensions (L×W×H) - 406mm x 126mm x 130mm
• Weight - 2.1kg
• Operating environment - -40℃ to 60℃, ≤90% RH
• Ingress protection - IP67, IK10
