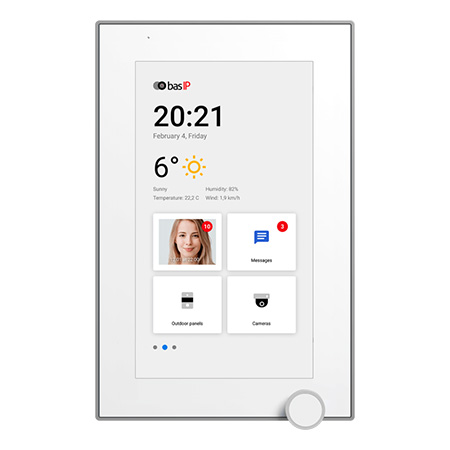

AZ-07L-GRAY BAS-IP IP Indoor Monitor with a 7-Inch IPS Touch-Screen Color Display - Vertical or Horizontal Mount - Android - Gray

7" IP video indoor monitor with horizontal and vertical mounting options, the ability to control the lift, display messages from the management company, PoE, connection of 32 cameras, memory for photos/videos and an autoresponder. OS – Android.

Specifications

• Display - 7" IPS LCD (capacitive touchscreen)
• Screen resolution - 1024 x 600
• Built-in camera - No
• Power - PoE and + 12 V DC (PSU not included)
• Power consumption - 6 W, standby 2.5 W
• Dimensions - 195 x 127 x 27 mm
• Colors - Black or Gray
• Body - Plastic
• Installation Type - Wall mount
• Mounting options - Horizontal and vertical
• Network connection - Ethernet wire 8P8C
• Number of individual panels - Up to 9 panels
• Number of multiapartment panels - Up to 9 panels
• Connection of additional monitors - Up to 8 monitors
• Additional connectors - SD card slot (SDHC)
• Memory function - Record photo, video and audio to SD card
• Interface - Multi-language graphical and WEB interface
• Number of IP cameras - Up to 32 cameras
• Number of call ringtones - 9 melodies to choose
• Download custom MP3 ringtones - Yes
• Intercom type - Audio Intercom, no built-in camera
• Home automation control - Light / curtains / lift
• Scene - Yes
• Answering machine - Yes
• Support of receiving messages - Yes
• Multimedia features - View video, photo and audio files from an SD card
• Standby mode - Yes, customizable by time
• Select the type of screensaver in standby mode - Multi-camera live viewing – up to IP 4 cameras at the same time; Clock; Photo frame; Live tour view – up to 16 cameras, time adjustable; Single IP camera live viewing
• Do Not Disturb - Yes, customizable by time
• Silent mode - Yes, customizable by time
• Backup photos taken during the call - Yes
• Ability to install third-party applications - Yes
• Support for third-party widgets - Yes
• Software update - From the web interface; From SD card; From BAS-IP updates server

AZ-07L-GRAY Specifications PDF
