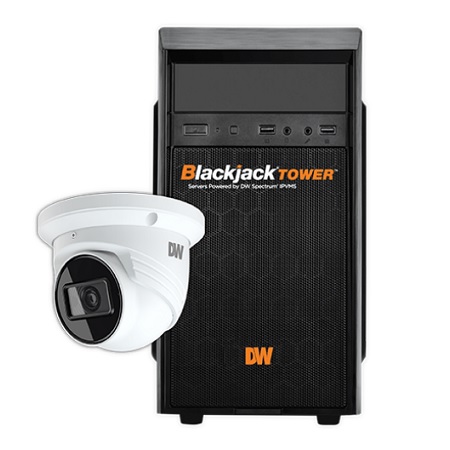

DW-MTVTKIT34 Digital Watchdog NVR 360Mbps Max Throughput with 4 Channel DW Spectrum Camera License - 3TB - Windows 10 w/ 4 x 5MP Outdoor IR Turret IP Security Cameras

Blackjack Tower mid-size servers are reliable and high-performance solutions for recording multiple IP cameras of any resolution at up to 480Mbps throughput. The servers are UL-listed and NDAA/TAA compliant and include Windows 10, Linux Ubuntu or Windows Server OS on a separate SSD. Hardware features include a 9th generation Intel Core i3, i5 or i7 processor, up to 16GB RAM, dual network cards and local output up to 4K resolution for system configuration. The servers come preloaded with DW Spectrum IPVMS and four recording licenses, provide up to 30TB internal storage, are ONVIF conformant and come with a 5 year limited warranty.

These MEGApix IP cameras are NDAA compliant and deliver crystal-clear images at 5MP resolution and real-time 30fps. The IP67-rated turret camera features a 2.8~12mm vari-focal lens with motorized zoom and a 360 camera gimbal for absolute view adjustment. Added intelligence includes line crossing, perimeter intrusion, video tampering detection and object classification. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.

DW-BJMT5103T Specifications

• Part Number - DW-BJMT5103T
• Included IP licenses - 4
• Form factor - Mid-size tower

Operating System

• Windows 10 - DW-BJMT51xxT
• OS on SSD - 240GB SSD
• CPU - 9th Gen Intel Core i5 processor
• Memory - 16GB
• Ethernet port - 2x 1G Ethernet

System

• Max Video Storage Rate (Mbps) - 360Mbps

Storage

• Maximum Storage Drives - 3 x 3.5 SATA HDD
• Maximum Storage - Maximum 30TB

Video

• Outputs - 1 x true HD, 1 x DVI, 1 x VGA for system configuration. Maximum 1 display output at a time
• Max Output Resolution - 4096x2160 (True HD), 1920x1200 (DVI-D)
• Video Card - On-board Intel Graphics
• Preloaded VMS Software - DW Spectrum IPVMS
• Remote Clients - Cross-platform - Windows, Linux Ubuntu and Mac
• Mobile apps - iOS and Android
• Keyboard and mouse - Included
• Power Supply - 400W**
• Operating Temperature - 41°F~104°F (5°C~40°C)
• Operating Humidity - 20~90% RH
• Dimension (W x D x H) - 7.46" x 15.7" x 14.21" (189.52 x 398.8 x 631.02 mm)
• Other Certification - UL, FCC, CE
• Warranty - 5 year limited

DWC-MT95WiATW Camera Specifications


• Image sensor - 5MP 1/2.7" CMOS
• Total pixels - 2592 (H) x 1944 (V)
• Minimum scene illumination - 0.01 lux (color), 0.0 lux (B/W)
• S/N ratio - 50dB

Lens

• Focal length - 2.8 ~ 12mm, F1.4
• Lens type - Vari-focal lens with motorized zoom and auto-focus
• Field of view (FoV) - 95.1°~ 30°
• IR distance - 164ft range

I/O

• Audio in / out - 1 audio input and 1 microphone built-in
• Audio compression - G.711A / U

Operational

• Shutter mode - Auto, manual
• Shutter speed - 1/30s ~ 1/100000s
• Auto gain control - Auto
• Day / night - Auto, day (color), night (B/W), schedule
• Smart DNR 3D digital noise reduction - 3D DNR
• Wide dynamic range (WDR) - True WDR low, middle, high
• Wide Dynamic Range (WDR) dB - 120dB
• Privacy zone - 4 programmable privacy masks
• Camera analytics - Line crossing, perimeter intrusion, video tampering detection (scene change, video blur, abnormal color detection), object classification (differentiate humans from objects)
• Backlight compensation (BLC) - Yes
• De-Fog - Yes
• Mirror and flip - Yes
• Alarm notifications - Notifications via email or FTP server
• Memory slot - Micro SD / SDHC / SDXC card up to 256GB (card not Included)

Network

• LAN - 802.3 compliance 10/100 LAN
• Video compression type - H.265, H.264, MJPEG
• Resolution - 5MP, 4MP, 2K, 3MP, 2.1MP/1080P, 720P (60Hz: 1 ~ 30fps; 50Hz: 1~25fps ) HFR mode: 1080P / 720P (60Hz : 1 ~ 60fps; 50Hz: 1~50fps )
• Frame rate - Up to 30fps at all resolutions
• Video bitrate - 64 Kbps ~ 8 Mbps
• Bitrate control - Multi-streaming CBR/VBR at H.264/ H.265 (controllable frame rate and bandwidth)
• Streaming capability - Dual-stream at different rates and resolutions
• IP - IPv4, IPv6
• Protocol - UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, ICMP, IGMP, PPPoE, DDNS, SMTP, FTP, SNMP,HTTP, 802.1x, UPnP, HTTPs, QoS
• Security - IP filtering, MAC filtering, authentication (ID/PW), SSL/TSL
• ONVIF conformance - Yes
• Web viewer - OS: Windows, Browser: Internet Explorer
• Video management software - DW Spectrum IPVMS

Environmental

• Operating temperature - -22°F ~ 140°F (-30°C ~ 60°C)
• Operating humidity - 95% RH (non-condensing)
• IP rating - IP67-rated
• IK rating - IK10 impact-resistant
• Other certifications - FCC, CE, ROHS, POE, ONVIF

Electrical

• Power requirement - DC 12V, PoE IEEE 802.3af Class 3. (Adapter not included)
• Power consumption - 9W

Mechanical

• Material - Metal turret housing
• Dimensions - 5.16" x 4.13" (131.1 x 105 mm)
• Weight - 1.45 lb (0.66 kg)
• Warranty - 5 year warranty

DWC-MT95WiATW Specifications PDF

DW-BJMT5103T Specifications PDF
