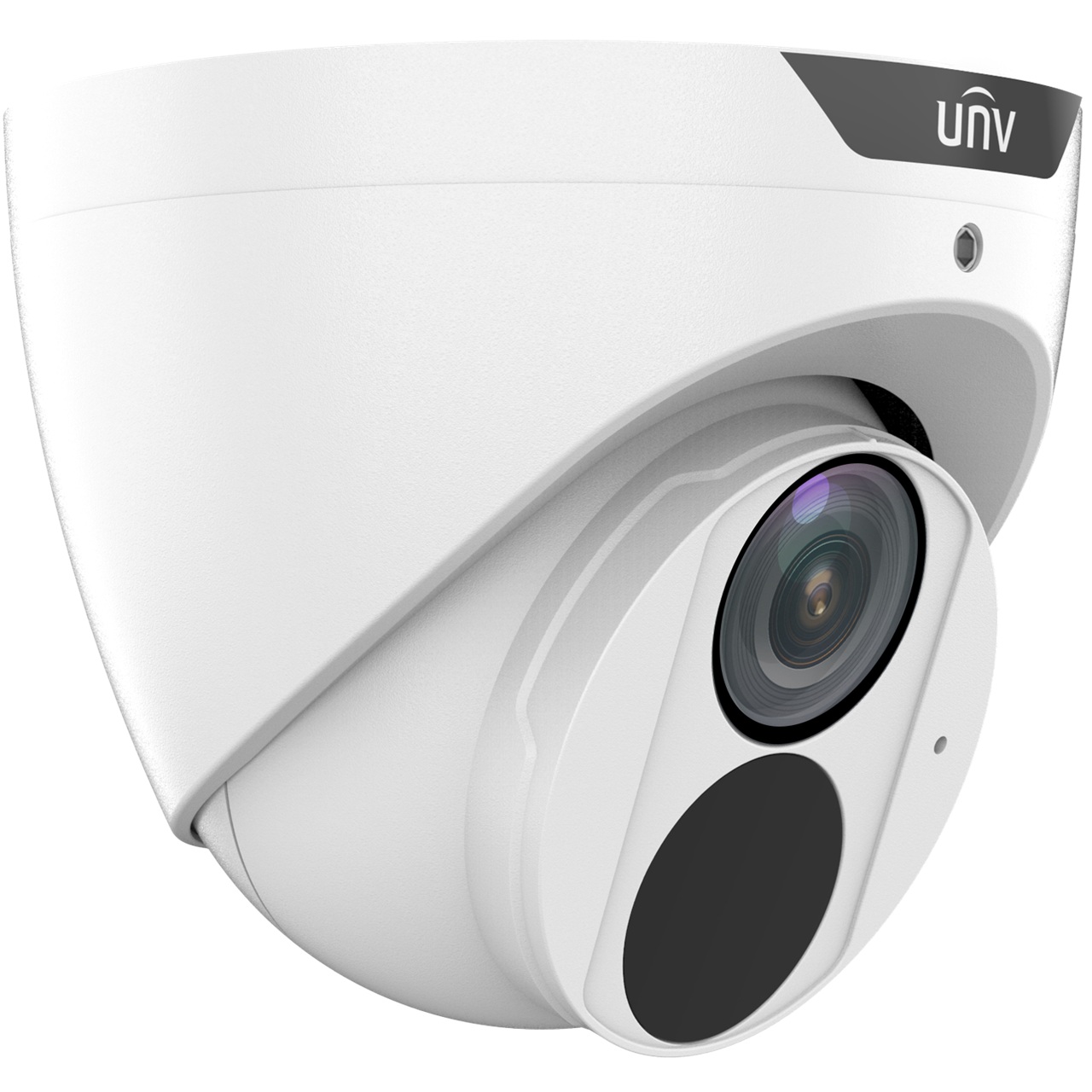

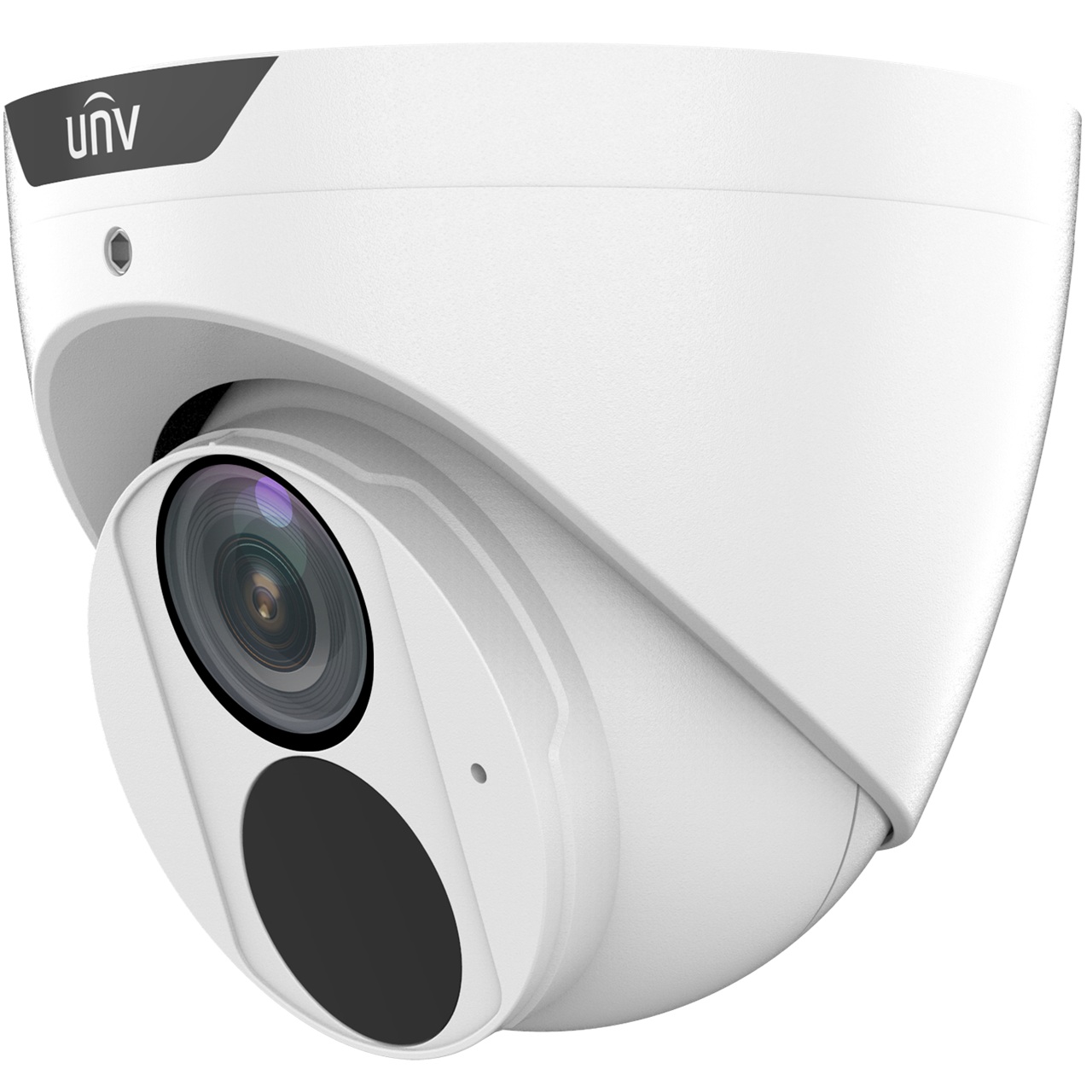

IPC3615SR3-ADF28KM-G Uniview Sharp Series 2.8mm 25FPS @ 5MP Easystar Outdoor IR Day/Night WDR Eyeball IP Security Camera 12VDC/PoE

Specifications

Camera

• Max Resolution - 5 MP
• Sensor - 1/2.7" CMOS
• Min. Illumination - Support Easystar: color: 0.003 Lux ( F1.6, AGC ON), 0 Lux with IR
• Day/Night - IR-cut filter with auto switch (ICR)
• Shutter - Auto/Manual, 1 ~ 1/100000s
• Adjustment Angle - Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360°
• S/N - >52 dB
• WDR - 120 dB

Lens

• Focal Length - 2.8 mm
• Iris Type - Fixed
• Iris - F1.6
• Field of View (H) - 112.9°
• Field of View (V) - 59.1°
• Field of View (D) - 121.2°

DORI

• DORI Distance (Lens) - 2.8 mm
• DORI Distance (Detect) - 63.0 m (206.7 ft.)
• DORI Distance (Observe) - 25.2 m (82.7 ft.)
• DORI Distance (Recognize) - 12.6 m (41.3 ft.)
• DORI Distance (Identify) - 6.3 m (20.7 ft.)

Illuminator

• Illumination Distance (IR) - 30 m (98.4 ft.)
• Wavelength - 850 nm
• IR On/Off Control - Auto/Manual

Video

• Video Compression - Ultra 265, H.265, H.264, MJPEG
• H.264 Code Profile - Baseline profile, Main profile, High profile
• Frame Rate
  • Main Stream: - 5 MP (2880 × 1620), max. 25 fps; 4 MP (2560 × 1440), max. 25 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps;
  • Sub Stream: - 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps;
• Video Bit Rate - 128 Kbps to 16 Mbps
• U-code - Support
• OSD - Up to 4 OSDs
• Privacy Mask - Up to 4 areas
• ROI - Up to 8 areas
• Video Stream - Dual streams


• White Balance - Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
• Digital Noise Reduction - 2D/3D DNR
• Smart IR - Support
• Flip - Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
• HLC - Support
• BLC - Support
• Defog - Digital defog

Events

• Basic Detection - Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Cross line (based on human body detection), Intrusion (based on human body detection)
• General Function - Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

• Audio Compression - G.711U, G.711A
• Audio - Bitrate 64 Kbps
• Suppression - Support
• Sampling Rate - 8 kHz

Storage

• Edge Storage - MicroSD, up to 512 GB
• Network Storage - ANR, NAS (NFS)

Network

• Protocols - IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP, PPPoE
• Compatible Integration - ONVIF (Profile S, Profile G, Profile T), API, SDK
• User/Host - Up to 32 users. 3 user levels: administrator, common user and operator
• Security - Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
• Client - UNV-Link, UNV-Link Pro, EZStation
• Web Browser - Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

• Built-in Mic - Support
• Network - 1 × RJ45 10 M/100 M Base-TX Ethernet

Certification

• EMC - CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B)
• Safety - CE LVD (EN 62368-1) CB (IEC 62368-1)UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
• Environment - CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);
• Protection - IP67 (IEC 60529)

General

• Power - DC 12 V±25%, PoE (IEEE 802.3af) Power consumption: Max. 4.5 W
• Power Interface - Ø5.5 mm coaxial power plug
• Dimensions - Ø110.5 mm × 94.1 mm (Ø4.4" × 3.7") (Ø × H)
• Weight - 0.35 kg (0.77 lb.)
• Material - Metal
• Working Environment - -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
• Storage Environment - -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
• Surge Protection - 4 KV
• Web Client Language - 13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian
