SLE-MAX2-CFB-PS Napco StarLink FireMax 2 Dual SIM/Dual Path Commercial Fire/Burglar 5G LTE-M Cellular Alarm Communicator - Red Metal Enclosure - Powered by Transformer - Verizon plus AT&T Network

Search available promotions and discounts for this Item

SKU: SLE-MAX2-CFB-PS

Brand: NAPCO Security Group

Auto-Network-Select by Site – Upon power up, the signal-quality provided by each cell carrier is analyzed at the site, and the unit will lock-in the best carrier automatically, ie., AT&T or Verizon. Thereafter, it's periodically reviewed and dynamically swapped when needed.
Supports 12V-24V FACUs, No Panel Reprogramming with those that communicate using Contact ID and 4/2 (such as on legacy panels), as primary or backup.
UL Listed 864 and NFPA 72 Fire Code-Compliant. Supports FACUs 10V to 30.7V, and all panels & Central Stations using Contact ID & 4/2.

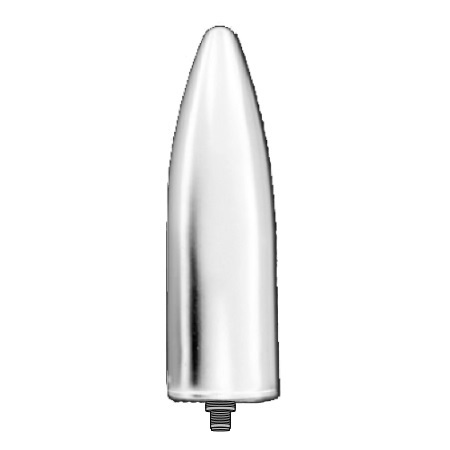

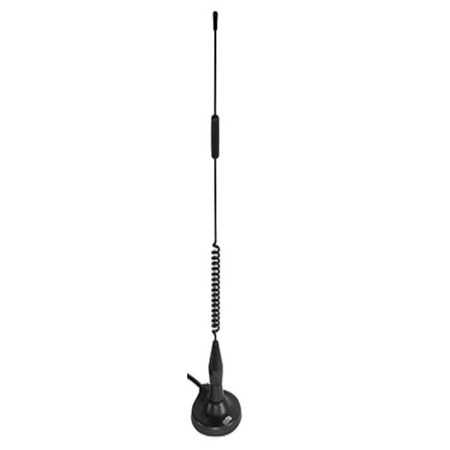

2 Dual Antennas included + Signal Boost™ for maximum signal acquisition & null avoidance.
Easy installation, uses its own power supply, Direct AC Power 120VAC - No reprogramming & No recalculations necessary on retrofit FACUs. Use with Plug in AC 16VAC, 20VA Xformer TRF12.
Labor-Saving Supervision Features Save Time & Money - Uniquely including 4 supervised, programmable EOLR zone inputs; 2 Form C Relay outputs (no extra supervision modules to buy or install); plus, 2 Telephone style jacks for easy FACU-connection. Self-supervised on 4 wires.
Pro Incentive Instant Rebate Program - Nothing to send in, or fill out. Dealers save on new and retrofit installations, replacing POTs, old radios, sunset networks (Service credit auto-applied on activation).
StarLink Fire is End-to-End UL 864 Listed to protect signal reliability, speed & performance for critical life and safety alarm reports for maximum life safety & liability protection. All Signals contained within the USA. UL-Listed from the UL 864 StarLink Fire Max 2 communicator, to Napco's NY UL 864 Network Operations Center , to any Central Station's UL Listed Receiver. It is also backed by Disaster Recovery NOC in PA for immediate, mirrored emergency switchover.
Metal Locking Enclosure + 2 antennas supplied, 11.5 x 9.5 x3.5 & 2 antennas 8.25"H.

More details...

Search available promotions and discounts for this Item

MPN: SLE-MAX2-CFB-PS

New to DWG? - Sign Up for immediate access to dealer pricing and benefits.

Already a DWG Customer? - Sign In to view pricing.

Product Details

Specifications

Electrical Ratings for 120VAC, 60Hz (Models with Power Supply)

Input Voltage - 20VAC nominal
Input Current - 200mA maximum
Maximum Charging Current - 200mA

Electrical Ratings Fire Input 1

Input Voltage - 9-25VDC
Max Input Current - Up to 2mA from FACU NAC circuit

Electrical Ratings for Inputs 2 to 5 (Class B)

Maximum Loop Voltage - 25VDC
Maximum Loop Current - 1.2mA (metal models); 1.7mA (plastic)
End of Line Resistor (EOLR) Value - 10K

Electrical Ratings for PGM3 Output

Open Collector Output - Max Voltage 3V when active; 25V max. when not
PGM Max Sink Current - 50mA (up to 15VDC), 25mA (15.1VDC -25VDC)

Physical & Environmental

Plastic Housing - 8 x 5½ x 1½ "(WHD) + antennas (2ea, supplied) 81/4" H
Metal Housing - 11½ x 9½ x 3½"(WHD) + antennas (2ea, supplied) 81/4" H
Housings - 2 Keyholes for wall mount
Operating Temp - 32 to 120°F , 93% Humidity Max

COMPLIANCES

NFPA 72 Eds: 2022, 2019, 2016, 2013, 2010; UL 2610, UL 985, UL1023, UL864 10th Ed., CSFM, NYC FD, LAFD Napco US Network Operations Center (NOC) UL 864 10th Ed.,UL 1610, UL 1635

SLE-MAX2-CFB-PS Specifications PDF
