166-250/P/BK Vertical Cable 166-250 Series 23 AWG 4 Unshielded Twisted Pair Solid Bare Copper CMP Plenum Cat6 Cable - 1000' Pull Box - Black

SKU: 166-250/P/BK
Brand: Vertical Cable

CAT6 UTP CMP (Slim Type) – 166 Series

CAT6 UTP CMP (Plenum-Rated), ETL-Listed, RoHS-Compliant, Made in the USA.

Features:

  • High-Performance 550MHz CAT6 Data Cable
  • Suitable for High-Speed Data Applications, Fast Ethernet, and 155Mbps TP-PMD/CDDI
  • Flame Retardant – Plenum
  • Easily Identified Color-Striped Pairs
  • Unshielded Twisted Pair (UTP) Cable
  • 23 AWG Solid Bare Copper Conductors
  • Meets or exceeds ANSI/TIA-568.2-D specifications
  • Supports PoE++ (Type 3) IEEE 802.3bt (51W)
  • Excellent Attenuation and Crosstalk Characteristics
  • Color-coded box labels
  • ETL Listed, RoHS Compliant
  • MADE IN USA
  • Available in 1000 ft. Pull Box
  • Available Colors: Black, Blue, Green, Gray, Orange, Pink, Purple, Red, White, Yellow
More details...
MPN: 166-250/P/BK
Ordering Notes: Service Professionals Only
MSRP Price: $520.00
Online Price: $520.00
Save to my Wish List

New to DWG? - Sign Up for immediate access to dealer pricing and benefits.

Already a DWG Customer? - Sign In to view pricing.




Product Details

Specifications

  • Part Number - 166-250/P/BK

Construction

  • Conductor Material - 23 AWG Solid Bare Copper
  • Conductor Insulation - Fluoropolymer
  • Insulation (all pairs) - FEP 0.0074 - 0.0098 in. (0.190 mm)
  • Stranding - Solid
  • Insulation Colors - P1: Blue/White-Blue, P2: Orange/White-Orange, P3: Green/White-Green, P4: Brown/White Brown
  • Number of Conductors - 8 (4 Pairs)
  • Jacket Material - PVC: Plenum-Rated, Low-Smoke, Fire-Retardent
  • Jacket Average Wall - 0.015 in. ± 0.002 (0.381 mm)
  • Conductor Average DIA - 0.041 in. (1.04 mm)
  • Cable Out DIA - 0.214 in. (5.435 mm) nom.

Electrical

  • Operating Voltage Rating - 300 V RMS
  • DC Resistance/Conductor - 8.3 Ohms/100 m nom. @ 20 ºC max.
  • Resistance Unbalance - 0.5%
  • Mututal Capacitance - 4.63 nF/100 m max.
  • Input Impedance - 100 Ω±15%
  • Nominal Impedance - 100 Ω±15% (100 MHz), ±20 Ω (100–250 MHz), ±25 Ω (251–500 MHz

Mechanical

  • Max. Rec. Pull Tension - 25 lb (111 N)
  • Min. Bend Radius - 0.9 in. min.
  • Approx. Climate Weight - 28 lb/1 mft nom

Compliance

  • Safety - ETL-Listed (tested per UL 444), RoHS2 (Directive 2011/65/EU)
  • Fire Safety - NEC CMP (tested per NFPA 262)
  • Performance - ANSI/TIA-568.2-D (ETL-verified)

Marking

  • 4010346 CAT6 CMP-LP (0.5A) FT6 23 AWG 4PR UTP 75C TESTED TO 550 MHz c(ETL)us VERIFIEDTO ANSI/TIA-568.2-D ISO-IEC 11801 MADE IN USA PO#/OP#/LOT#/CLX ROHS COMPLIANT XXXXFT XXXXFT

Colors Available

  • Black, Blue, Gray, Green, Orange, Pink, Purple, Red, White, Yellow

Compliance

  • Safety - ETL-Listed (tested per UL 444) RoHS2 (Directive 2011/65/EU)
  • Fire Safety - NEC CMP (tested per NFPA 262 FT6)
  • Performance - ANSI/TIA-568.2-D (ETL-verified)

Weight

  • 41 lbs. (18.60 kg)

Environmental

  • Storage Temperature - -20º C to +75º C
  • Installation Temperature - 0º C to +50º C
  • Operating Temperature - -20º C to +75º C
  • Operating Humidity - ≤93 % RH non-condensing
  • Delay Skew - 11.08ns/100m
  • NVP - 73.8%

Application Support

  • PoE - 15-W PoE Type 1 (IEEE 802.3af) 30-W PoE+ Type 2 (IEEE 802.3at) 60-W PoE++/4PPoE Type 3 (IEEE 802.3bt)
  • HDBase-T - Class A-Class D
  • Ethernet - 10GBASE-T (IEEE 802.3an), 2.5GBASE-T/5GBASE-T (IEEE 802.3bz), 1000BASE-T (IEEE 802.3ab) Gigabit Ethernet, 100BASE-TX (IEEE 802.3u) 100-Mbps Ethernet (Fast Ethernet)
  • ATM - ATM LAN 25/51/155/622, ANSI X3T9.5 TP-PMD (FDDI)

166-250/P/BK Specifications PDF

Check out some additional items that you may need to purchase with this product:
Check the check boxes next to the additional products that you would like to add to the shopping cart, then click on the "Add to Cart" button above. A check box is not shown if a product requires that you select an option or fill out a field. () indicates a required accessory.

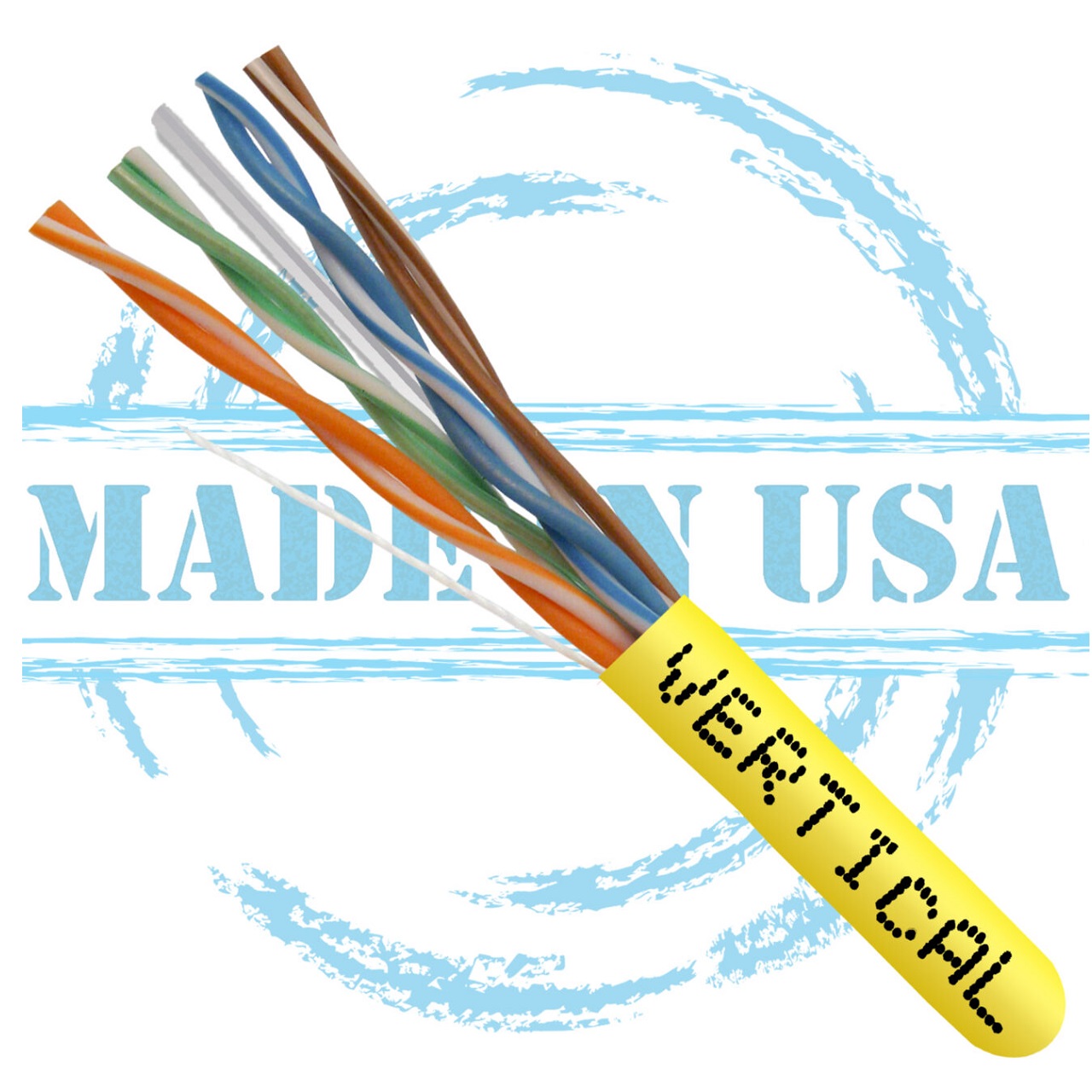

166-259/P/YL Vertical Cable 166-259 Series 23 AWG 4 Unshielded Twisted Pair Solid Bare Copper CMP Plenum Cat6 Cable - 1000' Pull Box - Yellow

166-259/P/YL Vertical Cable 166-259 Series 23 AWG 4 Unshielded Twisted Pair Solid Bare Copper CMP Plenum Cat6 Cable - 1000' Pull Box - Yellow

MSRP Price: $520.00
166-258/P/WH Vertical Cable 166-258 Series 23 AWG 4 Unshielded Twisted Pair Solid Bare Copper CMP Plenum Cat6 Cable - 1000' Pull Box - White

166-258/P/WH Vertical Cable 166-258 Series 23 AWG 4 Unshielded Twisted Pair Solid Bare Copper CMP Plenum Cat6 Cable - 1000' Pull Box - White

MSRP Price: $520.00

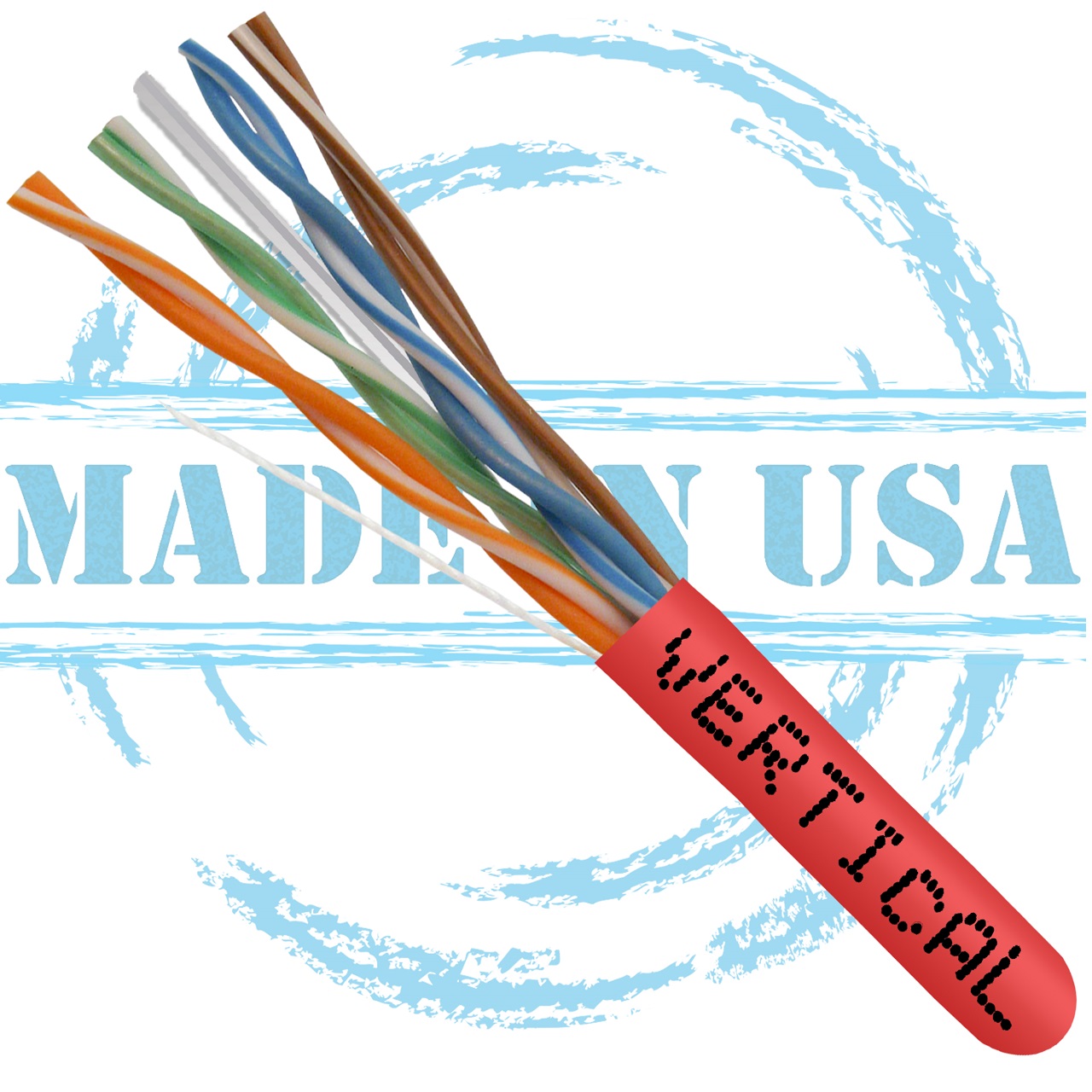

166-257/P/RD Vertical Cable 166-257 Series 23 AWG 4 Unshielded Twisted Pair Solid Bare Copper CMP Plenum Cat6 Cable - 1000' Pull Box - Red

166-257/P/RD Vertical Cable 166-257 Series 23 AWG 4 Unshielded Twisted Pair Solid Bare Copper CMP Plenum Cat6 Cable - 1000' Pull Box - Red

MSRP Price: $520.00

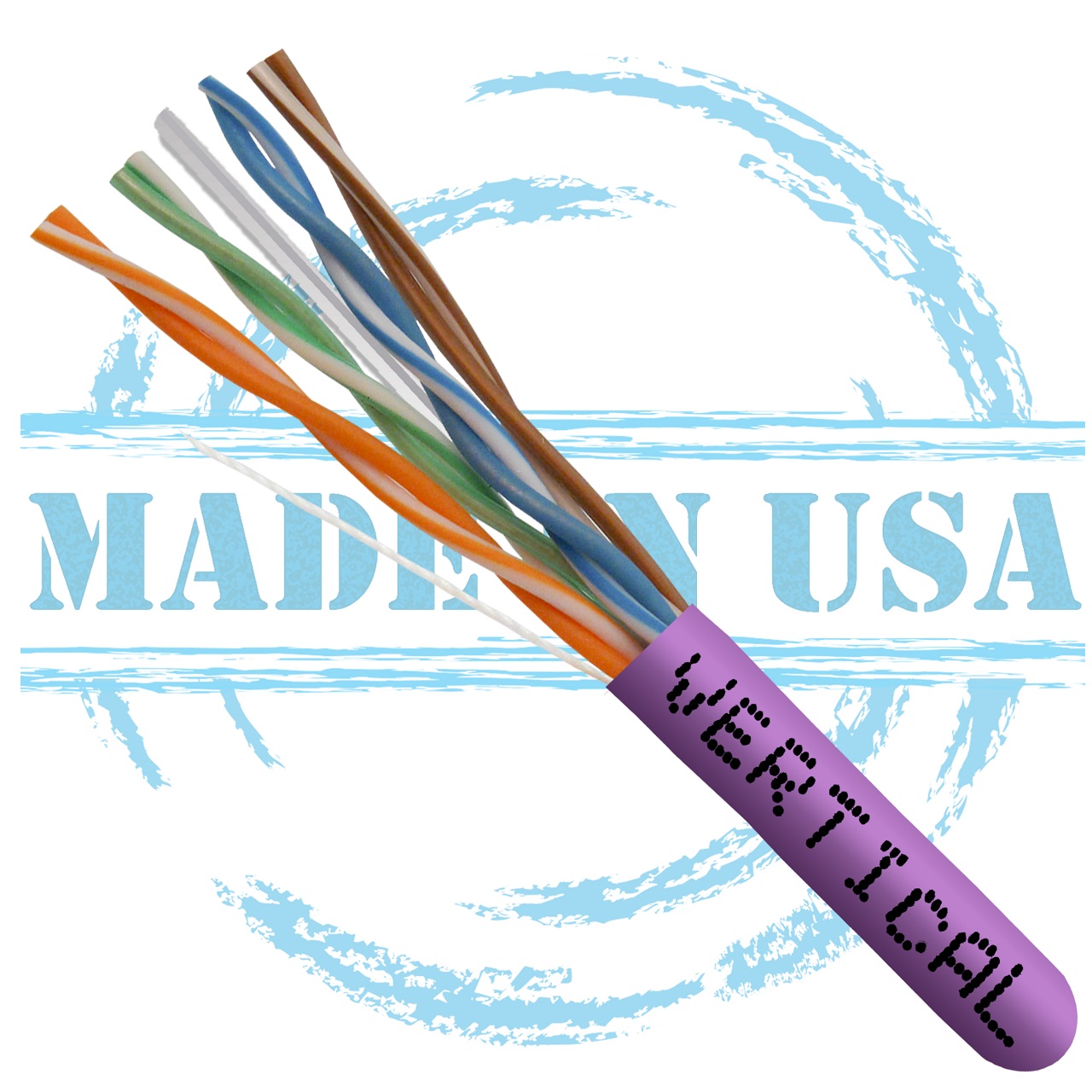

166-256/P/PR Vertical Cable 166-256 Series 23 AWG 4 Unshielded Twisted Pair Solid Bare Copper CMP Plenum Cat6 Cable - 1000' Pull Box - Purple

166-256/P/PR Vertical Cable 166-256 Series 23 AWG 4 Unshielded Twisted Pair Solid Bare Copper CMP Plenum Cat6 Cable - 1000' Pull Box - Purple

MSRP Price: $520.00

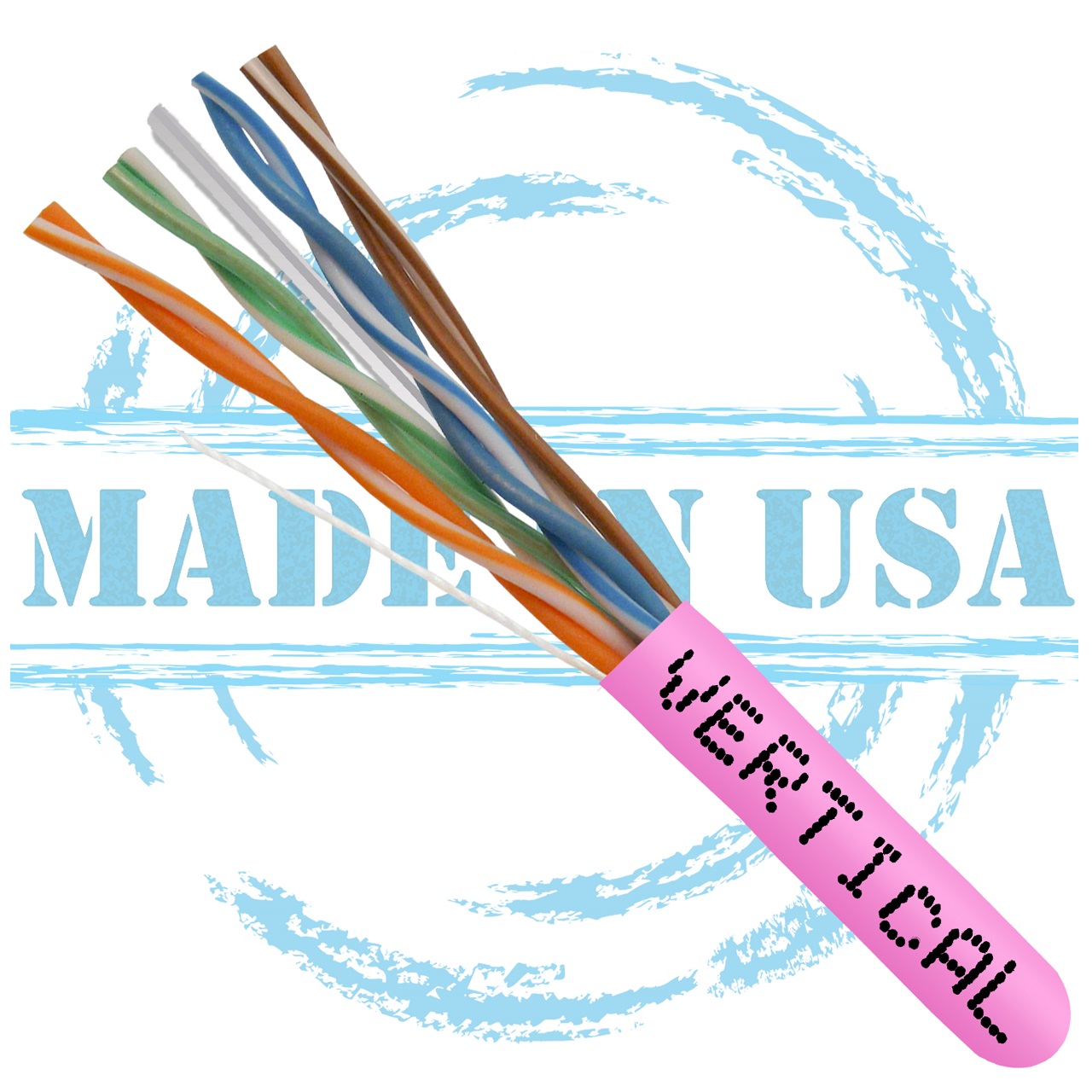

166-255/P/PK Vertical Cable 166-255 Series 23 AWG 4 Unshielded Twisted Pair Solid Bare Copper CMP Plenum Cat6 Cable - 1000' Pull Box - Pink

166-255/P/PK Vertical Cable 166-255 Series 23 AWG 4 Unshielded Twisted Pair Solid Bare Copper CMP Plenum Cat6 Cable - 1000' Pull Box - Pink

MSRP Price: $520.00

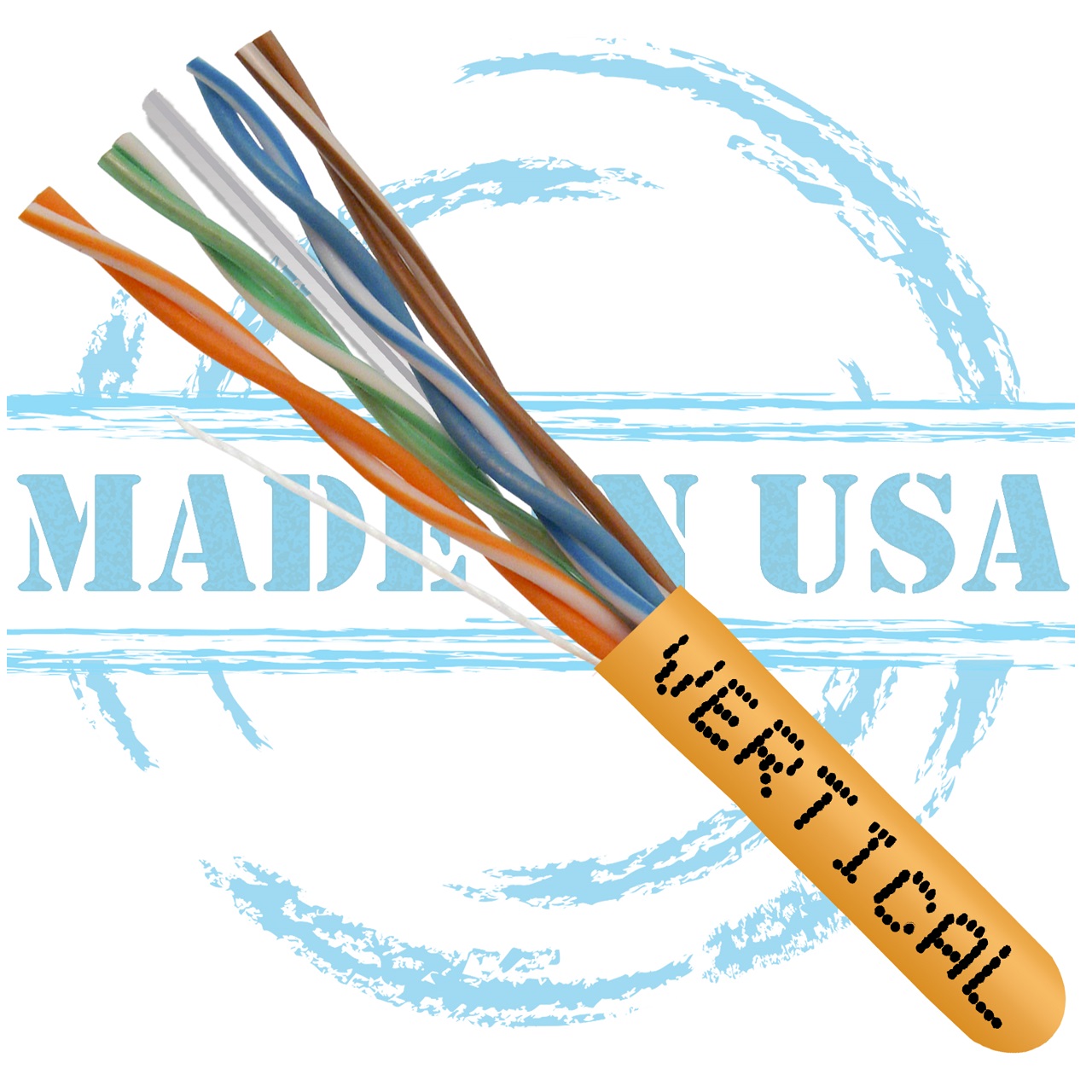

166-254/P/OR Vertical Cable 166-254 Series 23 AWG 4 Unshielded Twisted Pair Solid Bare Copper CMP Plenum Cat6 Cable - 1000' Pull Box - Orange

166-254/P/OR Vertical Cable 166-254 Series 23 AWG 4 Unshielded Twisted Pair Solid Bare Copper CMP Plenum Cat6 Cable - 1000' Pull Box - Orange

MSRP Price: $520.00

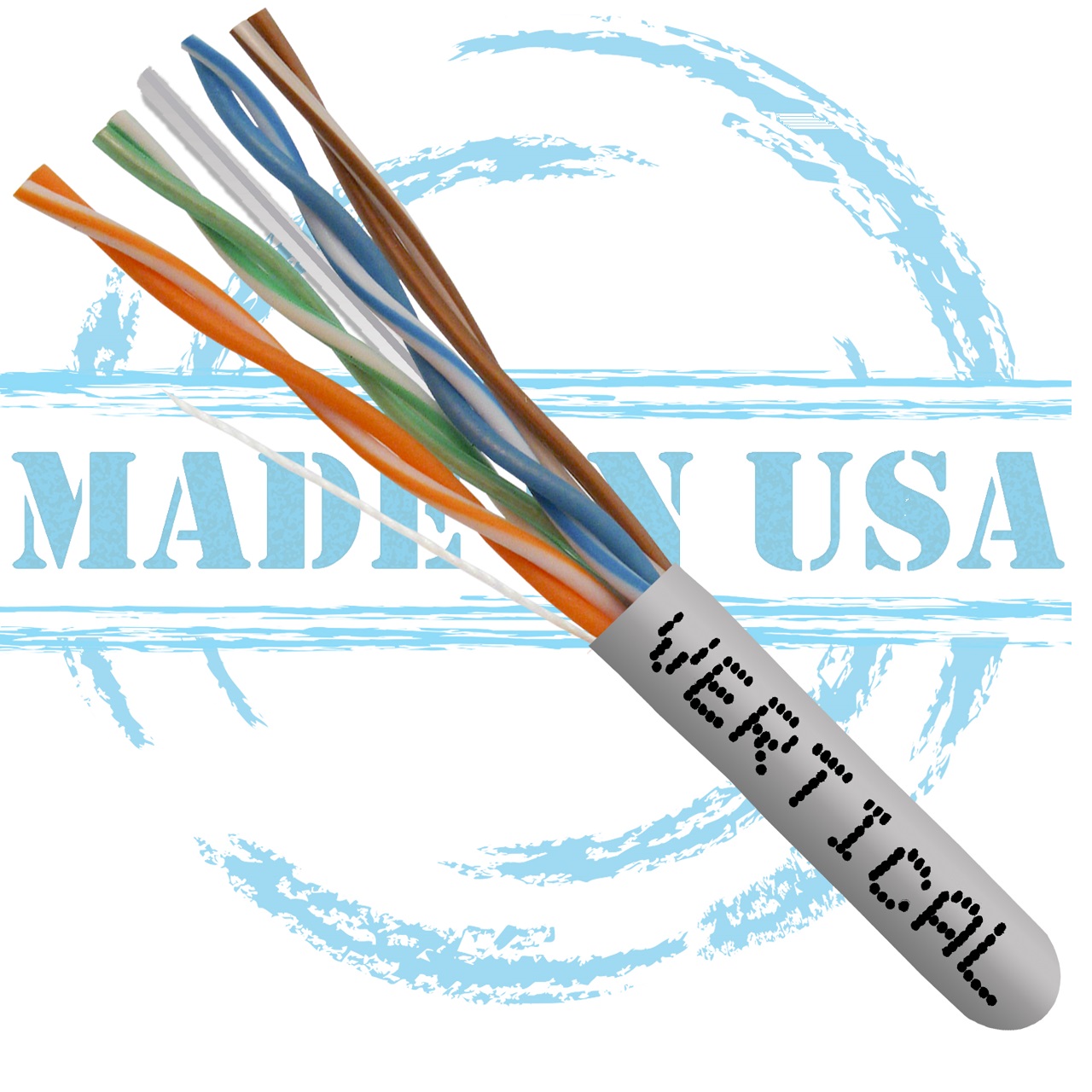

166-253/P/GY Vertical Cable 166-253 Series 23 AWG 4 Unshielded Twisted Pair Solid Bare Copper CMP Plenum Cat6 Cable - 1000' Pull Box - Gray
