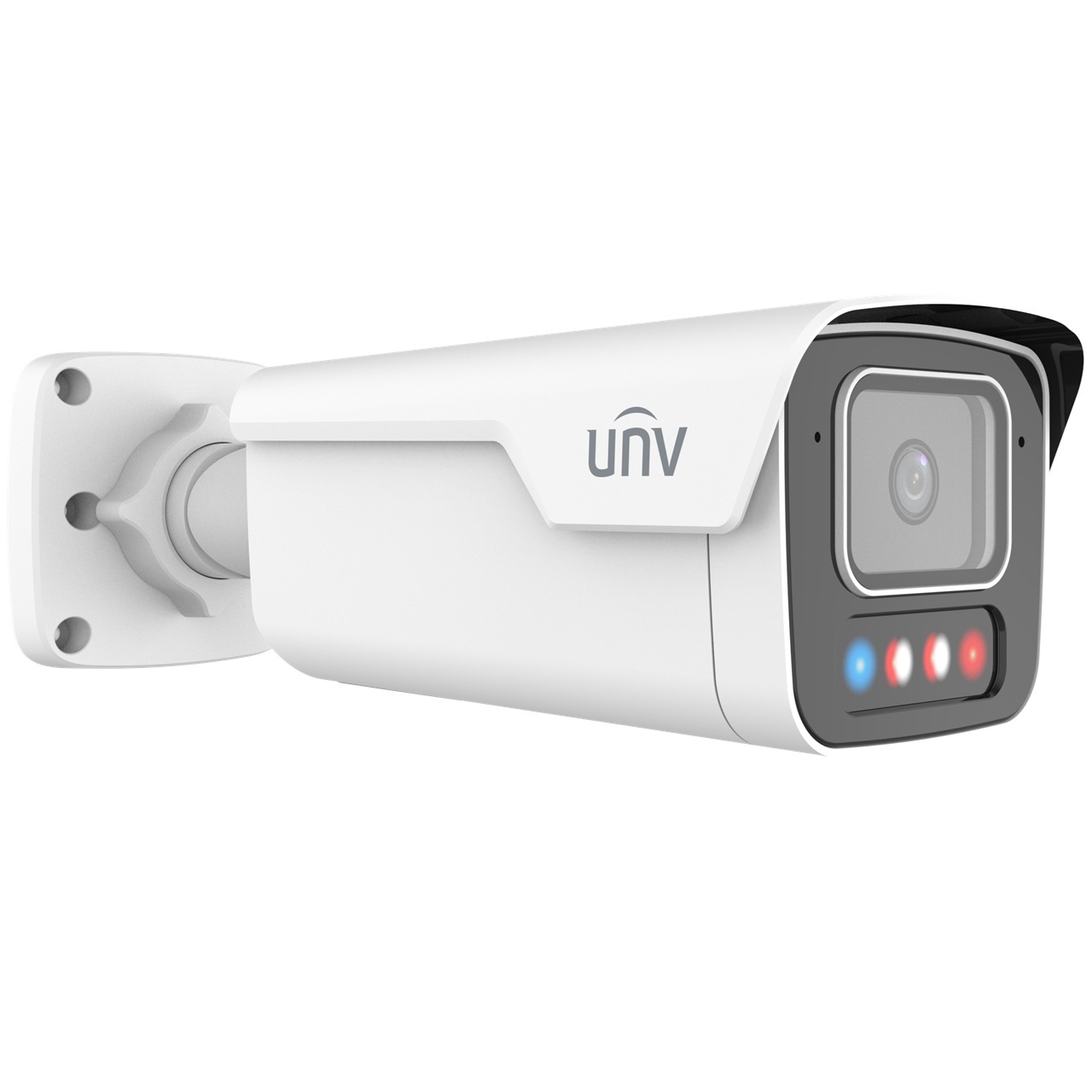

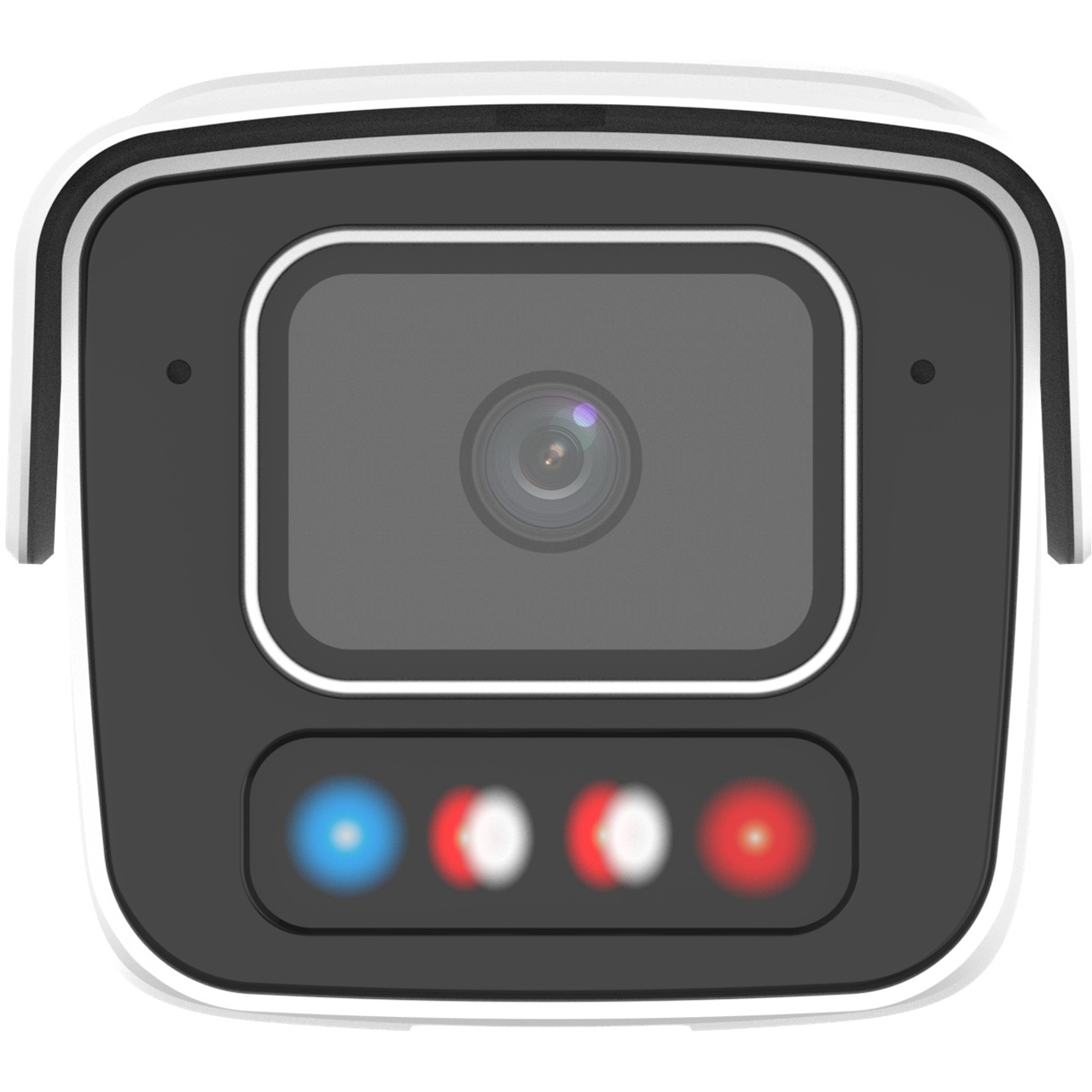

IPC2B18SE-ADF40KMC-WP-I1 Uniview Owlview Plus Series 4mm 30FPS @ 8MP ColorHunter Outdoor IR White Light Day/Night WDR Bullet IP Security Camera 12VDC/PoE

Specifications

Camera

• Max Resolution - 8 MP
• Sensor - 1/1.8" CMOS
• Min. Illumination - Color: 0.0005 Lux (F1.0, AGC ON)
• Day/Night - IR-cut filter with auto switch (ICR)
• Shutter - Auto/Manual, 1 ~ 1/100000s
• Adjustment Angle - Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°
• S/N - >56 dB
• WDR - 130dB

Lens

• Focal Length - 4.0 mm
• Iris Type - Fixed
• Iris - F1.0
• Field of View (H) - 94.8°
• Field of View (V) - 52.1°
• Field of View (D) - 112.2°
• Lens Type - Fixed

Dori

• DORI Distance (Lens) - 4 mm
• DORI Distance (Detect) - 90.0 m (295.3 ft.)
• DORI Distance (Observe) - 36.0 m (118.1 ft.)
• DORI Distance (Recognize) - 18.0 m (59.1 ft.)
• DORI Distance (Identify) - 9.0 m (29.5 ft.)

Illuminator

• Supplemental Light - Dual light
• Illumination Distance (IR) - 40 m (131.2 ft.)
• Illumination Distance (Warm Light) - 40 m (131.2 ft.)
• IR On/Off Control - Auto/Manual
• Wavelength - 850 nm
• Light On/Off Control - Auto/Manual

Video

• Video Compression - Ultra 265, H.265, H.264, MJPEG
• H.264 Code Profile - Baseline profile, Main profile, High profile
• Frame Rate
  • Main Stream: - 30fps @ 8 MP (3840 × 2160), 30 fps @ 5 MP (3072 × 1728), 30 fps @ 4 MP (2560 × 1440), 30 fps @ 1080P (1920 × 1080), 30 fps @ 720P (1280 × 720)
  • Sub Stream: - 30fps @ 1080P (1920x1080), 30fps @ 720P (1280x720), 30fps @ D1 (720 x 576), 30fps @ 640x360, 30fps @ 2CIF(704x288), 30fps @ CIF(352x288),
  • Third Stream: - 30fps @ D1 (720x576), 30fps @ 640x360, 30fps @ 2CIF(704x288), 30fps @ CIF(352x288)
• Video Bit Rate - 128 Kbps to 16 Mbps
• U-code - Support
• OSD - Up to 8 OSDs
• Privacy Mask - Up to 4 areas
• ROI - Support
• Video Stream - Triple Streams


• White Balance - Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
• Digital Noise Reduction - 2D/3D DNR
• Smart IR - Support
• Auto Scene Match (ASM) - Support
• Flip - Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
• Dewarping - N/A
• HLC - Support
• BLC - Support
• Defog - Digital Defog

Intelligent

• Smart Intrusion Prevention - Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
• Statistical Analysis - N/A
• People Counting - Support People Flow Counting and Crowd Density Monitoring
• Attribute Collection - SIP with color retrieval

Events

• Basic Detection - Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection, Object Removed, Object Left Behind
• General Function - Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output

Audio

• Audio Compression - G.711U, G.711A
• Audio Bitrate - 64 Kbps
• Two-way Audio - Support
• Suppression - Support
• Sampling Rate - 8 kHz

Storage

• Edge Storage - Micro SD, up to 512 GB
• Network Storage - ANR, NAS (NFS)

Network

• Protocols - IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH
• Compatible Integration - ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
• User/Host - Up to 32 users. 3 user levels: administrator, common user and operator
• Client - EZStation, APP
• Web Browser - Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

• Audio I/O - 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
• Alarm I/O - 1/1
• Serial Port - N/A
• Built-in Mic - Built-in dual-mic
• Built-in Speaker - Support
• WIFI - N/A
• Network - 1 × RJ45 10 M/100 M Base-TX Ethernet

Certification

• EMC - CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4) FCC (FCC 47 CFR part15 B
• Safety - CE-LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
• Environment - CE-RoHS (2011/65/EU ; (EU) 2015/863) ; WEEE (2012/19/EU)
• Protection - IP67 (IEC 60529), IK10 (IEC 62262), NEMA 4X

General

• Power - DC 12 V±25%, PoE (IEEE 802.3af)
• Power Consumption - Max 6.5W
• Power Interface - Ø5.5 mm coaxial power plug
• Dimensions - 265.2 mm × 95.2 mm × 82.9 mm (10.4" × 3.7" × 3.3" ) (L × W × H)
• Weight - 1.17 kg (2.58 lb.)
• Material - Metal + Plastic
• Working Environment - -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
• Storage Environment - -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
• Surge Protection - 4 KV
• Reset Button - Support
• Web Client Language - 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
