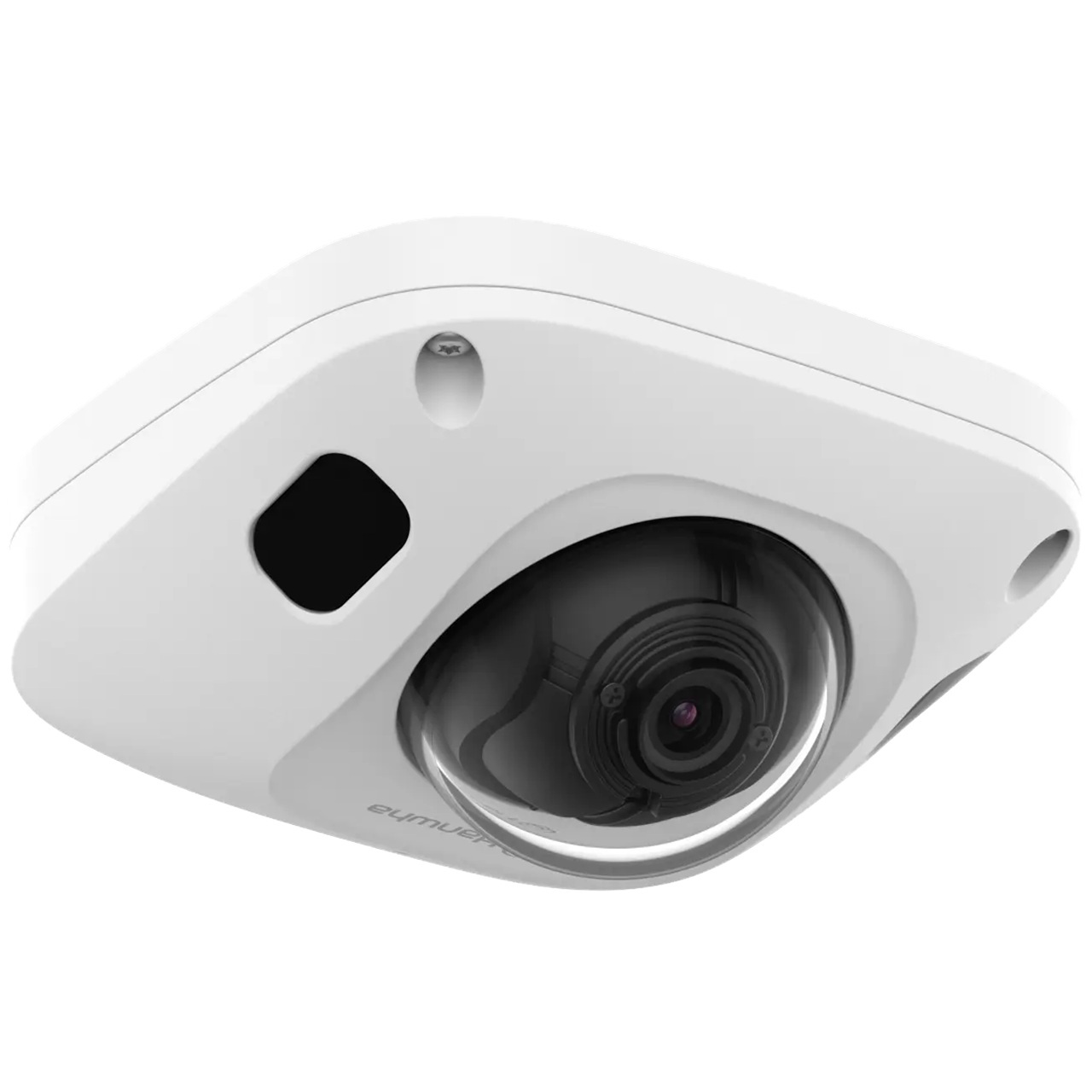

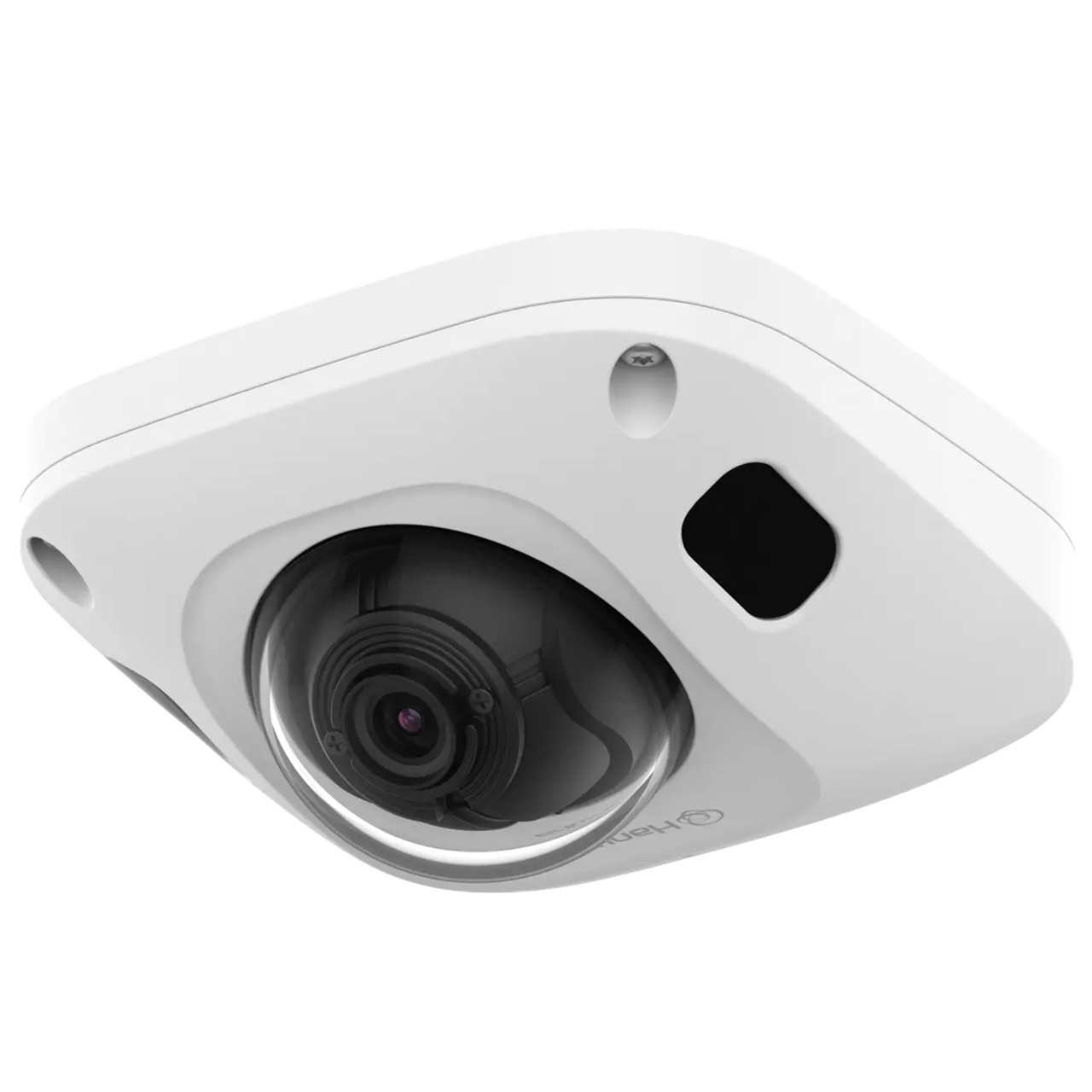

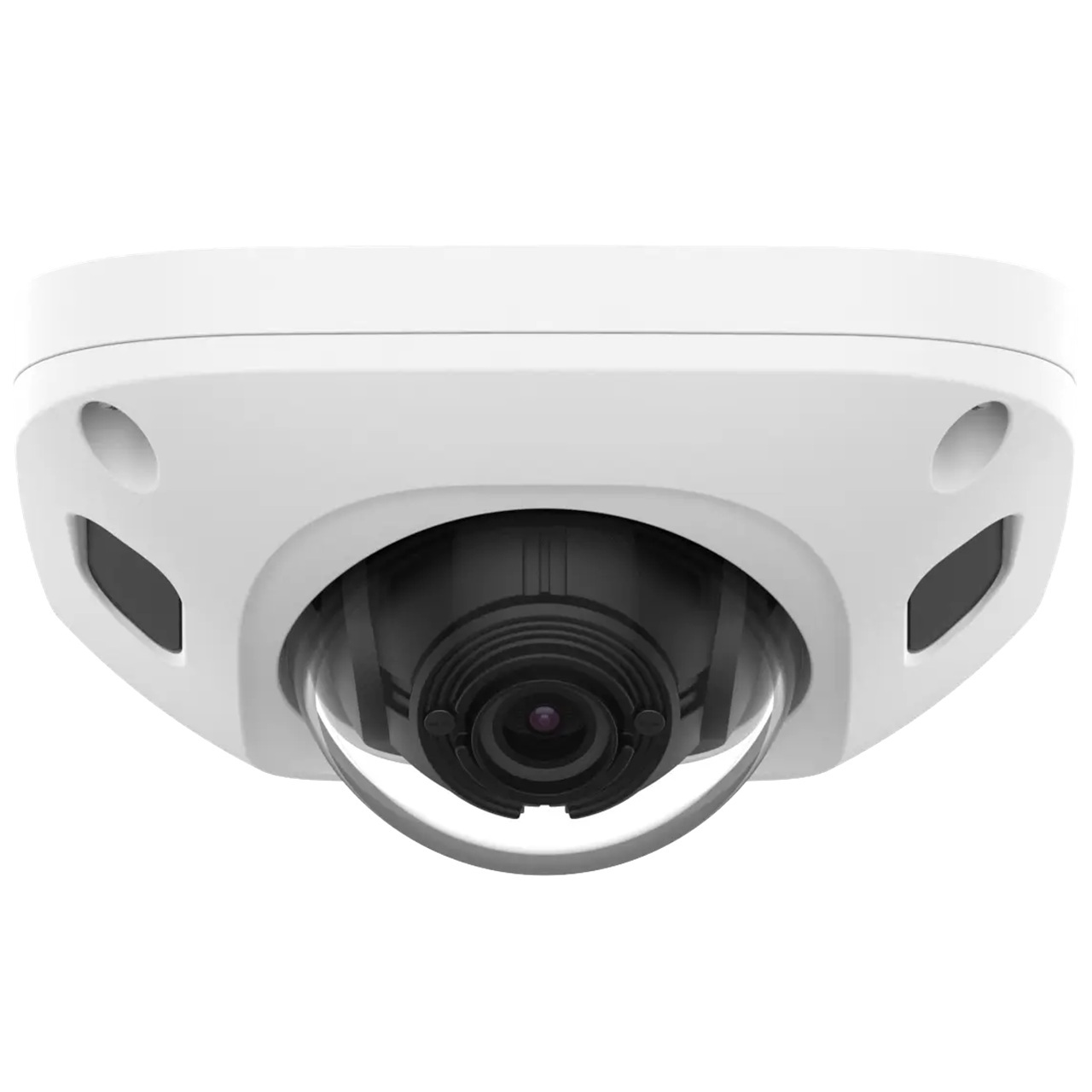

TNV-C8034RM Hanwha Vision T Series 6mm 30FPS @ 5MP Indoor/Outdoor IR Day/Night WDR Mobile Flat IP Security Camera PoE

Introduction

Small form. BIG picture.

Hanwha Vision's T Series AI Mobile IR Flat Cameras deliver crystal-clear 5MP images, clear audio and intelligent analytics for mobile operations, ensuring safety and security for buses, trains and other on-the-go applications.

Specifications

Video

• Imaging Device - 1/2.8" CMOS
• Resolution - 2592x1944, 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600,800x448, 720x576, 720x480,640x480, 640x360, 320x240
• Max. Framerate - H.265/H.264: Max.30fps/25fps(60Hz/50Hz) MJPEG: 30fps(@5MP Max. 5fps)
• Min. Illumination - Color(1/30sec, 30IRE) 0.03, BW(1/30sec, 30IRE) 0.003
• Video Out - USB: Micro USB Type B

Lens

• Focal Length (mm) - 6.0
• Max Aperture Ratio (F number) Wide - 1.65
• Angular Field of View - H: 50°, V: 37°, D: 64°
• Min. Object Distance - 2.0m(6.56ft)
• Focus Control - Fixed
• Lens Type - Fixed iris
• Mount Type - M12

Pan/Tilt/Rotate

• Pan/Tilt/Rotate - ±5°/0°~67°/±90°

Operational

• Camera Title - Displayed up to 85 characters
• Day & Night - Auto(ICR)
• Backlight Compensation - BLC, WDR, SSDR
• Wide Dynamic Range - (120dB)
• Digital Noise Reduction - WiseNRâ…¡(Based on AI engine), SSNRV
• Motion Detection - 8ea, 8point polygonal zones
• Privacy Masking - 32ea, 4point Quadrangle zones, Gray, Green, Red, Blue, Black, White, Color/Option
• Gain Control - Low / Middle / High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• LDC - Support
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker Prefer shutter control(Based on AI engine) 1/5~1/25,000sec
• Video Rotation - Flip, Mirror, Hallway view(90Ëš/270Ëš)
• Alarm Triggers - Analytics, Network disconnect, MQTT subscription
• Alarm Events When Alarm Trigger Occurred - File upload(image): e-mail/FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers,Alarm output, Handover: PTZ preset,send message by HTTP/HTTPS/TCP,Audio clip playback, MQTT: publication
• Audio In - Selectable(mic in/line in), Built-in mic
• Audio Out - Line out
• Light Type - IR LED
• Light Viewable Length IR - 30m(98.42ft)
• IR Wavelength - 850nm

Analytics

• Analytics - Classified object type : Person/Vehicle
• Attributes - Person /Vehicle : Upper/Lower clothes color Vehicle(Type:car/bus/truck/motorcycle/bicycle), Color
• Thumbnail - BestShot
• Analytics events based on AI engine - Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection, Defocus detection, Tampering, Shock detection, Virtual area(Appear/Disappear)
• Business Intelligence Based on AI Engine - People counting, Queue management, Heatmap, Vehicle counting

Network

• Ethernet - M12
• Video Compression Format - H.265/H.264: Main/High, MJPEG
• Audio Compression - G.711 u-law /G.726 selectable,G.726(ADPCM) 8kHz,G.711 8kHz, G.726: 16kbps,24kbps,32kbps,40kbps, AAC-LC: 48kbps at 16kHz
• Smart Codec - Manual, WiseStreamâ…¢
• Bitrate Control Method - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(20 users) / Multicast Multiple streaming(Up to 5 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP (TCP, UDP UNICAST), MQTT
• Application Programming Interface - ONVIF Profile S/G/T/m SUNAPI(HTTP API) Hanwha Vision open platform
• Direct Cloud Connection - Support

Security

• OS / Firmware Protect - Encrypted Firmware, Secure boot, Signed firmware
• User authentication - Digest Authenticaton, Prevent brute-force attack
• Network authentication - IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
• Secure Communication - HTTPS, WSS(WebSocket Secure), SRTP
• Access Control - IP-based access control
• Data Protect - Encryption Credentials, Encrypt compress for live recording file export
• Audit - Access / System / Event Log management
• Device ID - Device certificate(Hanwha Vision Root CA)
• Secure Storage - SDcard partition encrypt(AES-256)

General

• Edge Storage - Micro SD/SDHC/SDXC Max. 256GB x 1slot
• Memory - 2GB RAM, 1GB Flash

Environmental & Electrical

• Operating Temperature / Humidity/ Others - -40°C~+55°C(-40°F~+131°F)/ 0~100% RH(non-condensing)/ Start up should be done at above -30°C, Humidity control with AIR vent
• Storage Temperature / Humidity - -40°C~+55°C(-40°F~+131°F) / 0~95% RH(non-condensing)
• Input Voltage - PoE(IEEE802.3af, Class3)
• Power Consumption - PoE: Max 7.2W typical 4.2W

Mechanical

• Color / Material - White / Aluminum , Hard-coated dome
• RAL Code - RAL9003
• Product Dimensions - 106x105x55mm(4.17x.4.13x2.17")
• Weight - 466g(1.03 Ib)

Certifications & Standards

• EMC - EN 50121-4, FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, EN 50121-3-2
• Safety - UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC 62471
• Environment - IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10,EN 50155, IEC 62236-4, EN 50121-4, JIS E 4031, EN 50498, IEC/EN 61373, EN 45545, JIS E 5006, IEC 62236-3-2

DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF) - 111.2m(364.74ft)
• Observe (63PPM/ 19PPF) - 44.5m(145.89ft)
• Recognize (125PPM/ 38PPF) - 22.2m(72.95ft)
• Identify (250PPM/ 76PPF) - 11.1m(36.47ft)
