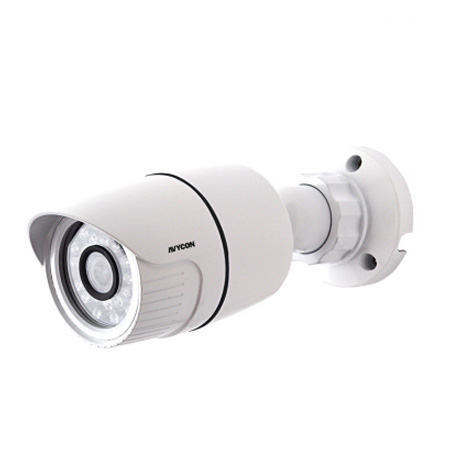

AVC-BHN41FT AVYCON 3.6mm 30FPS @ 2560 x 1440 Outdoor IR Day/Night Bullet IP Security Camera 12VDC/PoE

AVC-BHN41FT IP Camera Specifications

• IMAGE SENSOR - 1/3 "CMOS
• EFFECTIVE PIXELS - 2688x1520
• ELECTRONIC SHUTTER - l/25S~l/l00000S
• MIN. ILLUMINATION - COLOR: OD5Lux@F1.2, AGC ON, B/W: OLux WITH IR
• LENS - 3.6mm FIXED LENS
• LENS ANGLE - HORIZONTAL: 72°
• LENS MOUNT - M12 MOUNT
• WDR - DWDR
• BLC - YES
• DNR - 2D/3DDNR
• VIDEO COMPRESSION - H.263 MP, H.2B4 Bl/MP/HP, MJPEG
• AUDIO COMPRESSION - G.711A/ G.711U
• BIT-RATE - 64Kbps 10Mbps
• ENCODE MODE - VBR/CBRIMAGE QUALITY - FIVE LEVELS UNDER VBR,* FREELY ADJUSTABLE UNDER CBR
• RESOLUTION - 4MP (2560X1440), 3MP (2304x1296), l080P(1920x1080}, 720P (1280x720), Dl, CIF 480x240
• MULTI-STREAM - 4MP (1~30fps)/ 3MP(l~30fps}/1320*1080 (l~30fps) / 720P (l~30fps) 720P (l~30fps) / D1 {1~30fps} /OF (l~30fps) D1 (l~30fps) /480X240(l~30fps) / CIF (l~30fps)
• IMAGE SETTING - ROI SATURATION, BRIGHTNESS, HUE,CONTRAST, WDR,SHARPNESS, DNR, ETC
• NETWORK - RJ45
• VIDEO OUTPUT - CVBS(BNCx1)
• AUDIO - ONE-WAY AUDIO (MIC IN x l)
• CARDSTRORAGE - NO
• RS485 - NO
• ALARM INPUT - NO
• ALARM OUTPUT - NO
• REMOTE MONITORING - IE BROWSER, CVMS, MOBILE CVMS
• SUPPORTED BROWSERS - IE/CHROME / FIREFOX/SAFARI
• ONLINE CONNECTION - 10 ONLINE USERS
• PROTOCOL - TCP/IP, UDP, DHCP, NTP, RTSP, PPPOE, DDNS, SMTP, FTP
• CONNECTION PROTOCOL - ONV1F
• STORAGE - NETWORK REMOTE STORAGE
• SMART ALARM - MOTION ALARM
• INTELLIGENT ANALYSIS - PEA/OSC/AVD
• DAY&NIGHT - ICR
• IR DISTANCE - 100ft*
• IR LED-COUNT - 2 (ARRAY LED 28mil)
• WATER-PROOF - IP66
• ANGLE ADJUSTMENT - HORIZONTAL: 0~360°, VERTICAL 0^90°, ROTATION: 0^360°
• POWER SUPPLY - DC12V/PoE
• POWER CONSUMPTION (lROFF) - <2.5W
• POWER CONSU MPTION (l R ON) - <5.5W
• WORKING ENVIRONMENT - -22T~122'F,10%~90% HUMIDITY
• DIMENSION - φ87mm x 108mm
• WEIGHT - 330g

AVC-BHN41FT IP Camera Specifications PDF
