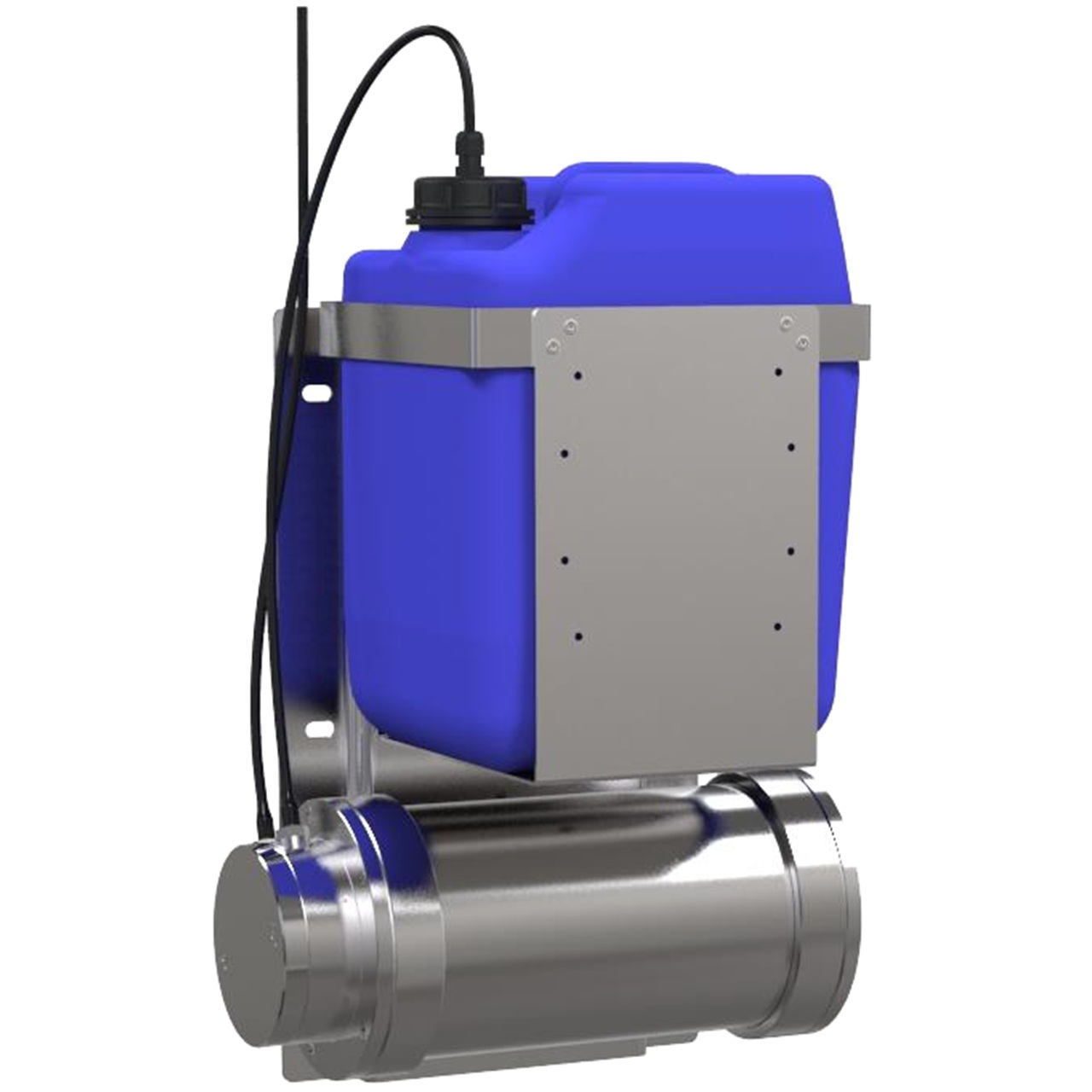

HT-E-XWP10UL Hanwha Vision Stainless Steel Washer Tank for Cameras with Wiper Model

Specifications

• Capacity - 10 liters (2.64 gallons)
• Head Height - Up to 40 feet* (Measured using pure water at ambient 70°F Units supplied with 33 feet of hose)
• Electrical - 12°
• Voltage - 24 VAC, 50/60Hz
• Power Consumption - Maximum 14 watts
• Construction - 316L stainless steel
• Mounting - 316L stainless steel back plate
• Cable Entry - 3 X ¾” NPT (2 certified stopping plugs fitted as standard)
• Certifications - cULus Class I, Division 1, Groups B, C, D, T4+ -50°C to +70°C (-58°F to +158°F) Class II, Division 1, Groups E, F, G IP67 Class 1 Zone 1 A Ex d IIB + Hydrogen T4 (T5 On Request) On Request: T5 -50°C to +70°C (-58°F to +158°F), T6 -50°C to +50°C (-58°F to +122°F) UL Listing: E477542
• Operating Temperature - -4°F to +140°F (-40°C to 60°C) (dependant on wash fluid freezing point)
• Weight - 43Lbs (19.5Kg) empty
• Ingress Protection Rating - IP66/67 (excluding washer bottle and hose)

H_HT-E-XWP10UL Specifications PDF
