SBP-302CMA Hanwha Techwin Mounting Plate for the Telescopic Pendant Mount SBP-302CM

Specifications

• Materials - Steel
• Dimensions (WxHxD) - 5.98" x 3.15" x 1.34" (152.0 x 80.0 x 34.0mm)
• Pipe Thread - 1.5" NPT female (bottom)
• Weight - 0.9 lb (0.4kg)
• Max Load - 80lb (36.2kg)
• Pivot Angle - N/A
• Color - Ivory
• Applicable Mount - All Hanwha Hanging Mount (1.5" NPT)

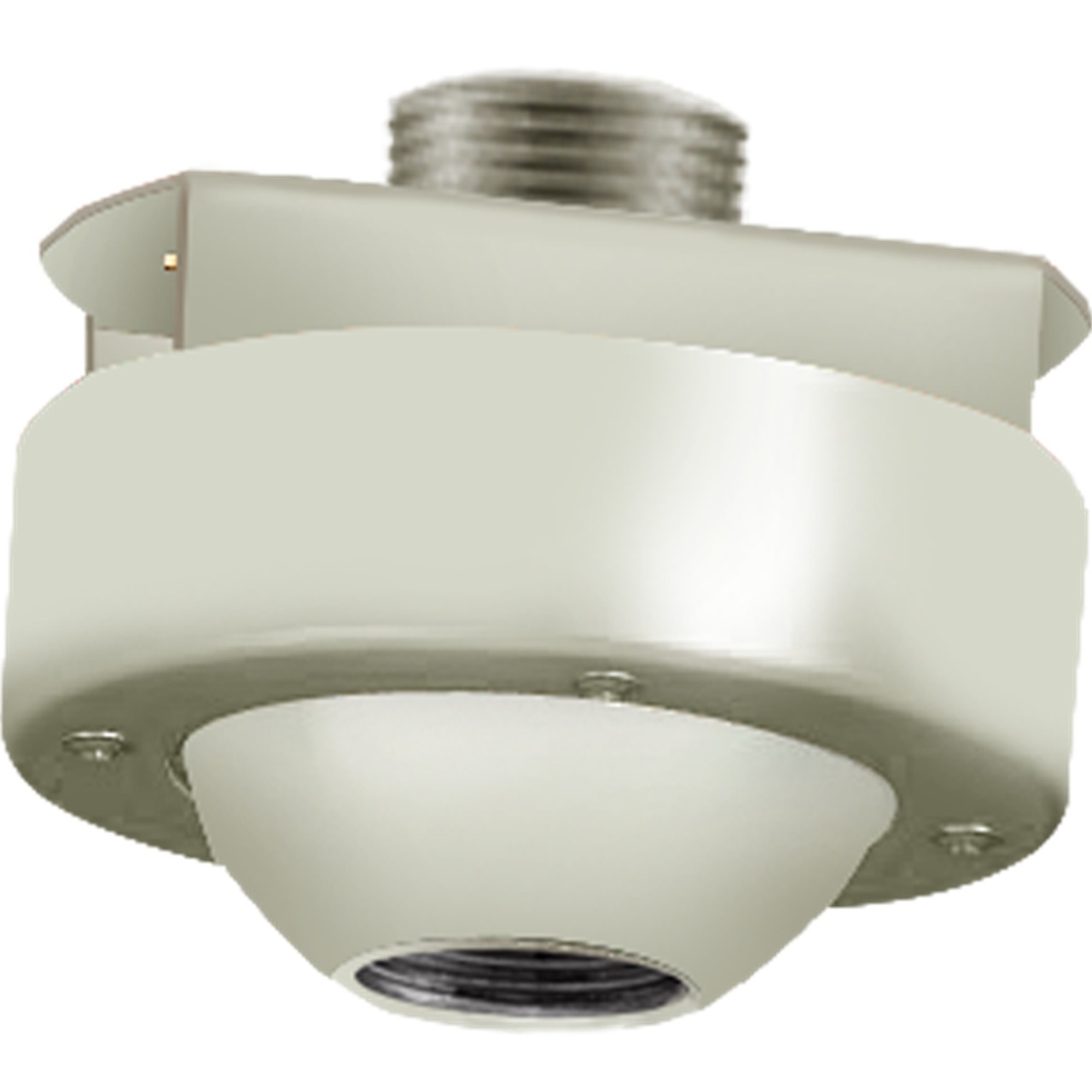

• Optional Accessories - SBP-302CM telescopic pendant mount, SBP-302CMS swivel mount adapter, SBP-302CM-12 extension pipe, 12", SBP-302CM-36 extension pipe, 36"
• Cable Routing - Cable hole

SBP-302CMA Specifications PDF
