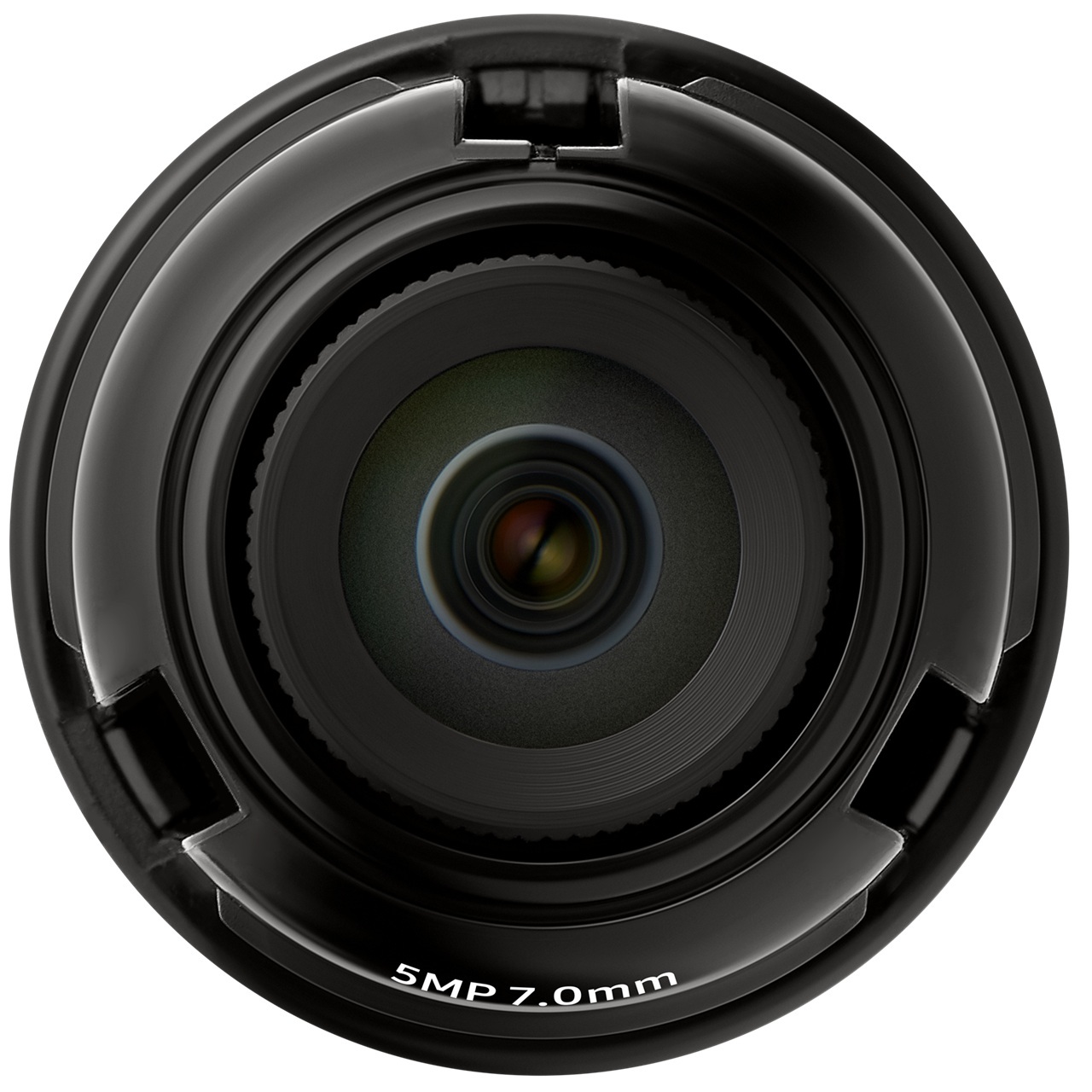

SLA-5M7000Q Hanwha Techwin PNM-9000VQ Lens module

Specifications

Video

• Imaging Device - 1 / 1.8" 5M CMOS
• Total Pixels - 3096 (H) x 2094 (V)
• Effective Pixels - 2616 (H) x 1976 (V)
• Scanning System - Progressive scan
• Min. Illumination
  • Color : 0.16 Lux (F1.6, 1 / 30sec, 30IRE)
  • B/W : 0.16 Lux (F1.6, 1 / 30sec, 30IRE)
• S / N Ratio - 50dB
• Wide Dynamic Range - 120dB
• Day & Night - Electrical

Lens

• Focal Length (Zoom Ratio) - 7mm
• Max. Aperture Ratio - F1.6
• Angular Field of View - H : 50.7˚, V : 37.8˚, D : 63.8˚
• Lens Type - Fixed focal
• Mount Type - M12 Lens module with main unit

Pan / Tilt / Rotate

• Pan / Tilt / Rotate Range - -90˚~+90˚ / 40˚~89˚ / -180˚~+180˚

Mechanical

• Color / Material - Black / Plastic
• Dimension (W x H x D) - Ø 35.5 x 35.9 mm (Ø 1.39" x 1.41")
• Weight - 35g (0.08 lb)

SLA-5M7000Q Specifications PDF
