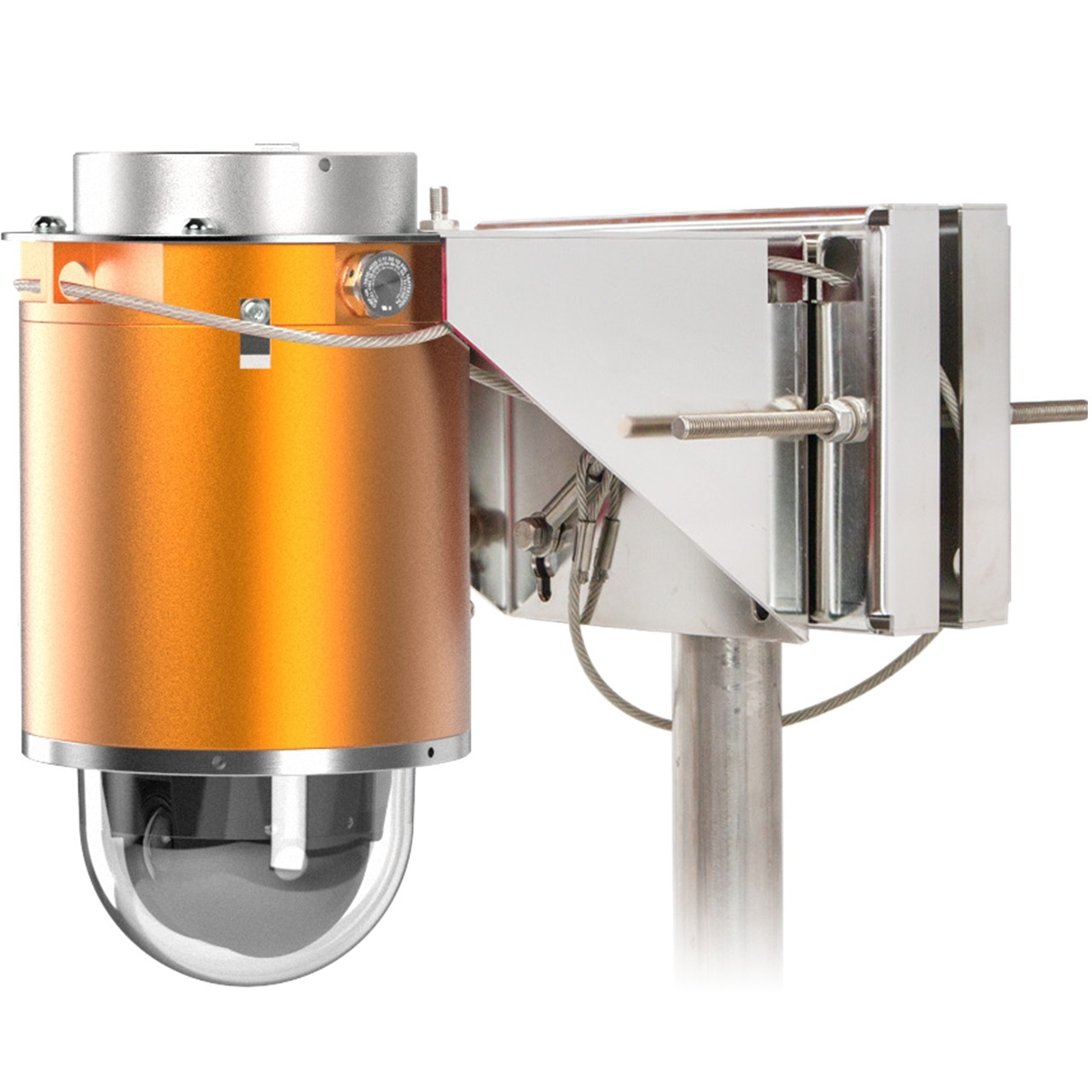

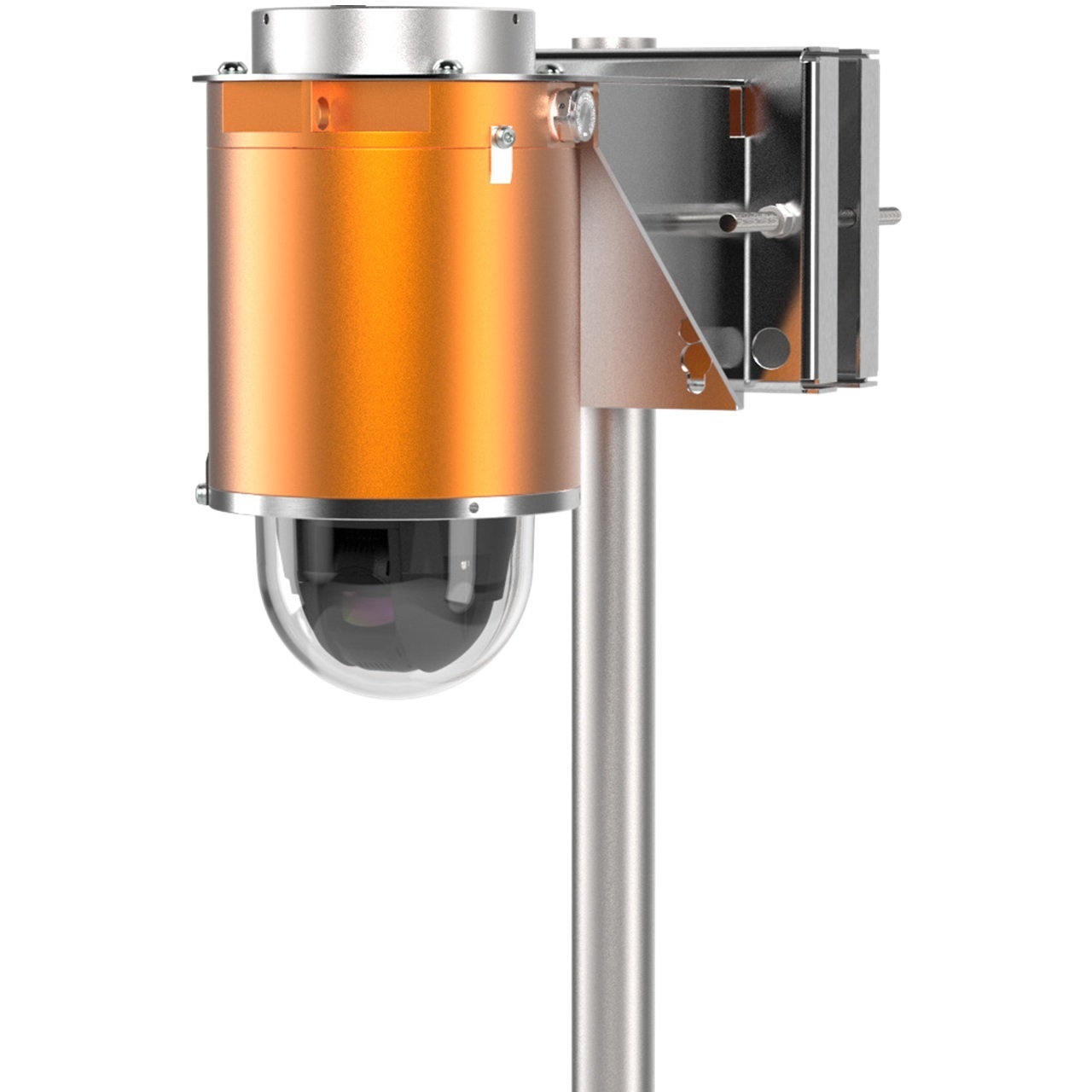

TNP-X6322EPT3-Z Hanwha Vision 4.44-142.6mm 60FPS @ 2MP Outdoor Day/Night WDR PTZ IP Security Camera PoE

Specifications

Video

• Imaging Device - 1/2.8” 2.4MP CMOS
• Total / Effective Pixels - 1,981(H) x 1,288(V) 2.55MP / 1,944(H) x 1,212(V), 2.35MP
• Scanning System - Progressive Scan
• Minimum Illumination - Color: 0.05Lux (F1.6) , B/W: 0.005Lux ( F1.6)
• S/N Ratio - 50dB

Lens

• Focal Length (Zoom Ratio) - 4.44 ~ 142.6mm (Optical 32x)
• Max. Aperature Ratio - Varifocal f1.5 / i-CS lens, CS lens mount
• Focal Length / Angular FoV - 3.9 - 10mm

Operational

• Camera Title - Off On (Displayed up to 85 characters) - English / Numeric / International characters / Special characters - Common: Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution
• Day & Night - Auto (ICR) / Color / B/W / External / Schedule
• Backlight Compensation - Off / BLC / HLC (Masking / Dimming), WDR
• Wide Dynamic Range(WDR) - 120dB
• Contrast Enhancement - SSDR (Off / On)
• Digital Noise Reduction - SSNRV (2D + 3D noise filter) (Off / On)
• Digital Image Stabilization - Off / On (Built-in Gyro sensor)
• Defog - Off / Auto (Input from fog detection) / Manual
• Motion Detection - Off / On (8ea, 8point polygonal zones), Handover
• Privacy Masking - Off / On (6ea, Polygonal) - Color: Grey / Black / White
• Gain Control - Off / Low / Middle / High / Manual
• White Balance - ATW / AWC / Manual / Indoor / Outdoor (Included mercury & sodium)
• Electronic Shutter Speed - Level adjustment
• Digital Zoom - Off / On (5 levels with minimum / maximum)
• Flip / Mirror - Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
• Intelligent Video Analytics - 24x, AI Digital PTZ (Preset, Group)
• Alarm Triggers - Off / On, Hallway view: 90° / 270°
• Alarm Events - - Analytics events based on AI engine: Object detection, Face mask detection, Directional detection, Digital auto tracking, Enter / Exit, Loitering, Virtual line. Includes metadata & Best Shot. - Analytics events: Defocus detection, Motion detection, Appear / Disappear, Tampering, Audio detection, Sound classification, Shock detection
• Pixel Counter - Support

Network

• Ethernet - Shielded RJ-45 (10/100/1000 BASE-T)
• Video Compression Format - H.265 / H.264 (MPEG-4 part 10/AVC), MJPEG
• Resolution - 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
• Maximum Framerate - H.264 / H.265 : 60fps at all resolutions, MJPEG: 30fps at all resolutions
• Smart Codec - Manual mode (Area-based: 5ea)
• WiseStream II - Support
• Video Quality Adjustment - H.265 / H.264 / MJPEG : Target bitrate level control
• Bitrate Control Method - H.265 / H.264: CBR or VBR, MJPEG: VBR
• Streaming Capability - Multiple Streaming (Up to 10 profiles)
• IP - IPv4, IPv6
• Protocol - TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
• Security - HTTPS (SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1X authentication (EAP-TLS, EAP-LEAP)
• Streaming Method - Unicast / Multicast
• Maximum User Access - 20 users at Unicast mode
• Edge Storage - Micro SD/SDHC/SDXC 2 slots (up to 512 GB) - Continuous recording (1st slot to 2nd slot) Motion images recorded in the SD/SDHC/SDXC memory card can be downloaded. NAS (Network Attached Storage), Local PC for instant recording
• Application Programming Interface - ONVIF Profile S/G, SUNAPI 2.0 (HTTP API), Wisenet Open Platform
• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Web Viewer - Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Plugin-Free Webviewer - Supported Browser: Google Chrome 54, MS Edge 38, Mozilla Firefox (49Windows 64bit only), MS Internet Explorer 11, Apple Safari 9 *Mac OS X only
• Central Management Software - Wisenet WAVE, SmartViewer

Environmental

• Operating Temperature PoE only - -20°C ~ +55°C (-4°F ~ +131°F) / Less than 90% RH
• Storage Temperature / Humidity - -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
• Ingress Protection - Type 4x / IP66

Electrical

• Input Voltage - PoE+ (IEEE802.3aat, Class4)
• Power Consumption - Maximum 24W

Mechanical

• Color / Material - RAL2000-Yellow Orange / Anodized Aluminum
• Dimensions (WxHxD) - Ø8.6" x 15.82"
• Weight - 28lb (12.7kg)
