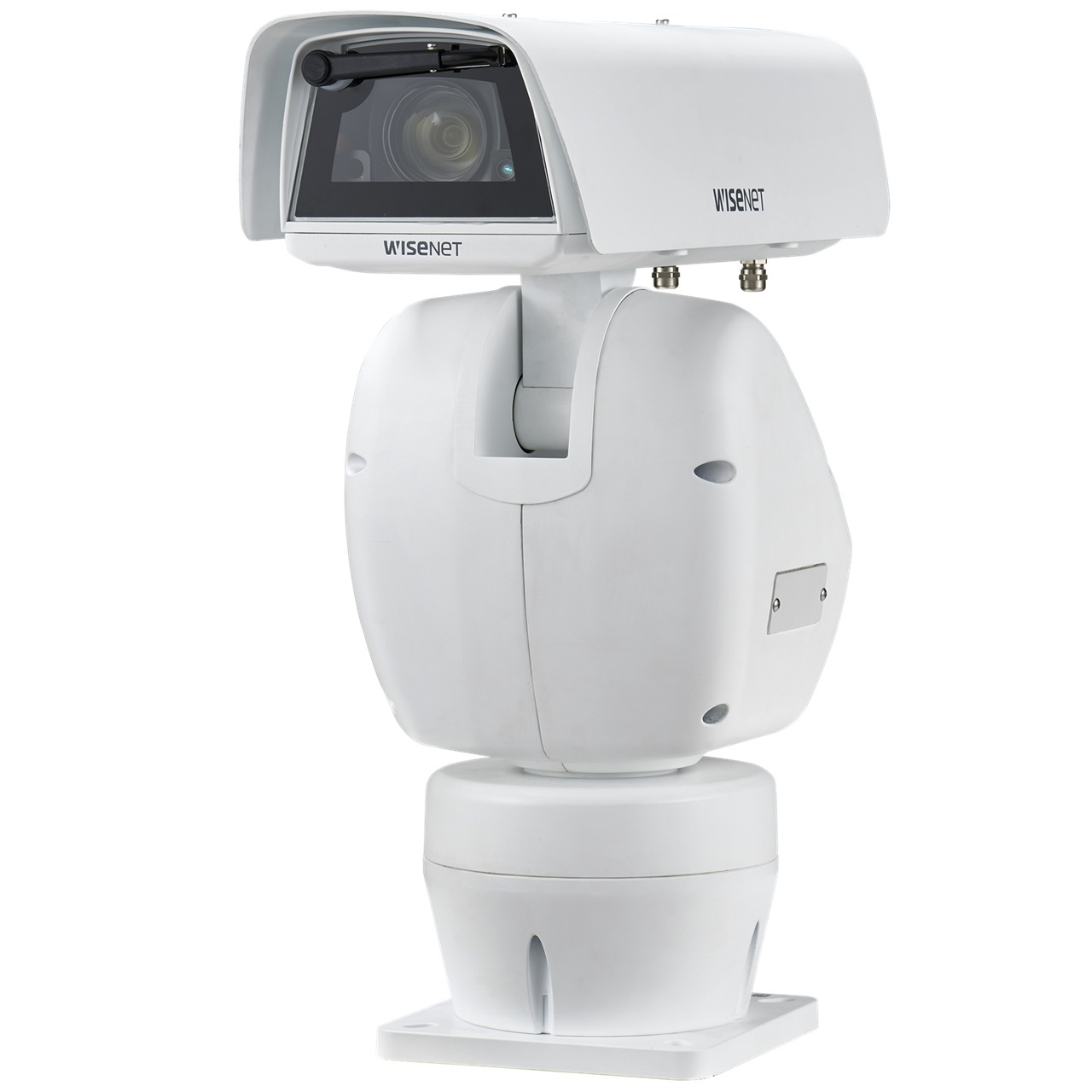

TNU-6321 Hanwha Vision T Series 4.44 - 142.6mm Varifocal 60FPS @ 2MP Outdoor IR Day/Night WDR Positioning IP Security Camera 24VAC

SKU: TNU-6321

2MP Positioning Zoom Camera

Features:

  • 2 megapixel (1920 x 1080) resolution
  • 4.44 ~ 142.6mm (32x) varifocal zoom lens
  • 60fps@2M (H.264)
  • H.264, MJPEG dual codec support
  • Day & Night (ICR), WDR (120dB), Defog
  • Tampering, Virtual line, Enter / Exit, (Dis)Appear, Face detection, Motion detection
  • SD / SDHC / SDXC slot
  • Built-in Wiper, Defroster
  • Operating temperature -40° ~ + 55°

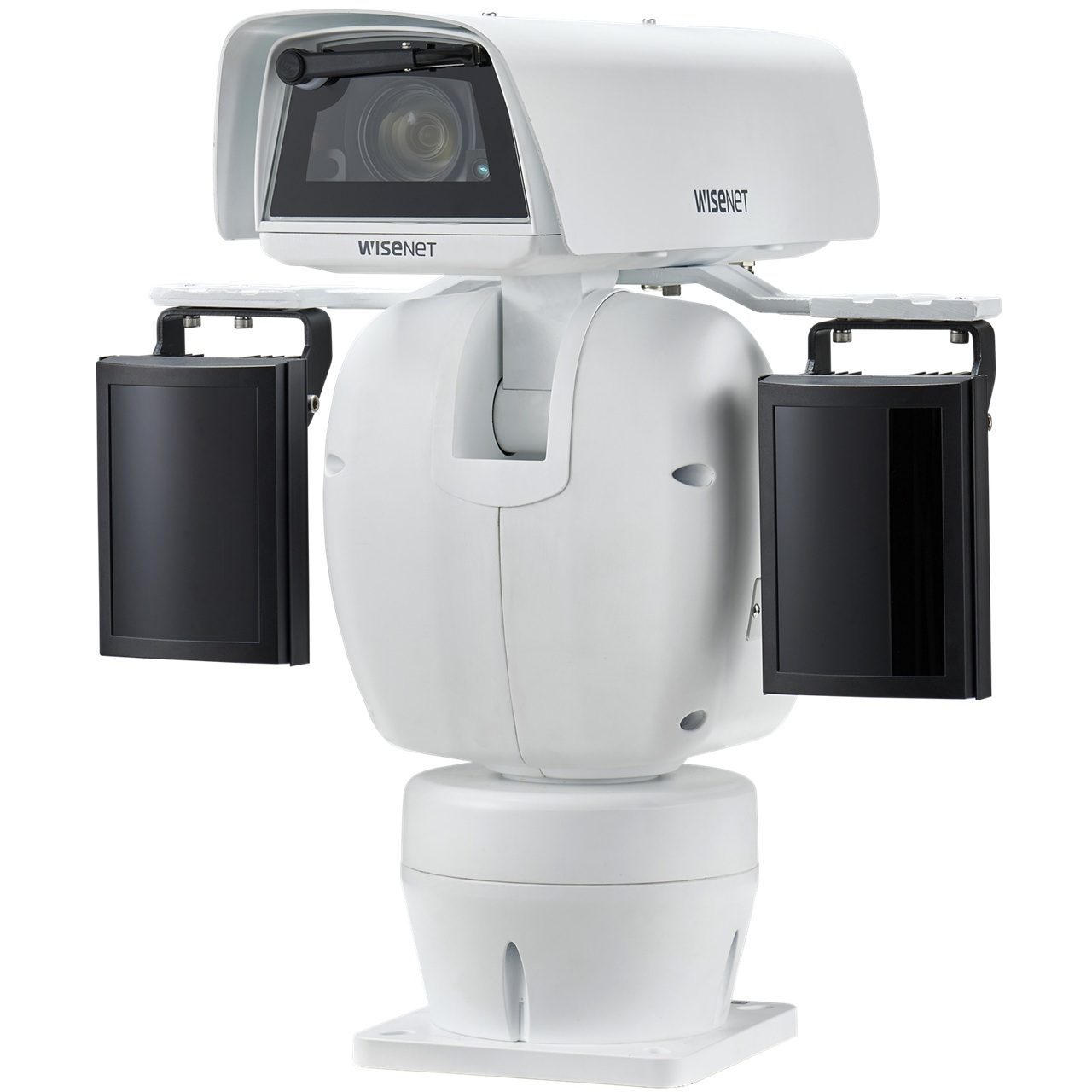

  • Optional IR illuminator SPI-50
  • TAA compliant model: TNU-6321/KUS
NDAA TAA Complaint
More details...
MPN: TNU-6321
EAN: 8801089190413
Save to my Wish List

Already a DWG Dealer? - Sign In to view pricing.



Product Details

Specifications

Video

  • Imaging Device - 1/2.8" CMOS
  • Resolution - 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
  • Max. Framerate - H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
  • Min. Illumination - Color: 0.05Lux(F1.6, 1/30sec) B/W: 0.005 Lux(F1.6, 1/30sec)
  • Video Out - CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P), for installation

Lens

  • Focal Length (Zoom Ratio) - 4.44~142.6mm(32x) zoom
  • Max. Aperture Ratio - F1.6(Wide)~F4.4(Tele)
  • Angular Field of View - H: 61.8Ëš(Wide)~2.19Ëš(Tele) / V: 36.2Ëš(Wide)~1.24Ëš(Tele)
  • Min. Object Distance - Wide: 1.5m(4.92ft)
  • Focus Control - Auto, One shot AF
  • Lens Type - DC auto iris

Pan / Tilt / Rotate

  • Pan Range - 360° Endless
  • Pan Speed - 0.036°~120°/sec
  • Tilt Range - -90Ëš~40Ëš
  • Tilt Speed - 0.012°~ 40°/sec
  • Sequence - Preset(255ea), Swing, Group(6ea), Tour(1ea), Auto Run, Schedule
  • Preset Accuracy - ±0.3°

Operational

  • Camera Title - Displayed up to 85 characters
  • Direction Indicator - Support
  • Day & Night - AIuto (ICR)
  • Backlight Compensation - BLC, HCL, WDR, SSDR
  • Wide Dynamic Range - (120dB)
  • Digital Noise Reduction - SSNRV
  • Digital Image Stabilization - Support
  • Defog - Support
  • Motion Detection - 8ea, 8point polygonal zones
  • Gain Control - LOW/ MID/ HIGH
  • White Balance - ATW / AWC / Manual / Indoor / Outdoor
  • Electronic Shutter Speed - Minimum, Maximum, Anti flicker (1~1/12,000sec)
  • Analytics - Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection
  • Alarm I/O - Input 1ea / Output 1ea
  • Alarm Triggers - Analytics, Network disconnect, Alarm input
  • Alarm Events - File upload via FTP and E-Mail Notification via E-Mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover
  • Audio In - Selectable(Mic in/Line in), Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
  • Audio Out - Line out, Max.output level: 1Vrms
  • IR Illuminator (Optional) - Support (Auto/Manual)
  • Water Removal - Support (with Wiper)

Network

  • Ethernet - RJ-45(10/100BASE-T)
  • Video Compression - H.265/H.264: Main/Baseline/High, MJPEG
  • Audio Compression - G.711 u-law, G.726 G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
  • Smart Codec - Manual(5ea area), WiseStreamâ…¡
  • Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
  • Streaming - Unicast(20 users), Multicast Multiple streaming(Up to 10 profiles)
  • Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
  • Security - HTTPS(SSL) login authentication Digest login authentication IP address filtering User access log 802.1X authentication(EAP-TLS, EAP-LEAP)
  • Application Programming Interface - ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform

General

  • Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
  • Web Viewer - Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explorer11, MS Edge, Mozilla Firefox(Windows 64bit only), Apple Safari(Mac OS X only)
  • Memory - 1024MB RAM, 256MB Flash
  • Edge Storage - Micro SD/SDHC/SDXC 1slot 256GB

Environmental & Electrical

  • Operating Temperature / Humidity - -40°C~+55°C(-40°F ~ +131°F) / Less than 90% RH
  • Storage Temperature / Humidity - -40°C~+60°C(-40°F ~ +140°F) / Less than 90% RH
  • Certification - IP66, Safety(UL, KC-SDOC), EMC(FCC, CE, VCCI, RCM, KC)
  • Input Voltage - 24VAC
  • Power Consumption - Max 100W(Heater On), typical 25W(Heater Off)

Mechanical

  • Color / Material - White / Aluminum
  • RAL Code - RAL9003
  • Product Dimensions / Weight - 219(W)×528.2(H)×460(D)mm (8.62x20.79x18.11"), 14Kg (30.86 lb)

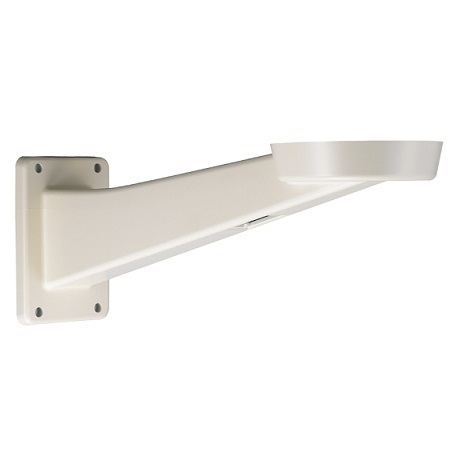

  • Wall Mount - Support

DORI (EN62676-4 standard)

  • Detect (25PPM/ 8PPF) - Wide: 64.2m(210.50ft) / Tele: 2,009.0m(6,591.31ft)
  • Observe (63PPM/ 19PPF) - Wide: 25.7m(84.20ft) / Tele: 803.6m(2,636.53ft)
  • Recognize (125PPM/ 38PPF) - Wide: 12.8m(42.10ft) / Tele: 401.8m(1,318.26t)
  • Identify (250PPM/ 76PPF) - Wide: 6.4m(21.05ft) / Tele: 200.9m(659.13ft)

TNU-6321 Specifications PDF
