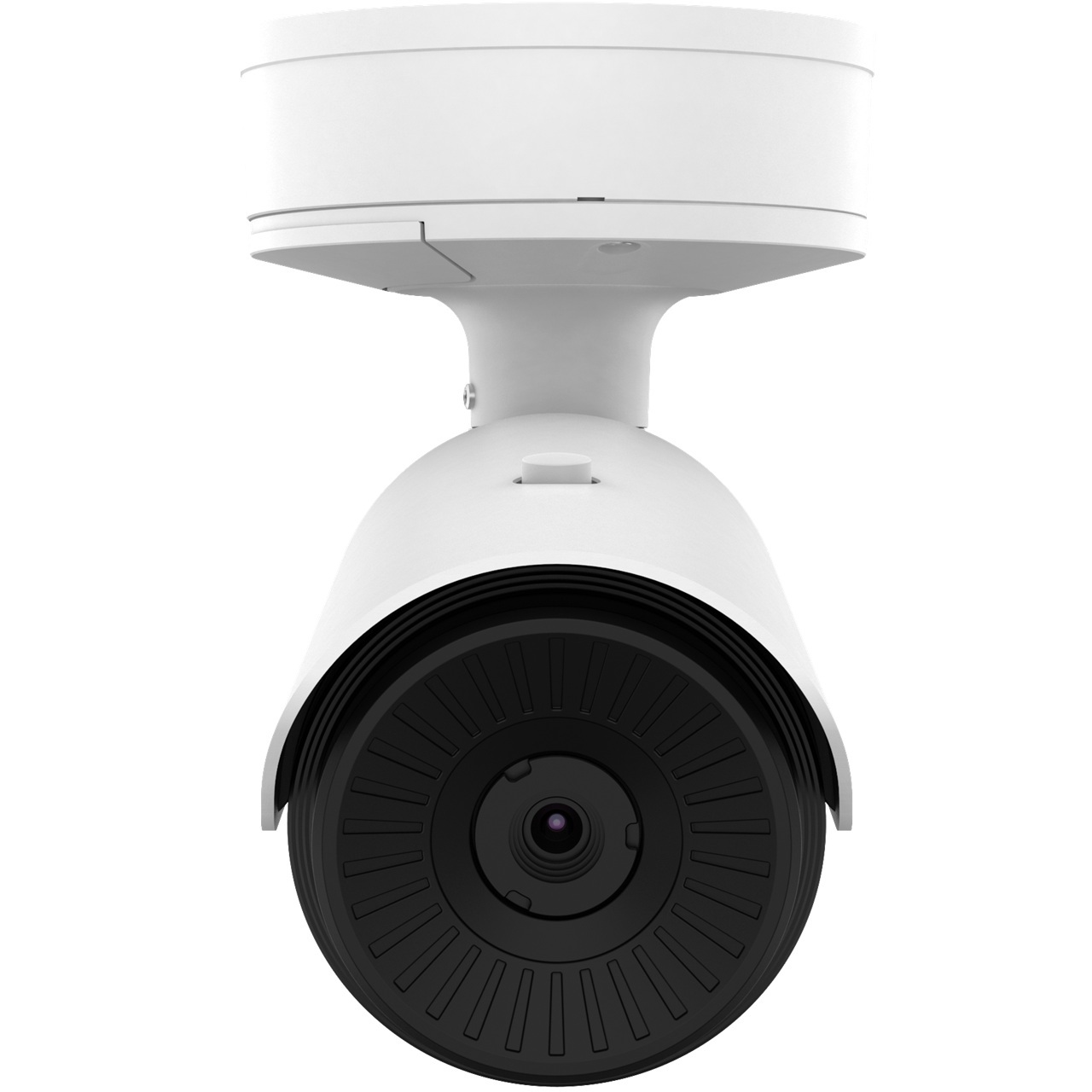

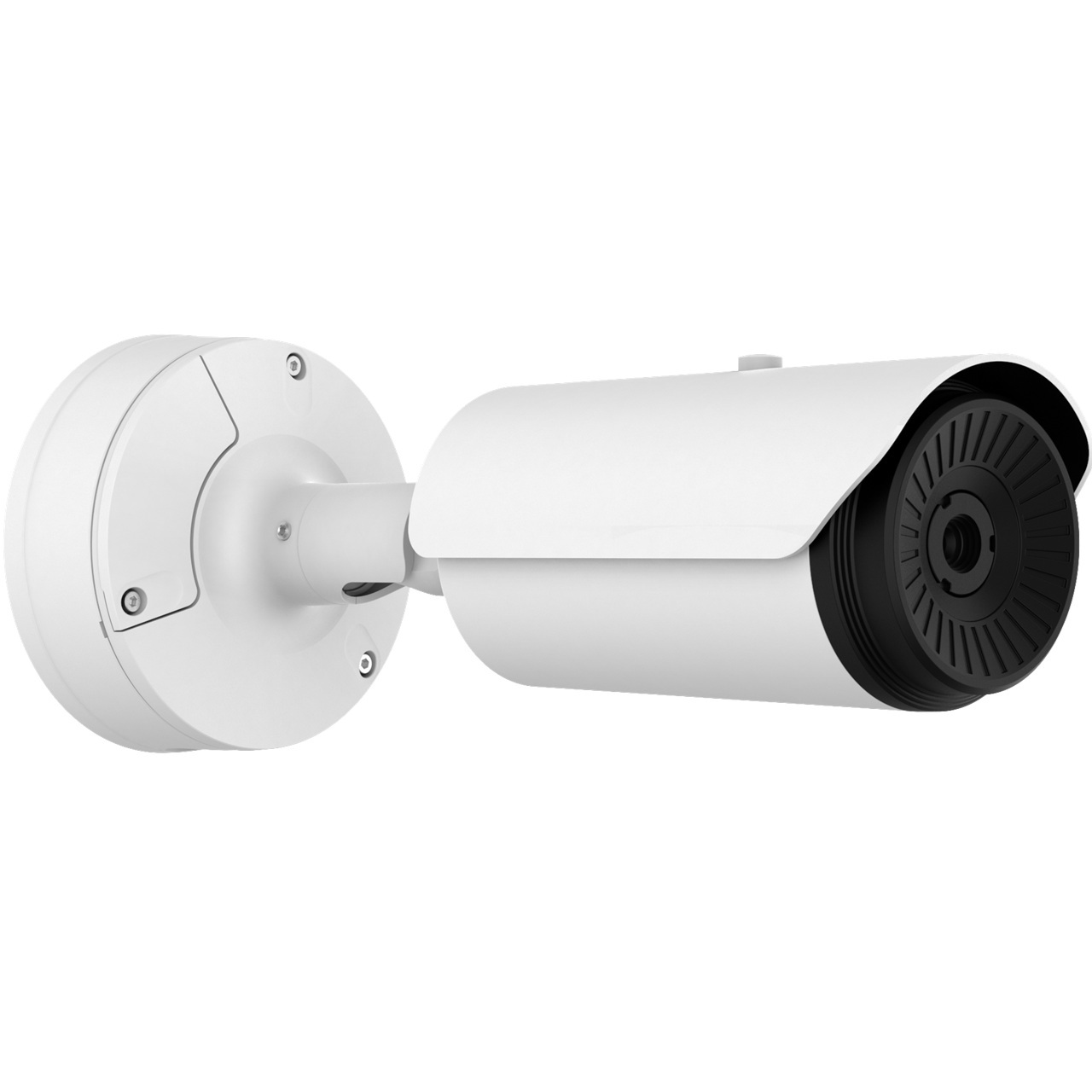

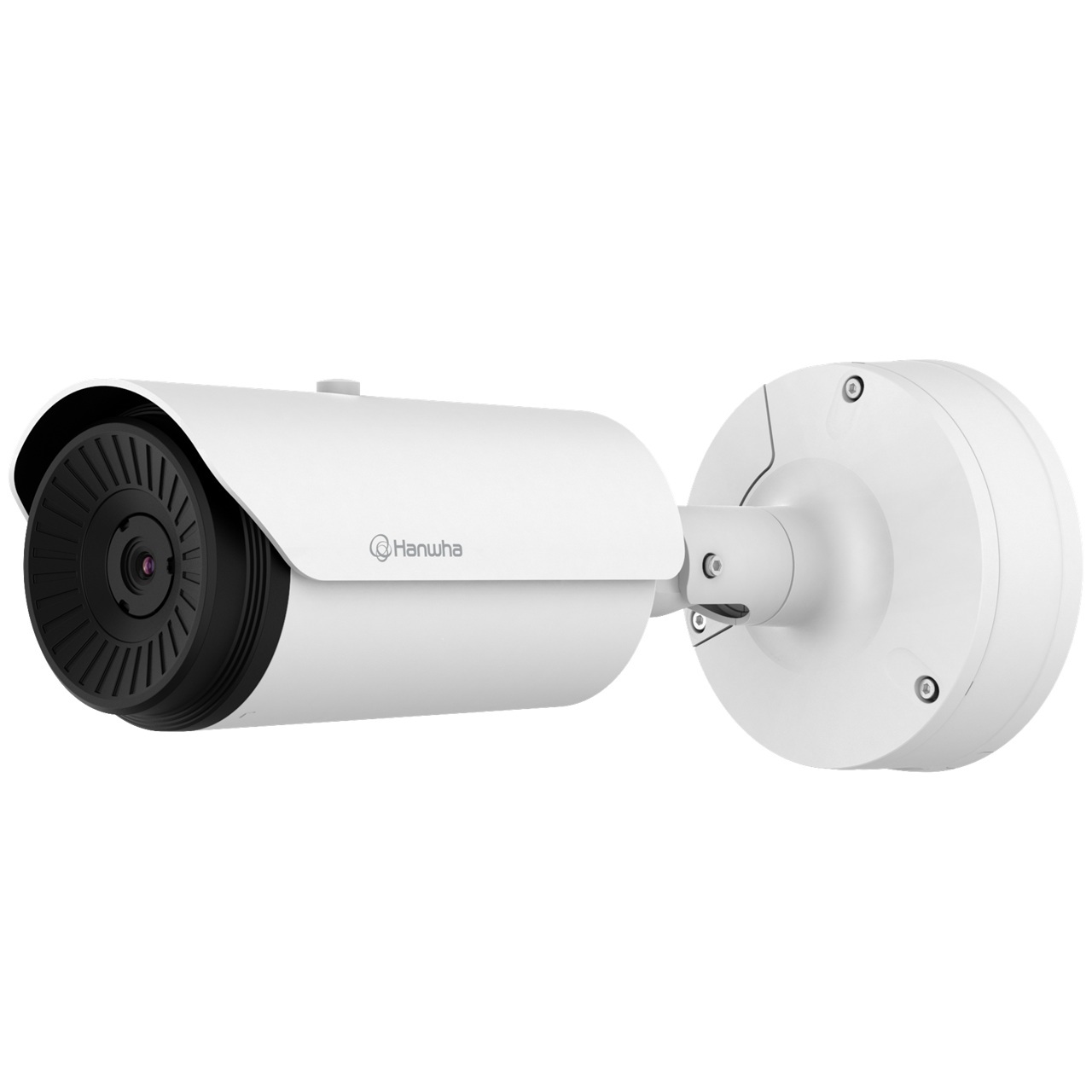

TNO-3020T Hanwha Vision T Series 4.3mm 30FPS @ 320 x 240 Outdoor Uncooled Thermal IP Security Camera 12VDC/24VAC/PoE

SKU: TNO-3020T

QVGA Thermal Bullet Camera

Features:

  • Thermal QVGA (320 x 240) resolution
  • Built-in 4.7mm fixed lens
  • 30fps@all resolutions(H.265, H.264, MJPEG)
  • H.265, H.264, MJPEG triple codec support
  • WiseStream II support
  • 7 selectable color palettes
  • Tampering, Loitering, Directional / Virtual Fence Line detection, Enter/ Exit, (Dis) Appear, Audio detection, Motion detection, Sound classification, Shock detection, Temperature change detection
  • 2-way bi-directional audio & Alarm I/O support
  • SD / SDHC / SDXC memory slot (Maximum 256GB)
  • Operating temperature -40°F ~ +140°F
  • PoE, 24V AC, 12V DC / IP66, NEMA4X, IK10
  • TAA compliant model available: TNO-3020T/KUS
NDAA TAA Complaint
More details...
MPN: TNO-3020T
EAN: 8801089191694
Save to my Wish List

Already a DWG Dealer? - Sign In to view pricing.



Product Details

Specifications

Video

  • Imaging Device - Uncooled micro bolometer
  • Resolution - 320x240
  • Max. Framerate - H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
  • NETD - <60mK
  • Pixel Size - 12㎛
  • Video Out - CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation

Lens

  • Focal Length (Zoom Ratio) - 4.7mm fixed focal
  • Max. Aperture Ratio - F1.0
  • Angular Field of View - H:50.0Ëš, V:36.4Ëš, D:65.3Ëš
  • Min. Object Distance - 1m(3.28ft)
  • Focus Control - Fixed

Operational

  • Camera Title - Displayed up to 85 characters
  • Digital Image Stabilization - Support(built-in gyro sensor)
  • Motion Detection - 8ea, 8point polygonal zones
  • Privacy Masking - 32ea, polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic
  • Video Rotation - Flip, Mirror, Hallway view(90Ëš/270Ëš)
  • Analytics - Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Temperature change detection, Sound classification, Shock detection
  • Alarm Interface In/Out - Input 1ea, Output 2ea
  • Alarm Triggers - Analytics, Network disconnect Alarm input
  • Alarm Events - File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover
  • Audio In - Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
  • Audio Out - Line out, Max.output level: 1Vrms
  • Color Pallettes - Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom

Network

  • Ethernet - RJ-45(10/100BASE-T)
  • Video Compression - H.265/H.264: Main/Baseline/High, MJPEG
  • Audio Compression - G.711 u-law / G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
  • Smart Codec - Manual(5ea area), WiseStreamâ…¡
  • Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
  • Streaming - Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
  • Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
  • Security - HTTPS(SSL) login authentication Digest login authentication IP address filtering User access log 802.1X authentication(EAP-TLS, EAP-LEAP) Device certificate(Hanwha Techwin Root CA)
  • Application Programming Interface - ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform

General

  • Webpage Language - English, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
  • Edge Storage - Micro SD/SDHC/SDXC 1slot 256GB
  • Memory - 1024MB RAM, 256MB Flash

Environmental & Electrical

  • Operating Temperature / Humidity - -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
  • Storage Temperature / Humidity - -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
  • Certification - IP66, IK10, NEMA4X
  • Input Voltage - PoE(IEEE802.3af, Class3), 24VAC, 12VDC
  • Power Consumption - PoE: Max. 8.7W, typical 7.5W 12VDC: Max. 7.8W, typical 6.7W 24VAC: Max. 9.2W, typical 8.0W

Mechanical

  • Color / Material - White / Aluminum
  • RAL Code - RAL9003
  • Product Dimensions / Weight - Φ147.51x375.3mm(5.80x14.77") / 2512g(5.54lb)

TNO-3020T Specifications PDF

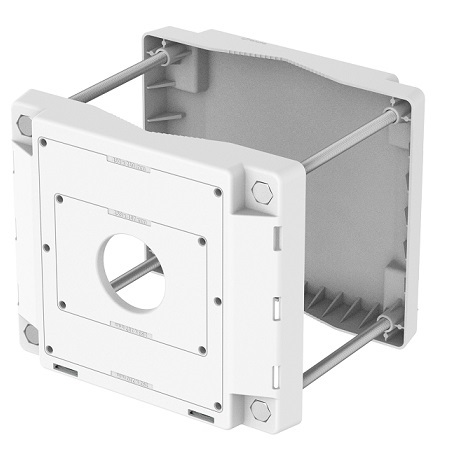

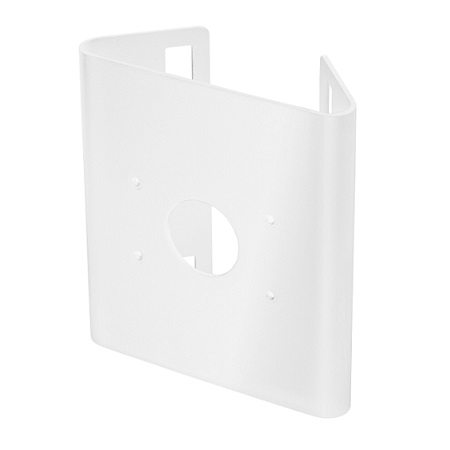

Check out some additional items that you may need to purchase with this product:
