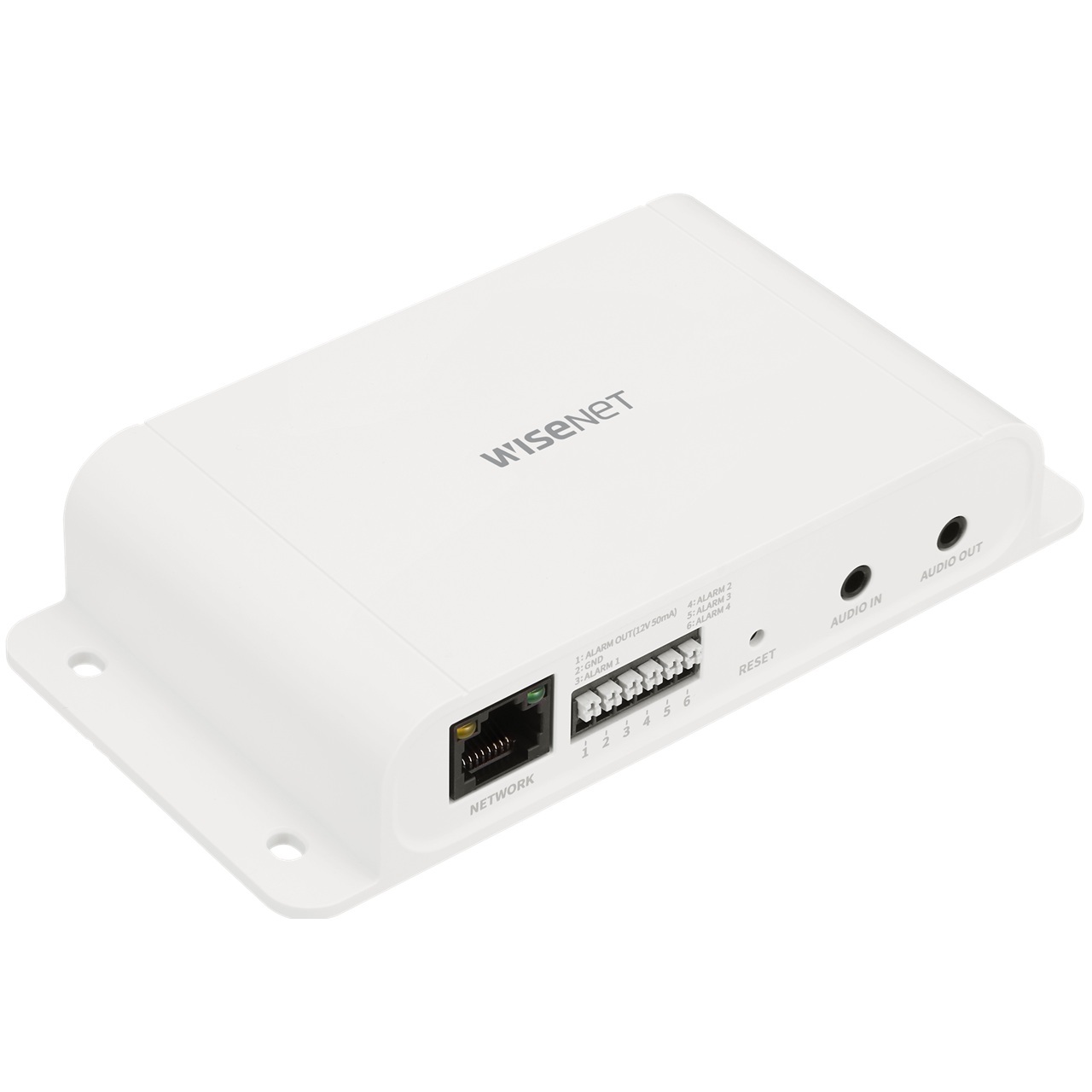

SPM-4210 Hanwha Techwin Network I/O Box

The SPM-4210 is an accessory for Wisenet PTZ Plus cameras. The Network I/O Box provides 4-configurable I/O ports & Audio I/O. It conveniently installs without requiring a direct connection to the camera. Powered by PoE.

Specifications

Operational

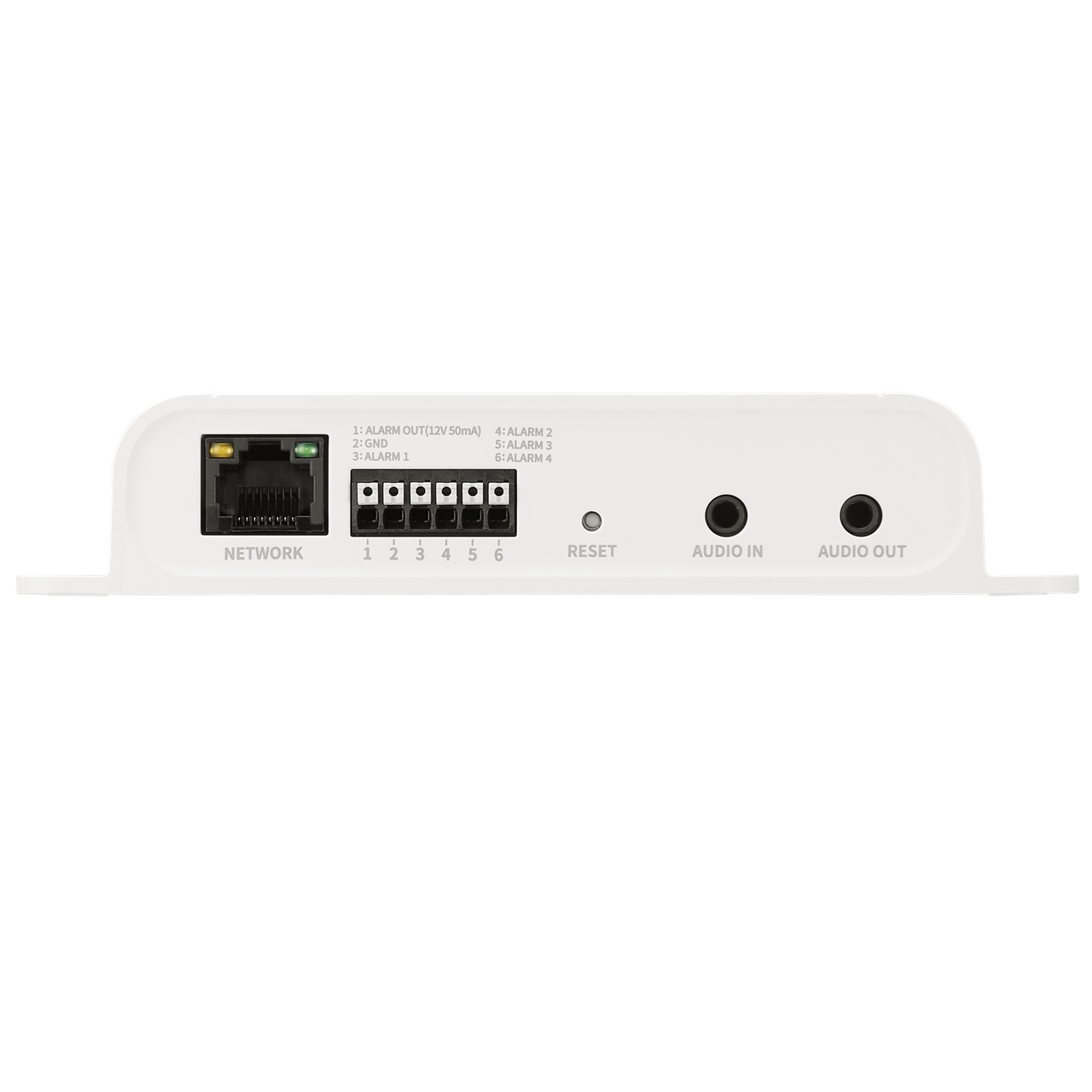

• Alarm I/O - Configurable 4 Ports, 12 V DC output, maximum load 50 mA
• Audio In - Selectable(microphone in/line in)
• Audio Out - Line out, Maximum output level: 1Vrms

Network

• Ethernet - RJ-45(10/100BASE-T)
• Audio Compression
• G.711 u-law /G.726 Selectable
• G.726(ADPCM) 8KHz, G.711 8KHz
• G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
• AAC-LC: 48Kbps at 16KHz
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS,SSL/TLS, DHCP, ICMP, ARP, DNS, LLDP
• Security
• HTTPS(SSL) Login Authentication
• Digest Login Authentication
• IP Address Filtering
• User access log
• 802.1X Authentication(EAP-TLS, EAP-LEAP)
• Device Certificate(Hanwha Techwin Root CA)
• Application Programming Interface - SUNAPI(HTTP API)

General

• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Web Viewer - Support, Plugin-free
• Memory - 4GB RAM, Flash 256MB

Environmental & Electrical

• Operating Temperature / Humidity - -40°C~+60°C(-40°F ~ +140°F) / Less than 95% RH(Non-condensing) Start up should be done at above -30°C
• Storage Temperature / Humidity - -50°C~+60°C (-58°F~+140°F) / Less than 95% RH(Non-condensing)
• Input Voltage - PoE(IEEE802.3af, Class3)
• Power Consumption - Maximum 4.5W

Mechanical

• Color / Material - White
• RAL Code - RAL9003
• Product dimensions / weight - 143mm x 73mm x 27.3mm / 171g
