[DISCONTINUED] TS-464eU-4G-US QNAP 4-Bay Rackmount NAS 2.9 GHz Intel Celeron N5105/N5095 4-Core/4-Thread 4GB RAM - No HDD

The TS-464eU is powered by Intel Celeron N5095/5105 quad-core processor (burst up to 2.9 GHz). The space-efficient short depth design makes it easy to install in small media cabinets or places with a lot of cabling. With expandable storage capacity and feature-rich apps, the TS-464eU surpasses the previous generation.

Specifications

• CPU - Intel Celeron N5105/N5095 4-core/4-thread processor, burst up to 2.9 GHz
• CPU Architecture - 64-bit x86
• Graphic Processors - Intel UHD Graphics
• Floating Point Unit - Yes
• Encryption Engine - Yes (AES-NI)
• Hardware-accelerated Transcoding - Yes

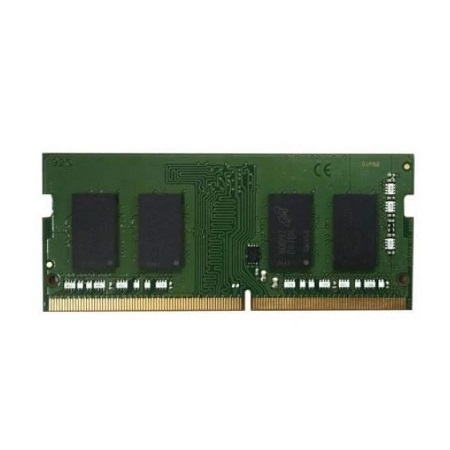

• System Memory - 4 GB SO-DIMM DDR4 (1 x 4 GB)
• Maximum Memory - 16 GB (2 x 8 GB)
• Memory Slot - 2 x SO-DIMM DDR4
• Flash Memory - 4GB (Dual boot OS protection)
• Drive Bay - 4 x 3.5-inch SATA 6Gb/s, 3Gb/s
• Drive Compatibility
  • 3.5-inch SATA hard disk drives
  • 2.5-inch SATA hard disk drives
  • 2.5-inch SATA solid state drives
• Hot-swappable - Yes
• M.2 Slot - 2 x M.2 2280 PCIe Gen 3 x1 slots
• SSD Cache Acceleration Support - Yes
• 2.5 Gigabit Ethernet Port (2.5G/1G/100M) - 2 (also support 10M)
• Wake on LAN (WOL) - Yes
• Jumbo Frame - Yes
• USB 2.0 port - 2
• USB 3.2 Gen 2 (10Gbps) Port - 2 x Type A USB 3.2 Gen 2
• HDMI Output - 1, HDMI 1.4b
• Form Factor - 1U Rackmount
• LED Indicators - Power/Status, LAN, USB, HDD1-4, M.2 SSD 1-2
• Buttons - Power, Reset
• Dimensions (HxWxD) - 43.3 x 482.6 x 321.33 mm
• Weight (Net) - 4.35 kg
• Weight (Gross) - 5.91 kg
• Operating temperature - 0 - 40 °C (32°F - 104°F)
• Storage Temperature - -20 - 70°C (-4°F - 158°F)
• Relative Humidity - 5-95% RH non-condensing, wet bulb: 27 ̊C (80.6 ̊F)
• Power Supply Unit - 100W PSU, 100-240V
• Power Consumption: HDD Sleep Mode - 21.105 W
• Power Consumption: Operating Mode, Typical - 35.297 W
• Fan - 3 x 40mm
• System Warning - Buzzer
• Max. Number of Concurrent Connections (CIFS) - with Max. Memory - 1500

TS-464eU-4G-US Specifications PDF
