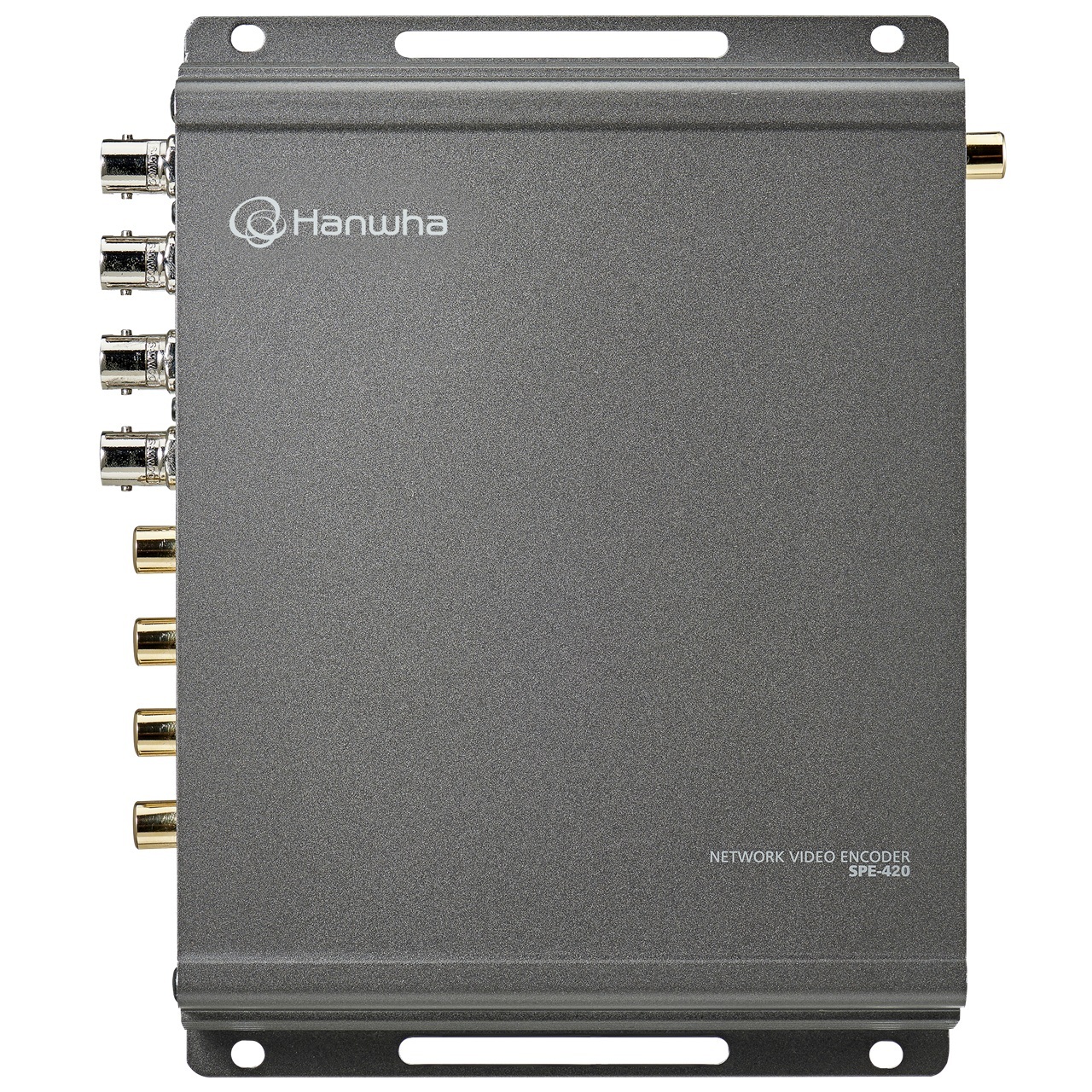

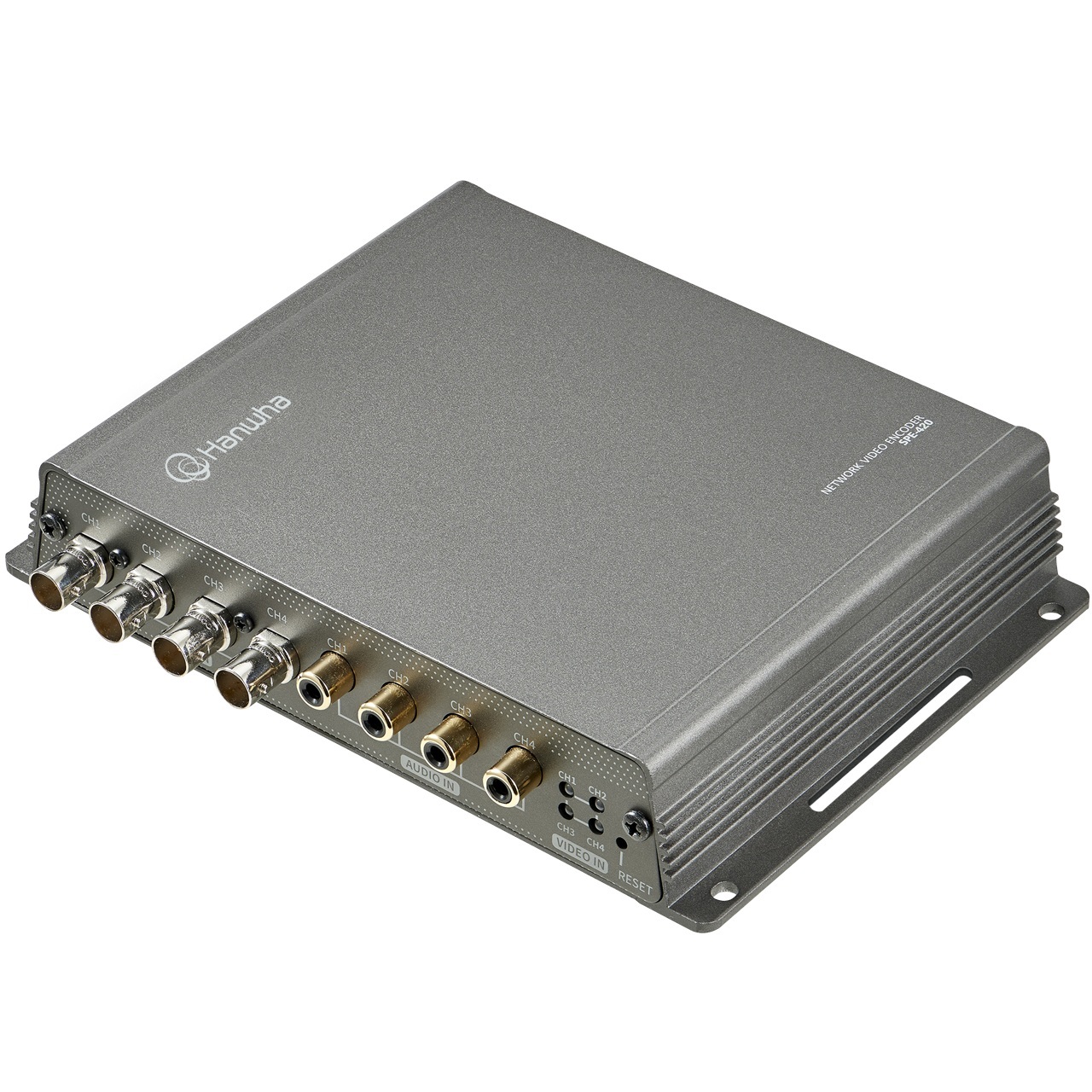

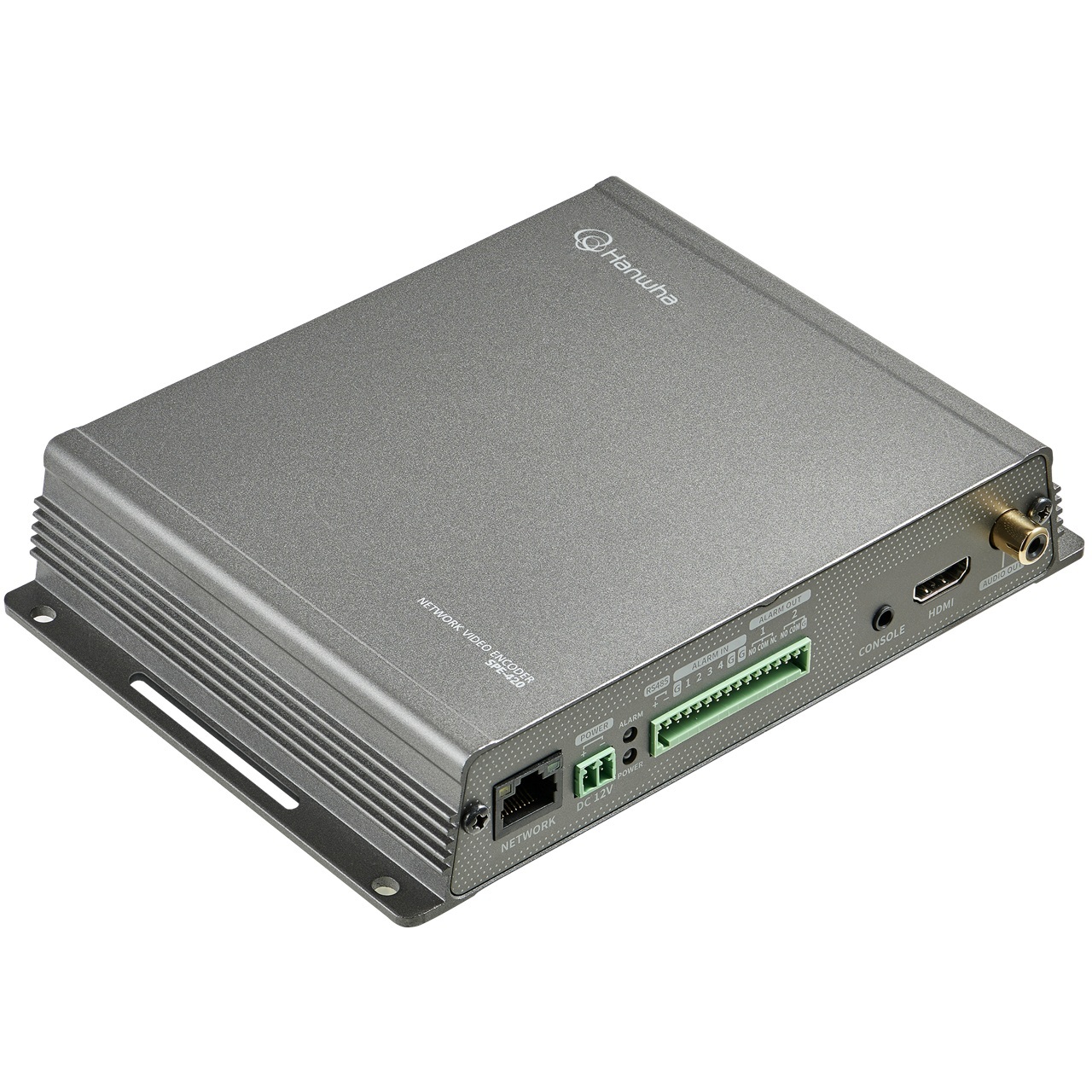

SPE-420 Hanwha Techwin 4 Channel Video Encoder

Specifications

Video

• Input Channel - 4CH BNC, 1.0 Vp-p / 75Ω composite, NTSC/PAL
• Input Signal & Resolution - CVBS, AHD/CVI/TVI (1, 2, 4, 5MP) Auto Detection
• Video Out - 1 HDMI OUT (4 multi Image, 1920x1080)

Operational

• Motion Detection - Off / On
• Privacy Masking - Off / On (4ea rectangular zones)
• De-Interlacing - support
• Alarm I/O - 4 Input / 2 Output
• Alarm Trigger - Motion Detection, Alarm Input, Video Loss, Tampering, Network disconnect
• Alarm Events - File Upload Via FTP, E-mail
• Audio I/O - 4 Line Input / 1 Line Output(1 NO/COM/NC, 1 NO/COM)
• OSD - Title
• Remote Control Interface - 1ea RS-485(Half Duplex)
• RS-485 Protocol - SAMSUNG-T, PELCO-P/D
• Coaxial Control - CVBS(Pelco-C), AHD, TVI, CVI

Network

• Ethernet - 1 RJ-45 10/100 Base-T
• Video Compression Format - H.265, H.264 (MPEG-4 Part 10/AVC) : Main / Baseline / High, MJPEG
• Resolution - 2560x1920, 2560x1440, 1920x1080, 1280x720, 928x480(N), 928x240(N), 704x480(N), 704x240(N), 640x368, 352x240(N) 928x576(P), 928*288(P), 704x576(P), 704x288(P), 640x368, 352x288(P)
• Max. Framerate
  • Main Stream - 5MP : 12fps/CH, 4MP : 15fps/CH, 1080p/720p/WD1/4CIF/CIF : 30fps/CH(N), 25fps/CH(P)
  • Sub Stream - WD1/4CIF : 30fps/CH, 2CIF/CIF/QVGA/QCIF : 30fps/CH(N), 25fps/CH(P), MJPEG : 2fps @ 640x368, 352x240
  • SD Camera - 2fps @ 480x240, 352x240
• Bitrate Control Method - H.265, H.264 : CBR or VBR
• Streaming Capability - Multiple Streaming (Up to 2 Profiles per channel)
• Audio Compression - G.711 u-law
• IP - IPv4, IPv6
• Protocol - TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, ONVIF, Bonjour
• Security - HTTPS (SSL) Login Authentication, Digest Login Authentication IP Address Filtering, User Access Log, 802.1X Authentication (EAP-TLS, EAP-LEAP)
• Streaming Method - Unicast / Multicast
• Max. User Access - max. 16 users(4 Users/CH) at Unicast Mode
• Webpage Languages - English, French, German, Spanish, Italian, Russian, Turkish, Polish, Dutch, Swedish, Portuguese, Czech, Chinese, Japanese, Korean, Hungarian, Greek
• Web Viewer
  • Supported OS : Windows 10 or later, Mac OS X 10.13 or later
  • Non-plugin WebViewer Supported Browser
  • Google Chrome 80 or later,, MS Edge 83 or later, Mozilla Firefox 72 or later, Apple Safari 11.0.1 or later
  • Application Programming Interface - ONVIF profile S, SUNAPI (HTTP API)
  • Compatabile Software & Recoder - SmartViewer, NVR(Hanwha Techwin, P/X/Q/L series)

Environmental

• Operating Temperature / Humidity - -10°C ~ +50°C / 20% ~ 80% RH

Electrical

• Input Voltage / Current - DC12V, PoE(IEEE 802.3af)
• Power Consumption - MAX : 5W (12V, 0.417A)

Mechanical

• Color / Material - Dark Gray / Metal
• Dimension (WxHxD) - (W) 178.0 x (H) 34.0 x (D)127.8(include Connector 148.7)mm
• Weight - 520g(1.15lb)
