Categories > Browse by Brand > QNAP > QNAP Storage > QNAP Enterprise

TS-h2287XU-RP-E2336-32G-US QNAP 22-Bay Rackmount NAS 2.9 GHz Intel Xeon E-2336 6-core 32GB RAM - No HDD

SKU: TS-h2287XU-RP-E2336-32G-US
Brand: QNAP
  • Combines the advantages of high-capacity HDD and high-performance SSD. Supports SSD caching to boost IOPS performance
  • Dual 10GBASE-T and dual 2.5GbE high-speed connectivity enhances virtualization, intensive file access, and large backup/restoration tasks
  • Install 10/25/100GbE adapters, QM2 cards, or Fibre Channel cards to increase application performance
  • Supports virtualization storage and hosting virtual machines and containerized apps
  • Optimized for business-class backup, including Google Workspace and Microsoft 365 data, and VMware and Hyper-V virtual machines
  • Realizes hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency data access to the cloud
More details...
MPN: TS-h2287XU-RP-E2336-32G-US
UPC: 885022024629
MSRP Price: $6,209.00
Online Price: $6,209.00
Save to my Wish List

New to DWG? - Sign Up for immediate access to dealer pricing and benefits.

Already a DWG Customer? - Sign In to view pricing.




Product Details

Specifications

  • CPU - Intel Xeon E-2336 6C 12T 2.9GHz, up to 4.8GHz
  • CPU Architecture - 64-bit x86
  • Floating Point Unit - Yes
  • Encryption Engine - Yes (AES-NI)
  • System Memory - 32 GB ECC DDR4 (2 x 16 GB)
  • Maximum Memory - 128GB (4 x 32 GB)
  • Memory Slot - 4 x ECC UDIMM DDR4
  • Flash Memory - 5GB (Dual boot OS protection)
  • Drive Bay - 22 (16 x 3.5-inch SATA + 6 x 2.5-inch SATA)
  • Drive Compatibility
    • 3.5-inch bays: 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
    • 2.5-inch bays: 2.5-inch SATA solid state drives
  • M.2 Slot - Optional via a QM2 PCIe adapter
  • SSD Cache Acceleration Support - Yes
  • GPU pass-through - Yes
  • 2.5 Gigabit Ethernet Port (2.5G/1G/100M) - 2 (2.5G/1G/100M)
  • 10 Gigabit Ethernet Port - 2 x 10GBASE-T (10G/5G/2,5G/1G/100M)
  • PCIe Slot - 3 (2 x Gen4 x4 +1 x Gen 4 x8)
  • USB 3.2 Gen 2 (10Gbps) Port - 4 x Type-A USB 3.2 Gen 2 5V/1A 10Gbps
  • Form Factor - 3U Rackmount
  • LED Indicators - Status (Green/Red), LAN (Green), USB (Blue), HDD status (Green/Red)
  • Buttons - Power, Reset
  • Dimensions (HxWxD) - 5.24 x 19.02 x 24.8 inch
  • Weight (Net) - 34.48 lbs
  • Weight (Gross) - 48.68 lbs
  • Operating Temperature - 0 - 40 °C (32°F - 104°F)
  • Storage Temperature - -20 - 70°C (-4°F - 158°F)
  • Relative Humidity - 5~95% RH non-condensing, wet bulb: 27°C (80.6°̊F)
  • Power Supply Unit - 2 x 550W CRPS PSU
  • Fan - 3 x 60mm + 1 x 80mm, 12VDC

TS-h2287XU-RP-E2336-32G-US Specifications PDF

Check out some additional items that you may need to purchase with this product:
Check the check boxes next to the additional products that you would like to add to the shopping cart, then click on the "Add to Cart" button above. A check box is not shown if a product requires that you select an option or fill out a field. () indicates a required accessory.
TRAY-25-NK-BLK04 QNAP 2.5" Tray for 24 Bay ES NAS

TRAY-25-NK-BLK04 QNAP 2.5" Tray for 24 Bay ES NAS

MSRP Price: $15.00
QXG-10G2T-X710 QNAP Dual-Port 10GbE Network Expansion Card

QXG-10G2T-X710 QNAP Dual-Port 10GbE Network Expansion Card

MSRP Price: $359.00
[DISCONTINUED] QXG-10G2TB QNAP Dual-Port 10GbE (BASE-T) Network Adaptor, Low-Profile Form Factor, PCIe Gen3 x4 Aquantia AQC113C, PCIe 3x4

[DISCONTINUED] QXG-10G2TB QNAP Dual-Port 10GbE (BASE-T) Network Adaptor, Low-Profile Form Factor, PCIe Gen3 x4 Aquantia AQC113C, PCIe 3x4

MSRP Price: $269.00
QXG-25G2SF-CX6 QNAP Dual-Port SFP28 25GbE Network Expansion Card

QXG-25G2SF-CX6 QNAP Dual-Port SFP28 25GbE Network Expansion Card

MSRP Price: $449.00
QXG-5G1T-111C QNAP 5GbE Multi-Gig Expansion Card

QXG-5G1T-111C QNAP 5GbE Multi-Gig Expansion Card

MSRP Price: $99.00
PWR-PSU-550W-DT01 QNAP 550W Power Supply Unit

PWR-PSU-550W-DT01 QNAP 550W Power Supply Unit

MSRP Price: $259.00
RAIL-B02 QNAP Rail Kit for 2U Rackmount Models

RAIL-B02 QNAP Rail Kit for 2U Rackmount Models

MSRP Price: $99.00
QXP-16G2FC QNAP 16Gb/s Fibre Channel Host Bus Adapter - Includes 2 Transceivers

QXP-16G2FC QNAP 16Gb/s Fibre Channel Host Bus Adapter - Includes 2 Transceivers

MSRP Price: $999.00
QXP-32G2FC QNAP 32Gb/s Fibre Channel Host Bus Adapter - Includes 2 Transceivers

QXP-32G2FC QNAP 32Gb/s Fibre Channel Host Bus Adapter - Includes 2 Transceivers

MSRP Price: $1,499.00
QXP-820S-B3408 QNAP 2-Port MiniSAS HD Host Bus Adapter

QXP-820S-B3408 QNAP 2-Port MiniSAS HD Host Bus Adapter

MSRP Price: $399.00
QM2-2P-244A Dual M.2 22110/2280 PCIe SSD expansion card (PCIe Gen2 x4), Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled

QM2-2P-244A Dual M.2 22110/2280 PCIe SSD expansion card (PCIe Gen2 x4), Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled

MSRP Price: $145.00
QM2-2P-344A Qnap Dual M.2 PCIe SSD Expansion Card - Supports Up to 2 x M.2 2280/22110 Formfactor M.2 PCIe (Gen3 x 4) SSDs, PCIe (Gen3 x 4) Host Interface

QM2-2P-344A Qnap Dual M.2 PCIe SSD Expansion Card - Supports Up to 2 x M.2 2280/22110 Formfactor M.2 PCIe (Gen3 x 4) SSDs, PCIe (Gen3 x 4) Host Interface

MSRP Price: $175.00
QM2-2P-384A Qnap Dual M.2 PCIe SSD Expansion Card - Supports Up to 2 x M.2 2280/22110 Formfactor M.2 PCIe (Gen3 x 4) SSDs, PCIe (Gen3 x 8) Host Interface

QM2-2P-384A Qnap Dual M.2 PCIe SSD Expansion Card - Supports Up to 2 x M.2 2280/22110 Formfactor M.2 PCIe (Gen3 x 4) SSDs, PCIe (Gen3 x 8) Host Interface

MSRP Price: $209.00
QM2-2P10G1TB QNAP 2 x PCIe Gen3 NVMe SSD & 1 x 10GbE Port Expansion Card to Enhance Performance

QM2-2P10G1TB QNAP 2 x PCIe Gen3 NVMe SSD & 1 x 10GbE Port Expansion Card to Enhance Performance

MSRP Price: $219.00
QM2-2P2G2T QNAP QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen3 x 4 , 2 x Intel I225LM 2.5GbE NBASE-T Port

QM2-2P2G2T QNAP QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen3 x 4 , 2 x Intel I225LM 2.5GbE NBASE-T Port

MSRP Price: $175.00
QM2-2P410G1T QNAP 2 x M.2 PCIe Gen4 NVMe SSD & 1 x 10GbE Port Expansion Card

QM2-2P410G1T QNAP 2 x M.2 PCIe Gen4 NVMe SSD & 1 x 10GbE Port Expansion Card

MSRP Price: $589.00
QM2-2P410G2T QNAP 2 x M.2 PCIe Gen4 NVMe SSD & 2 x 10GbE Ports Expansion Cards

QM2-2P410G2T QNAP 2 x M.2 PCIe Gen4 NVMe SSD & 2 x 10GbE Ports Expansion Cards

MSRP Price: $649.00
QM2-2S-220A QNAP Dual M.2 22110/2280 SATA SSD Expansion Card

QM2-2S-220A QNAP Dual M.2 22110/2280 SATA SSD Expansion Card

MSRP Price: $89.00
QM2-4P-384 QNAP Quad M.2 PCIe SSD expansion card supports up to four M.2 2280 formfactor M.2 PCIe (Gen3 x4) SSDs PCIe Gen3 x8 host interface

QM2-4P-384 QNAP Quad M.2 PCIe SSD expansion card supports up to four M.2 2280 formfactor M.2 PCIe (Gen3 x4) SSDs PCIe Gen3 x8 host interface

MSRP Price: $169.00
QXG-100G2SF-E810 QNAP Dual-Port QSFP28 100GbE Network Expansion Card

QXG-100G2SF-E810 QNAP Dual-Port QSFP28 100GbE Network Expansion Card

MSRP Price: $999.00
QXG-10G2SF-X710 QNAP Dual-Port, 10 GbE Network Expansion Card

QXG-10G2SF-X710 QNAP Dual-Port, 10 GbE Network Expansion Card

MSRP Price: $249.00
QXG-25G2SF-E810 QNAP Upgrade to Enterprise-level Networks with 25GbE

QXG-25G2SF-E810 QNAP Upgrade to Enterprise-level Networks with 25GbE

MSRP Price: $399.00
QXG-2G1T-I225 QNAP Single Port 2.5GbE 4-Speed Network Card

QXG-2G1T-I225 QNAP Single Port 2.5GbE 4-Speed Network Card

MSRP Price: $69.00
QXG-2G2T-I225 QNAP Dual Port 2.5GbE 4-Speed Network Card

QXG-2G2T-I225 QNAP Dual Port 2.5GbE 4-Speed Network Card

MSRP Price: $79.00
QXG-2G4T-I225 QNAP Quad Port 2.5GbE 4-Speed Network Card

QXG-2G4T-I225 QNAP Quad Port 2.5GbE 4-Speed Network Card

MSRP Price: $135.00
QXG-5G2T-111C QNAP Dual Port 5GbE Multi-Gig Expansion Card

QXG-5G2T-111C QNAP Dual Port 5GbE Multi-Gig Expansion Card

MSRP Price: $155.00
QXG-5G4T-111C QNAP Quad-port 5GbE Multi-Gig Expansion Card

QXG-5G4T-111C QNAP Quad-port 5GbE Multi-Gig Expansion Card

MSRP Price: $239.00
QXP-3X4PES QNAP 2 Ports (SFF-8644) Expansion Card

QXP-3X4PES QNAP 2 Ports (SFF-8644) Expansion Card

MSRP Price: $149.00
RAM-16GDR4ECT0-UD-3200 QNAP 16GB ECC DDR4 RAM 3200 MHz UDIMM T0 Version

RAM-16GDR4ECT0-UD-3200 QNAP 16GB ECC DDR4 RAM 3200 MHz UDIMM T0 Version

MSRP Price: $325.00

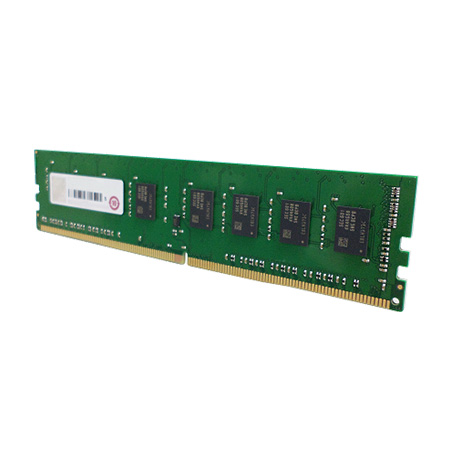

RAM-32GDR4ECT0-UD-3200 QNAP 32GB DDR4-3200 ECC U-DIMM RAM 288 Pin T0 Version

RAM-32GDR4ECT0-UD-3200 QNAP 32GB DDR4-3200 ECC U-DIMM RAM 288 Pin T0 Version

MSRP Price: $449.00
