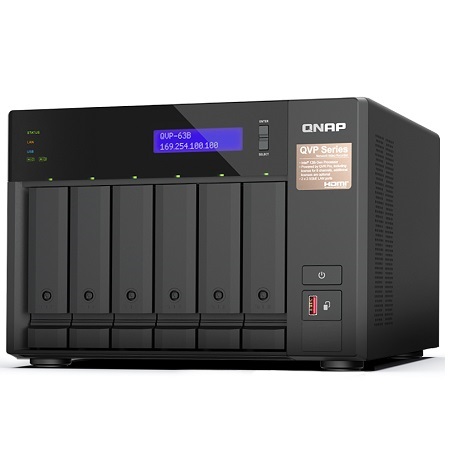

QVP-63B-US Qnap 8 Channel NVR 1188 Mbps Max Throughput - No HDD

The QVP-63B QVR Pro is a tower-based network surveillance server with an Intel Core multi-core processor that supports eight free IP camera channels and up to thirty-six IP camera channels. Offering an economic and high-performance software and hardware integrated video surveillance solution, the QVP-63B fulfills requirements for secure, reliable, and centrally-managed video surveillance storage for small businesses and offices.

Specifications

• OS - QVR Pro OS (QVP)
• CPU - Intel Core i3 4-core/8-thread Processor
• CPU Architecture - 64-bit x86
• Graphic Processors - Intel UHD Graphics 730
• Hardware-accelerated Transcoding - Yes
• System Memory - 16 GB SODIMM DDR4 (1 x 16 GB)
• Maximum Memory - 64 GB ( 2 x 32 GB)
• Memory Slot - 2 x SO-DIMM DDR4
• Flash Memory - 5GB (Dual boot OS protection)
• Max Live Cameras (Local Display) - 50ch @ All 720p,H.264, 30FPS, 30ch @ All 1080p,H.264, 30FPS
• Max Playback Cameras (Local Display) - 16
• Max Concurrent Connection (Client) - 16 (4 live cameras / per remote client) *The number of client concurrent connection varies by live cameras
• Embedded Channel - 8
• Max Channel - 36
• Max Throughput - 1188 Mbps
• Drive Bay - 6 x 3.5-inch SATA 6Gb/s, 3Gb/s
• Drive Compatibility
• 3.5-inch bays
• 3.5-inch SATA hard disk drives
• 2.5-inch SATA hard disk drives
• 2.5-inch SATA solid state drives
• Hot-swappable - Yes
• M.2 SSD Slot - 2 x M.2 2280 PCIe Gen4 x4 slots
• 2.5 Gigabit Ethernet Port - 2
• PCIe Slot - 2, Slot 1: PCIe Gen 4 x16, Slot 2: PCIe Gen 4 x4
• USB 3.2 Gen 2 (10Gbps) Port - 1 x Type-C USB 3.2 Gen 2 10Gbps, 2 x Type-A USB 3.2 Gen 2 10Gbps
• HDMI Output - 1, HDMI 1.4b (up to 4096 x 2160 @ 30Hz)
• Form Factor - Tower
• LED Indicators - HDD 1-6, Status, LAN, USB port, M.2 port
• LCD Display/ Button - Yes
• Buttons - Power, Reset, USB Copy
• Dimensions (HxWxD) - 188.2 x 264.3 x 280.8 mm
• Weight (Net) - 6.32 kg
• Operating temperature - 0 - 40 °C (32°F - 104°F)
• Relative Humidity - 5-95% RH non-condensing, wet bulb: 27 ̊C (80.6 ̊F)
• Power Supply Unit - 250W, 100-240V
• Power Consumption: HDD Sleep Mode - 39.911 W
• Power Consumption: Operating Mode, Typical - 79.363 W
• Fan - System fan: 2 x 92mm, 12VDC, CPU fan: 1 x 60mm, 12VDC
• Sound Level - 23.8 db(A)
• System Warning - Voice prompts or Buzzer
• Tray Locker - Yes
• File System: Internal Hard Drive - EXT4
• RAID Recovery - Yes
• Online RAID Capacity Expansion - Yes
• Online RAID Level Migration - Yes
• RAID 10+ hot spare - Yes
• RAID 10 - Yes
• RAID 6+ hot spare - Yes
• RAID 6 - Yes
• RAID 5+ Spare - Yes
• RAID 5 - Yes
• RAID 1 - Yes
• JBOD - Yes
• Single Disk - Yes
• Global Hot Spare - Yes
• Wake on LAN (WOL) - Yes
• Schedule Power On/Off (15 settings) - Yes
• Telnet & SSH logins (Admin only) - Yes
• Syslog Server & Client - Yes
• Language - English, German, French, Italian, Spanish, Polish, Swedish, Danish, Norwegian, Finnish, Russian, Japanese, Korean, Dutch, Czech, Traditional Chinese, Simplified Chinese, Turkish, Hungarian, Romanian, Thai, Portuguese/Brazil, Greek
