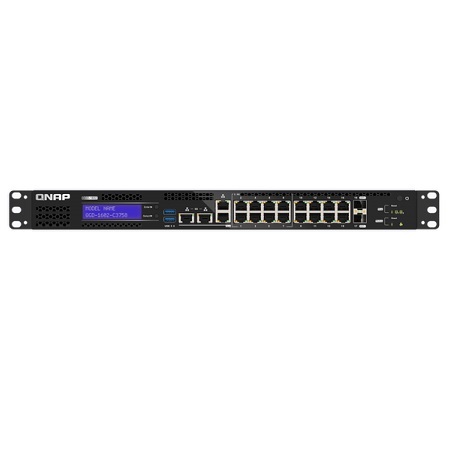

QGD-1602-C3558-8G-US QNAP Smart Edge Switch with 2.5GbE and 10GbE Capability

Search available promotions and discounts for this Item

SKU: QGD-1602-C3558-8G-US

Brand: QNAP

Without installing expensive EDR software for each end device, all you need is a switch with ADRA NDR for early detecting potential threats on all the end devices
By simulating a threat trap for malware to initiate attacks, hostile behaviors will be detected by QGD-1602
Once suspicious activities are captured by Threat Detection, the Deep Threat Analysis and Threat Correlation Analysis will determine its attack type and evaluate associated risk levels
Only affected devices are automatically isolated, assisting in containing malware attacks without shutting down the entire network
QGD-1602 provides user-friendly Layer 2 management
ADRA NDR can be deployed and operated without impacting network performance and existing infrastructure

More details...

Search available promotions and discounts for this Item

MPN: QGD-1602-C3558-8G-US
UPC: 885022026623

New to DWG? - Sign Up for immediate access to dealer pricing and benefits.

Already a DWG Customer? - Sign In to view pricing.

Product Details

Specifications

Management Type - Web Managed
Number of Ports - 18
10GbE SFP+ - 2, 10G/1G
2.5GbE (RJ45) - 8
1GbE (RJ45) - 8
PCIe Slot - Slot 1: PCIe Gen3 (x4 slot, x2 speed), Slot 2: PCIe Gen3 (x4 slot, x2 speed)
USB 3.2 Gen 1 port - 2
Management Port - 2 x 5GbE ; 2 x 1GbE
USB 3.2 Gen 2 (10Gbps) Port - Optional via PCIe adapter
Power Supply Description - Internal Power Supply Unit
Max. Power Consumption - 100W
Input Power Type - AC
Input Voltage Range - 100-240VAC, 50/60 Hz
MAC Address Table - 32K
Total Non-Blocking Throughput - 48Gbps
Switching Capacity - 96Gbps
Management Interface - Web
Fan - System: 3 x 4 cm (12V DC)
Supported Standards
- IEEE 802.3u 100Tx Fast Ethernet
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet
- IEEE 802.3bz 2.5G/5G BASE-T Multi-Gig Ethernet
- IEEE 802.3an 10GBASE-T 10G Ethernet
- IEEE 802.3ae 10GBASE-SR
- IEEE 802.3ae 10GBASE-LR
- IEEE 802.3z 1000Base-X
- IEEE 802.3x Full-duplex flow control
- IEEE 802.1q Virtual LANs (VLAN)
- IEEE 802.1p QoS Protocol for Traffic Prioritization
Form Factor - Rackmount
LED Indicators - Per Port: Link/Activity/Speed, Per System: Warning/Fan
LCD Management - Yes
Buttons
- Device PSU power button
- Host power button
- Host reset button(load default)
- Switch reset button
Dimensions (HxWxD) - 1.74 x 17.13 x 12.9 inch
Weight (Net) - 9.63 lbs
Weight (Gross) - 12.17 lbs
Operating Temperature - 0°C to 40°C (32°F to 104°F)
Relative Humidity - 5% to 95% non-condensing, wet bulb: 27˚C (80.6˚F)
Certifications - CE, FCC, VCCI, BSMI RCM
Electromagnetic Compliance - CLASS A, UL62368
Jumbo Frames - Yes
QTS Built-in - Yes
CPU - Intel Atom C3758 8-core 2.2 GHz processor
CPU Architecture - 64-bit x86
Intel QAT Support - Yes
Internal Network Bandwidth - 2 x 10GbE
Floating Point Unit - Yes
Encryption Engine - Yes (AES-NI)
System Memory - 8 GB (1 x 16 GB)
Maximum Memory - 64 GB
Memory Slot - 2 x SODIMM DDR4
Flash Memory - 4GB (Dual boot OS protection)
Drive Bays - 2 x 2.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility
- 2.5-inch bays
- 2.5-inch solid-state drives
- 2.5-inch hard disk drives
Hot-swappable - Yes
M.2 SSD Slots - 2 (NVMe, PCIe Gen3 x 1)
SSD Cache Acceleration Support - Yes
File System: Internal Hard Drive - EXT4
File System: External Hard Drive - EXT3, EXT4, NTFS, FAT32, HFS+, exFAT (optional license)
Warranty - 2 Years
