Categories > Browse by Brand > QNAP > QNAP Storage > QNAP Enterprise

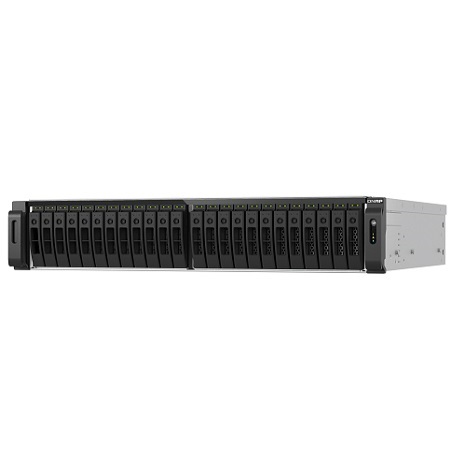

TS-h3077AFU-R7-64G-US QNAP 30-Bay Rackmount NAS 5.3 GHz AMD Ryzen 7 7000 Series 8-Core/16-Thread Processor 64 GB RAM - No HDD

SKU: TS-h3077AFU-R7-64G-US
Brand: QNAP
  • The QuTS hero operating system maximizes SSD performance and lifespan by featuring technologies such as inline data deduplication, QSAL (QNAP SSD Antiwear Leveling), and more
  • Power-efficient AMD Radeon Graphics streamlines video editing/transcoding and simultaneously runs multiple tasks
  • Upgrade to 100/25 GbE using a PCIe network card and accelerate virtualization, intensive file access, media file transfer, and large backup/restoration tasks
  • Connect up to eight 24-bay JBODs (TL-R2400PES-RP) to attain petabyte-scale storage capacity of 192 drives
  • The TS-h3077AFU will be available and supported by QNAP for an extended period, up to 2030
  • Uses industry-leading DDR5 RAM. Expandable to 192 GB for handling more tasks, and supports ECC memory
More details...
MPN: TS-h3077AFU-R7-64G-US
UPC: 885022027040
MSRP Price: $5,699.00
Online Price: $5,699.00
Save to my Wish List

New to DWG? - Sign Up for immediate access to dealer pricing and benefits.

Already a DWG Customer? - Sign In to view pricing.




Product Details

Gain a competitive advantage by deploying an AMD Ryzen 7000 series-powered SATA SSD all-flash storage with 30 drive bays. The TS-h3077AFU is ideal for media production companies, enterprises, and science research institutions that require high-performance large capacity storage for storing recordings, business assets, Big Data, and virtual machines.

Specifications

  • CPU - AMD Ryzen 7 7000 series 8-core/16-thread processor, burst up to 5.3 GHz AMD Radeon Graphics
  • CPU Architecture - 64-bit x86
  • Floating Point Unit - Yes
  • Encryption Engine - Yes (AES-NI)
  • Hardware-accelerated Transcoding - Yes
  • System Memory - 64 GB UDIMM DDR5 (2x 32 GB)
  • Maximum Memory - 128 GB (4 x 32 GB)
  • Memory Slot - 4 x UDIMM DDR5, Support optional ECC memory
  • Flash Memory - 5GB (Dual boot OS protection)
  • Drive Bay - 30 x 2.5-inch SATA 6Gb/s, 3Gb/s
  • Drive Compatibility - 2.5-inch SATA solid state drives
  • Hot-swappable - Yes
  • SSD Cache Acceleration Support - Yes
  • GPU pass-through - Yes
  • 2.5 Gigabit Ethernet Port (2.5G/1G/100M) - 2 (2.5G/1G/100M/10M)
  • 10 Gigabit Ethernet Port - 2 x 10GBASE-T (10G/5G/2.5G/1G/100M)
  • Wake on LAN (WOL) - Yes
  • Jumbo Frame - Yes
  • PCIe Slot
    • 3
    • Slot 1: Gen 4 x 4
    • Slot 2: Gen 4 x 8 or Gen 4 x 4*
    • Slot 3: Gen 4 x 4
    • *Slot 2 provides the width of PCIe Gen4 x8 when Slot 1 is not in use, and provides the width of PCIe Gen4 x4 when Slot 1 is in use
  • USB 3.2 Gen 2 (10Gbps) Port - 2 x Type-A USB 3.2 Gen 2 10Gbps
  • Form Factor - 2U Rackmount
  • LED Indicators - Power Status, SSD 1-30, Status, LAN, storage expansion port status
  • Buttons - Power, Reset
  • Dimensions (HxWxD) - 3.48 x 18.98 x 21.64 inch Excludes ear hook and the protruding part of the Power Supply Unit
  • Weight (Net) - 28.06 lbs
  • Weight (Gross) - 41.2 lbs
  • Operating Temperature - 0 - 40 °C (32°F - 104°F)
  • Storage Temperature - -20 - 70°C (-4°F - 158°F)
  • Relative Humidity - 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
  • Power Supply Unit - 550W(x2), 100-240V
  • Fan - System fan: 3 x 60mm, 12VDC
  • System Warning - Buzzer
  • Standard Warranty - 5
  • Max. Number of Concurrent Connections (CIFS) - with Max. Memory - 5000

TS-h3077AFU-R7-64G-US Specifications PDF

Check out some additional items that you may need to purchase with this product:
Check the check boxes next to the additional products that you would like to add to the shopping cart, then click on the "Add to Cart" button above. A check box is not shown if a product requires that you select an option or fill out a field. () indicates a required accessory.
QM2-2P-244A Dual M.2 22110/2280 PCIe SSD expansion card (PCIe Gen2 x4), Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled

QM2-2P-244A Dual M.2 22110/2280 PCIe SSD expansion card (PCIe Gen2 x4), Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled

MSRP Price: $145.00
QM2-2P-344A Qnap Dual M.2 PCIe SSD Expansion Card - Supports Up to 2 x M.2 2280/22110 Formfactor M.2 PCIe (Gen3 x 4) SSDs, PCIe (Gen3 x 4) Host Interface

QM2-2P-344A Qnap Dual M.2 PCIe SSD Expansion Card - Supports Up to 2 x M.2 2280/22110 Formfactor M.2 PCIe (Gen3 x 4) SSDs, PCIe (Gen3 x 4) Host Interface

MSRP Price: $175.00
QM2-2P-384A Qnap Dual M.2 PCIe SSD Expansion Card - Supports Up to 2 x M.2 2280/22110 Formfactor M.2 PCIe (Gen3 x 4) SSDs, PCIe (Gen3 x 8) Host Interface

QM2-2P-384A Qnap Dual M.2 PCIe SSD Expansion Card - Supports Up to 2 x M.2 2280/22110 Formfactor M.2 PCIe (Gen3 x 4) SSDs, PCIe (Gen3 x 8) Host Interface

MSRP Price: $209.00
QM2-2P10G1TB QNAP 2 x PCIe Gen3 NVMe SSD & 1 x 10GbE Port Expansion Card to Enhance Performance

QM2-2P10G1TB QNAP 2 x PCIe Gen3 NVMe SSD & 1 x 10GbE Port Expansion Card to Enhance Performance

MSRP Price: $219.00
QM2-2P2G2T QNAP QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen3 x 4 , 2 x Intel I225LM 2.5GbE NBASE-T Port

QM2-2P2G2T QNAP QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen3 x 4 , 2 x Intel I225LM 2.5GbE NBASE-T Port

MSRP Price: $175.00
QM2-2P410G1T QNAP 2 x M.2 PCIe Gen4 NVMe SSD & 1 x 10GbE Port Expansion Card

QM2-2P410G1T QNAP 2 x M.2 PCIe Gen4 NVMe SSD & 1 x 10GbE Port Expansion Card

MSRP Price: $589.00
QM2-2P410G2T QNAP 2 x M.2 PCIe Gen4 NVMe SSD & 2 x 10GbE Ports Expansion Cards

QM2-2P410G2T QNAP 2 x M.2 PCIe Gen4 NVMe SSD & 2 x 10GbE Ports Expansion Cards

MSRP Price: $649.00
QM2-2S-220A QNAP Dual M.2 22110/2280 SATA SSD Expansion Card

QM2-2S-220A QNAP Dual M.2 22110/2280 SATA SSD Expansion Card

MSRP Price: $89.00
QM2-4P-384 QNAP Quad M.2 PCIe SSD expansion card supports up to four M.2 2280 formfactor M.2 PCIe (Gen3 x4) SSDs PCIe Gen3 x8 host interface

QM2-4P-384 QNAP Quad M.2 PCIe SSD expansion card supports up to four M.2 2280 formfactor M.2 PCIe (Gen3 x4) SSDs PCIe Gen3 x8 host interface

MSRP Price: $169.00
RAIL-A03-57 QNAP Rail Kit for TS-ECx80U-RP TVS-EC-x80U-SAS-RP

RAIL-A03-57 QNAP Rail Kit for TS-ECx80U-RP TVS-EC-x80U-SAS-RP

MSRP Price: $169.00
QXG-10G2SF-X710 QNAP Dual-Port, 10 GbE Network Expansion Card

QXG-10G2SF-X710 QNAP Dual-Port, 10 GbE Network Expansion Card

MSRP Price: $249.00
QXG-10G2T-X710 QNAP Dual-Port 10GbE Network Expansion Card

QXG-10G2T-X710 QNAP Dual-Port 10GbE Network Expansion Card

MSRP Price: $359.00
[DISCONTINUED] QXG-10G2TB QNAP Dual-Port 10GbE (BASE-T) Network Adaptor, Low-Profile Form Factor, PCIe Gen3 x4 Aquantia AQC113C, PCIe 3x4

[DISCONTINUED] QXG-10G2TB QNAP Dual-Port 10GbE (BASE-T) Network Adaptor, Low-Profile Form Factor, PCIe Gen3 x4 Aquantia AQC113C, PCIe 3x4

MSRP Price: $269.00
QXG-25G2SF-CX6 QNAP Dual-Port SFP28 25GbE Network Expansion Card

QXG-25G2SF-CX6 QNAP Dual-Port SFP28 25GbE Network Expansion Card

MSRP Price: $449.00
QXG-25G2SF-E810 QNAP Upgrade to Enterprise-level Networks with 25GbE

QXG-25G2SF-E810 QNAP Upgrade to Enterprise-level Networks with 25GbE

MSRP Price: $399.00
QXG-2G1T-I225 QNAP Single Port 2.5GbE 4-Speed Network Card

QXG-2G1T-I225 QNAP Single Port 2.5GbE 4-Speed Network Card

MSRP Price: $69.00
QXG-2G2T-I225 QNAP Dual Port 2.5GbE 4-Speed Network Card

QXG-2G2T-I225 QNAP Dual Port 2.5GbE 4-Speed Network Card

MSRP Price: $79.00
QXG-2G4T-I225 QNAP Quad Port 2.5GbE 4-Speed Network Card

QXG-2G4T-I225 QNAP Quad Port 2.5GbE 4-Speed Network Card

MSRP Price: $135.00
QXG-5G1T-111C QNAP 5GbE Multi-Gig Expansion Card

QXG-5G1T-111C QNAP 5GbE Multi-Gig Expansion Card

MSRP Price: $99.00
QXG-5G2T-111C QNAP Dual Port 5GbE Multi-Gig Expansion Card

QXG-5G2T-111C QNAP Dual Port 5GbE Multi-Gig Expansion Card

MSRP Price: $155.00
QXG-5G4T-111C QNAP Quad-port 5GbE Multi-Gig Expansion Card

QXG-5G4T-111C QNAP Quad-port 5GbE Multi-Gig Expansion Card

MSRP Price: $239.00
QXP-10G2U3A QNAP USB 3.2 Gen 2 Dual-port PCIe Expansion Card

QXP-10G2U3A QNAP USB 3.2 Gen 2 Dual-port PCIe Expansion Card

MSRP Price: $75.00
QXP-16G2FC QNAP 16Gb/s Fibre Channel Host Bus Adapter - Includes 2 Transceivers

QXP-16G2FC QNAP 16Gb/s Fibre Channel Host Bus Adapter - Includes 2 Transceivers

MSRP Price: $999.00
QXP-32G2FC QNAP 32Gb/s Fibre Channel Host Bus Adapter - Includes 2 Transceivers

QXP-32G2FC QNAP 32Gb/s Fibre Channel Host Bus Adapter - Includes 2 Transceivers

MSRP Price: $1,499.00
QXP-3X4PES QNAP 2 Ports (SFF-8644) Expansion Card

QXP-3X4PES QNAP 2 Ports (SFF-8644) Expansion Card

MSRP Price: $149.00
QXP-820S-B3408 QNAP 2-Port MiniSAS HD Host Bus Adapter

QXP-820S-B3408 QNAP 2-Port MiniSAS HD Host Bus Adapter

MSRP Price: $399.00
QXP-W6-AX200 QNAP WiFi 6 PCIe Wireless Card with Antenna & Brackets

QXP-W6-AX200 QNAP WiFi 6 PCIe Wireless Card with Antenna & Brackets

MSRP Price: $89.00

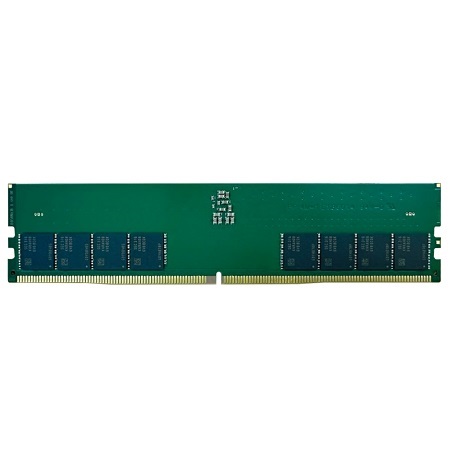

RAM-16GDR5ECT0-UD-4800 Qnap 16GB DDR5 ECC RAM 4800 MHz UDIMM T0 Version

RAM-16GDR5ECT0-UD-4800 Qnap 16GB DDR5 ECC RAM 4800 MHz UDIMM T0 Version

MSRP Price: $325.00

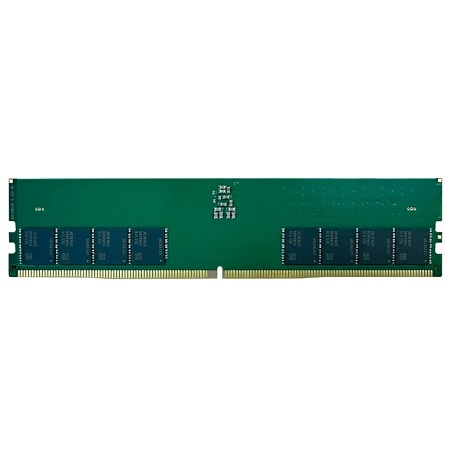

RAM-16GDR5T0-UD-4800 Qnap 16GB DDR5 RAM 4800 MHz UDIMM T0 Version

RAM-16GDR5T0-UD-4800 Qnap 16GB DDR5 RAM 4800 MHz UDIMM T0 Version

MSRP Price: $260.00

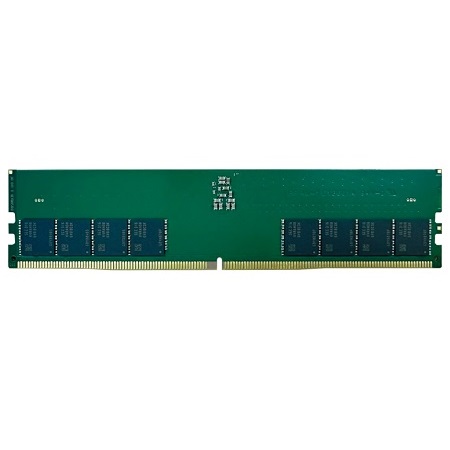

RAM-32GDR5ECT0-UD-4800 Qnap 32GB DDR5 ECC RAM 4800 MHz UDIMM T0 Version
