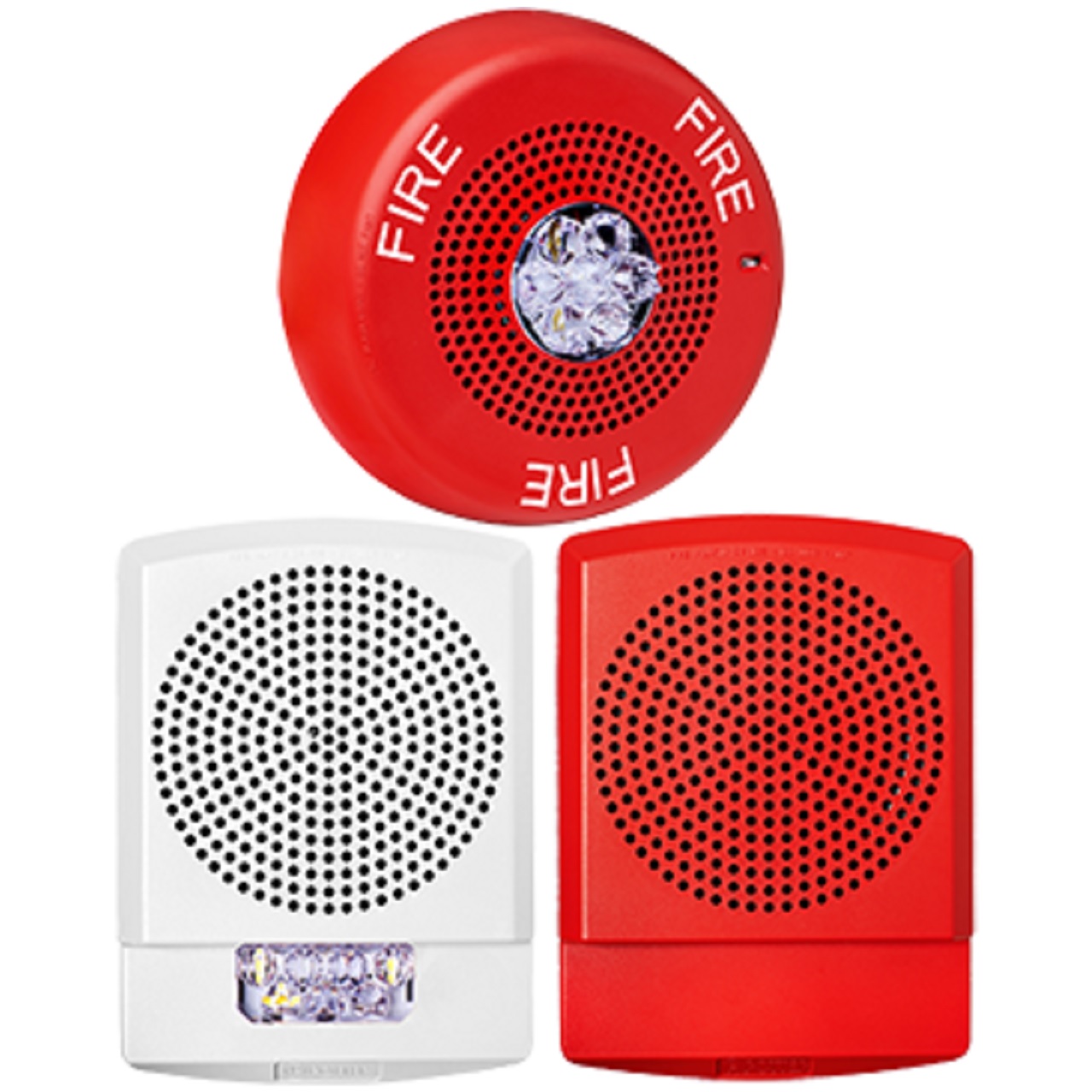

4871018 Potter PE-SPSTR High Fidelity Speaker Strobe LED Wall Fire Clear Lens 25/70V Indoor - Red

Features

• High intelligibility at minimum wattage across a frequency range of 300 to 8000 Hz
• LED Technology for Energy Efficiency
• 6 field selectable candela settings Wall 15 cd - 185 cd / ceiling 15 cd - 177 cd
• Field selectable speaker settings: 1/8 W up to 2 W
• Strobe synchronization with Potter fire alarm control panels and power supplies. Ability to mix xenon and LED strobes in the same field of view
• 5 year warranty

Description

The Potter speakers feature high fidelity sound output, and speaker strobe models include advanced power saving LED technology with a full range of candela settings for indoor wall and ceiling mount applications. With a wide frequency range of 300 to 8000 Hz, the PE-SPK and PE-SPST feature leading technology with crisp, clear voice messages and tone signaling, ideal for emergency communications, mass notification, voice evacuation, and fire alarm.

High Efficiency, LED Technology

The PE series of LED strobes utilize LED technology and optical design to improve efficiency and reduce overall power consumption. Strobe models offer six candela settings (15, 30, 75, 1010, 135, 185 cd for wall models and 15, 30, 75, 110, 150, 177 cd for ceiling models).

Technical Specifications

• Mounting Options (Indoor Only)
  • Wall Mount - PE-SPKBB backboxes, 4" square backboxes
  • Ceiling Mount - PE-SPKBB-C backboxes, 4" square backboxes
• Wire Gauge - # 12 through # 18 AWG
• Operating Temp - 32°F to 122°F (0°C to 50°C) maximum humidity 93%
• Dimensions
  • PE-SPK: 6.35"H x 4.56"W x 1.54"D
  • PE-SPST: 6.35"H x 4.56"W x 1.54"D
  • PE-SPSTC: 6.27" Diameter x 2.29"Depth
• Operating Voltage - 25/70 VRMS; Strobe: 24VDC/24VFWR
• Strobe Output Rating
  • UL 1971, UL 1638
  • Wall Selectable candela output: 15, 30, 75, 110, 135, 185
  • Ceiling Selectable candela output:15, 30, 75, 110, 150, 177
• Weight - Wall and ceiling speaker strobe: 1.54 lbs (700g)
• Synchronization Models - Strobes can be synchronized with Potter fire alarm control panels and power supplies using Wheelock sync protocol
• Frequency Range - 300 Hz to 8000 Hz

4871018 Specifications PDF
