HEG37K2A000 Videotec HEG Housing 14" (365mm) w/ Sunshield and Heater, 12-24VAC

Search available promotions and discounts for this Item

SKU: HEG37K2A000

Brand: Videotec

For large lenses
IP66/IP67
Slide extractable body
Version available with a very efficient cooling system for installation with IP cameras and for high environmental temperature
Versions with reinforced double heater (down to -40™C(-40™F) or triple (down to -58™C)
Available accessories: heater, camera power supply, wiper, washer pump
Internal usable area (WxHxL): 134x88x273mm (5.1x3.5x10.7in) (HEG37)

More details...

Search available promotions and discounts for this Item

MPN: HEG37K2A000

MSRP Price: $372.00

Online Price: $372.00

New to DWG? - Sign Up for immediate access to dealer pricing and benefits.

Already a DWG Customer? - Sign In to view pricing.

Product Details

Robust and large aluminum housing designed to fit combinations of 1/2", 1/3" and 1/4" cameras and with optics of different kinds. ™It can be used for a variety of applications, for the monitoring of urban and highways, in particular if coupled with the PTH900 P&T series. ™The opening system allows an easy access for installation and servicing. ™It can be installed with cable sheaths, instead of regular cable glands using the junction box for the wiring harness. ™A wide range of accessories for mounting the equipment is available thereby satisfying all installation needs.

General

Aluminium back and front cover plates
Extruded aluminium body, external slide
Epoxypolyester powder painting, RAL9002 colour
Stainless steel external screws
Supplied with instruction manual, desiccant bag, accessories for camera and lens mounting

Mechanical

Cable Glands: 3xM16
Glass window (WxH): 90x80mm (3.7x3.2in)
Internal usable area (WxH): 134x88mm (5.1x3.5in)
Internal Usable length (with or without accessories):™

HEK26 365mm
HEK30 450mm

Internal usable length (with accessories):

HEK26 273mm (10.8in)
HEK30 363mm (14.3in)

Unit weight: 4.1kg-9lb (HEG37), 4.7kg-10.3lb (HEG47)

Electrical

Heater TON™15™C™3™C (59™C™5™C), Toff 22™C™3™C (77™F™5™C))

Power supply/Consumption: IN 12Vdc/24Vac, 20W max
Power supply/Consumption: IN 120/230Vac, 40W max

Blower with thermostat and air filter,™TON 35™C™3™C (95™C™5™C), Toff 20™C™3™C (71™F™5™C))

In 12Vdc, consumption 4W max
In 24Vac, consumption 4W max

Camera Power Supply:

IN 100-240Vac, 50/60Hz - OUT 12Vdc, 1A
IN 230Vac - Out 24Vac, 50/60Hz, 400mA

Environment

Indoor/Outdoor
Operating Temperature with heating: From -™20™C (-4™F) to +60™C (140™F)
Operating Temperature with double heater: From - 40™C / +60™F ™(-40™F/ +140™F)
Operating temperature with triple heater: -50™C / +60™F
Resistant to salty fog until 1000 hours (according to IS092278)

Certifications

HEG
CE:EN61000-6-3, EN60065, EN50130-4
IP66/IP67 EN60529 with cable glands
IP44 EN60529 for models with cooling blower and double filter
VIP6A
CE EN61000-6-3, EN60065, EN50130-4
IP66 EN60529

HEG37K2A000 Specifications PDF

Check out some additional items that you may need to purchase with this product:

Check the check boxes next to the additional products that you would like to add to the shopping cart, then click on the "Add to Cart" button above. A check box is not shown if a product requires that you select an option or fill out a field. (

) indicates a required accessory.

WBJA VIDEOTEC Housing wall bracket w/ ball joint (max 55lb)

MSRP Price: $35.00

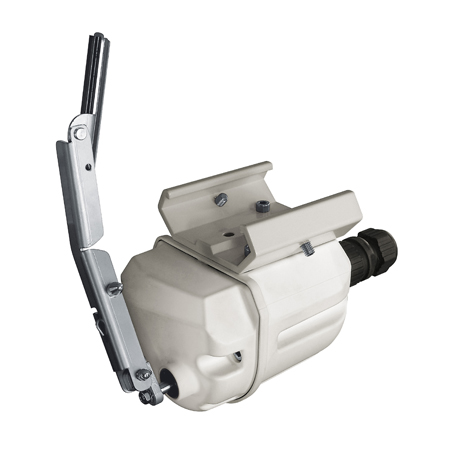

VIP6A2 Videotec Wiper Kit 24VAC For HEG Housings
