E-941DA-1K2Q Seco-Larm 1200 lb. (545 kg) Double Door Electromagnetic Lock

Search available promotions and discounts for this Item

SKU: E-941DA-1K2Q

Brand: Seco-larm

Anodized aluminum housing (US 28).
12 or 24 VDC (selectable).
No residual magnetism.
Adjustable mounting bracket.
MOV surge protection.
Complete mounting hardware for typical installations.
"L" bracket and "Z" brackets available for easy mounting.
Detachable face plate.
UL and ULC listed.
CE listed.
RoHS compliant.

More details...

Search available promotions and discounts for this Item

MPN: E-941DA-1K2Q
Availability: In Stock

MSRP Price: $470.30

Online Price: $470.30

New to DWG? - Sign Up for immediate access to dealer pricing and benefits.

Already a DWG Customer? - Sign In to view pricing.

Product Details

Double-door electromagnetic lock with 1,200-lb (545kg) holding force per door. 12 or 24 VDC operation. UL, CUL approved.

Specifications

Holding force per door - 1,200-lb (545kg)
Operating voltage - 12/24 VDC
Current draw - 12VDC - 500mA
Current draw - 24VDC - 250mA
Operating temperature - 14°~131° F (-10°~55° C)
Weight - 21-lb (10kg)
Status LEDs - No

E-941DA-1K2Q Specifications PDF

E-941DA-1K2Q Manual

Check out some additional items that you may need to purchase with this product:

Check the check boxes next to the additional products that you would like to add to the shopping cart, then click on the "Add to Cart" button above. A check box is not shown if a product requires that you select an option or fill out a field. (

) indicates a required accessory.

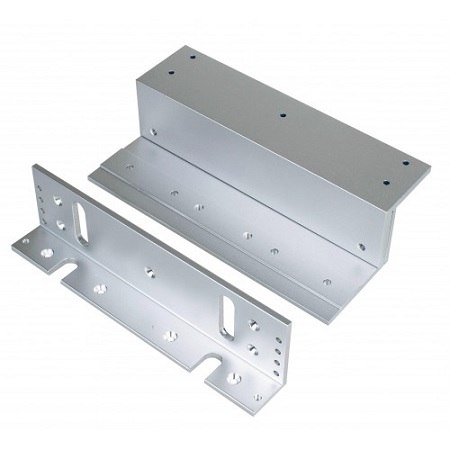

E-941S-1K2/ZQ Seco-Larm "Z" Mounting Bracket for 1200lb. Series - Armature Plate Not Included

MSRP Price: $138.30

E-941S-1K2/AP Seco-Larm Armature Plate for 1200lb. Series

MSRP Price: $70.80
